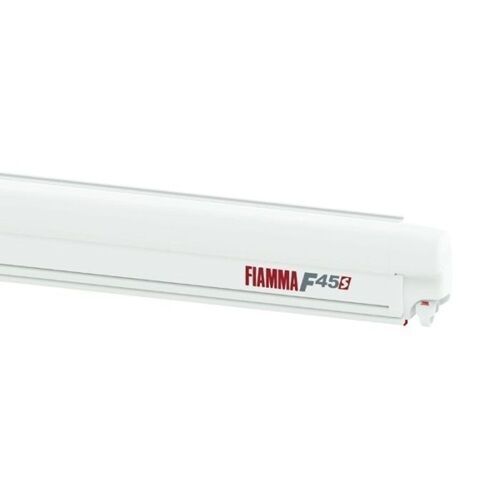

FIAMMA F45 S AWNING P/WH 3.0M ROYAL GREY
CALCULATE SHIPPING:
Accessories List:
Description
Fiamma F45 Awning for your Caravan, Camper Trailer, Pop Top or RV
The easy-to-use and simple-to-install awning joins today's best technologies, service, and quality. The F45s awning is compact and functional, making it the best choice for your holidays! When not in use the F45s takes up little space while snuggly enclosed in its aluminium case. It is sturdy and safe to operate with an easy-to-hook winch loop. UV resistant, waterproof, washable, Privacy room option available.
The F45 S with 'Royal' vinyl is the latest release in the Fiamma F45 Awning Range. Using the latest technologies Fiamma has taken all the great features of the earlier models (F45 Ti, F45 i & F45Plus) and made them even better.
These easy-to-use awnings can be operated by a single person and allow you to double your living space in under a minute to make the most of the outdoors. Fully enclosed in a solid case when stowed and with no hardware running down the side of the vehicle these are great for use on Campervans, Motorhomes, or any vehicle with a vertically curved wall. From shade screens & sidewalls to a complete annex solution, Fiamma's incorporated design offers a range of options & accessories to customize your outdoor area.
Set Up. A detachable winder is used to extend the awning. Winding allows the front face of the sturdy case to extend horizontally, like a verandah - pulling the fabric out as it goes. When extended, you then unclip the telescopic legs from within the front face, and they are either pegged to the ground or clipped to the base of your RV with the included Lower
Leg Brackets. All awnings come complete with the Standard Bracket Kit which allows the awning to be attached to a vertical face on a Caravan/Motorhome/Gooseneck etc. If the awning is being attached to a curved surface or roof rack you will need to purchase a separate bracket kit OR make a mounting that will accept the Standard Brackets.
Features:
- Durable Case - Powder-coated metal case adds a sleek look to your vehicle while providing extra protection when not in use.
- 6mm Double Guide - Allows you to use multiple accessories like Screens, Lights, Storage Organiser's & Tie Down Kits.
- Presto Fix - Enables instant realignment of the front bar on closing if needed.
- One-Way Drive - This means a perfect close every time.
- Dual Shock Absorber - Protect both your awning and vehicle.
- Extra Strong Arms - Reinforced arms with 3.5mm cable provide a fabric tension of up to 32kg.
- Anti-Scratch Canopies - With an anti-scratch coating on both sides of the canopy they are hardwearing and UV-resistant to stop fading.
- Standard adapters (provided with the awning) and more than 90 personalized brackets enable the mounting on special
- Double guide on the lead bar allowing the installation of two front pieces
- Strong reinforced articulated arms with a double steel cable that allows you to maintain optimal fabric tension.
Specifications:
- Color: Casing: Polar White, Awning; Royal Grey
- Weight: 23kg
- Dimensions: Awning length: 3.08m, Canopy Length: 2.92m, Extension: 2.5m, Shade Surface: 7.3m
Fiamma F45 S Awning Sizes
Use the table to determine which Fiamma F45 Awning is best for you:
|
Awning Model |
Box / Case Length |
Canopy Length |
Canopy Extension |
Shade Surface |
Weight |
|
1.85M |
1.69M |
1.0M |
1.7m2 |
11.5kg |
|
|
2.31M |
2.14M |
1.5M |
3.2m2 |
16.5kg |
|
|
2.63M |
2.47M |
2.0M |
4.9m2 |
19.5kg |
|
|
3.08M |
2.92M |
2.5M |
7.3m2 |
23.0kg |
|
|
3.48M |
3.31M |
2.5M |
8.3m2 |
25.0kg |
|
|
3.98M |
3.81M |
2.5M |
9.5m2 |
27.0kg |
|
|
4.52M |
4.35M |
2.5M |
10.9m2 |
35.0kg |
|
|
5.02M |
4.85M |
2.5M |
12.0m2 |
39.0kg |
Specifications
- Includes: 1 x F45 Box Awning, Reinforced arms with twin cable, Folding crank handle, Duel shock absorber, Standard fitting brackets (suits a flat surface), Standard wall brackets for legs, and Hooks (for securing legs to ground).
- Awning Operation: Manual
- Mounting Type: Wall Mounted Awning
- Canopy Colours Available: Royal Grey, Royal Blue, Evergreen, Bordeaux (Maroon), Sahara (Sandy Colour).
- Canopy Finish: UV resistant, waterproof and washable Vinyl
- Box Colour: Polar White
- Box Finish: Aluminium
- Box Dimensions: refer to above table
- Canopy Dimensions: refer to above table
- Canopy Extension: refer to above table
- Weight: refer to above table
- NOTE: There are adaptors available for a large range of campervans and small motorhomes to be able to correctly install these F45S awnings to your RV wall should you require it. Simply phone us on 1800 RV PARTS (1800 787 278) to talk to one of our friendly team members or email us at: sales@carvanRVcamping.com
.png)
Specifications
SKU A-044295
Brand Fiamma
GTIN 8004815351717
Product Category RV Awnings
Weight 23kg
Length: 2.92M
Extension: 2.5M
Weight: 23 Kg
Product Type: Wall mounted awning
Operation: Manual
Awning Colour: Royal Grey
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 1 Year
Warranty Details: Please CLICK HERE for Warranty Information on this product
Delivery
- We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
- Small Items are sent with Australia Post via regular post.
- Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
- Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
- Items are fully insured during the freight process.
- Unfortunately we cannot deliver to PO Boxes.
- For further details on our Delivery Process you can visit our Delivery Page HERE.
Reviews
Fiama awning
By: Kaye Johnson on23 July 2022
We are very happy with the awning it is exactly the same as we had Very happy with service and prompt delivery. Regards Kaye Johnson
Awning Fiamma F45s
By: Bruce Doyle on13 June 2022
Excellent product true to advertised description delivered very quickly and in perfect condition
Nigel
By: Nigel on20 December 2021
Excellent product, as described and prompt service, alot easier to use than the old bag awning, should have less "in depth" discussions when setting up now, and able to have a beer earlier.
3 met Awning
By: Jim Lawson on21 November 2021
This is the easiest Awning I have ever put up. And also to wind in and out what a great set up 10 out of 10
Q & A
-
Does the Fiamma 45 awning come with mounting brackets?
Yes the Fiamma F45 range of awnings come with standard straight wall mounted brackets.
-
Can I mount a Fiamma 45 on my Toyota Hiace
This can be acheived although there are no standard brackets suited for the Hiace branded vehicles. Fiamma have some universal brackets available on the link here (insert link to F45 brackets)
-
If I want to add a motor to an Fiamma F45 awning what side does it go on?
It would be installed on the right hand side when facing the caravan.
