Enerdrive Journeyman System 40DC 2000X Designed for Utes
SKU: K-JOURNEYMAN-01 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
Description

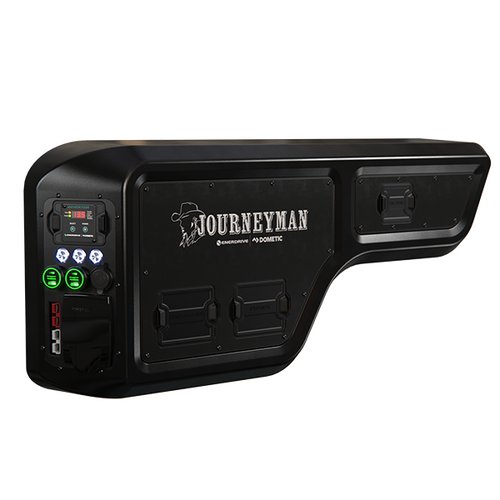

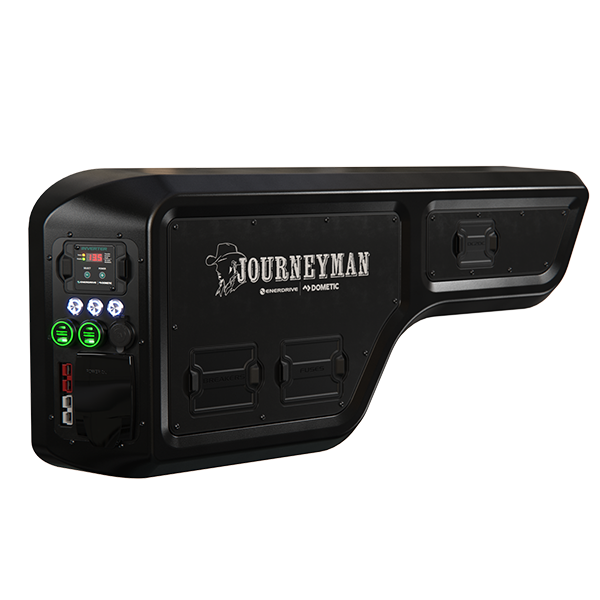

Enerdrive Journeyman System Designed for Utes, Installed on the left hand side
The Enerdrive | Dometic Journeyman has been specifically designed and engineered for ute tubs, providing everything you need to keep your gear powered whilst on the road or on the tracks! Featuring a 2000W Inverter and 40A+ DC2DC with MPPT to charge your battery whilst on the go, or from solar. The innovative design saves space and reduces install time and cabling.
Features:
- 5 year warranty
- Engineered for ute tubs - left hand side installation
- Pre-wired & ready to install

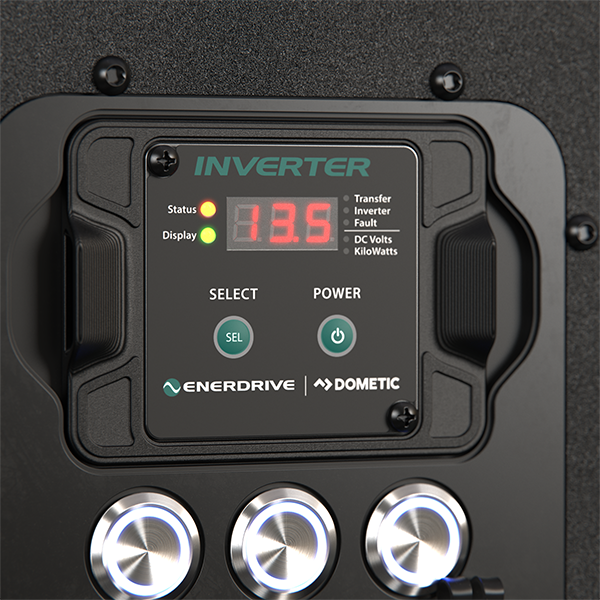

- EN1120S-X 2000W 230V AC Transfer Inverter Installed

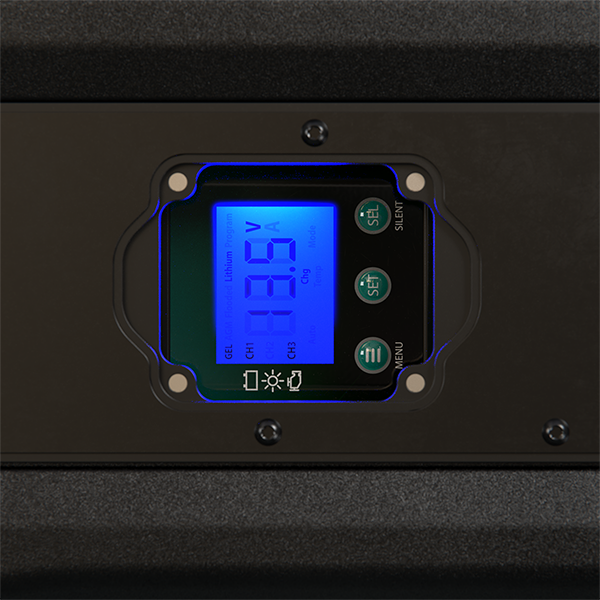

- EN3DC40+ DC2DC Vehicle/Solar Charger Installed

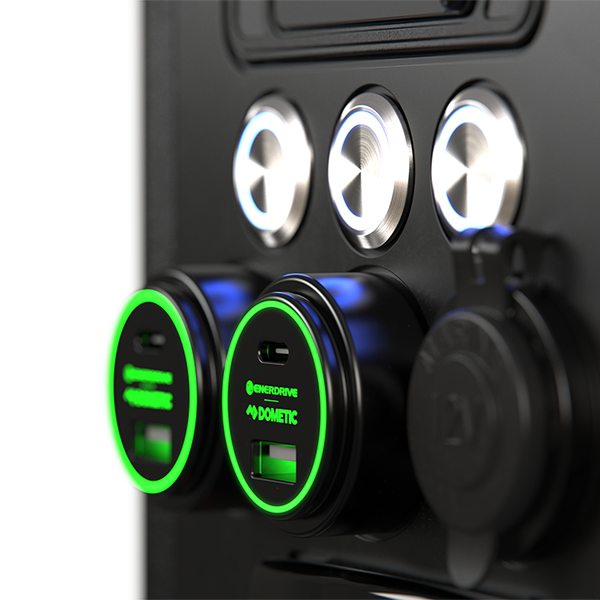

- 12V cigarette socket output
- Twin 100W USB-A & USB-C Outputs
- 230V Output
- Assembled in Brisbane
Note: Customers will be required to purchase the mounting kit from the accessories list above.
.png)
Specifications
SKU K-JOURNEYMAN-01
Brand Enerdrive
Product Category Power Systems
Q & A
-
Can I run solar through this?
Yes, the DC2DC has an inbuilt MPPT Solar Regulator allowing you to run up to 800W at 45VOC.
-

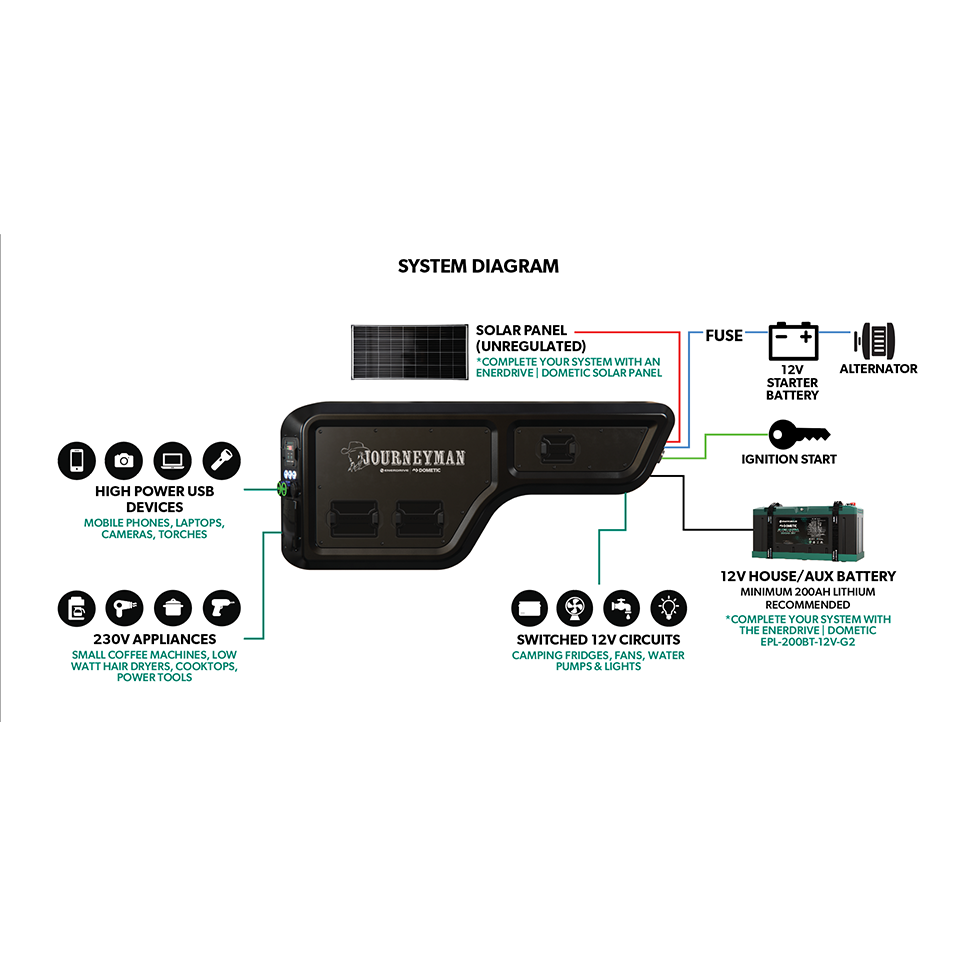

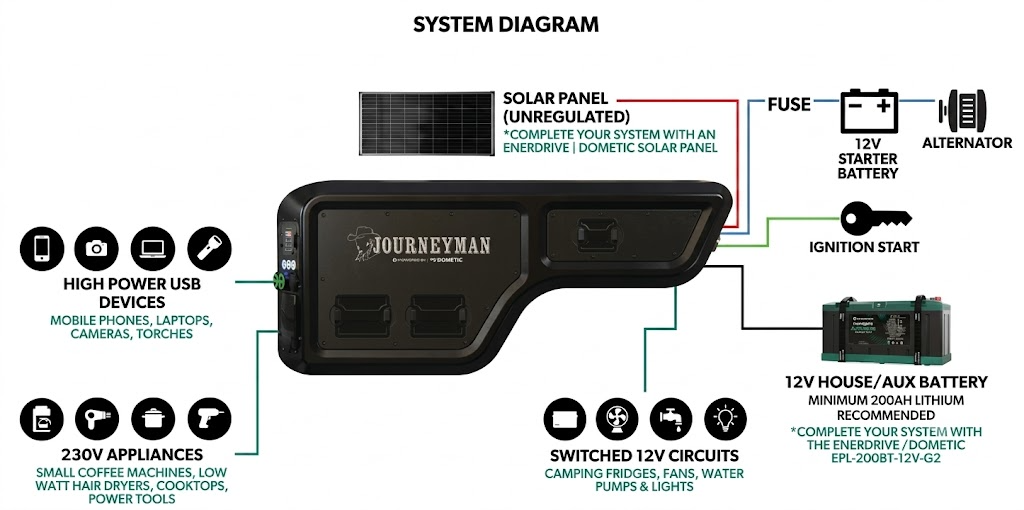

What wiring will I need to do?
You will need to run suitable cable from the unit to the vehicles starter battery for the DC2DC and then separate cable to your battery. Check out the accessories list for cable kits.
-
What battery is recommended for this unit?
It is recommended to have at least 200Ah of lithium as the inverter is 2000W. In the accessories list, have a look at the Enerdrive Ultra 200Ah.
-
Is there a dedicated location for installation?

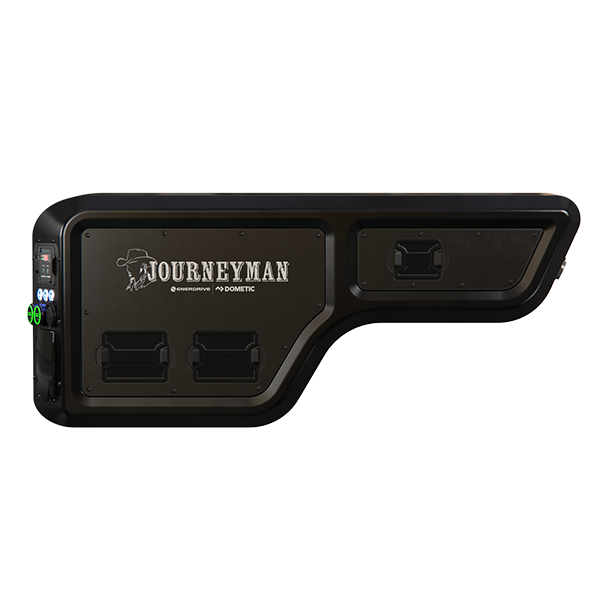

The Enerdrive Journeyman has been designed for ute tubs, to adhere to the curve of the wheel arch. You will then need to purchase the suitable bracket for your vehicle.
-

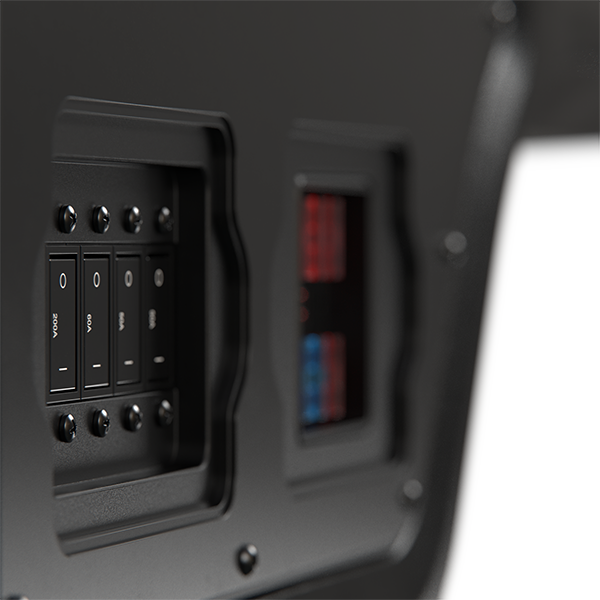

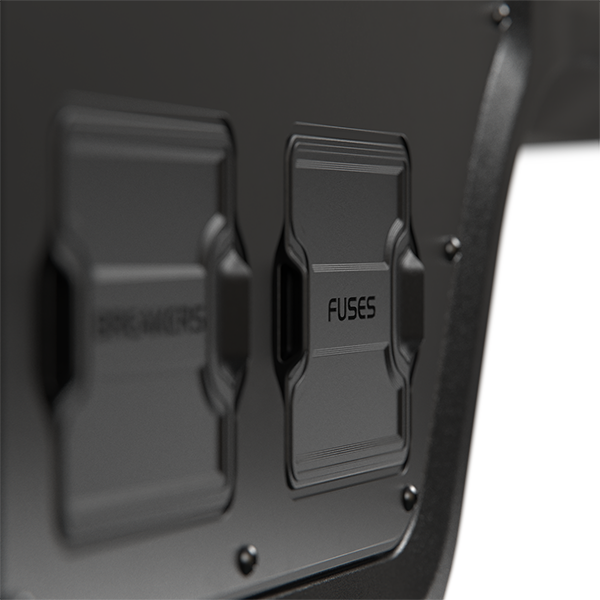

With the unit being completely sealed, how would I access the fuses and breakers?
Enerdrive have conveniently place them on the side of the unit, covered by a sealed flap.
-
I am wanting to run one solar panel on my roof and another portable panel, can I do this?
The Journeyman has two anderson inputs dedicated to solar, one at the rear and one at the front. As long as you don't exceed 800W at 45VOC you will be able to run two separate panels.
-

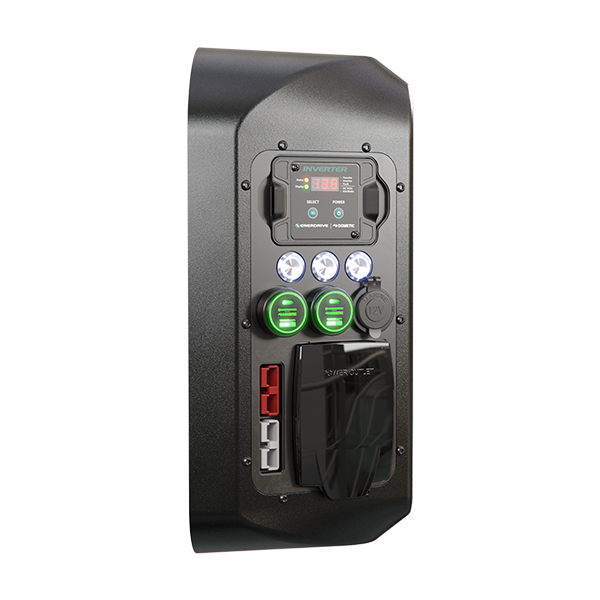

What are the switches on the front of the unit for?
These will be dedicated to your 12V loads. These will be wired through the back of the unit and are limited to 10A. So perfect for fridge, lights, water pump etc.
-
How can I monitor my battery?
The best way to monitor, will be to pair the Journeyman with the 200Ah Ultra Battery. The Ultra has inbuilt Bluetooth, allowing you to monitor from the Enerdrive App.
