Black Jack MASTER Electric Trailer Jack
SKU: BJTJ-MASTER-1000 Learn More»
Description
Black Jack MASTER Electric Trailer Jack
Gone are the days of manually winding the jockey wheel to raise or lower the caravan or trailer. The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today.
The new generation of electric trailer jack technology. The Black Jack Master is a quantum leap in technology and represents the new generation of Black Jacks. Incorporating the all-new Safe Auto Stop that automatically cuts power to the jack at either fully retracted or fully extended. The new Black Jack Master generates a massive lift capacity of 1,600kg. Ball weight is usually 10% of overall weight. So, a Caravan with overall weight (ATM) of 4,000kg will have a ball weight of approximately 400kg. The Black Jack Master will lift up to 1,600 kg so it will do it with ease. All Black Jack Master comes with a Pre-installed Anderson plug for easy “Plug and Play” connection.
Features:
- Black Jack Safe Auto Stop- cuts power when fully retracted or extended
- 1600 kg lifting capacity, more than enough muscle
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Removable foot pad extension for travelling
- Tough powder coated finish
- Pre wired to an Andersen plug – length of cable is 1.4m
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free all weather cover to keep the rain out
- All Black Jacks carry an unconditional 3-year warranty and are compliant with Australian Gas Standards.

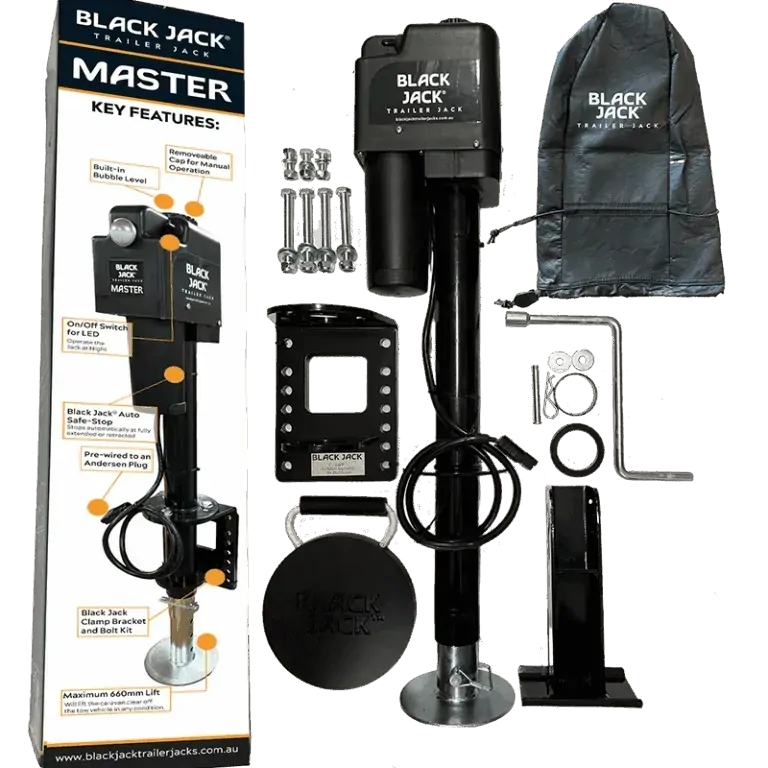

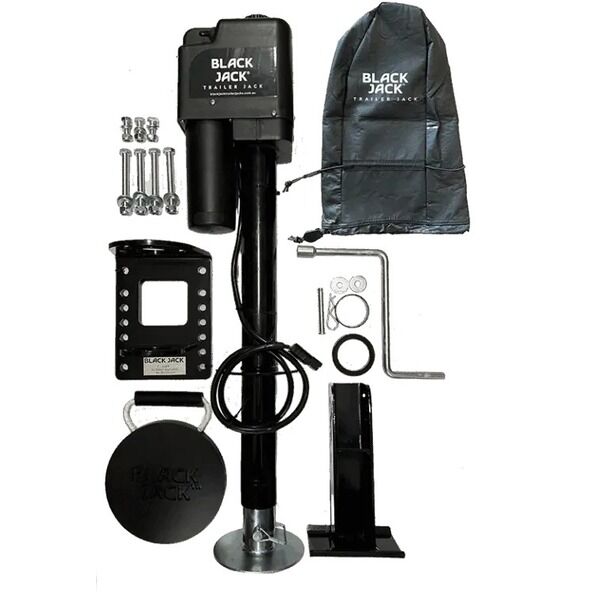

Includes:
- The new Black Jack Master

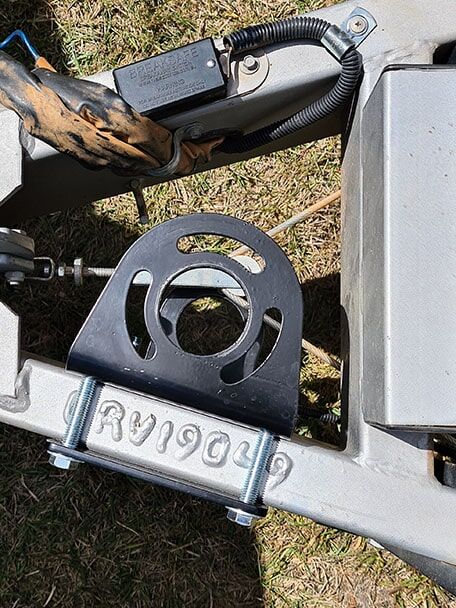

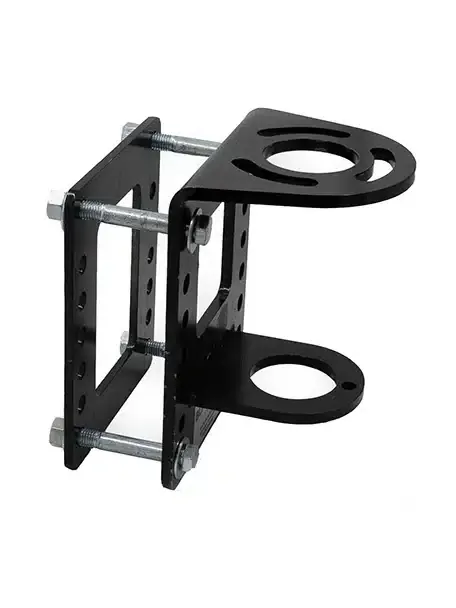

- Patented Black Jack Clamp (Australian Patent No 2021204066 & 2023285778) with full bolt kit

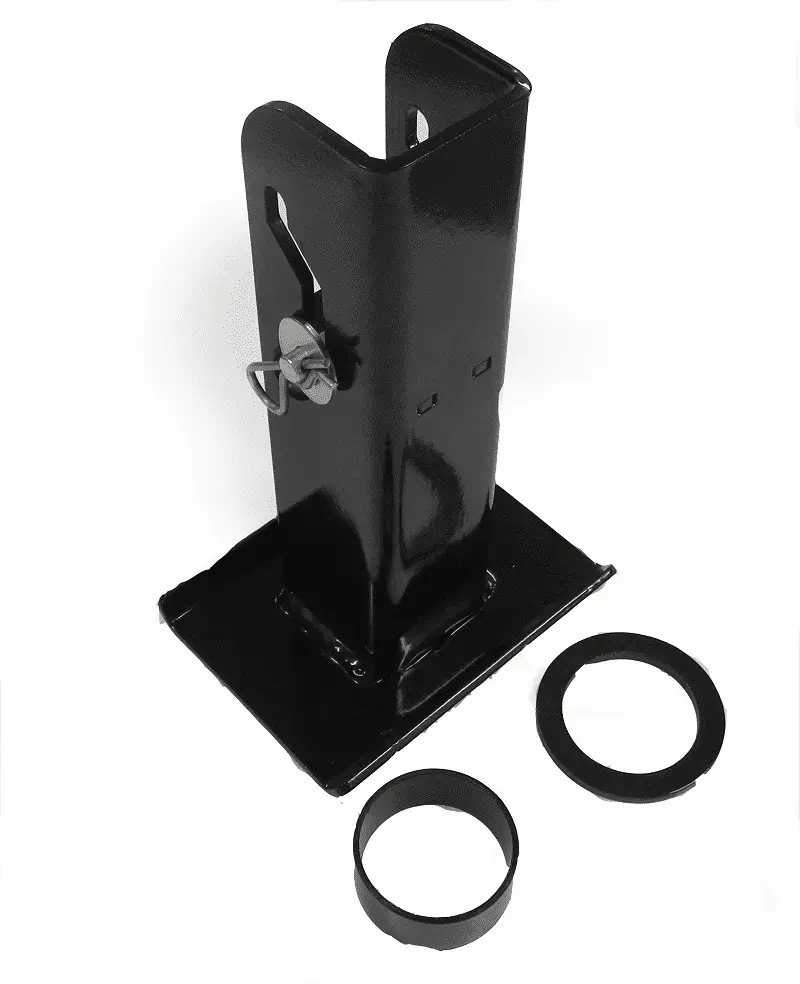

- Folding Foot and Adjustable Foot
- All Weather Cover

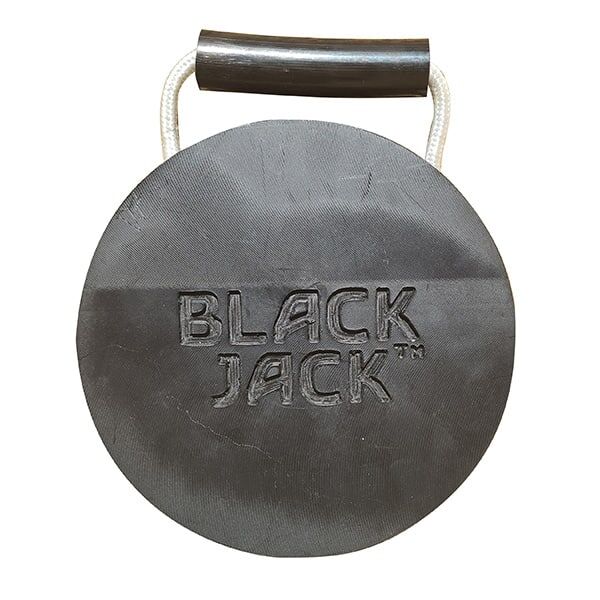

- Black Jack Soft Ground Foot Pad
- Manual Handle
Specifications
SKU BJTJ-MASTER-1000
Brand Black Jack
Product Category Jockey Wheels and Jacks
Weight (kg) 17
Lifting Capacity 1600 kg
Q & A
-
Will the Black Jack fit my existing Jockey Wheel Clamp?
A standard jockey wheel’s diameter is 50mm, the Back Jack is more robust at 60mm. So, the Black Jack will not fit in a standard jockey wheel clamp.
-
Is the Black Jack gas compliant?
Yes the Black Jack has been tested and is fully compliant with the Australian gas standard AS/NZS 5601.2:2020 + A1:2021.
-
How is the Black Jack powered?
All Black Jacks come pre-wired to a 50A Anderson plug, and require constant 12V power to operate. If your car or caravan does not have a suitable Anderson plug, consider our wiring harness.
-
How much power does the Black Jack draw during operation?
The Black Jack will pull 6A with no load, and a maximum of 28A under the maximal load of 1600kg.
-
How much lift can the Black Jack give me?
The Black Jack can give a max lift of up to 650mm.
