BMPRO ProBoost 12V 25A DC to DC Lithium Battery Charger with Solar Input
Q & A | SKU: BMPPB1225 Learn More»
Description

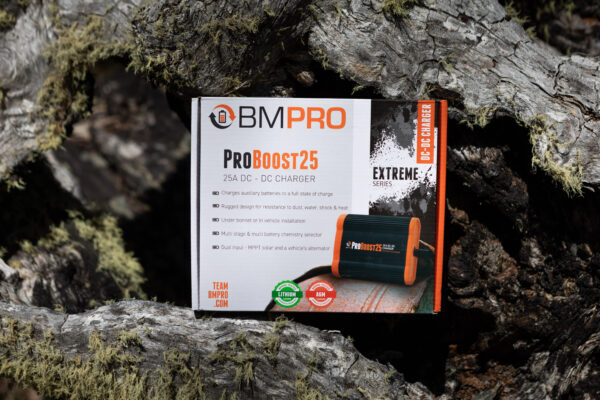

BMPRO ProBoost 12V 25A DC to DC Lithium Battery Charger with Solar Input
BMPRO’s ProBoost25 is a DC-DC battery charger that allows you to charge a secondary battery using solar panels and/or a towing vehicle’s 12V electrical system.
The ProBoost25 utilises solar and auxiliary inputs to produce a maximum of 40A which ensures there is a consistent charge to your battery.
Compatible with both lead-acid and lithium LiFePO4 batteries, the high power density design of the ProBoost25 provides efficiency of up to 93%.
The ProBoost25 has an ultra-thin design, making it suitable for installation in small spaces, and is resilient to shaking, as well as wet, dusty or muddy environments.
A range of protective features built into the ProBoost25, such as overtemperature, overvoltage and undervoltage protection, will guard your charging capacity.
Features:
- In vehicle multi-stage DC-DC charger
- Dual input MPPT solar/aux (alternator)
- Multi battery chemistry selector
- Suitable for modern smart alternators
- IP66 rating – resistant to dust, water and shock damage
- Maintains a 100% state of charge of auxiliary batteries
- Suitable for under-bonnet installation
- BMPRO signature durability and ease of use
Specifications
- Input Voltage 9-18V DC
- Solar Input Voltage 10-32V
- Maximum Input Current 27A
- Input Fuse Rating 40A
- Continuous Output Current 25A
- Output Fuse Rating 40A
- Minimum Start Voltage (Lead-Acid) 4V
- Minimum Start Voltage (LiFePO4) 0V
- Standby Current <15mA
- Battery Chemistry STD, Gel, AGM, Calcium, LiFePO4
- Operating Temperature -20°C to 80°C
- IP Rating IP66
- Dimensions 145mm x 130mm x 43mm
- Charge Type 3-Stage
- Maximum Voltage (STD) 14.4V
- Maximum Voltage (Gel) 14.1V
- Maximum Voltage (AGM) 14.7V
- Maximum Voltage (Calcium) 15.3V
- Maximum Voltage (LiFePO4) 14.5V
- Float Voltage (STD) 13.4V
- Float Voltage (Gel) 13.5V
- Float Voltage (AGM) 13.4V
- Float Voltage (Calcium) 13.6V
- Float Voltage (LiFePO4) 13.6V
- Turn On Input (Standard Alternator) >13.1V
- Turn On Input (Smart Alternator) >12.0V
- Turn Off Input (Standard Alternator) <12.8V
- Turn Off Input (Smart Alternator) <11.8V
*The ProBoost is designed to work as a standalone product.
If you want to use this with a BMPRO Power Management System, such as the BatteryPlus35-II or the J35, you will need to connect it through a BC300 External Shunt.
.png)
Specifications
SKU BMPPB1225
Brand BMPRO
Product Category Battery Chargers
Voltage 12V
Output Current Rating (Amps) 25
Dimensions 145 x 130 x 43mm
NOTE: see full product specifications & further product info in the Description section on this page.
