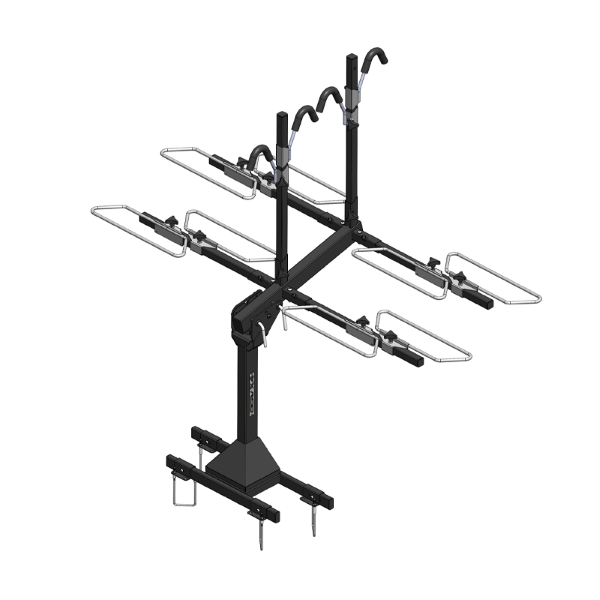

COAST RV CARAVAN BIKE RACK X4
Engineered from high-grade Extra 400 steel and finished with zinc plating plus a Textura powder coat, the X4 is built to handle heavy loads and withstand Australian touring conditions. Its pivoting design rotates smoothly, letting you reach your drawbar storage without removing your bikes.
Key Features
- Designed for caravans – A-frame rack tailored for drawbar installation
- Carries 4 bikes – elevated rack suitable for wheel sizes from 20” to 29”
- Heavy-duty construction – Extra 400 high-grade steel frame
- Long-lasting protection – zinc plated and Textura powder-coated finish
- 80kg load capacity – ideal for multiple family bikes or e-bikes
- Pivoting design – rack rotation gives safe access to gas bottles and toolboxes
- Certified quality – welding meets AS/NZS1554.1 standards with ISO 9001 certification
- Rack weight – 45.7kg including all hardware
What’s in the Box
- 1x Coast RV X4 Caravan Bike Rack (4 Bike)
- Complete mounting hardware set
- User installation instructions
Specifications
SKU 350-20054
Brand Coast to Coast
Product Category Bikes and Bike Carriers
Weight (kg) 45.7
Bike Capacity 4
Q & A
-
How much clearance is required from the caravan?
A minimum of 130mm clearance is required between the pivot beam and the caravan wall.
-
Which bike should go closest to the caravan?
The heaviest bike should be placed closest to the post assembly (nearest the caravan) for better weight distribution.
-
How are the bikes secured?
Bikes are held in place using wheel cradles and stabiliser posts with claw grips, tightened securely with hand knobs.
-
Can the bikes touch each other?
No, bikes should not touch each other or the carrier. Use protective material like foam to prevent damage.
-
Can I tilt the rack with bikes loaded?
No, it is not recommended to tilt the rack while bikes are loaded.
-
Do I need to check the carrier before each trip?
Yes, all nuts, bolts, and fasteners should be checked before every trip to ensure safety.
-
Do I need spacers for installation?
It depends on your A-frame size:
- (127mm to 150mm) x 50mm A-Frame - No Spacer is required
- (100mm to 126mm) x 51mm A-Frame - The Spacer is Required
-
Can I install this bike carrier myself?
Yes, the carrier is designed for DIY installation using the supplied hardware and step-by-step instructions. Assistance is recommended when positioning or lifting components.
