Dometic 3-IN-1 AC DC-DC MPPT Battery Charger

Dometic 3-IN-1 AC DC-DC MPPT Battery Charger

The Dometic 3-IN-1 Battery Charger combines AC, DC-DC, and MPPT solar charging in one compact, high-performance unit. With up to 80A output, it ensures fast, reliable charging from any source. Its innovative design saves space, reduces install time and cabling, and includes a remote display for easy monitoring.

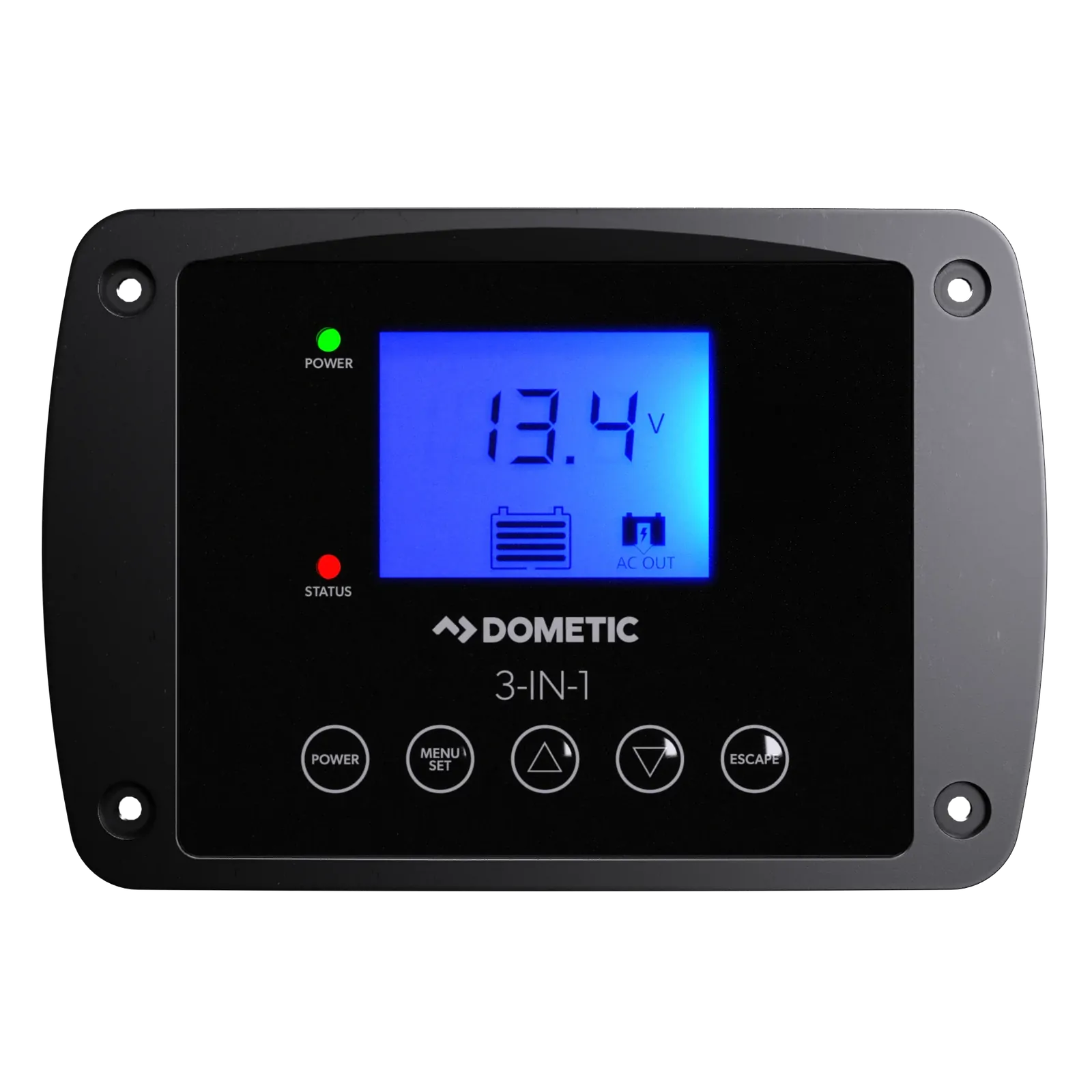

Included with the charger is a fully programmable remote LCD display panel, allowing for easy, remote monitoring and control of your unit.

Features:

• AC Input: Allows you to charge your battery bank from 240V mains power, generator, or while parked in the garage at home.
• DC-DC Charging: Built in DC-DC charger allows charging your house battery from the vehicles Alternator up to 40A.
• MPPT Solar Charging: The integrated MPPT solar regulator delivers up to 40A output from your solar panel, ensuring fast & efficient battery charging.
• Advanced Battery Charging: Charge your battery from a variety of input sources, with the ability to use AC and DC-DC / MPPT simultaneously.
• Fan Cooled: For optimum performance, the 3-IN-1 charger is fan cooled to provide consistent output even in high ambient temperatures.
• Remote Display Included: Included with the charger is a fully programmable remote LCD display panel, allowing for easy, remote monitoring and control of your unit.
• 5 Year Warranty from an Australian company renowned for customer support.

Specifications:

Charge Output:

• Output Current (Maximum): 80A (AC Charger 40A, DC Charger 40A)

Output Voltage Range:

• Charge: 13.5 - 15.5V
• Float: 13.0 - 13.8V
• Equalize: 15.5V (Flooded Battery only)
• Charging Control: 5 Stages (Test/Bulk/Absorption/Float/Recharge)
• DC Output Bank: One
• Selectable Battery Type: Gel, AGM, Lithium, Program, Flooded (with Equalisation)
• Minimum Battery Size: 120Ah minimum with 40A setting

Display Panel:

• AC Input Voltage (Nominal): 100,120,220,230,240 VAC
• Digital Display: LED Display with Back Lighting
• Display Indicators: Voltage, Current, Status, Error Code

Enclosure:

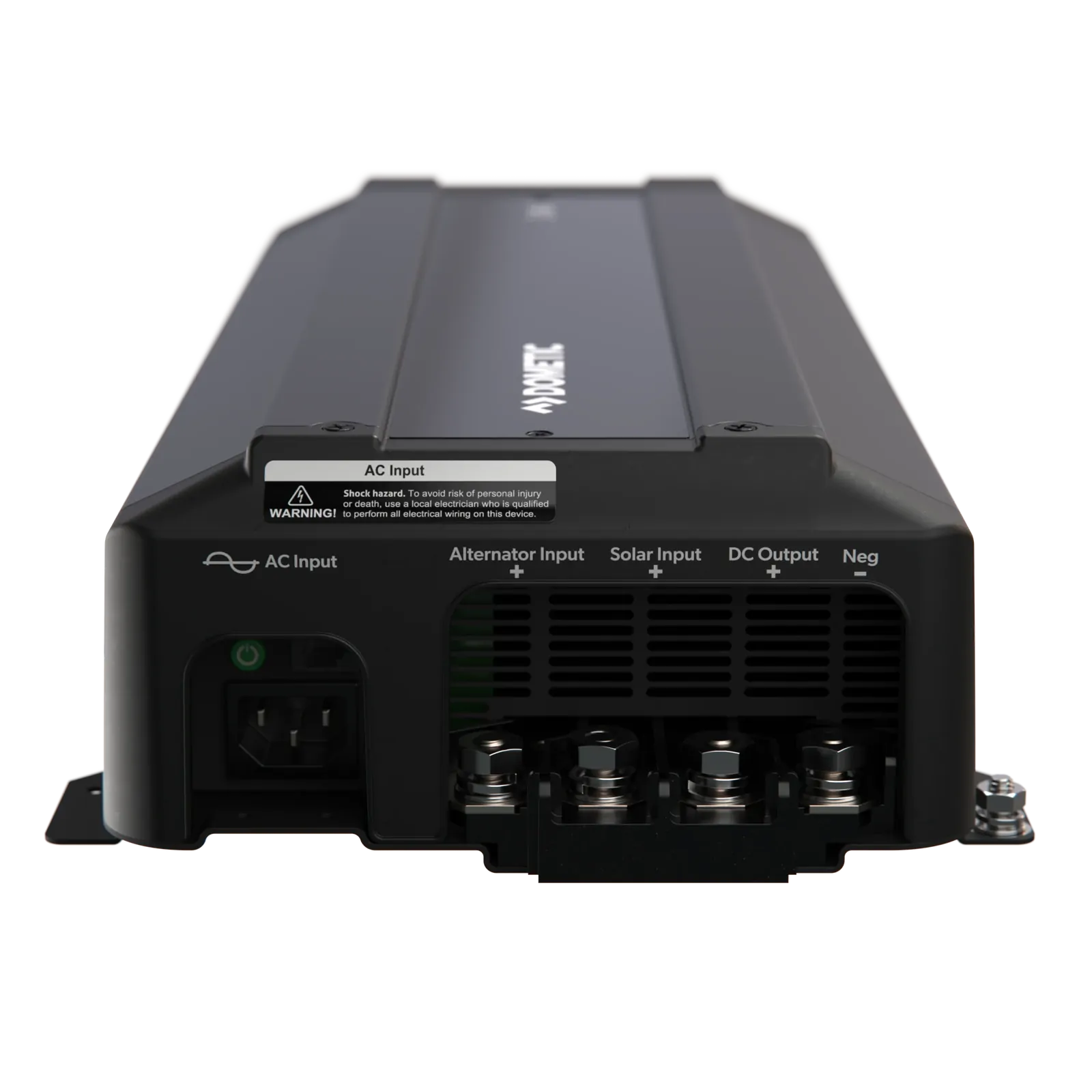

• DC Input Connection: Hardwire
• DC Output Connection: Hardwire
• AC Input Connection: IEC Socket

Enrironment & Operating Temperature:

• Dimensions: 455 x 238 x 104 mm
• Weight: 3.45kg
• Storage Range: -40° to 70° C
• Operating Range: -20° to 60° C
• Humidity: 5-95%, RH non-condensing
• Ingress Protection: IP32 - Protected against solid objects over 2.5mm and water sprays up to 15º from vertical

DC Input (battery/alternator):

• DC Input Range: 10.5-16Vdc
• DC Input Nominal Operation: 13.2V for 12V input charging system
• Engine Start Control ON: DC input from Battery/Alternator
• Engine Start Control OFF: DC input from PV input (if applicable)
• Input Current: Max 40A
• Max Solar Input Current: 1000W

AC Input Utility/AC Generator):

• AC Input Voltage (Nominal): 100,120,220,230,240 VAC
• AC Input Operating Range: 90 - 250VAC
• AC Input Frequency Range: 47 – 63 Hz
