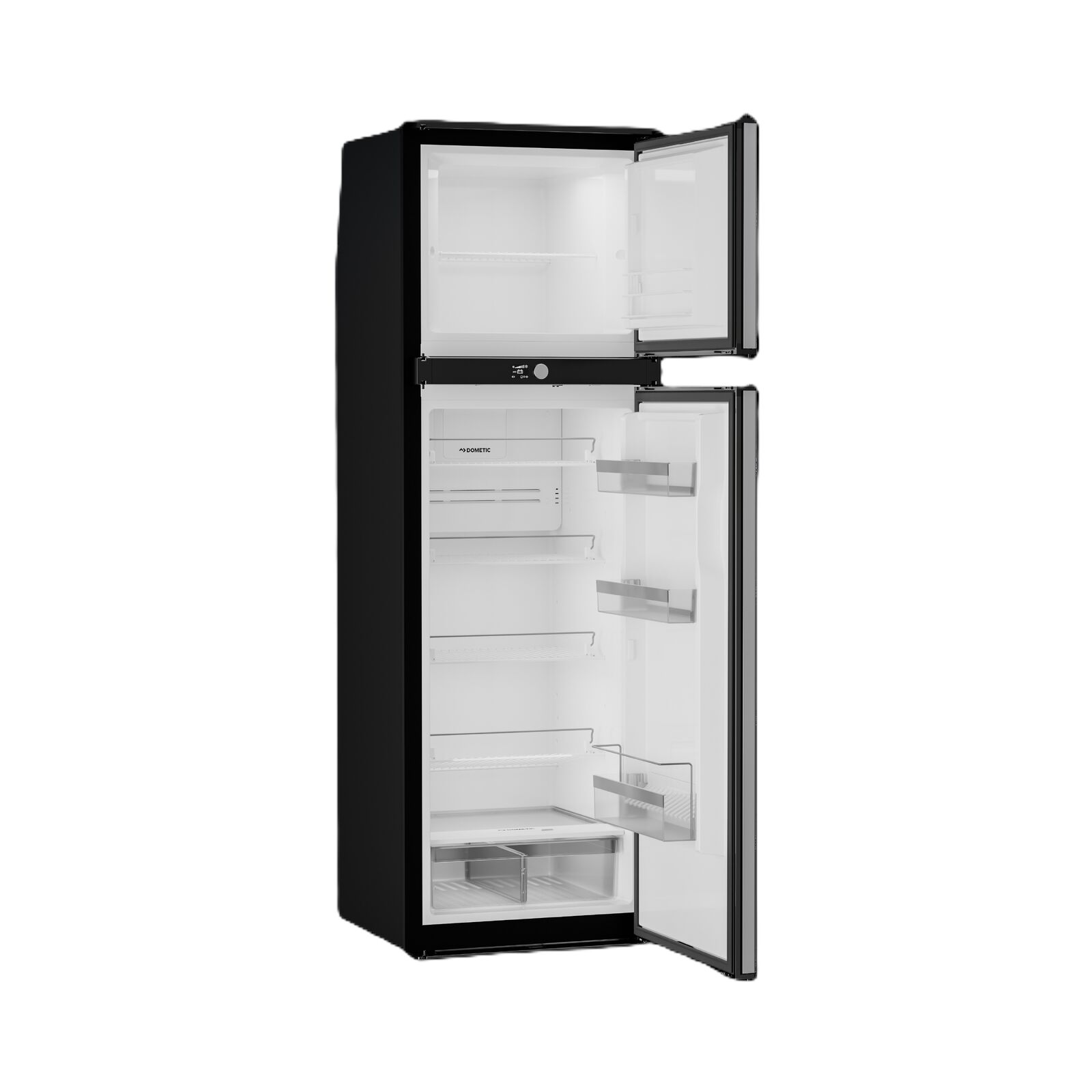

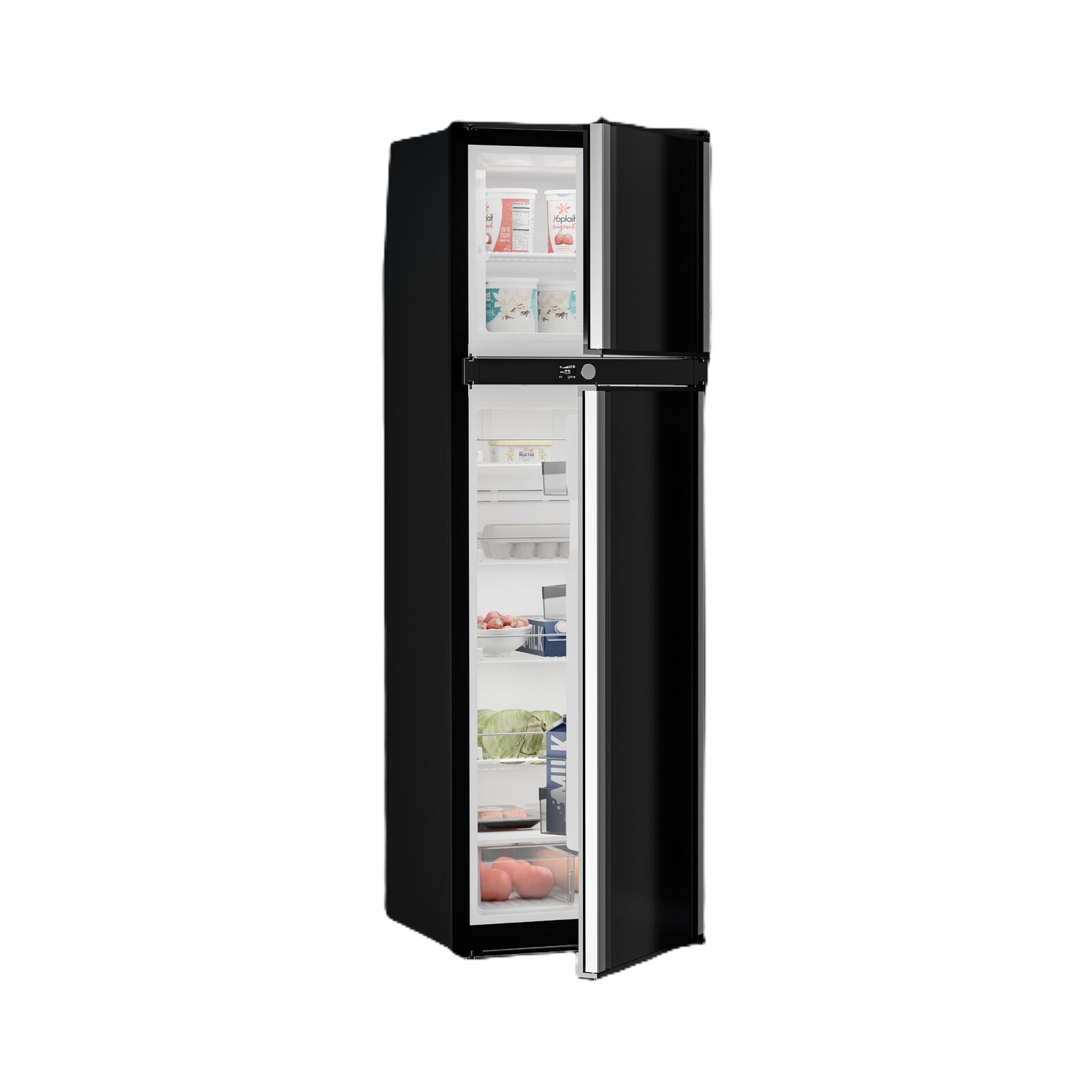

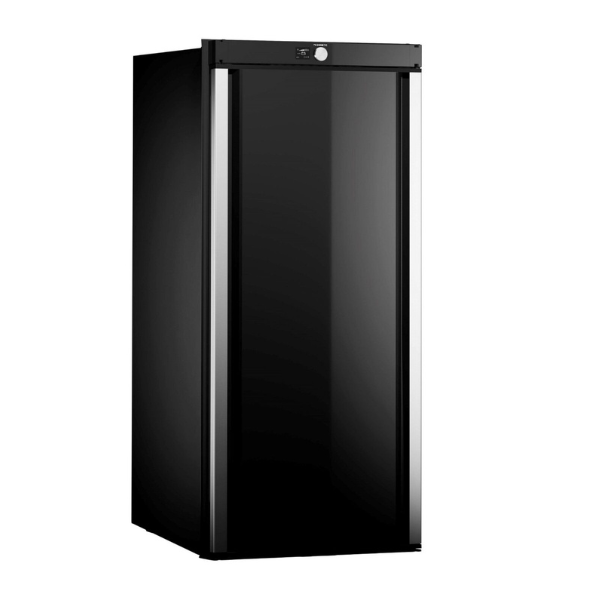

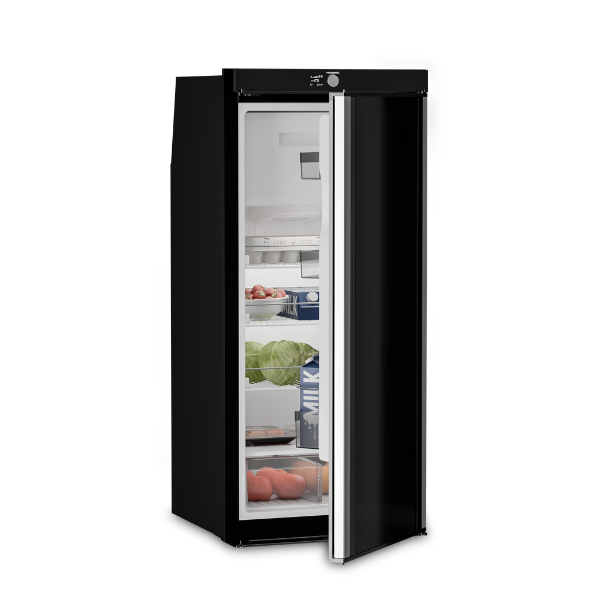

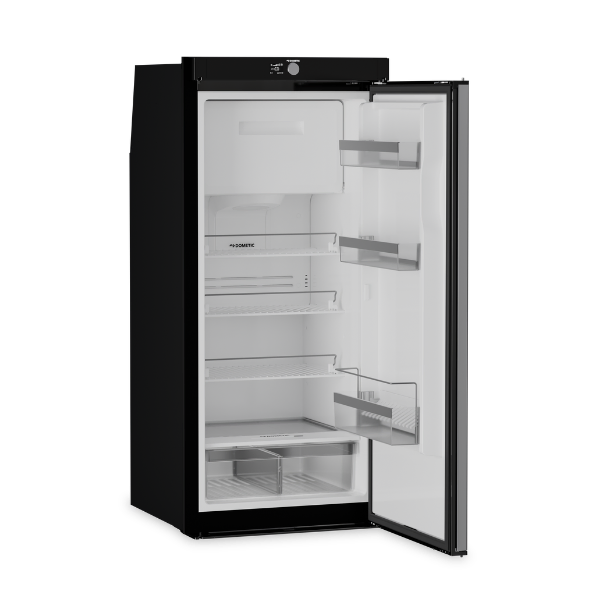

Dometic RUC 5308X 146 Litre Dual Hinge Compressor Fridge & Freezer
SKU: 9620017231 Learn More»
Description
Dometic RUC 5308X 146 Litre Dual Hinge Compressor Fridge & Freezer
The Dometic RUC 5208X model is an upright compressor refrigerator that provides the reliable refrigeration performance that the RV market has come to expect from Dometic refrigerators. The T-rated cooling systems ensure excellent performance in both high and low ambient temperatures, making these refrigerators an excellent choice for all conditions. The built-in control panel is intuitive and easy to use, allowing users to select a temperature range and a variety of preset modes. Each model features double hinge opening giving you the convenience to open from either left or right at any time.
Features:
- Narrow cabinet design with slim footprint
- Double hinged for easy access from either side
- Reversible door suits any layout
- Freezer compartment with internal door
- Easy-to-use control panel with colour TFT display
- T-rated cooling system ensures excellent cooling performance in all conditions
- Adjustable shelves and door bins
.png)
Specifications
SKU 9620017231
Brand Dometic
Product Category Upright RV Compressor Fridges
Fridge Voltage 12 / 24 V
Total Capacity (L) 146
Fridge Width (mm) 550
Fridge Height (mm) 1195
Fridge Depth (mm) 667
Average Power Consumption 0.468 kWh/24 h (16/32°C ambient, 5°C fridge)
Weight (kg) 42
Freezer Volume (L) 13
Q & A
-
How do I deactivate the child-lock in my RUA/RUC model refrigerator?
These models have a great lock for children to prevent any accidental adjustments. If you are unable to change the temperature or the power source, you have most likely activated the child-lock. You can either permanently deactivate or temporarily override the lock - please see below:
Temporarily Override the Child-lock:
- First push the control button 3 times within 1.5 seconds
- The lock will be reactive again after 10 seconds without touching the control knob
-
How often do I need to service my Dometic RV/Caravan appliances?
Dometic recommend servicing their gas appliances on a yearly basis, even if the vehicle has not been used. Additionally, bear in mind that insects can built nests in the gas appliances which will cause the appliances to stop working. It can also cause potentially dangerous scenarios.
For other appliances, such as refrigerators and air conditioners, to ensure the appliances to work efficiently and last longer it is recommended to clean the condenser.
-
What is the cooling capacity for the RUC range?
The RUC fridge can refrigerate goods between 0°C and +8°C. While the freezing temperature range is between -20°C to -10°C.
-
What is the suitable voltage for this refrigerator?
The RUC fridges are designed to be operated from a 12 V DC or 24 V DC on-board supply, however, you can also use a 100 - 240 V AC mains.
-
Where can the Refrigerator be installed?
The Dometic RUC Compressor fridges are suitable to instal into caravans, motorhomes or boats. The refrigerator is only suitable for installation in a fitted cavity. Once it is installed, only the front of the appliance may be accessible.
-
My fridge has a mild odour, is this normal?
Yes, it is. We recommend airing the living space well, as when using the fridge for the first time, there might be a mild odour. This odour will disappear in a few hours.
-
When or how often should I defrost the refrigerator?
We recommend to defrosting your fridge as soon as a layer of ice forms in the freezer compartment. The freezer will require periodic manual defrosting, if the frost layer is higher than 3 mm it is advised to defrost it.
-
Is there a security feature to prevent any accidental adjustments?
Yes, the RUC range has a child lock feature to prevent accidental adjustments or children from using the controls.
-
If something is wrong with the fridge, is the fridge equipped with an indicator to show the error?
Yes, the fridge has a display that will indicate any active errors, backlights or screen issues. If the display is showing an error screen, the middle section is highlighted in red and shows the relevant error code.
-
Can I store heavy objects such as bottles or cans anywhere on the refrigerator?
We recommend to only store heavy objects such as bottles or cans in the refrigerator door, in the vegetable compartment or on the bottom shelf.
Reviews
Dometic compressor fridge
By: Jeffrey Schmidt on24 March 2025
Only had fridge installed a short time so far it is working very good has good insulation,on a 37 degree day it worked perfectly as it has compressor at top of fridge and a two speed outside fan to remove hot air away from fridge and a internal fan to circulate cold air.good product.
Dometic compressor fridge
By: Jeffrey Schmidt on5 March 2025
The dometic 150 compressor fridge is well made and ideal for hot weather conditions,thoroughly recommend
Dometic 153 litre compressor fridge
By: David W on11 February 2025
Our standard Dometic absorption fridge died and we needed a replacement. Dometic no longer make the old fridge and replacements have different dimensions. After talking with Dometic they recommended the RUC5208X compressor based fridge as there were least alterations ( still needed to drop the floor 100mm and enclose the side surround by 30mm). We are very happy with finished product, compressor noise is minimal and it chills down very rapidly from a warm start. Can highly recommend the fridge and CRC service assistance.
Dometic compressor fridge
By: Jeffrey Schmidt on8 February 2025
We have purchased this fridge to replace one in caravan that would fail in hot weather the dometic 150 lt is a t rated fridge which means is very good in hot weather.the compressor is situated at top of fridge so heat can disperse better has excellent insulation two speed fan on compressor to disperse heat better.and a fan inside to circulate cool air.so what more can you ask for very good product.
Warranty
Warranty Period: 3 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
