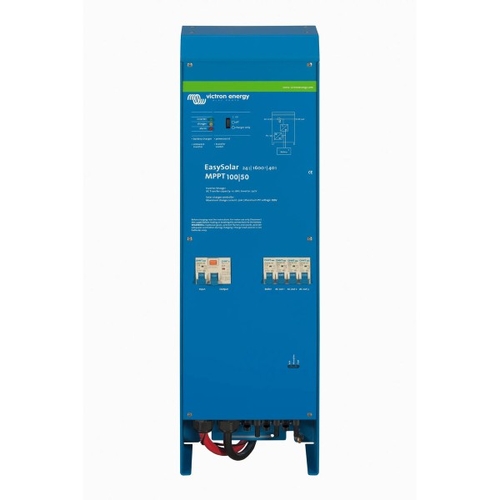

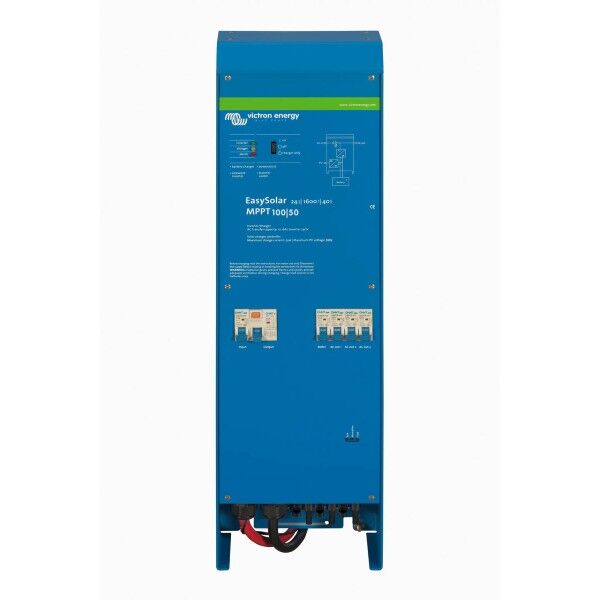

EasySolar 12/1600/70-16 230V MPPT 100/50

EasySolar 12/1600/70-16 230V MPPT 100/50

This all-in-one solar solution combines a 1600VA inverter/charger, 70A battery charger, and 50A MPPT solar charge controller into a single compact unit. Designed for easy off-grid or grid-interactive applications, it simplifies solar system installations by reducing cabling and configuration complexity. Ideal for 12V battery setups, it supports up to 700W of PV input and includes a built-in AC distribution board with circuit breakers and RCD protection. PowerAssist functionality boosts output by drawing from batteries when AC input is limited, ensuring uninterrupted energy supply in homes, mobile, or backup systems.

Key Features:

• All-in-one design: Combines inverter/charger, solar MPPT controller, and AC distribution in one enclosure for simple installation.
• High-performance inverter: Delivers 1600VA (1300W) continuous power with 3000W peak capability, supporting demanding loads.
• Built-in solar MPPT controller: BlueSolar MPPT 100/50 supports up to 700W PV input with 98% efficiency for optimal solar charging.
• Advanced battery charger: Charges 12V batteries at 70A from AC power or solar, with multi-stage adaptive algorithm and temperature compensation.
• Integrated AC distribution: Includes RCD and four circuit breakers, with one output that activates only when AC input is available.
• PowerAssist technology: Supplements external AC power with inverter output to prevent overloads when demand exceeds supply.
• Compact and lightweight: Weighs just 15kg with integrated 1.5m battery cables and MC4 PV connectors for fast setup.
• Smart protections: Safeguards against short circuits, overloads, high/low battery voltage, over-temperature, and voltage ripple.
• Effortlessly deploy reliable off-grid or hybrid solar power with this space-saving, high-performance integrated energy system.

Specifications:

• Nominal Battery Voltage: 12 V
• Continuous Output Power (25°C): 1600 VA / 1300 W
• Peak Power: 3000 W
• Charger Output Current: 70 A
• MPPT Solar Controller: 100/50
• Maximum PV Input Power: 700 W
• Maximum PV Open Circuit Voltage: 100 V
• Solar Controller Efficiency: 98%
• AC Input Voltage Range: 187 – 265 VAC
• Frequency: 50 Hz ± 0.1%
• AC Transfer Switch: 16 A
• PowerAssist Feature: Yes
• AC Outputs: 4 (2 x 10 A, 2 x 16 A)
• RCD Protection: 30 mA / 16 A
• Dimensions (H x W x D): 745 x 214 x 110 mm
• Weight: 15 kg
• Enclosure Material: Aluminium (blue RAL 5012)
• Ingress Protection: IP21
• Operating Temperature: -20 to +50 °C
• Standards Compliance: EN 60335-1, EN 62109, EN 55014-1
