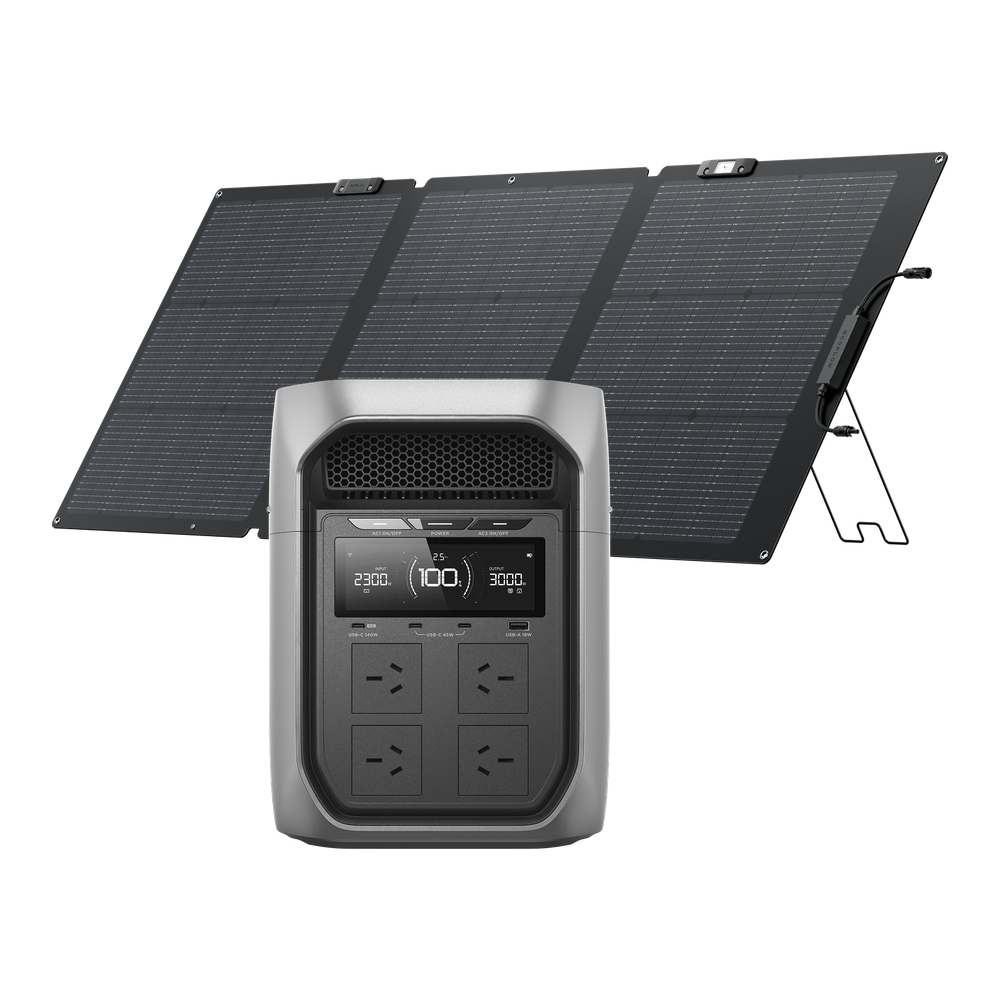

EcoFlow Delta 3 Max Plus and 160W Bifacial Solar Panel Bundle

EcoFlow Delta 3 Max Plus and 160W Bifacial Solar Panel Bundle

Pack Included:

• EcoFlow Delta 3 Max Plus Power Station with 2048Wh Battery Capacity, EFDELTA3MAXS
• EcoFlow 160W Lightweight Portable Solar Panel, EFSOLAR160WN

EcoFlow Delta 3 Max Plus Power Station with maximum 3000W AC output & Built in 2048Wh (170Ah@12V) Battery Capacity

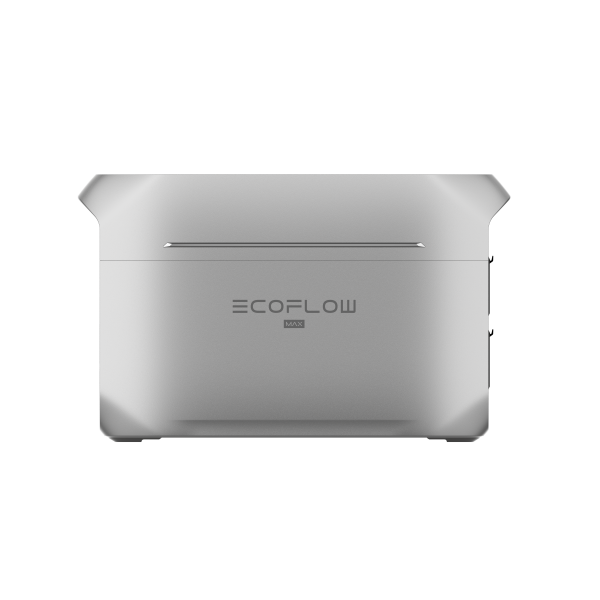

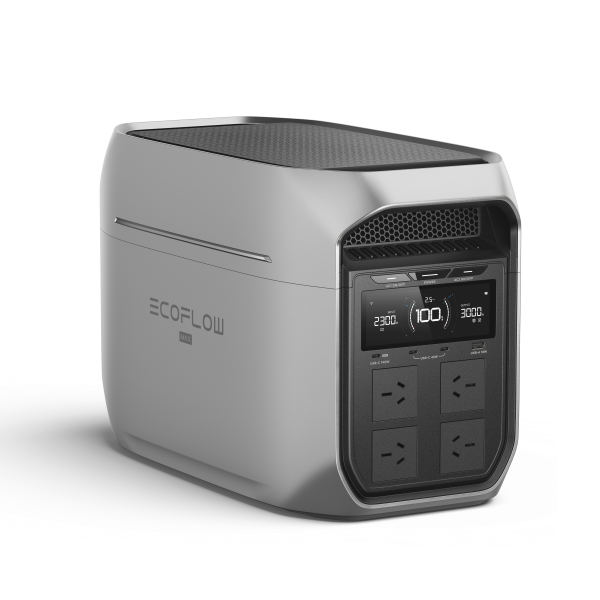

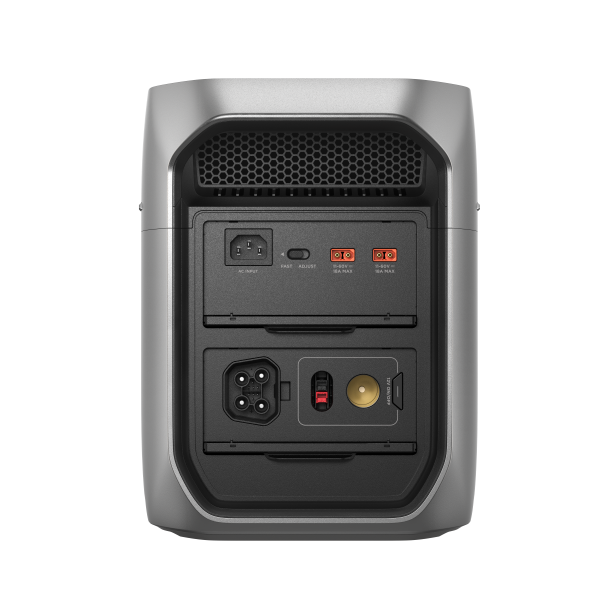

The EcoFlow DELTA 3 Max Plus is a 2kWh Portable Power Station with a 3000W maximum output.

Key Features and Technology:

• Power Output and Capacity: It offers a 3000W AC rated output with a 6000W surge. With X-Boost 3.0 technology, it can support devices up to 3800W. The capacity is 2048Wh, which is 25% more power compared to the EcoFlow DELTA 2 Max.
• Scalability: The capacity is scalable from 2-10kWh. Pairing with EcoFlow Smart Generators can provide longer or unlimited runtime.
• Battery and Reliability: It uses EV-grade full-tab LFP batteries, engineered for over 10 years of reliable power. The full-tab design increases efficiency and safety, and provides 25% more efficient power flow. The unit is built with an EV-Grade Cell-to-Chassis (CTC) structure, making it drop-resistant. It has a <10ms switchover time for fast, class-leading UPS protection.
• Charging: There are five charging methods, with a fast charge time of 43 minutes. Charging options include Wall (1800W input), Generator (up to 2600W), Solar (1000W input), Alternator (1000W input), and Solar + Alternator Dual Charging (0-80% in 51 minutes).
• Smart Features: It features Smart Output Priority Tech, allowing users to choose which circuits stay powered via the app to extend runtime for essentials. It also has an Anderson Port with 95% efficiency. The EcoFlow app allows for monitoring and setting timed charging/discharging missions to save costs.
• Comparison: Compared to the DELTA 3 Max, the DELTA 3 Max Plus has a higher AC output (3000W vs 2400W), greater expandable capacity (up to 10kWh vs X), Output Priority Tech, a 140W max USB-C output, and a 12.6V 30A Anderson Output.

Specifications:

• Color: Silver
• Capacity: 2048Wh
• Net Weight: Approx. 22.1 kg
• Dimensions: 494 × 242 × 305 mm
• 170Ah@12V

Power

• Total Output Ports: 10
• Total Output Power: 3581W Max

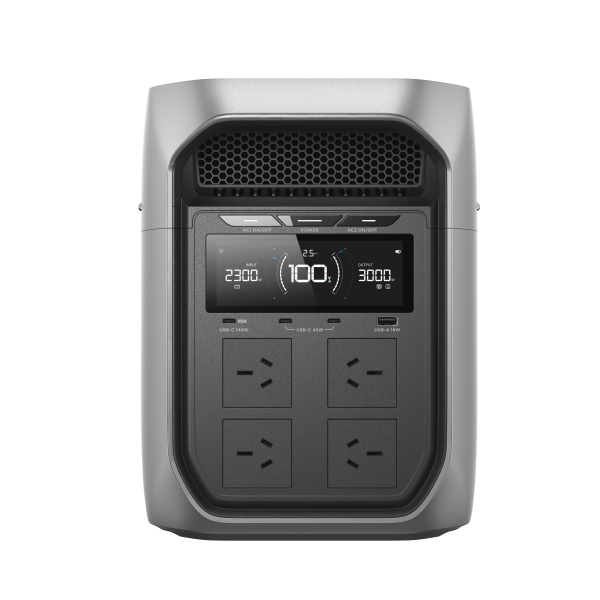

AC Output

• Number of AC Outlets: 4
• Output Priority: Yes
• Max AC Output: 3000W
• Output Voltage: 230V ~ 50Hz, 3000W total
• Current: 13A max per port (×4)
• Surge Output: 6000W
• Max Output with X-Boost: 3800W
• X-Fusion: Yes

DC Output

• Number of DC Outlets: 6
• USB-A: 1 × 18W Max
• USB-C:
  • 1 × 140W Max (HID)
  • 2 × 45W Max (45W total)
• 12V DC Output: 378W Max
  • Car Power Output ×1: 12.6V ⎓ 10A
  • Anderson Output ×1: 12.6V ⎓ 30A

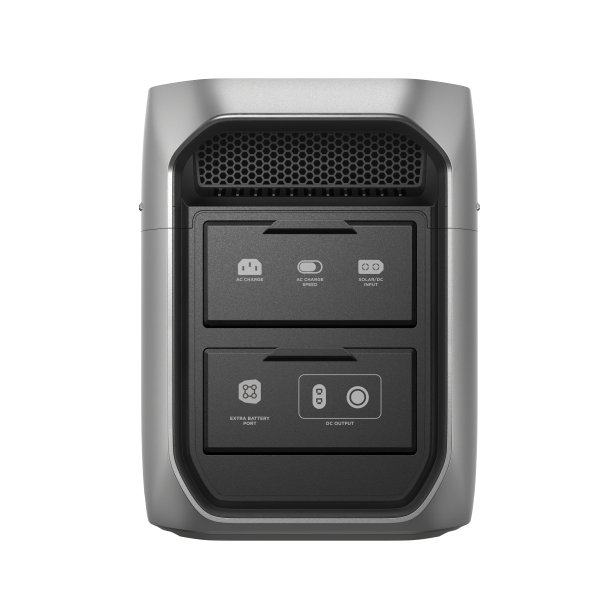

Input / Charging

• Utility Power Charging: 2300W (depends on input voltage)
• Input Voltage: 220–240V ~ 10A, 50/60Hz
• 0–80% Charge Time: 47 minutes (0.8 hour)
• 0–100% Charge Time: 68 minutes (1.1 hours)
• Solar Charging: 1000W (2 × 500W)
• Generator Charging: 2400W Max
• Alternator Charging: 1000W Max (through 4+8 port)
• Car Charging: 12V/24V ⎓ 8A

Battery

• Battery Chemistry: LFP
• Number of Extra Battery Ports: 1 (expandable to 2)
• Extra Battery Port Type: 4+8
• Compatible Extra Batteries: D2M / D3MP / D3 / DP3 EB
• Max Capacity with Extra Battery: Up to 10kWh (with 2 × DP3 EB)
• CTC Craftsmanship: CTC

UPS

• UPS Response Time: 10ms + HID

Connectivity

• Screen: Yes
• Wi-Fi: Yes
• Bluetooth: Yes
• App Support: Yes

User Experience

• Warranty: 3 + 2 years
• Noise Level: ≤30dB at 600W
• Operating Altitude: ≤3000 m
• Discharge Temperature: -10°C to 45°C
• Charge Temperature: 0°C to 45°C
• Storage Temperature: -10°C to 45°C

Battery Protection

Over-voltage protection, overload protection, over-temperature protection, short-circuit protection, low-temperature protection, low-voltage protection, and overcurrent protection.

What’s in the Box?

• 1 x EcoFlow DELTA 3 Max Plus Portable Power Station
• 1 x AC Charging Cable
• 1 x Manuals & Warranty Card

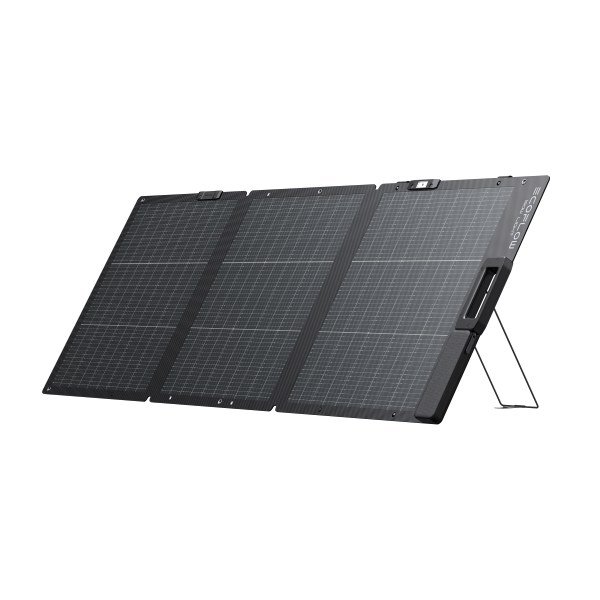

EcoFlow 160W Lightweight Portable Solar Panel (Bifacial design)

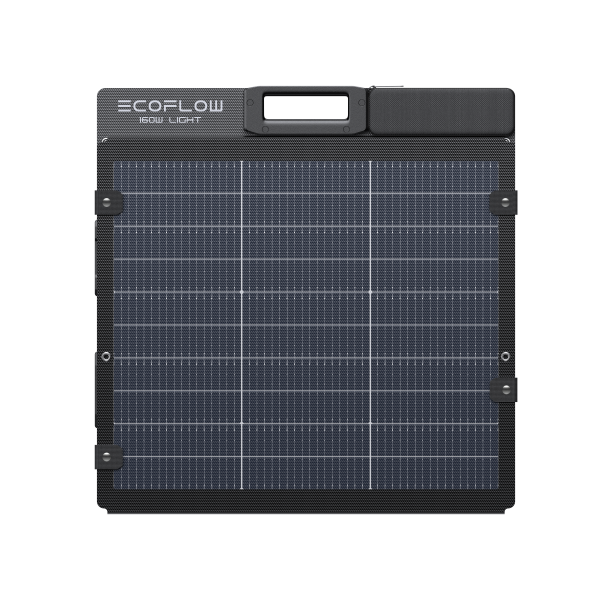

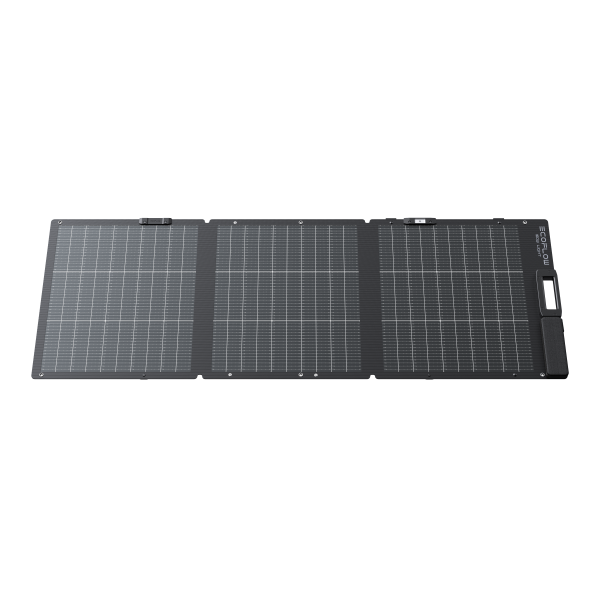

The EcoFlow 160W Monocrystalline Folding Solar Panel is portable, foldable, and compact, weighing 5.6kg. From camping to outdoor activities, unfold the solar panel and start capturing solar power in seconds.

Portable & Foldable: The EcoFlow 160W Monocrystalline Folding Solar Panel is portable, foldable, and compact, weighing just 5.6kg. From camping to outdoor activities, unfold the solar panel and start capturing solar power in seconds.

Intelligent Solar Power: The EcoFlow 160W Monocrystalline Solar Panel is designed to produce maximum power at any time of the day when paired with an EcoFlow power station. The solar panel has a high conversion efficiency up to 25%, and the EcoFlow MPPT power station algorithm delivers improved performance in cold and cloudy environments within the operation range.

Integrated Solar Guide: The solar panel includes an integrated solar guide designed to assist in aligning it with the sunlight for optimal energy production.

Durable, Dust & Water Resistant: The EcoFlow 160W Monocrystalline Solar Panel has IP68 rated dust and water resistance, which is thanks to a seamless, one-piece design, making it ideal for outdoor activities like camping and hiking. An ETFE film provides extra protection against ultraviolet light, prolonging the lifespan of the product.

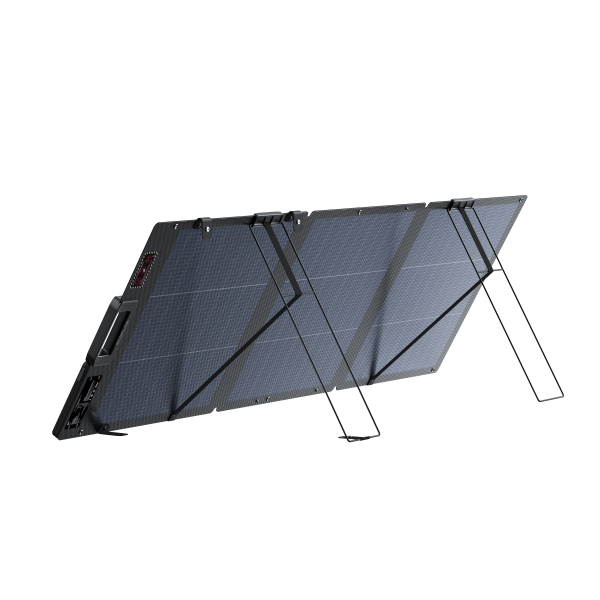

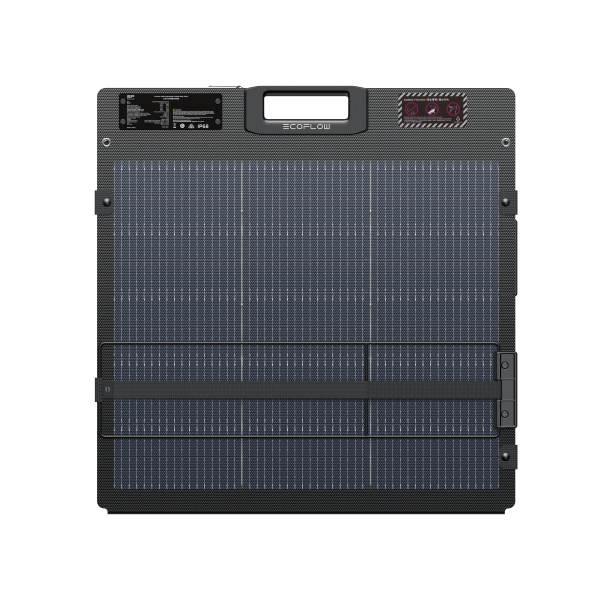

Kickstand Case: Provides protection for the solar panel during transportation. The carrying case also doubles up as a kickstand, which enables you to position the solar power in any direction or orientation, allowing multiple solar panels to be connected together without any obstructions.

Specifications:

• Product Weight: 5.1kg
• Product Unfolded Dimensions (L x W x H): 615mm x 1628mm x 25mm
• Product Folded Dimensions(L x W x H): 615mm x 596mm x 25mm
• Rated Power: 160W (±5W)*
• Efficiency: 25%
• Connector Type: MC4
• Open Circuit Voltage: 21.3V(Vmp18.6V)
• Short Circuit Current: 9.1A Max
• Operating & Storage Temperature: -20°C - 85°C
• Waterproof IP Ratings: IP68

What's in the box:

• EcoFlow 160W Portable Solar Panel
• MC4 Output Controller
• 160W Portable Solar Panel Bag
• Quick Start Guide, Safety Instructions and Warranty Card
