Enerdrive 2 x 190W Solar Panel with Installation Kit

Description

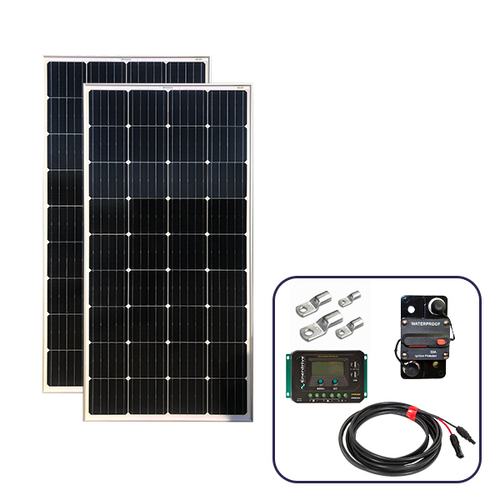

Enerdrive 2 x 190W Solar Panel with Installation Kit

Pack Includes:

• Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver x 2 - SP-EN190W
• Enerdrive ePOWER PWM 30A Solar Charge Controller - EN43030

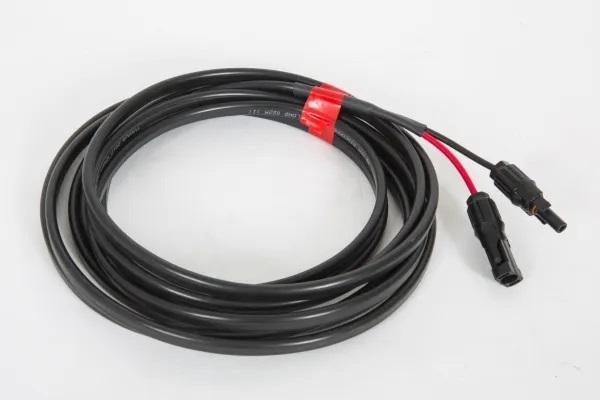

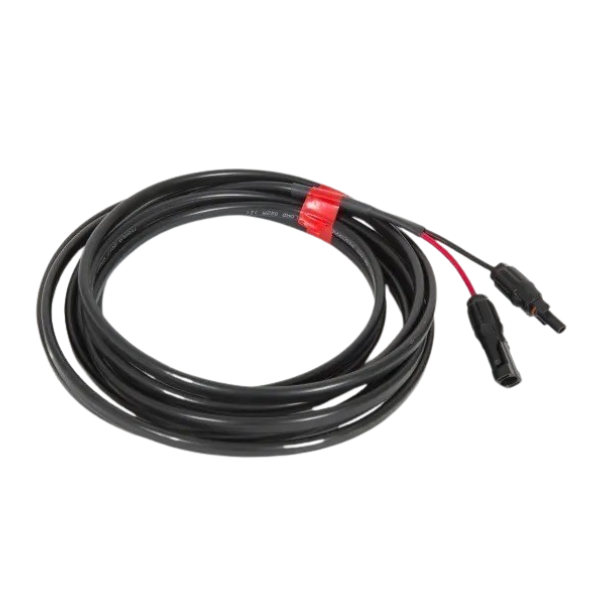

• Enerdrive 10m 4mm² Twin Solar Cable with MC4 Plugs - SP-SC10
• Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp - EN-RCB30
• Enerdrive 6mm2 x 8mm Cable Lug Bell Mouth x4 - 4 x EN-LUG-6-8

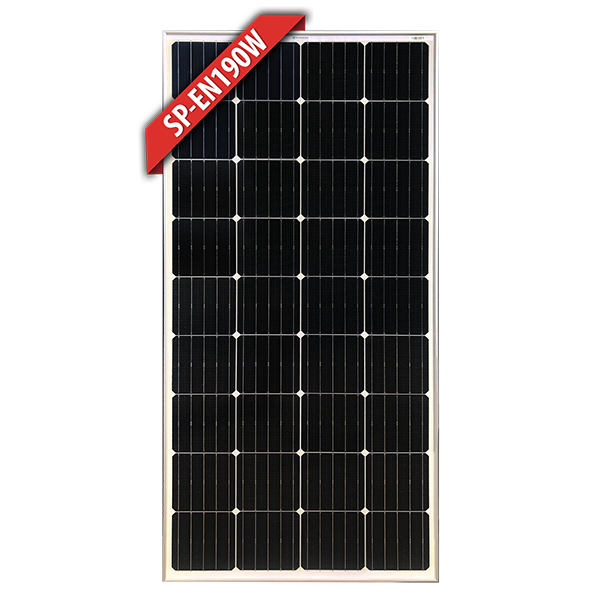

2x Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black

Enerdrive solar panels are typically around 20+vdc open circuit.

Features:

• Suited to 12v installations (or 24v by series connections of panels)
• A fly lead cable is provided for easy connection of the 10 & 20w panels
• The larger panels have MC4 compatible solar cable connectors included
• 5 Year Warranty

Specifications:

• Max Power Pm(W): 190
• Power Tolerance %: ± 3%
• Max Power Voltage Vm(V): 19.3
• Max Power Current Im(A): 9.33
• Open Circuit Voltage Voc(V): 24.2
• Short Circuit Current Isc(A): 9,98
• Max System Voltage (VDC): 000
• Dimensions (mm): 1482 x 680 x 35
• Weight (kg): 12
• Test Conditions: 1000W/m² , AM1.5 , 25°C

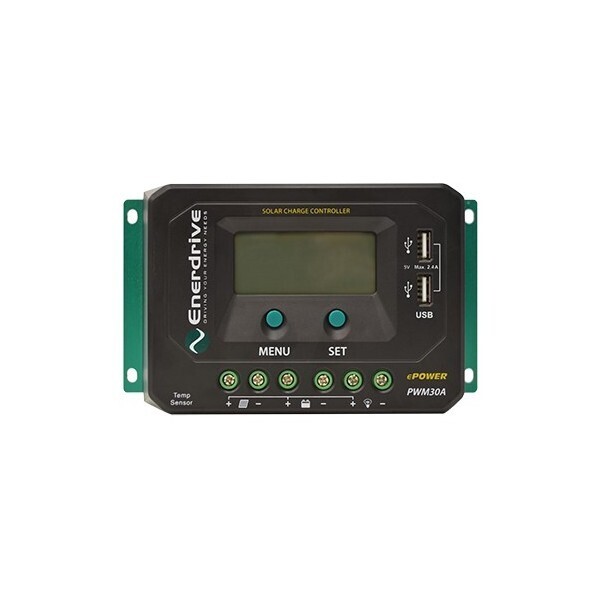

Enerdrive ePOWER PWM 30A Solar Charge Controller

For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.

Features:

• Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
• Selectable battery type Sealed, Flooded & Gel
• 2 x USB Outputs 2.4A
• Full output operation up to 55oC
• Temperature compensation
• High precision on voltage set point
• Wall mountable
• Protects battery from overcharge and discharge
• 12/24V auto detect
• Handles up to 30 Amps of Array Current
• Handles up to 450 Watts of solar power
• Maintenance free protection of your solar panel and batteries
• Maintains battery voltage
• Maintain 12/24V batteries in a fully charged state

Specifications:

• Amps: 30
• Operating Temperature Range: -25˚C+55˚C | -20˚C+70˚C (LCD)
• Humidity: 95% N.C
• Output: 5VDC/2.4A (USB, Total)
• Open Circuit Voltage:L 12V - 25 VOC / 24V - 50 VOC
• Enclosure Class: IP30
• Nominal Voltage: 12/24 VDC
• Charge Voltage Absorption: Sealed 14.4V / Gel 14.2V / Flooded 14.6V
• Charge Voltage Float: 13.8V (Sealed / Gel / Flooded)
• Input Voltage: 9V - 32V
• Warranty: 5 Years

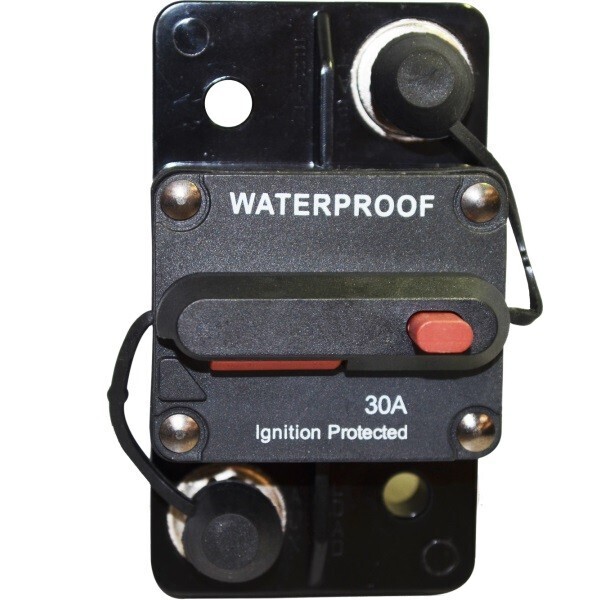

Enerdrive EN-RCB30 Surface Mount Resettable Breaker - 30amp

86 x 48.4 x 44.2 mm

Enerdrive have released an affordable range of surface mount circuit breaker while keeping with the high quality that our customers have come to expect. Units between 25-70amp have 1/4” studs while the larger units 80—150amp have the larger 3/8” studs for Quality DC connections.

Specifications:

• Storage Temperature Range: -34°C to 149°C
• Operating Temperature Range: -32°C to 82°C
• Weight: 0.1 kg
• VoltageL  Up to 48VDC
• Amps: 30

Note: Please check the Enerdrive Battery Charger Manual for the recommended Breaker & Cable sizing.
