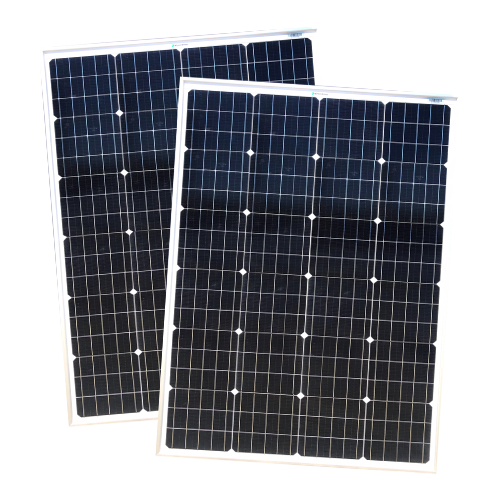

Enerdrive 2 x 150W Squat Fixed Solar Panel, Twin Pack

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories List:

Enerdrive Set of Quick Connect Solar Panels

$39

Enerdrive 10m 6mm² Twin Solar Cable with EN4 Plugs

$158

Enerdrive 5m 6mm² Twin Solar Cable with EN4 Plugs

$110

Click '+' to show more accessories

Add To Wishlist

Learn More»

Go to: Product Details

Go to: Specifications

Description

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.

Some Basic Tips:

Keep your panel in direct sunlight as much as possible.
Secure your Folding Solar Kit from theft around your work or campsite.
Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage

Specifications:

Max Power Pm(W): 150 (per Panel)
Power Tolerance %: ± 3% (per Panel)
Max Power Voltage Vm(V): 18.5 (per Panel)
Max Power Current Im(A): 8.11 (per Panel)
Open Circuit Voltage Voc(V): 22.5 (per Panel)
Short Circuit Current Isc(A): 8.8 (per Panel)
Max System Voltage (VDC): 1000 (per Panel)
Dimensions (mm): 1210 x 808 x 35 (per Panel)
Weight (kg): 11.5 (per Panel)
Test Conditions: 1000W/m² , AM1.5 , 25°C (per Panel)

Go to: Description

Go to: Warranty

Specifications

SKU SP-EN150SQ-TWIN-PACK

Brand Enerdrive

Product Category Portable Solar Panels

Watts (W) 150

Solar Panel Cell Type Monocrystalline

Solar Panel Type Fixed Solar Panels

Dimensions 808 x 1210 x 35 mm

Weight 23 Kg

NOTE: see full product specifications & further product info in the Description section on this page.

Go to: Specifications

Go to: Delivery

Warranty

Warranty Period: 5 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product

Go to: Warranty

Go to: Reviews

Delivery

We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
Small Items are sent with Australia Post via regular post.
Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
Items are fully insured during the freight process.
Unfortunately we cannot deliver to PO Boxes.
For further details on our Delivery Process you can visit our Delivery Page HERE.
