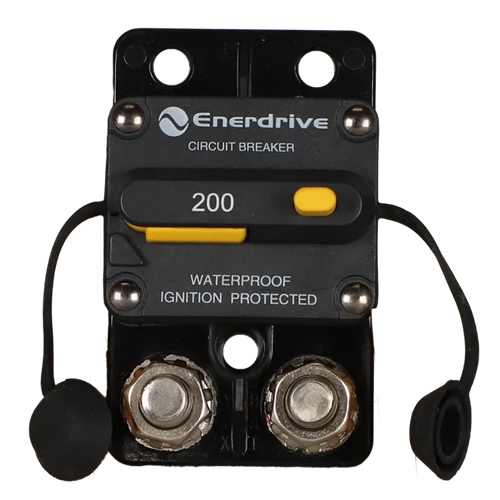

Enerdrive EN-RCB200S Surface Mount Breakers Parallel 3/8 Stud - 200amp | Enerdrive

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Learn More»

Description

Features:

Visible reset lever shows an open condition
Ignition protected - Meets SAE J1171. Safe for installation aboard gasoline-powered boats
Weather Resistant IP67
Combines switching and circuit breaker functions into one unit
"Trip Free" - cannot be held closed after trip

Specifications:

Maximum Voltage: 48V DC
Circuit Breaker Class: Type III – switchable/manual reset – trip free
Circuit Breaker Type: Single Pole Thermally Responsive Bi-metal Blade
Interrupt Capacity: 3000A @ 48V
Minimum Operating Temp: -32° C
Maximum Operating Temp: 82° C
Ignition Protected: Meets SAE J553, J1625, J1171, UL1550
Splash & Dust Proof: IP67
UL Rating: Housing is Thermal Plastic UL Rated, 94V0
Terminal Stud: 25-70A - M6 (accepts 1/4″ ring Terminal) | 80-250A - M10 (accepts 3/8″ ring Terminal)
Terminal Stud Torque: 50 in-lb (5.65 Nm)
Weight: 0.23 kg

For Panel

For Surface

Go to: Description

SKU EN-RCB200S

Brand Enerdrive

Product Category Batteries Other

Maximum Voltage 48V DC

Amps 200

Operating temperature range -32°C to 82°C

Weight (kg) 0.23

NOTE: see full product specifications & further product info in the Description section on this page.

Warranty Period: 5 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product
