Enerdrive ePRO Inverter / Charger 3500W
Q & A | SKU: EPC-3500-24-KIT Learn More»
Description

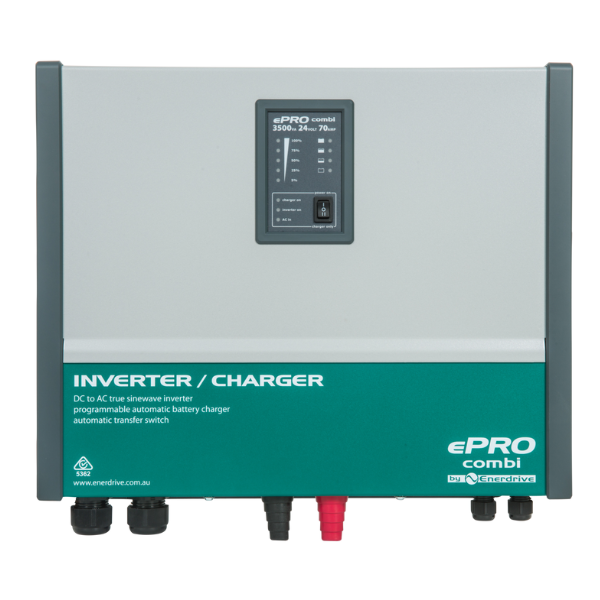

Enerdrive ePRO Inverter / Charger 3500W
370 x 431 x 132 mm
The Enerdrive ePRO Inverter / Charger 1600W acts as an uninterruptible AC power supply (UPS). In case of a grid/generator failure or disconnection, the ePRO Combi immediately stops charging the battery, releases the AC transfer switch and activates the inverter which takes over the supply to the connected loads. All this is achieved so fast, that even very critical loads like computers will continue to operate without any problems. In case the grid/generator is reconnected again and the voltage and frequency are within acceptable limits, the ePRO Combi activates the AC transfer switch and battery charger again, while deactivating the inverter. The connected loads are now supplied again by the grid/generator without any interruption. Available in 12v, 24v or 48v models and ranging in sizes from 1600-3500w inverter output and 35-120A charger output, the ePRO Combi has a unit to suit nearly any application.
Universal Remote Control
The Universal Remote Control (URC) can be used to remotely readout all available parameters from your ePRO inverter/charger Combi, like charging current, output voltage, charge stage etc. It is also possible to put the Combi in standby mode or to wake it up again, besides being able to control the maximum charge current and the maximum AC input current. All information is shown on a clear white backlit graphical display. This kit comes with mounting screws and a 3 meter interface cable (standard cat5 patch cable). The URC automatically recognizes to which type of equipment it is connected. The universal remote control can be utlisied for applications such as; recreational vehicles, solar power systems, industrial systems, commercial work vehicles and marine systems.
Included:
- Universal Remote Control and Cable
- DC Connections, two wires, length 1.5 meters, 50 mm
- AC Connections, screw terminals
Features:
- AC Input Power Boost
- AC Input Current Limit
- Power Factor Corrected AC Input
- Intelligent 4-stage charge programs
- Fully programmable inverter
- Programmable alarm relay
- Freely assignable trigger input
- Temperature controlled fans
- Temperature compensated battery charging
- AC Input Power Boost
- AC Input Current Limit
- Alarm Output Relays
Specifications:
- Warranty 5 Years
- Output Current Rating (amps) 70.0
- Wattage 3500W
- Power 2800-3800W continuous power
- Peak Power: 6500W
- Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.05%
- Input Voltage 24V (± 3% tolerance)
- Output Wave Form 230 Vac ± 2% / 50 Hz ± 0.05%
- Maximum Input AC Voltage 185 – 270 Vac / 45 – 65 Hz / PF > 0.95
- Charger Mode Charge Current 70 A (Max)
- No Load Battery Draw < 20 W (4.0 W)
- Weight 18.5 kg
Enerdrive ePRO Inverter
Universal Remote Control
TBS Alarm Output Expander Kit
Fuse & Cable Sizing
Specifications
SKU EPC-3500-24-KIT
Brand Enerdrive
GTIN 9342616017111
Product Category Power Inverter Chargers
Voltage 24V
Wattage (W) 3500
Input Voltage 24V (± 3% tolerance)
Peak Power (W) 6500
Weight (kg) 18.5
Dimensions 370 x 431 x 132mm
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
Delivery
- We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
- Small Items are sent with Australia Post via regular post.
- Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
- Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
- Items are fully insured during the freight process.
- Unfortunately we cannot deliver to PO Boxes.
- For further details on our Delivery Process you can visit our Delivery Page HERE.
Reviews
Be The First To Review This Product!
Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.
Q & A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
