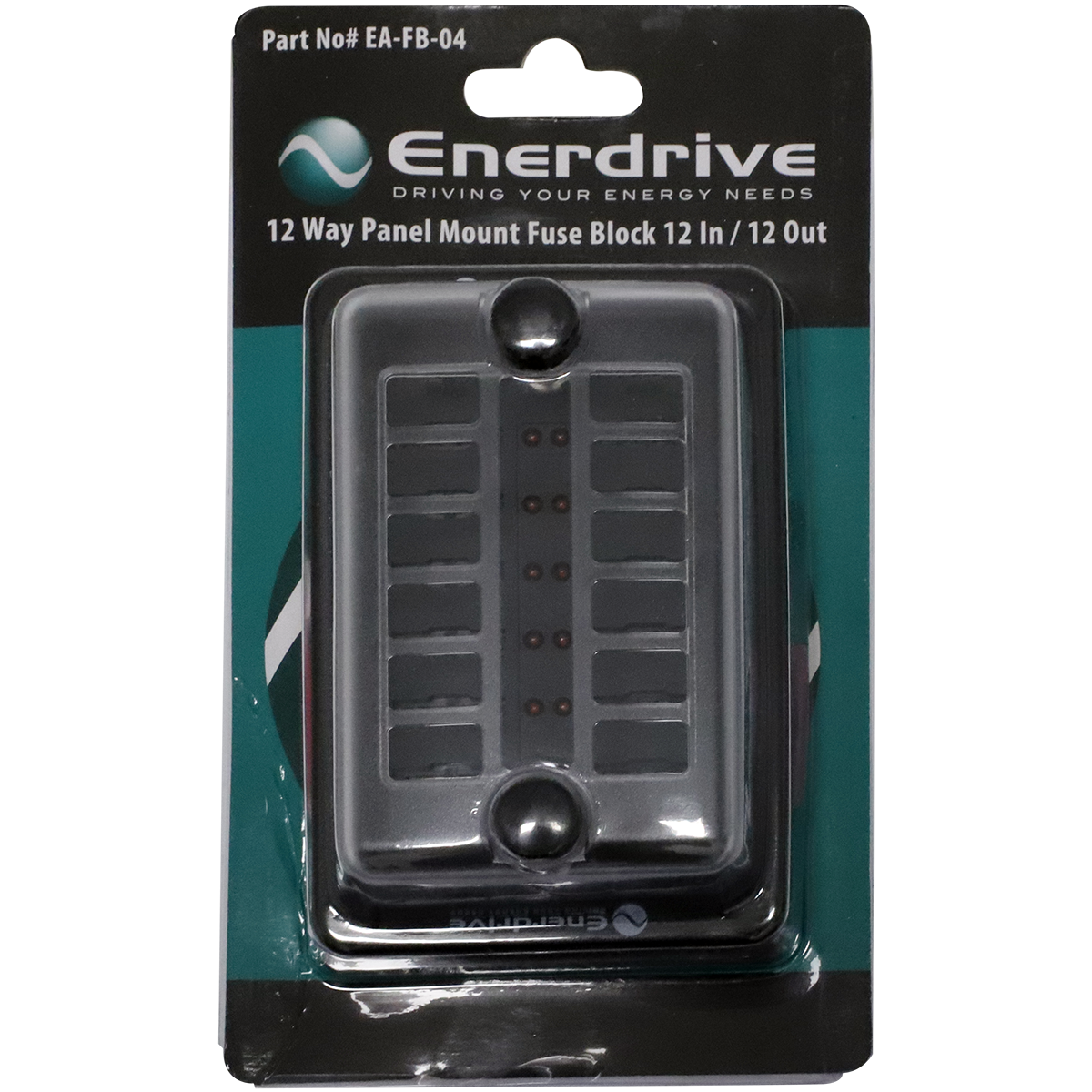

Enerdrive Fuse Block Panel Mount 12 In 12 Out with LEDs

Quantity

Postcode

Suburb

Learn More»

Description

Features:

Panel Mount 12 in – 12 out fuse block with rear connections.
Suits ATO/ATC Blade Fuses
32V 100Amp Max – 20Amp Max per circuit
Fuse blown LED’s for easy fault finding.
Panel mount with rear connections and cover make this fuse block ideal for canopy installs.

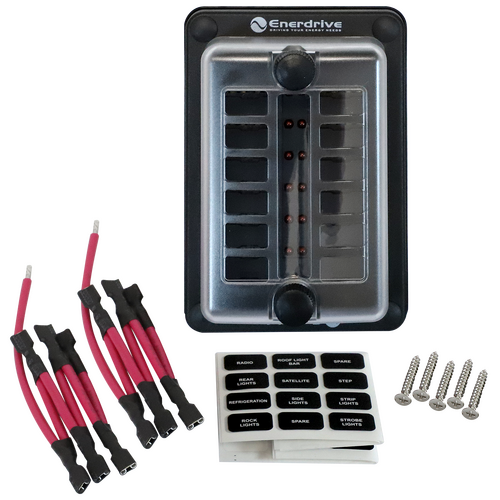

Includes linking cable for grouping inputs together
Includes two label sets.
Retail Packaging

SKU EA-FB-04

Brand Enerdrive

Product Category Accessories

Maximum Voltage 32V DC

Positive Output Spade Terminals, Rear

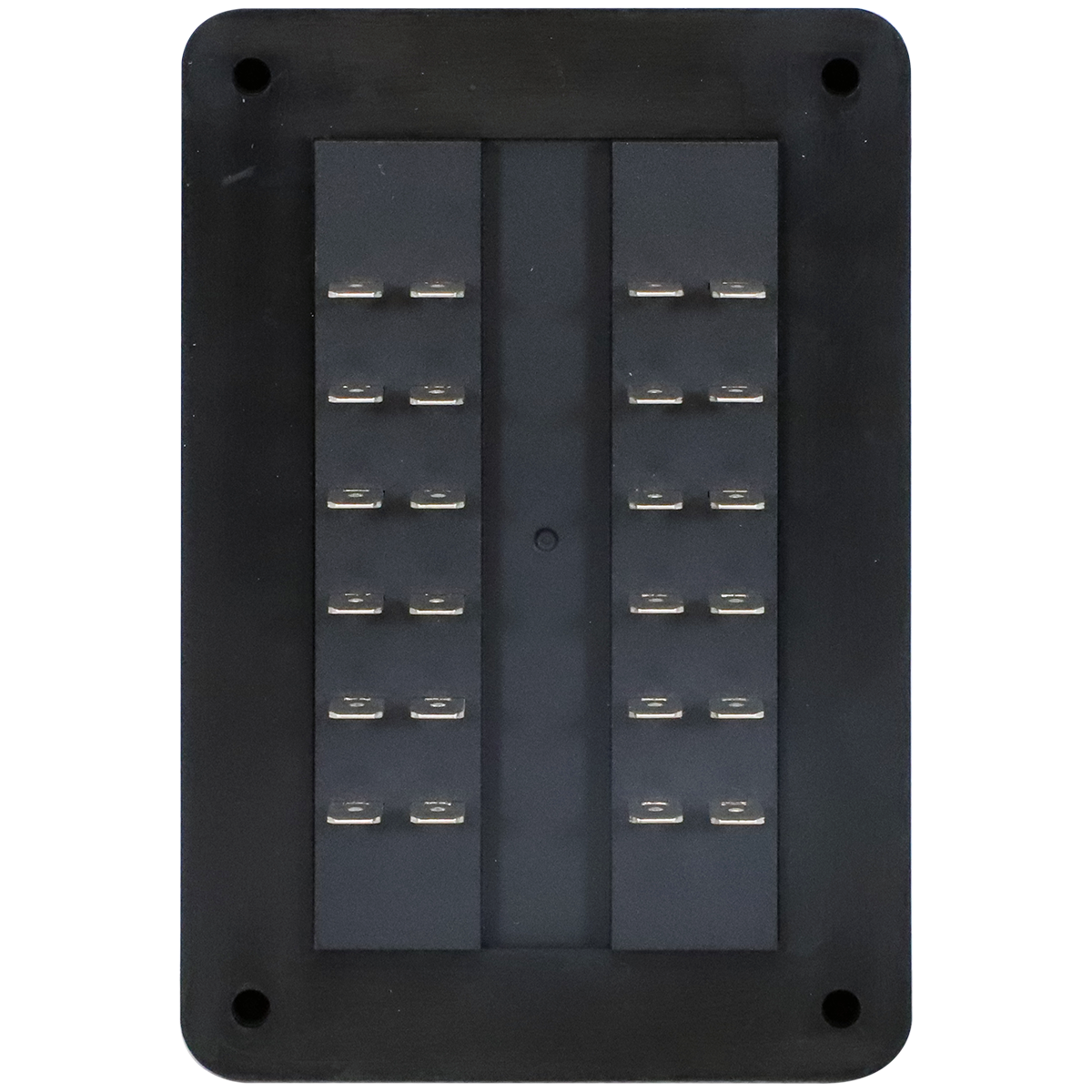

Positive Input Spade Terminals, Rear

Maximum Amperage per block 100A

Weight 0.23kg

Circuits 12

Mounting 8″ Screw [M4]

Maximum Amperage per circuit 20A

Recommended Torque 24 in-lb (2.71 N.m)

Dimensions 130mm x 87mm x 61mm

NOTE: see full product specifications & further product info in the Description section on this page.

Warranty Period: 5 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product
