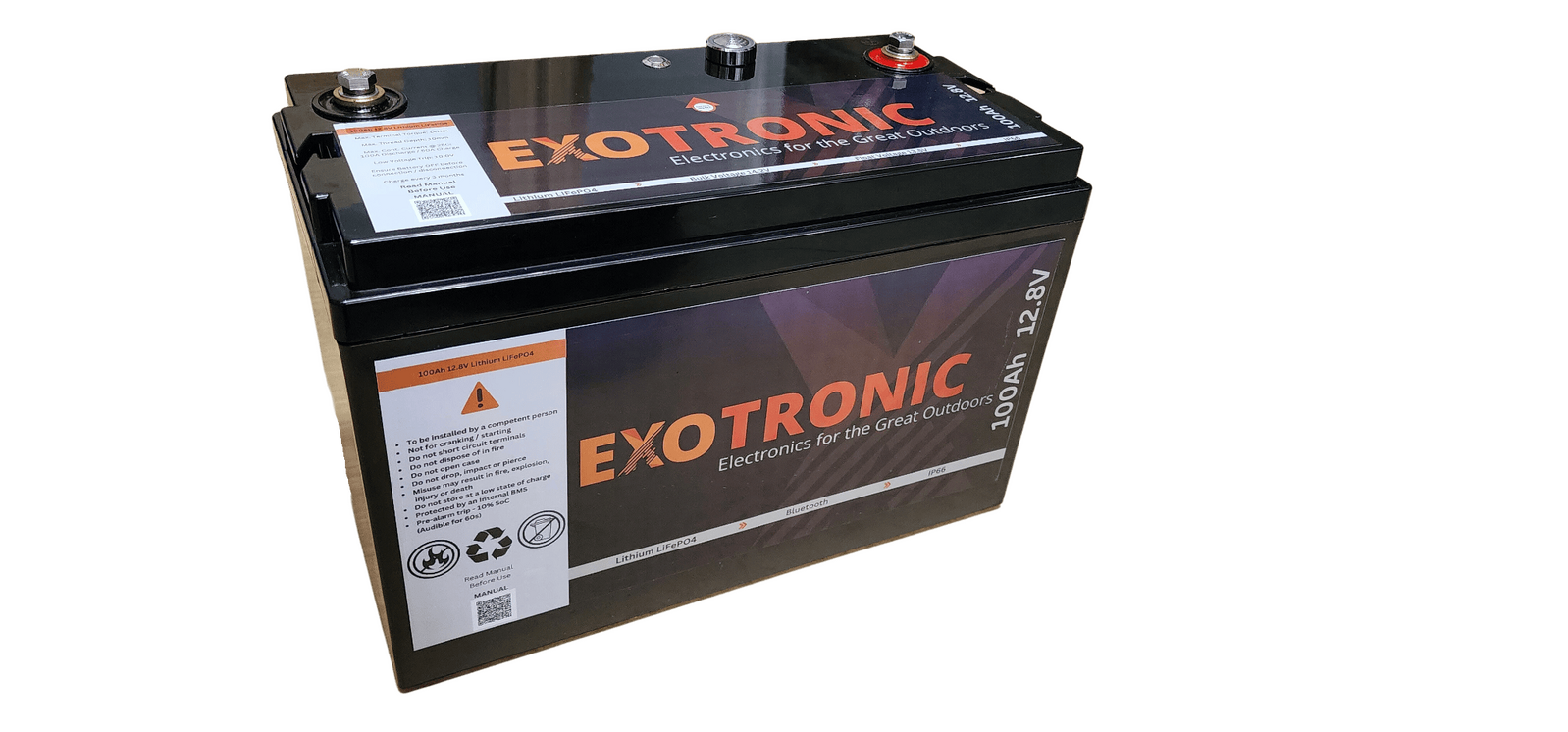

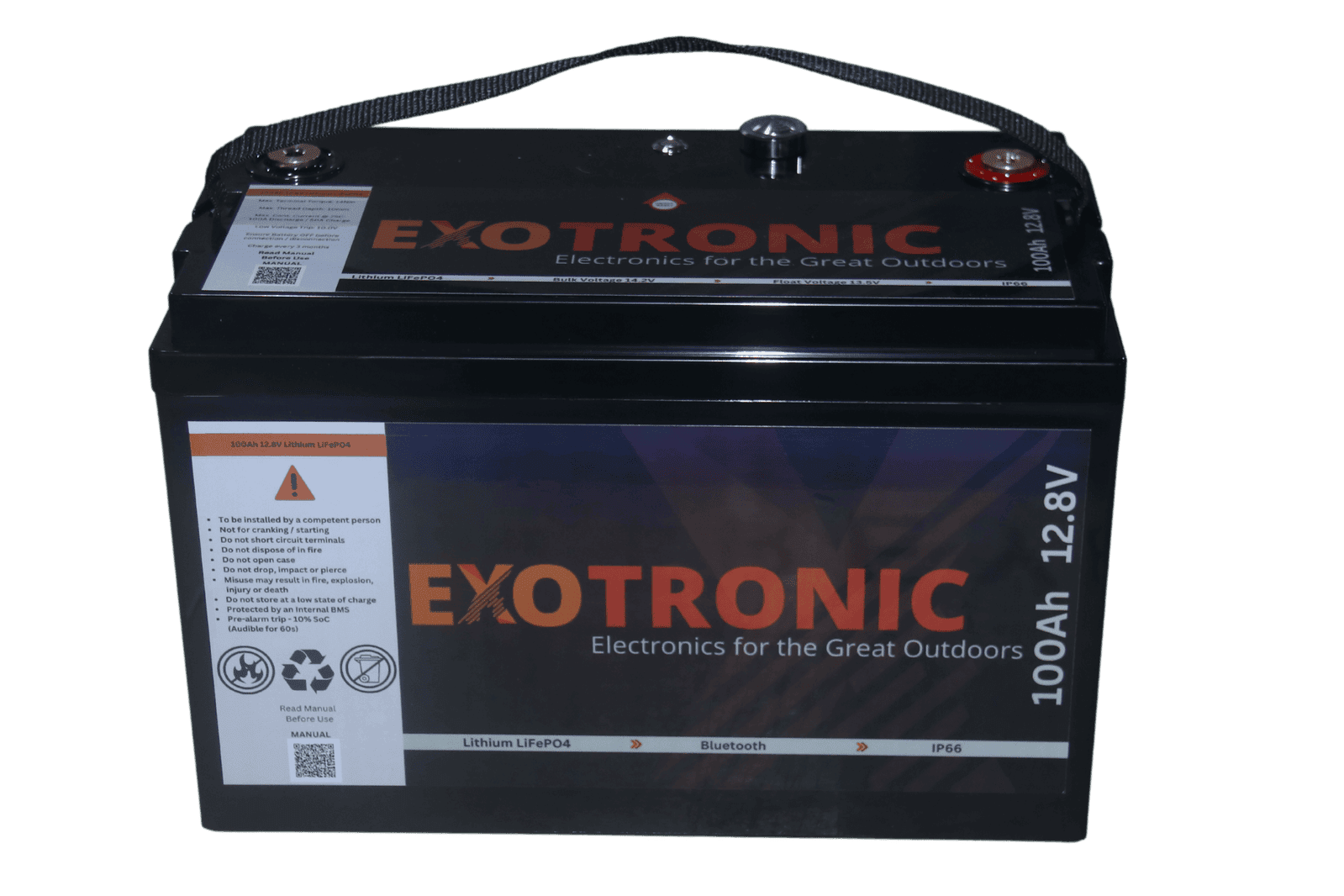

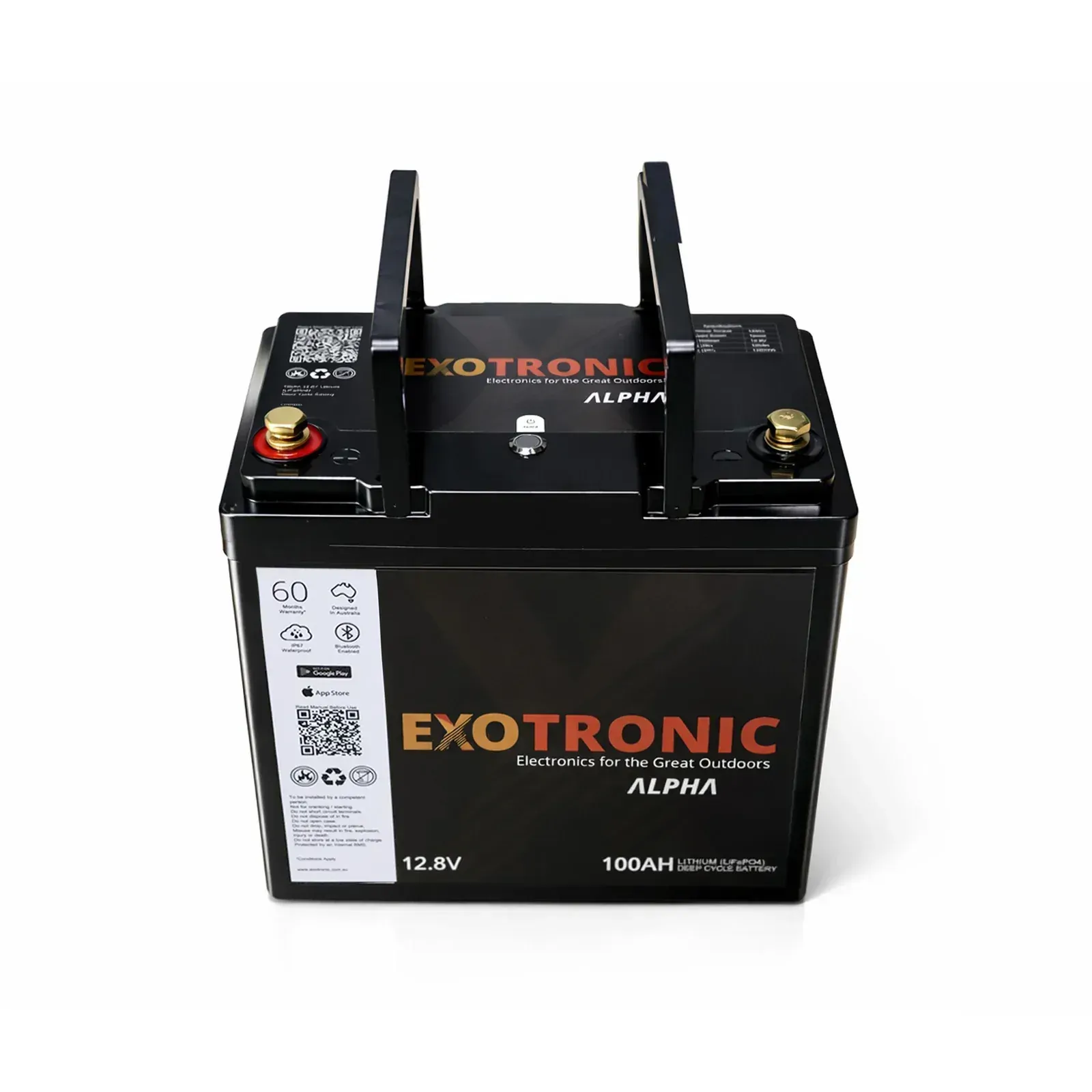

Exotronic 12V 100Ah Smart Bluetooth Lithium Battery

Description

Exotronic 12V 100Ah Smart Bluetooth Lithium Battery

Exotronic Lithium Batteries are perfect for Caravan/RVs, 4x4s, Marine, backup power and many other applications.
The battery has been vibration tested and is machine sealed for reliable waterproofing.  Making this battery particularly suitable for off-road and marine applications and those wanting extra reliability.
Not for under bonnet or cranking/starting applications.



Features:

• Real Time Bluetooth Monitoring
• IP66 Water Resistance and Dustproof
• On/Off/Reset Button
• Pre-trip Audible/Visual Alarm for 60 seconds at 10% State of Charge
• JBD BMS
• 1.2A Active Cell Balancer
• A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc
• 0-100% Useable Capacity



Safety:

LiFePO4 is one of the safest types of lithium batteries. This type of lithium has excellent safety in for almost every possible failure such as: Over-discharge, over-charge (to 20V), short-circuit, drop, heating, crush, nail penetration, seawater immersion, thermal cycling, low air pressure.
The casing is made from heavy duty ABS plastic.
The cells used in this battery contain rupture discs designed to release pressure in the cell if a failure occurs, preventing the risk of high pressure developing in the cell and compromising safety.
The most common cause of fire in lithium batteries is caused by over-charging.  This is one of the functions the JBD BMS protect against.
BMS Protections Include:

• Discharge/Charge Overcurrent
• Short Circuit
• High/Low Temperature
• High/Low Cell Voltage (Overcharge/ Overdischarge)



Reliability:

Using A Grade prismatic aluminium cased LiFePO4 GFB cells.

GFB Lithium produces lithium cells trusted by many manufacturers such as BMW and Volkswagen.

1.2A Active Cell Balancer prevents the cells from out-of-balance events and extends the life of the battery by ensuring the cells wear evenly.



Parallel Connection:

Connect up to 4 batteries in parallel to increase capacity



Maintenance:
LiFePO4 batteries have no memory effect so are safe to be stored for long periods, only requiring a charge at least once every 3 months.



Lifespan:

These cells are designed to last 3,000 cycles at 100% discharge cycles.  Typically 10-12 years usage in many applications.

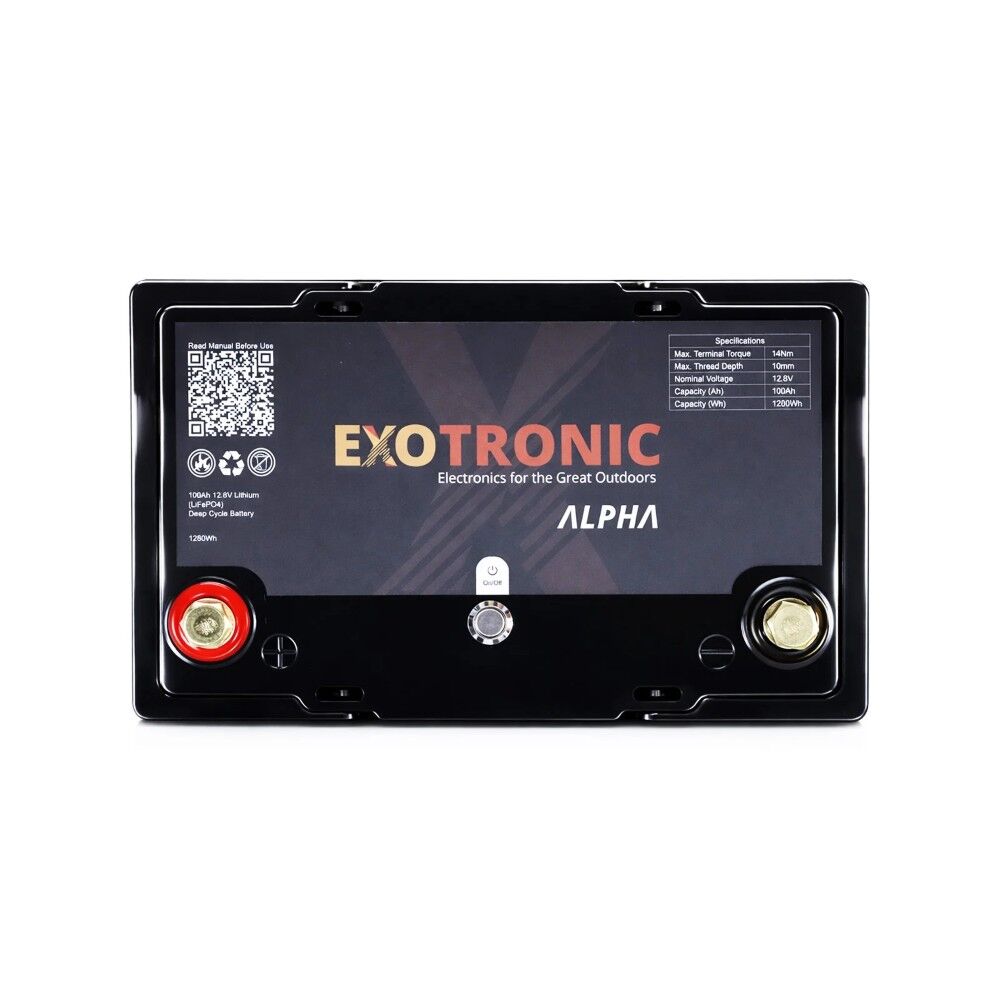

On/Off/Reset Button:

• Press the button in to turn on the battery
• Depress the button to turn off the battery
• Press the button twice to reset the battery after a trip, alternative connect a dark-start capable lithium charger



Bluetooth Smart:

The JBD BMS include Bluetooth, allowing real time viewing of the individual cell voltages, battery temperature, current, state of charge, state of the charge/discharge MOSFETs and alarms.



Specifications:

• Battery Capacity: 100Ah
• Battery Nominal Voltage: 12.8V
• Continuous Current:100A
• Peak Current (1s): 170A.
• Trip Current (10s): 110A
• Maximum Inverter Size: 1000W
• Low Voltage Trip: 10V
• High Voltage Trip: 14.6V
• Balance Current: 1.2A
• Dimensions (L x W x H): 330mm x 175mm x 225m
• Weight: 12.4kg
• Mounting Orientation: Upright
• Nominal Continuous Charge Current: 30A
• Maximum Continuous Charge Current: 50A
• Absorption Voltage: 14.0 - 14.2V
• Float Voltage: 13.5V
• Cycle Life (0.3C): >3000 100% cycles at 25C to 70% Capacity within 5 years
• Case Material: ABS
• Terminal: M8 Bolt - 10mm depth
• Terminal Torque: 14Nm Max (12Nm Recommended)
• Capacity Measurement: 14.6V to 10V at 0.3C at 25C
• Operating Temperature Charging: 5°C – 45°C
• Operating Temperature Discharging: -20°C – 55°C
• Operating Temperature Storage: -20°C – 60°C
• Ideal Storage Conditions: 25C, 40% SoC (approx. 13V)
• Battery Ventilation Required: 10mm Clearance on all sides
