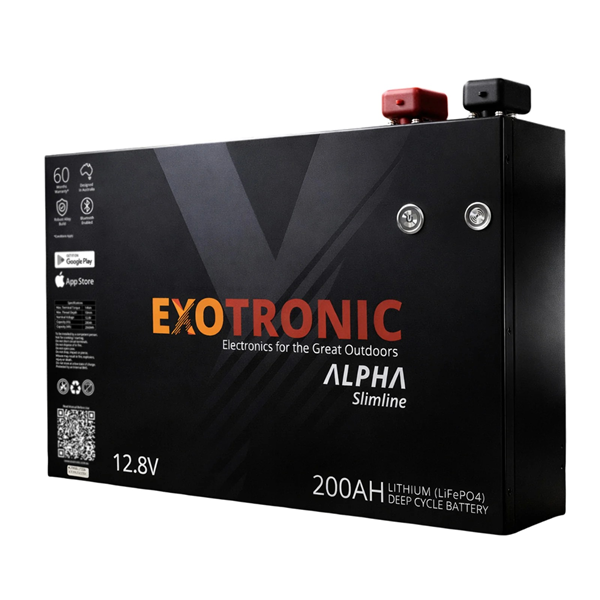

Exotronic 12V 200Ah Alpha Slimline Smart Bluetooth Lithium Battery
SKU: Exo-LiS-200-04 Learn More»
Exotronic 12V 200Ah Alpha Slimline Smart Bluetooth Lithium Battery
Ideal for Travel and Adventure
Exotronic Lithium Batteries are a perfect match for caravans, RVs, and 4x4 vehicles. Whether you're hitting the road or exploring off the beaten path, these batteries provide reliable power to keep your journey going.
A Trustworthy Choice for Rugged Conditions
Their durability makes them particularly suited for off-road applications, where resilience against harsh conditions is essential.
Ultra-Compact Powerhouse Design
Despite its compact footprint, this battery packs a powerful punch, offering 200Ah of dependable energy storage and up to 200A continuous discharge, perfect for a powerful 2000W inverter. Ideal for space-conscious setups without compromising on performance.
Heavy Duty Slim Metal Case
The Slimline metal enclosure offers outstanding strength while maintaining a narrow profile ideal for tight installations such as behind seats, under false floors, or in canopy compartments. The rigid structure protects the internal cells from vibration, impacts, and harsh environments, ensuring long-term stability and reliability wherever you install it.

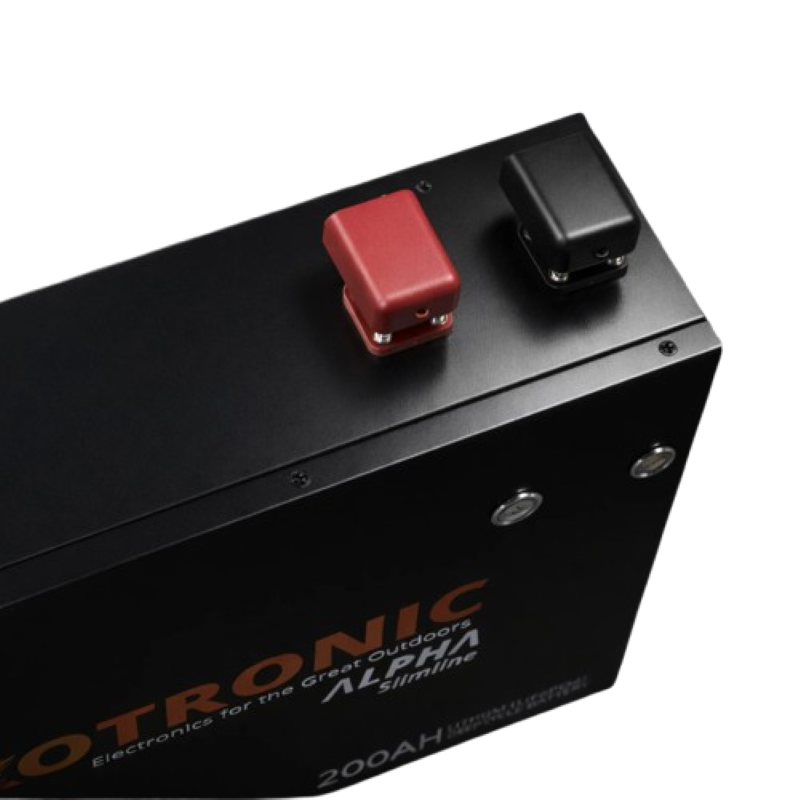

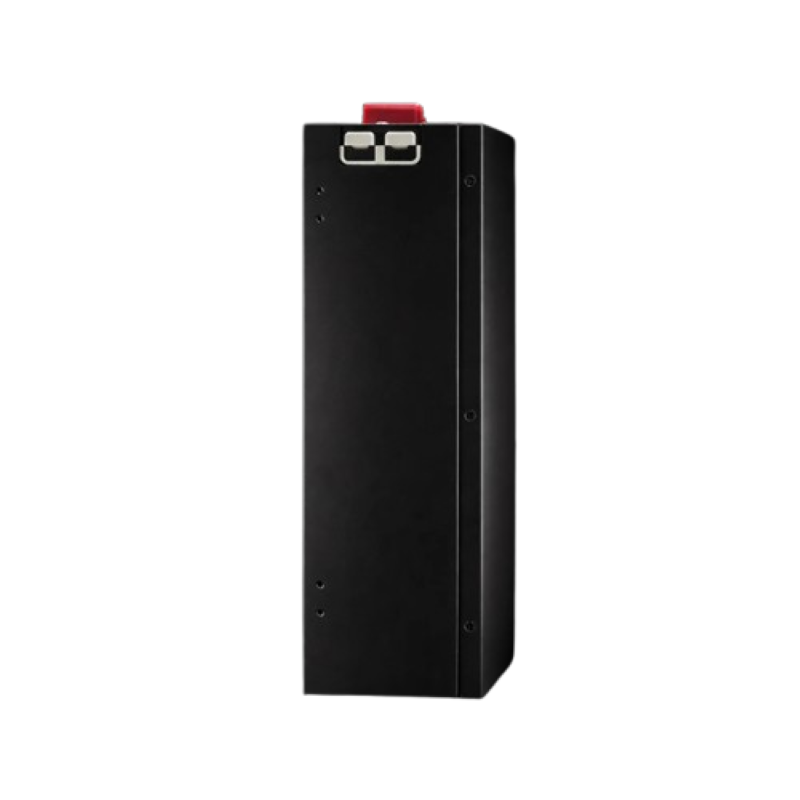

175A Anderson Plug and M8 Terminals
The high-current Anderson output and solid brass M8 terminals provide low-resistance, secure connections suitable for inverters, chargers, and heavy loads. Connected directly to the BMS for maximum efficiency, these outputs must be fused appropriately for safety. The combination of plug-and-play Anderson convenience and robust threaded terminals delivers installation flexibility for any setup.
Features:
- Strong Metal Slimline Casing
- Real Time Bluetooth Monitoring
- On/Off/Reset Button
- Pre-trip Audible/Visual Alarm for 60 seconds at 10% State of Charge
- 200A JBD BMS
- 175A Anderson Plug and M8 Terminals
- 8 Mounting Bracket Locations - Top/Bottom, Left/Right
- 1.2A Active Cell Balancer
- A Grade Aluminium-cased Prismatic Cells featuring Safety Rupture Disc
- 0–100% Useable Capacity
- IEC 62619 Certified Cells
Specifications:
- Battery Capacity: 200Ah
- Battery Nominal Voltage: 12.8V
- Continuous Discharge Current (30 Min): 200A
- Peak Current (1s): 300A
- Trip Current (10s): 220A
- Maximum Inverter Size: 2000W
- Low Voltage Trip: 10V
- High Voltage Trip: 14.6V
- Balance Current: 1.2A

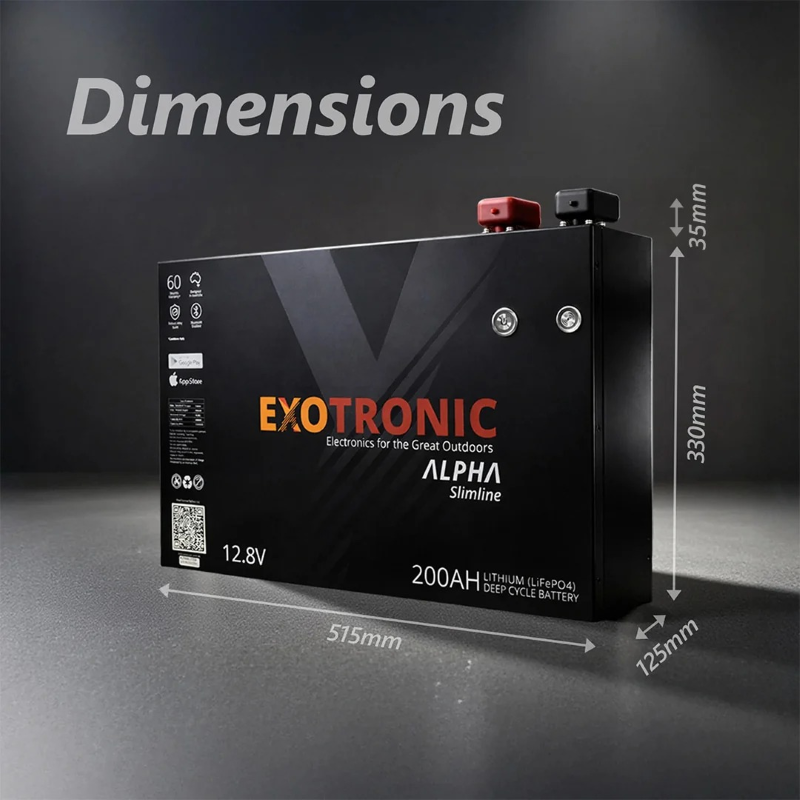

- Length: 515mm
- Width: 125mm
- Height: 330mm
- Weight: 24kg ± 1kg
- Mounting Orientation: Upright/Side
- Nominal Continuous Charge Current: 50A
- Maximum Continuous Charge Current: 80A
- Absorption Voltage: 14.0–14.2V
- Float Voltage: 13.5V
- Cycle Life (0.3C): >3000 100% cycles at 25°C to 80% capacity within 5 years
- Case Material: Powder-coated metal Slimline case
- Terminal: M8 Bolt – 10mm depth; 175A Anderson Plug × 1
- Terminal Torque: 14Nm Max (12Nm Recommended)
- Capacity Measurement: 14.6V to 10V at 0.3C at 25°C
- Operating Temperature – Charging: 5°C–45°C
- Operating Temperature – Discharging: -20°C–55°C
- Storage Temperature: -20°C–60°C
- Ideal Storage Conditions: 25°C, 40% SoC (approx. 13V)
- Battery Ventilation Required: 10mm Clearance on all sides
- Additional Features: Bluetooth / Switch / Buzzer
Specifications
SKU Exo-LiS-200-04
Brand Exotronic
GTIN 9361784003306
Product Category Batteries
Battery Voltage 12
Amp Hours (Ah) 200
Battery Length (mm) 515
Battery Width (mm) 125
Battery Height (mm) 330
Battery Weight (kg) 24.3
Battery Charge Temperature 5°C to 45°C
Maximum Charge Current 80A
Battery Discharge Temperature -20℃ to 55℃
Maximum Discharge Current 200A
Discharge Cut-off Voltage 10V
Battery type LiFePO4
Nominal Capacity 200Ah
Recommended Charge Current for Maximum Life 50A
Total Charge Current 80A
Cycle Life (dod - 80% Under Controlled Conditions) >3000
Bluetooth Connectivity Yes
