Exotronic 12V Mini Control Hub

Exotronic 12V Mini Control Hub

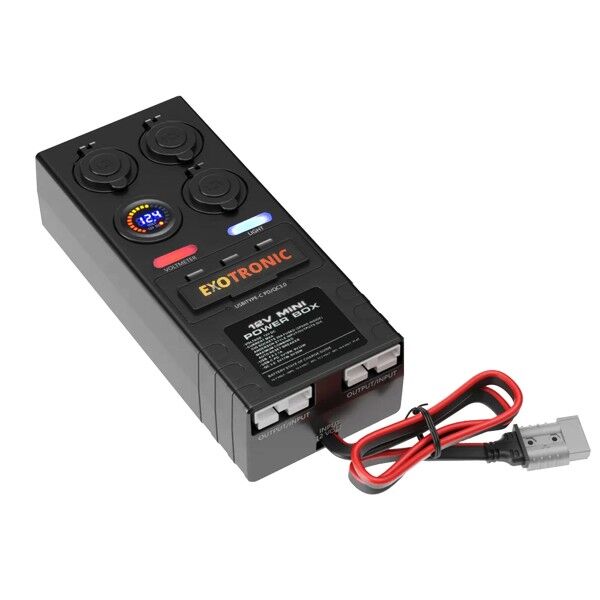

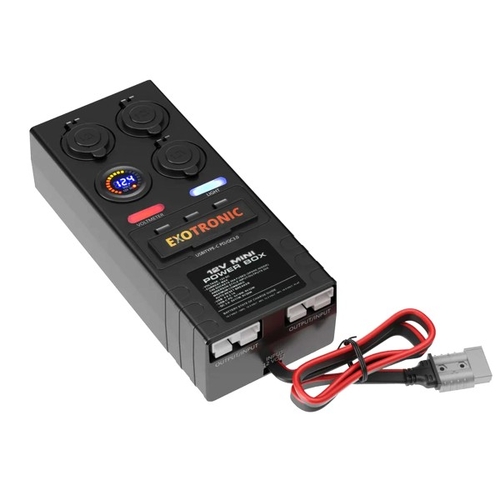

Managing 12V DC systems in confined spaces requires equipment that is both robust and space-efficient. This compact power distribution box simplifies your 12V wiring, providing a centralised, pre-wired solution for 4x4 canopies, caravans, and marine vessels. By consolidating multiple power outputs into a single, highly durable unit, it eliminates the messy wiring typically associated with complex dual-battery setups and reduces the risk of electrical faults.

Comprehensive 11-Outlet Connectivity

Designed to power a wide array of 12V appliances simultaneously, this control unit features eleven dedicated outlets, supporting a maximum cumulative load of 50A. The versatile output array includes:

Two 50A Anderson-style input/output connectors for high-current accessories like solar regulators, DC-DC chargers, or air compressors.

Three 15A 12V cigarette lighter sockets, equipped with weather-resistant dust caps, ideal for portable fridges, camp lighting, and low-draw pumps.

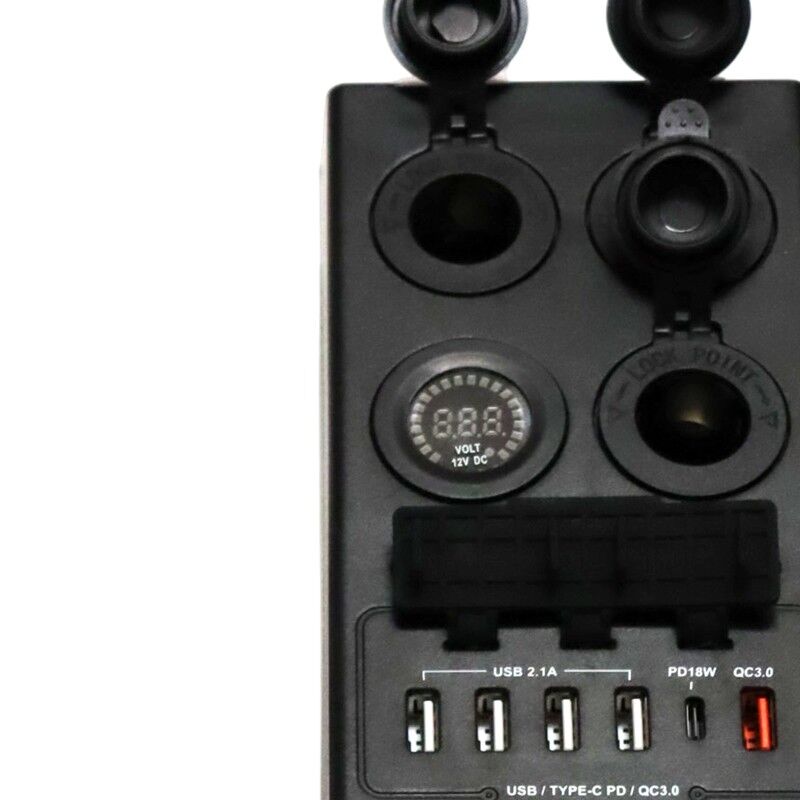

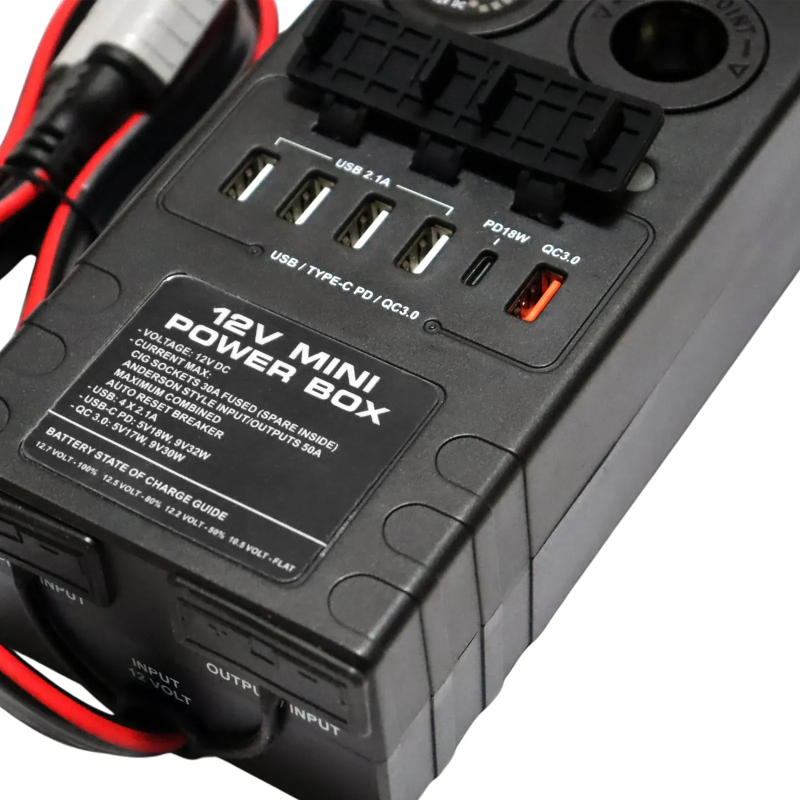

Six USB ports, featuring an 18W Type-C Power Delivery (PD) port and a QC 3.0 port for rapid charging of modern devices, alongside four standard 2.1A USB-A ports.

Intelligent Circuit Protection and Monitoring

Protecting your auxiliary battery and expensive electronics is critical in any off-grid power system. This distribution hub integrates robust circuit protection, including three pre-wired 30A fuses and a main 50A automatic reset circuit breaker. In the event of an overload, the automatic breaker acts quickly to protect your system without requiring manual fuse replacements, ensuring minimal downtime. Additionally, the integrated multi-colour LED voltmeter allows for real-time monitoring of your battery voltage, helping you manage your state of charge effectively.

Key Features:

• 50A Maximum Capacity: Capable of handling demanding electrical loads across multiple ports.
• Integrated Circuit Protection: Features a 50A automatic reset circuit breaker and 30A pre-wired fuses.
• Real-Time Voltage Monitoring: Multi-colour digital LED display provides instant battery status.

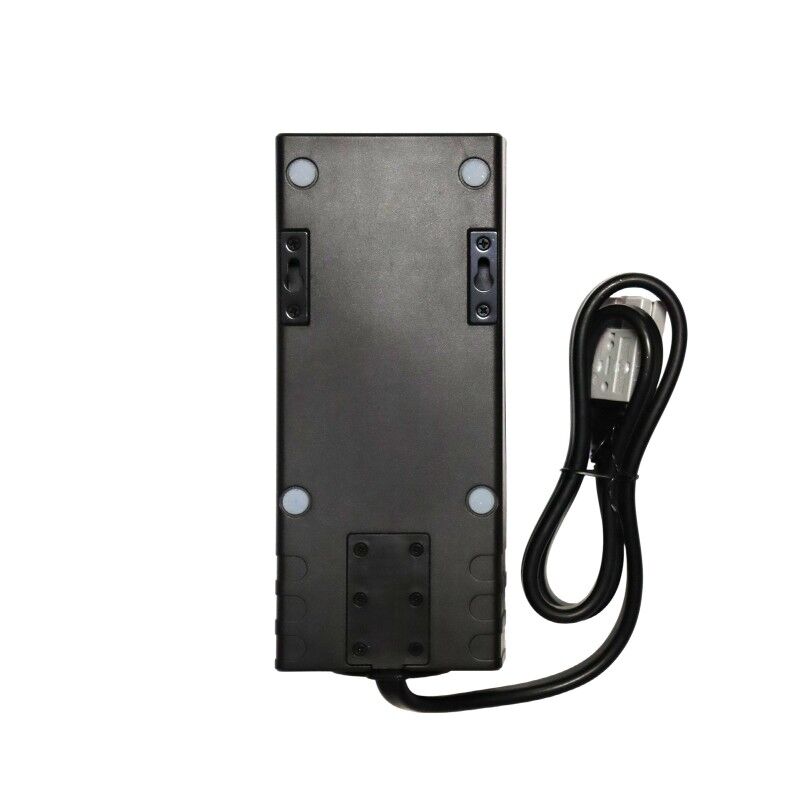

• Recessed Mounting Points: Rear housing includes pre-drilled keyhole slots for secure vertical or horizontal installation.
• Plug-and-Play Input: Supplied with a 1 metre power input cable terminated with an Anderson-style plug.

Specifications:

• Maximum Cumulative Amps: 50 A
• Voltmeter: 12 V DC multi-colour display
• USB: 4 × 5 V 2.1 A Type-C, 5 V 18 W QC3.0, 5 V 17 W
• Cigarette Sockets: 3 × 12 V 15 A
• Quick Connect Plug: 50 A total (supports maximum 50 A when single use)
• Fuses: 3 × 30 A pre-wired fuses
• Circuit Breaker: 50 A automatic reset
• Operating Temperature: -5°C to 45°C
• Dimensions (L × W × H): 233 × 60 × 100 mm
• Cable Length: 1 m
• Weight: 845 g
