Exotronic 150W Fusion Fixed Solar Panel
SKU: Exo-SP-TCN-150 Learn More»

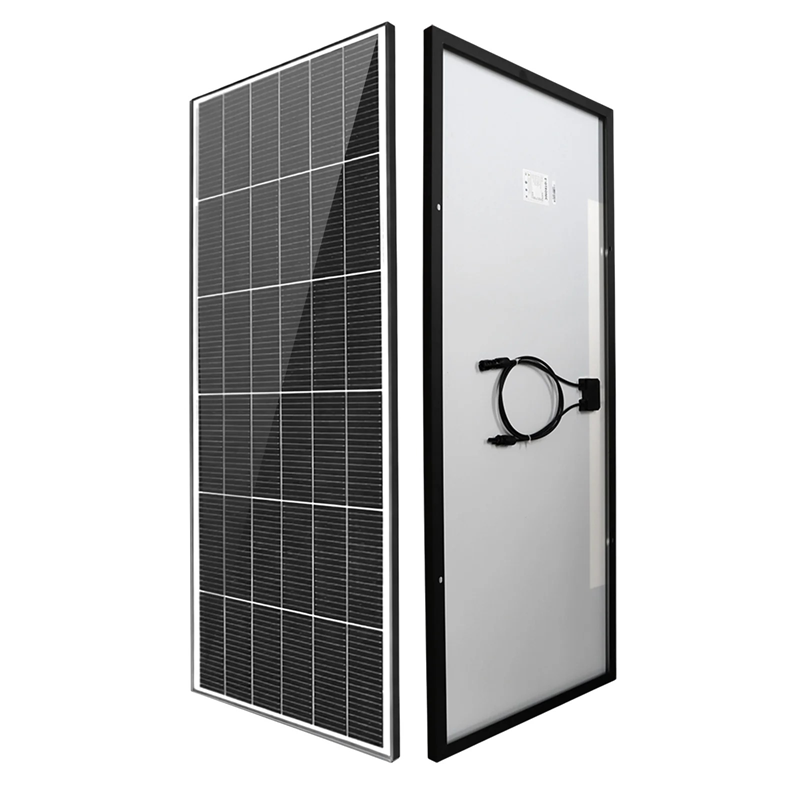

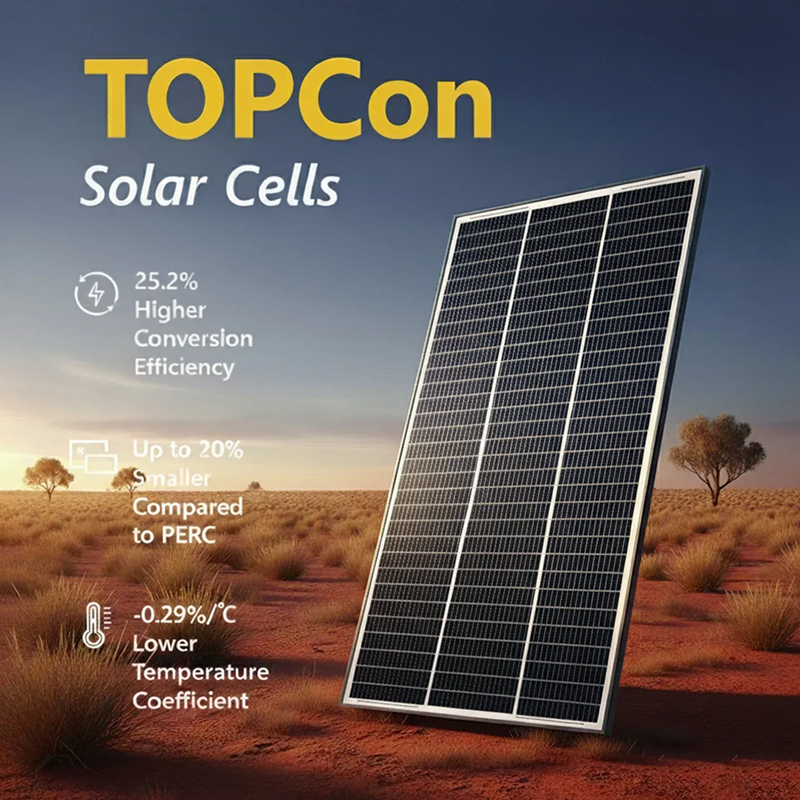

Exotronic 150W Fusion Fixed Solar Panel
The Exotronic 150W Fusion Series combines advanced N-Type TOPCon solar cell technology with a compact, lightweight design, making it an excellent choice for mobile and off-grid energy needs. With a fixed 25.2% cell efficiency, this panel outperforms many conventional monocrystalline solar panels and PERC modules—delivering reliable output even in limited space.
Engineered for use in 12V solar panel systems, it’s particularly well suited to caravan solar panels, camper trailers, boats, and other mobile setups. Whether you're planning a weekend getaway or installing a permanent caravan solar system, the Fusion Series ensures consistent performance across a range of conditions.
TOPCon (Tunnel Oxide Passivated Contact) represents the latest advancement in solar cell technology, delivering higher efficiency, reduced degradation, and improved low-light performance. It marks a clear upgrade over PERC solar panels, which themselves are more efficient than traditional monocrystalline cells. The Fusion Series’ N-Type TOPCon cells ensure consistent, durable energy output, ideal for varied weather and shading conditions typical of mobile and off-grid environments.
Features:
- 25.2% cell efficiency for maximum energy density in a compact footprint
- N-Type cells for lower degradation and longer lifespan
- Excellent low-light response — ideal for cloudy days and shaded environments
- 18-busbar layout improves reliability and current flow across the cell surface
- Lightweight design — easier to install and handle, especially on vehicles and tight spaces
Specifications:
- Power: 150 W
- No. of Cells: 36 (6x6)

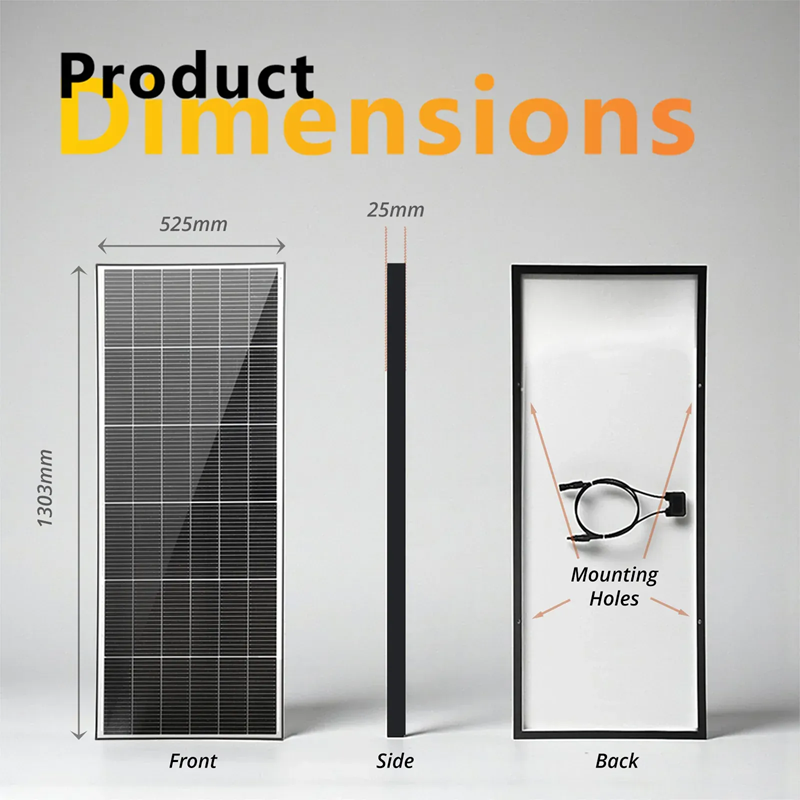

- Dimensions: 1303 x 525 x 25 mm
- Weight: 8 kg
- Vmp: 21.4 V
- Imp: 7.01 A
- Voc: 25.0 V
- Isc: 7.6 A
- Module Efficiency: 25.2%
- NMOT: 41°C +/-3°C
- Temperature Coefficient of Pmax: -0.37%/°C
- Temperature Coefficient of Voc: -0.29%/°C
- Temperature Coefficient of Isc: 0.05%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000 VDC
- Maximum Fuse Rated Current: 15 A
- Front: 3.2 mm Tempered Glass

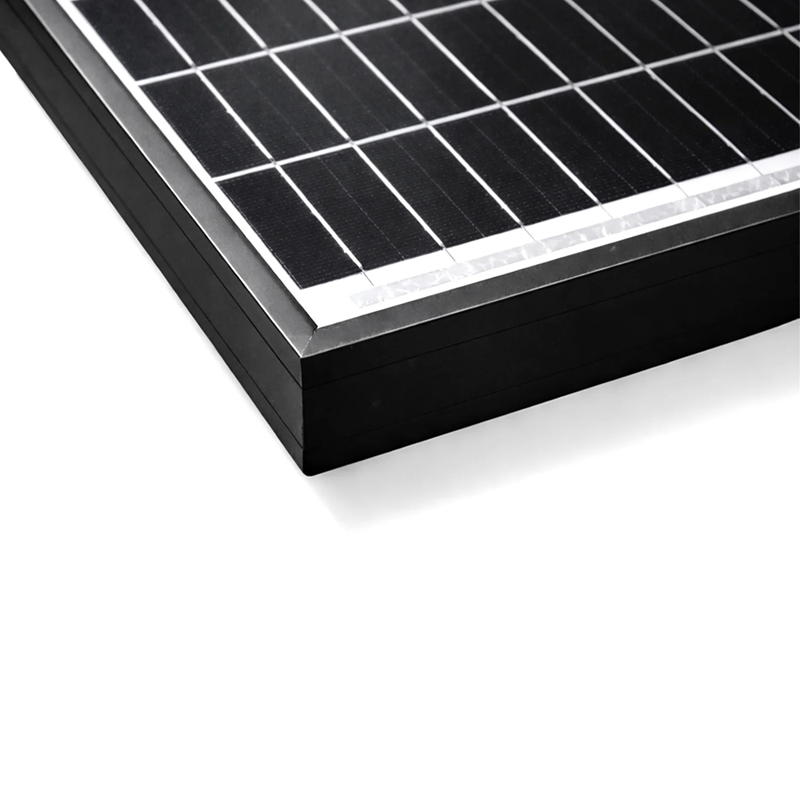

- Frame: Black Anodized Aluminium Alloy

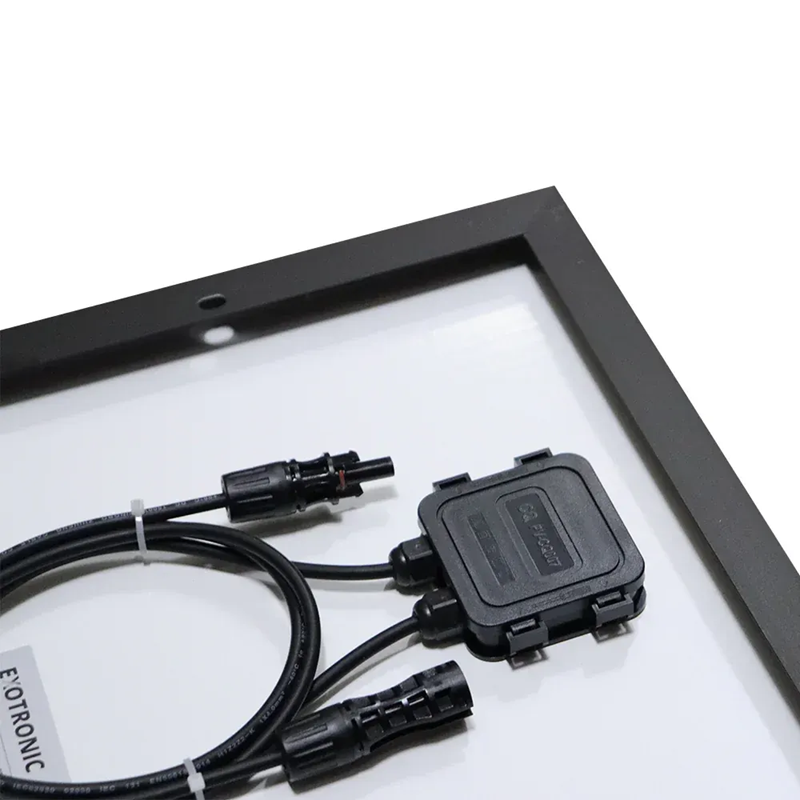

- Junction Box: IP68
- Connectors: MC4 Compatible (except 20W)
Specifications
SKU Exo-SP-TCN-150
Brand Exotronic
Product Category Solar Panels
Watts (W) 150
Solar Panel Cell Type Monocrystalline-PERC
Solar Panel Type Fixed Solar Panels
Short Circuit Current Isc(A) 7.6
Operating Temperature -40°C to 85°C
Connector MC4 Compatible
Dimensions 1303 x 525 x 25mm
Weight (kg) 8
IP Rating IP68 (Junction Box)
