Exotronic 4WD Starter Kit

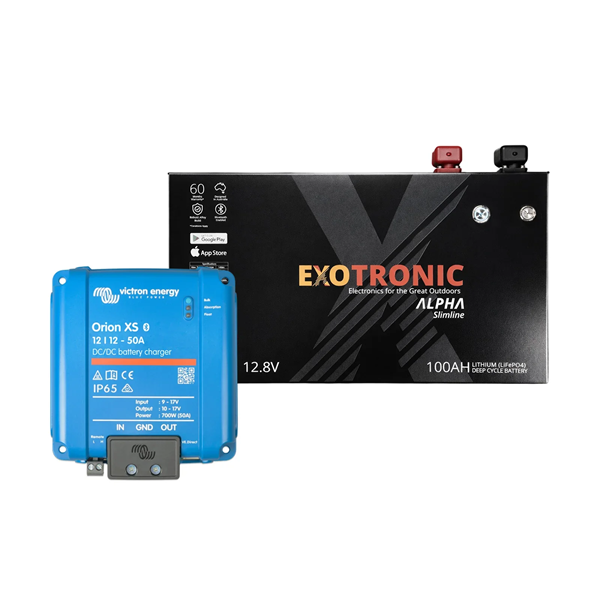

The Exotronic 4WD Starter Kit combines two premium power management components to help you build a reliable auxiliary battery system for your vehicle. Featuring the Exotronic 12V 100Ah Alpha Slimline Smart Bluetooth Lithium Battery and the Victron Orion XS 12/12-50A DC-DC Smart Battery Charger, this package provides an ideal starting point for powering your camping, touring and off-grid adventures.
Designed for modern 4WDs, touring vehicles and canopy builds, this lithium battery and DC-DC charger kit delivers efficient charging performance, intelligent battery monitoring and dependable power storage in a compact footprint. Whether you're running a fridge, lights, water pump, inverter or communication equipment, this setup helps keep your essential accessories powered wherever your journey takes you.

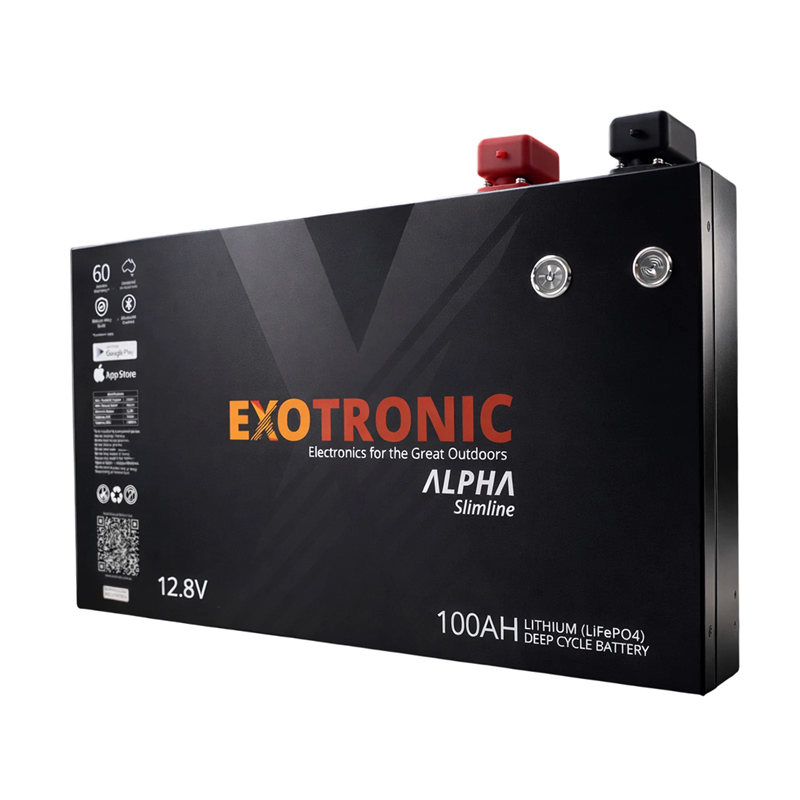

The Exotronic Alpha Slimline 100Ah Lithium Battery is engineered for installations where space is limited. Its slim profile makes it ideal for mounting behind seats, within canopies, inside drawer systems or other confined areas commonly found in 4WD and touring vehicle setups. Integrated Bluetooth connectivity allows convenient battery monitoring directly from your smartphone, helping you stay informed about battery status, voltage and performance.

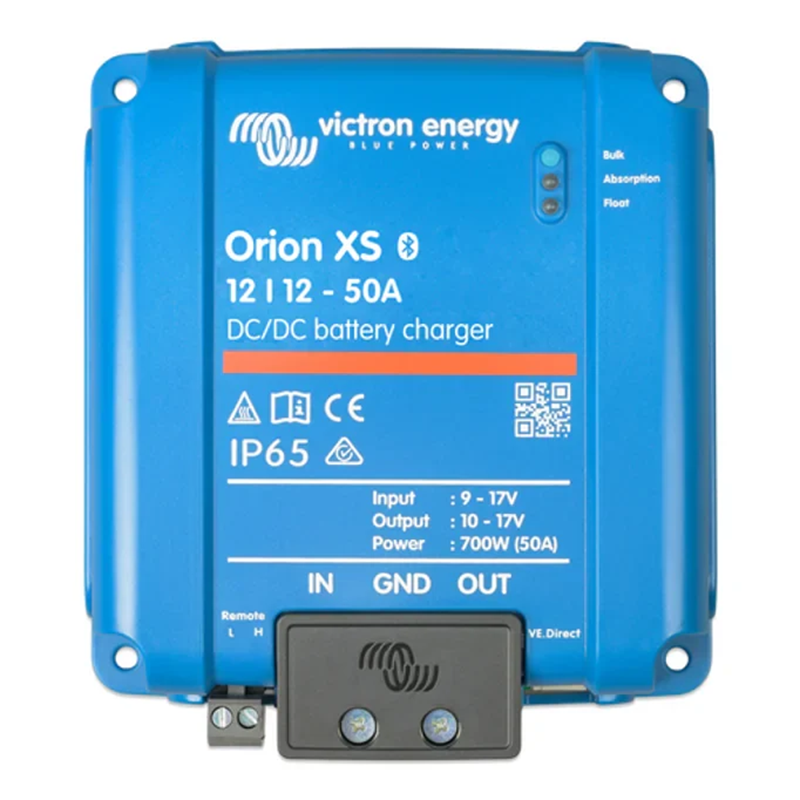

The Victron Orion XS 50A DC-DC Charger delivers intelligent charging designed specifically for modern lithium battery systems. The EMC Improved Version provides enhanced compatibility with modern vehicles while delivering efficient charging performance. Combined with the 100Ah lithium battery, this creates a dependable auxiliary power solution capable of supporting demanding touring and camping requirements.
This 100Ah lithium battery and Victron DC-DC charger package is suitable for a wide range of applications including 4WD touring vehicles, ute canopies, caravans, RVs, marine installations, off-grid systems, tiny homes and industrial power setups. Whether you're upgrading an existing auxiliary battery system or building a new installation from the ground up, this kit provides trusted components from respected brands.
Popular Uses
- 4WD touring and overlanding setups
- Canopy and ute power systems
- Caravan and RV auxiliary power
- Camping and outdoor recreation
- Marine electrical systems
- Off-grid and remote power applications
What's Included
- 1 x Exotronic 12V 100Ah Alpha Slimline Smart Bluetooth Lithium Battery
- 1 x Victron Orion XS 12/12-50A DC-DC Smart Battery Charger (EMC Improved Version)
Specifications:
- Battery Capacity: 100Ah
- Battery Nominal Voltage: 12.8V
- Continuous Discharge Current (30 Min): 100A
- Peak Current (1s): 170A
- Trip Current (10s): 110A
- Maximum Inverter Size: 1000W
- Maximum Number of Parallel Batteries: 4 of the same model
- Maximum Number of Series Batteries: 4 of the same model
- Low Voltage Trip: 10V
- High Voltage Trip: 14.6V
- Balance Current: 1.2A
- Length: 515mm
- Width: 65mm
- Height: 290mm
- Weight: 11.7kg
- Mounting Orientation: Upright/Side
- Nominal Continuous Charge Current: 30A
- Maximum Continuous Charge Current: 50A
- Absorption Voltage: 14.0–14.2V
- Float Voltage: 13.5V
- Cycle Life (0.3C): >3000 100% cycles at 25°C to 80% capacity within 5 years
- Case Material: Powder-coated metal Slimline case
- Terminal: M8 Bolt – 10mm depth + 120A Anderson Plug
- Terminal Torque: 14Nm Max (12Nm Recommended)
- Capacity Measurement: 14.6V to 10V at 0.3C at 25°C
- Operating Temperature – Charging: 5°C–45°C
- Operating Temperature – Discharging: -20°C–55°C
- Storage Temperature: -20°C–60°C
- Ideal Storage Conditions: 25°C, 40% SoC (approx. 13V)
- Battery Ventilation Required: 10mm Clearance on all sides
Specifications
SKU Exo-BDL-4wd-starter
Brand Exotronic
Product Category Power Systems
Amp Hours (Ah) 100
Battery Length (mm) 515
Battery Width (mm) 65
Battery Height (mm) 290
Battery Weight (kg) 11.7
Output Current Rating (Amps) 50
Battery Charge Temperature 5°C to 45°C
Maximum Charge Current 50A
Battery Discharge Temperature -20°C to 55°C
Maximum Discharge Current 100A
Discharge Cut-off Voltage 10V
Input Voltage 9-17 V
Operating Temperature Range -20°C to 60°C
Charger Voltage 12V
Bluetooth Connectivity Yes
Total Charge Current 50A
Cycle Life (dod - 80% Under Controlled Conditions) >3000
Dimensions 137.3 x 123.1 x 40mm
Recommended Charge Current for Maximum Life 30A
Battery type LiFePO4
Nominal Capacity 100Ah
Weight (kg) 0.33 (Charger)
