Exotronic Coorong Series Pre-wired Victron Board - Landscape
Premium, Pre-Wired Victron Energy Power Board — Landscape Layout for Space-Efficient Installation

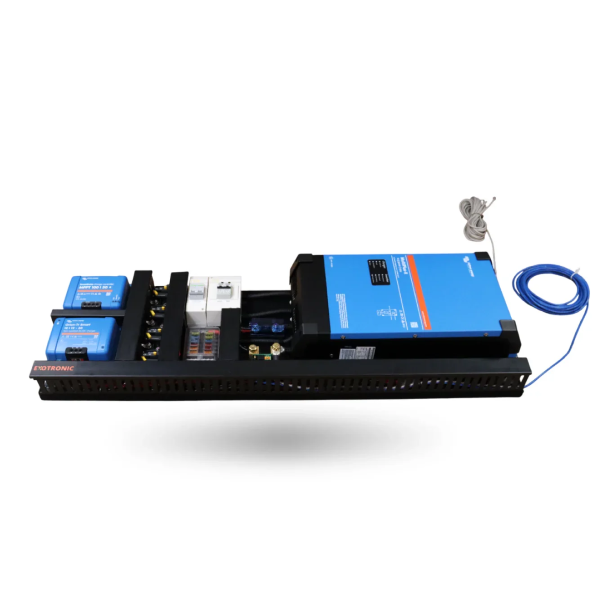

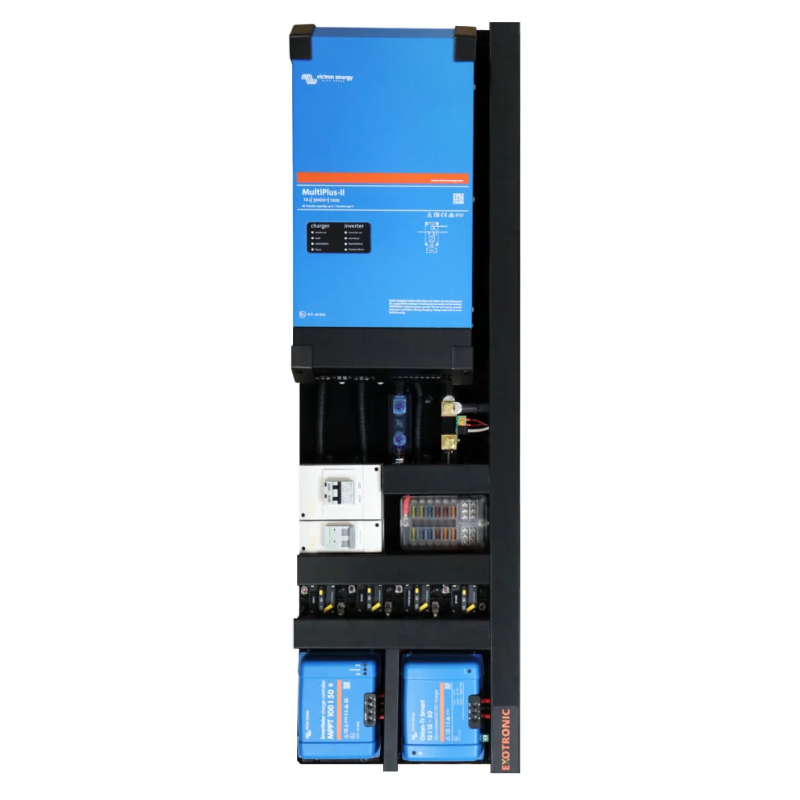

The Exotronic Coorong Series Pre-Wired Victron Board delivers a fully integrated, professionally assembled power solution for campervans, motorhomes, and expedition vehicles. By combining a Victron 3000VA MultiPlus-II inverter/charger, 50A MPPT SmartSolar controller, 30A Orion-Tr Smart DC-DC charger, and BMV-712 battery monitor on a single powder-coated aluminium chassis, this board eliminates the complexity, time, and risk of a custom electrical build. Every component is pre-wired, tested, and documented, allowing you to focus on your conversion rather than fault-finding.
Engineered for 12V lithium battery systems, the Coorong Series is ideal for van lifers who demand reliable, high-capacity power for induction cooking, air conditioning, and off-grid workstations. The landscape orientation (1150 x 355 x 170 mm) fits neatly under beds or bench seats, maximising usable living space.
Why a Pre-Wired Board Reduces Risk and Saves Time
Custom wiring a multi-component power system requires advanced electrical knowledge, specialised tools, and hours of labour. Mistakes in cable sizing, fuse selection, or termination can lead to voltage drop, overheating, or even fire. The Coorong Series mitigates these risks with professionally crimped, oversized cables, correctly rated circuit protection, and a validated layout. Each board undergoes functional testing before dispatch, giving you confidence that your system will perform from day one.
Key Components and Benefits:

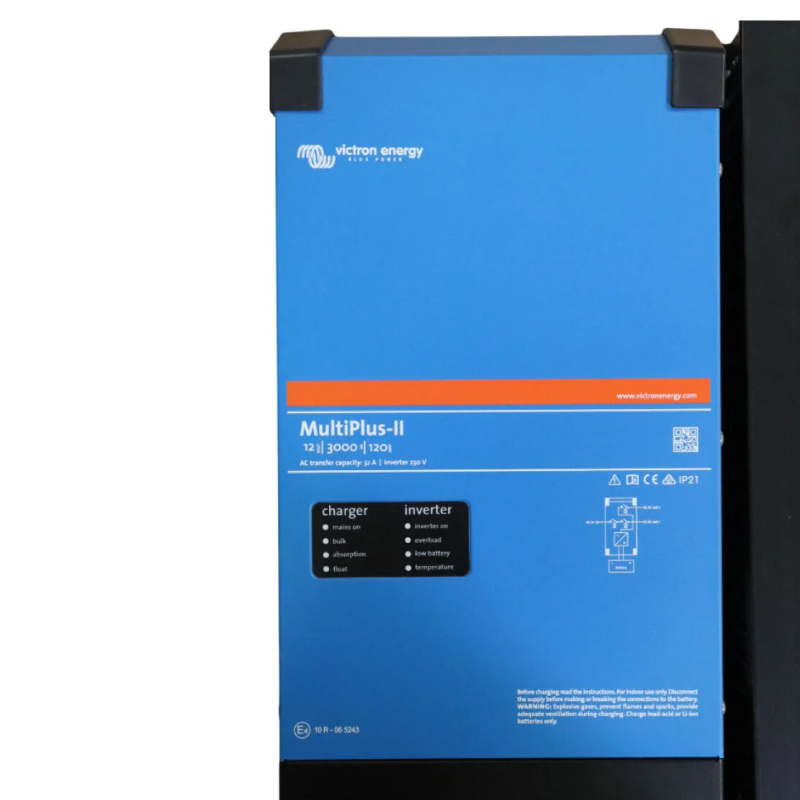

- Victron MultiPlus-II 3000VA Inverter/Charger: Powers 230V appliances up to 2400W continuous, with a 120A mains charger for rapid shore-power top-ups. The automatic transfer switch ensures uninterrupted power when connecting to or disconnecting from the grid. Includes a Digital Multi Control panel with 9m cable for remote on/off and charger-only operation.

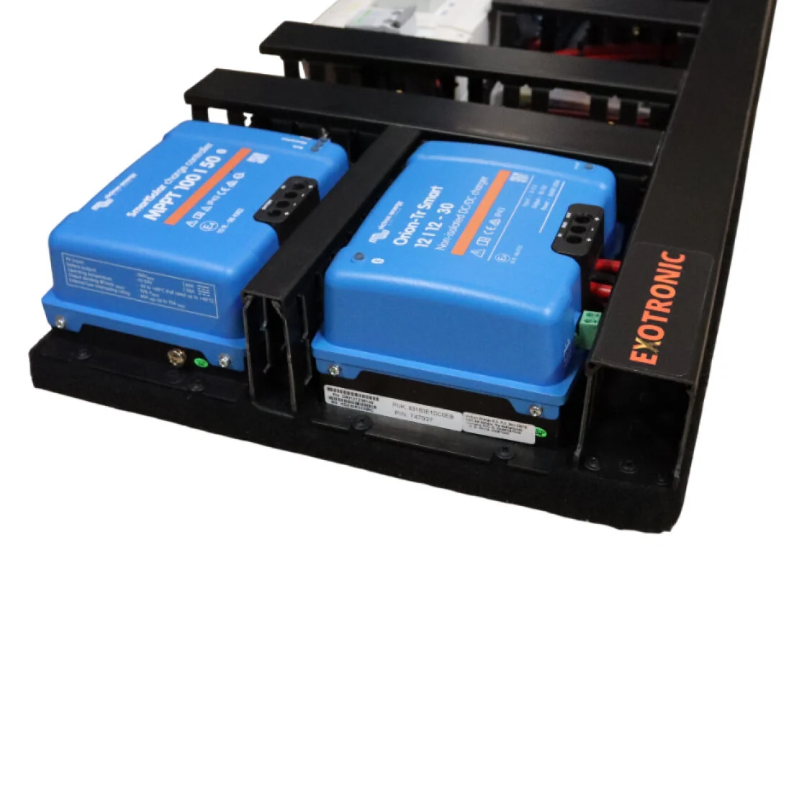

- Victron SmartSolar MPPT 100/50: Bluetooth-enabled solar charge controller with ultra-fast Maximum Power Point Tracking, maximising harvest from your rooftop panels. Pre-terminated with a genuine red Anderson connector for plug-and-play solar input.
- Victron Orion-Tr Smart 30A DC-DC Charger: Non-isolated, Bluetooth-enabled charger compatible with smart alternators. Charges your house battery while driving, with a grey Anderson connector for straightforward starter battery connection.

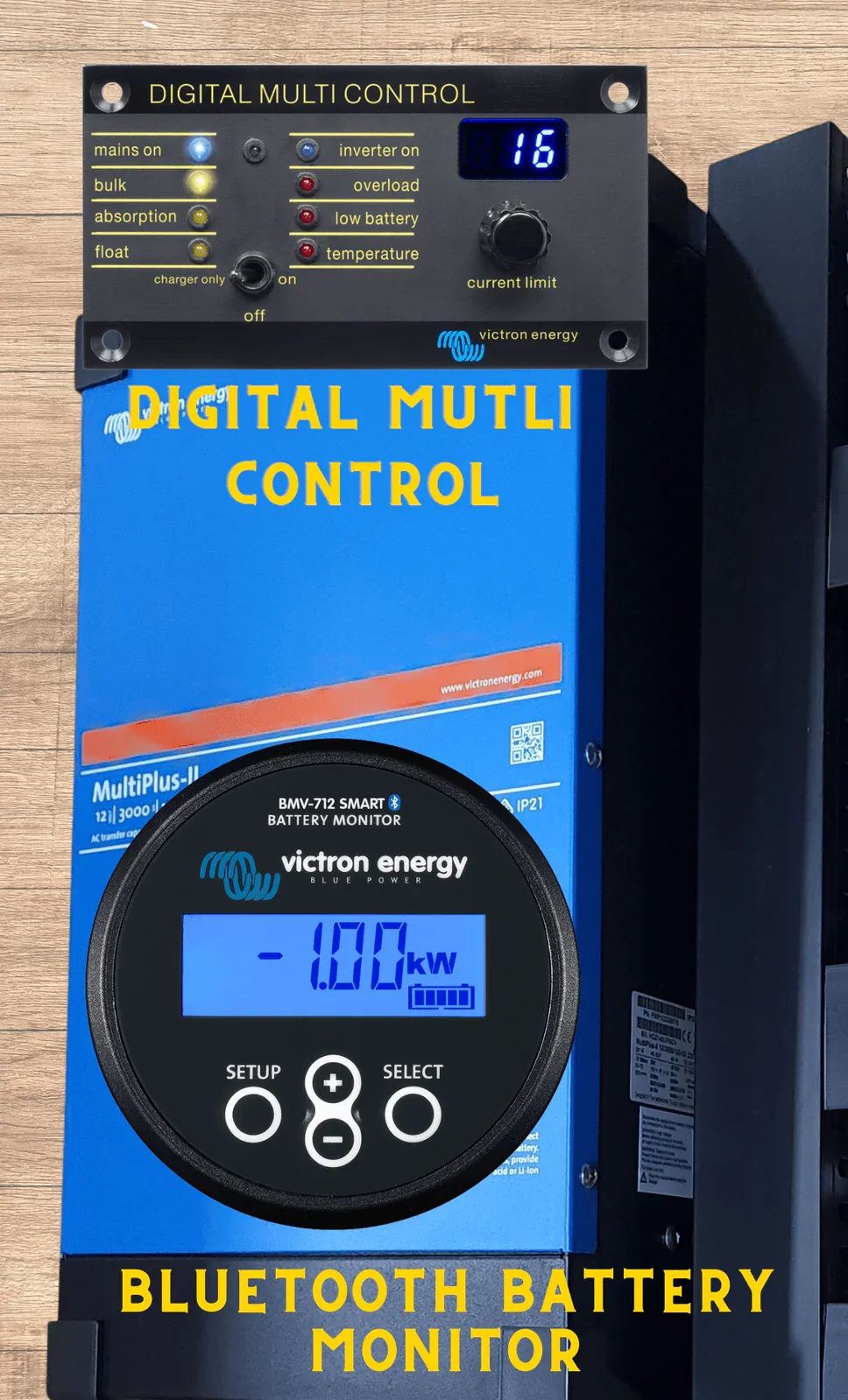

- Victron BMV-712 Smart Battery Monitor: Provides precise state-of-charge, voltage, current, and time-to-go data via Bluetooth. Set audible alarms for low battery levels. Includes 9m cable to the remote display.
- Integrated Protection and Distribution: A 12-blade fuse block with Exotronic circuit breakers manages DC loads safely. A 400A MEGA fuse and 70mm² double-insulated power cable handle high inverter currents. Safety switch circuit protection is fitted on both incoming and outgoing AC circuits.
Specifications:
- Layout: Landscape
- Configured Capacities: 3000 VA + Mains 120 A + Solar 50 A + DC-DC 30 A
- Inverter: Victron 3000 VA MultiPlus-II Inverter
- Mains Charger: 120 A
- Solar Controller: Victron 50 A MPPT SmartSolar Controller (Bluetooth Enabled)
- DC-DC Charger: Victron 30 A DC-DC Charger (Bluetooth Enabled, Non-Isolated)
- Battery Monitor: Victron BMV-712 Battery Monitor (Bluetooth)
- Remote Inverter Control: Victron Digital Multi Control (Remote On/Off/Charger Only Switch) Included
- Remote Inverter Control Cable Length: 9 m
- Battery Monitor Cable Length: 9 m
- Solar Input Connector: Red Anderson Connector
- Starter Battery Connector: Grey Anderson Connector
- Fuse Block: 12 Blade Fuse Block
- Circuit Protection: Safety Switch Circuit Protection in Both Incoming and Outgoing Inverter Circuits
- Main Fuse: 400 A MEGA Fuse
- Power Cable: 70 mm² Double Insulated Power Cable
- Mounting: Wall or Floor Mounting
- Documentation: Detailed Board Wiring Diagram Including Example External Wiring
- Weight: 33 kg
- Dimensions: 1150 × 355 × 170 mm
.png)
Specifications
SKU PWB-Vic-AL-01
Brand Exotronic
GTIN 9361784000213
Product Category Power Systems
Dimensions 1150 x 355 x 170mm
Weight (kg) 33
Cable Type 70 mm² Double Insulated Power Cable
Cable Type 600-800 recommended
Layout Landscape
System Voltage (V) 12
Continuous Power (W) 2400
Capacity (Ah) 250
