Exotronic Coorong Series Pre-wired Victron Board - Portrait
SKU: PWB-Vic-A-01 Learn More»
Exotronic Coorong Series Pre-wired Victron Board - Portrait
Plug-and-Play 12V Electrical System with Victron Energy Components

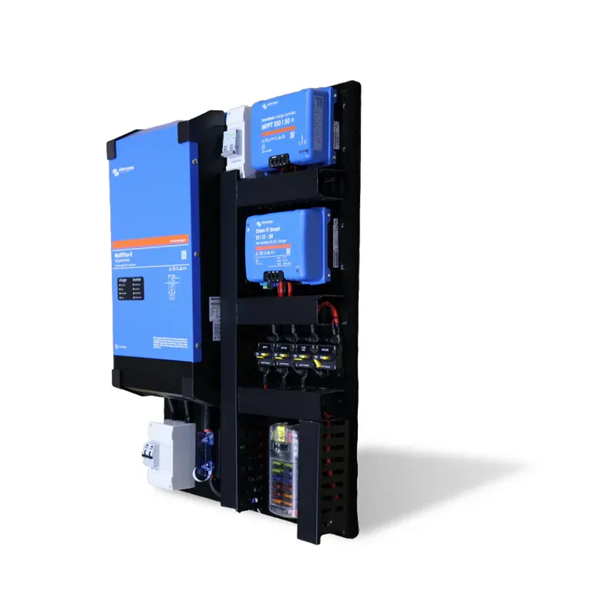

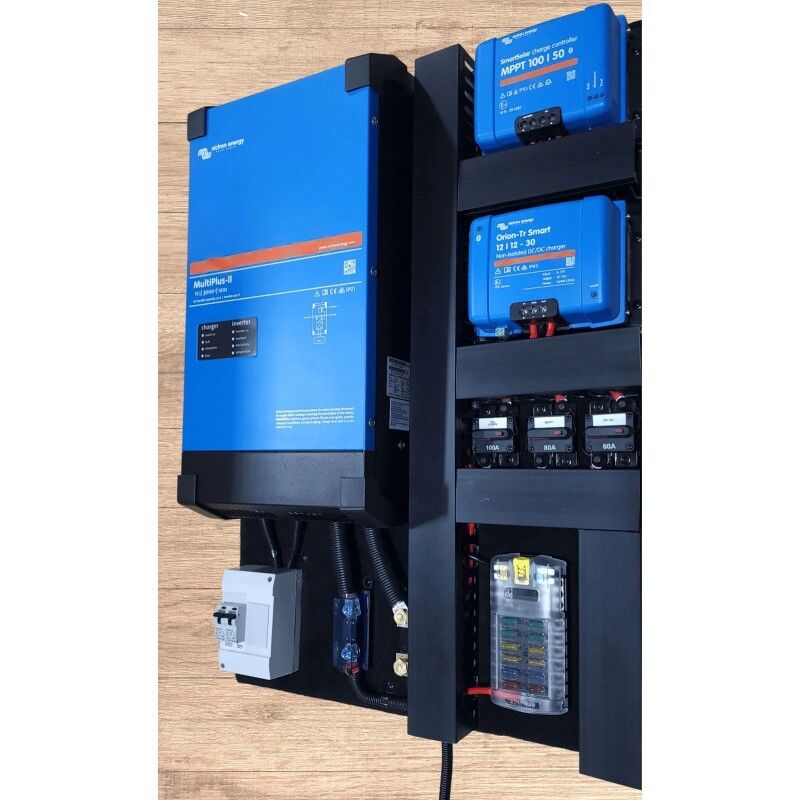

The Exotronic Coorong Series Pre-wired Victron Board (Portrait) is a fully integrated, factory-wired power solution that eliminates the complexity of DIY electrical builds. Designed for van conversions, campervans, and RV power systems, this board combines a Victron 3000VA MultiPlus-II inverter/charger, 50A MPPT solar controller, 30A DC-DC charger, and BMV-712 battery monitor into a single, compact assembly. Every component is pre-connected with oversized cabling and protected by circuit breakers and fuses, so you can focus on your build rather than wiring diagrams.
Unlike generic DIY boards that require sourcing individual parts and risk mismatched components, the Coorong Series arrives ready to install. It reduces the risk of wiring errors, short circuits, and under-specification—common pitfalls in custom electrical setups. The portrait orientation (530 x 750 x 170 mm) is ideal for mounting under a bed or bench seat, maximising usable living space.
Key Features at a Glance
- Victron 3000VA MultiPlus-II Inverter/Charger – Powers 10A appliances with a 120A mains charger and automatic transfer switch for seamless grid-to-battery transition.
- Victron 50A SmartSolar MPPT (Bluetooth) – Optimises solar harvest via a genuine red Anderson connector, compatible with 12V, 24V, and 48V battery banks.
- Victron 30A Orion-Tr Smart DC-DC Charger (Bluetooth) – Charges from a smart alternator through a grey Anderson plug, with non-isolated design for common-negative systems.
- Victron BMV-712 Smart Battery Monitor (Bluetooth) – Tracks state of charge, current, and voltage with a 9m cable to the remote display.

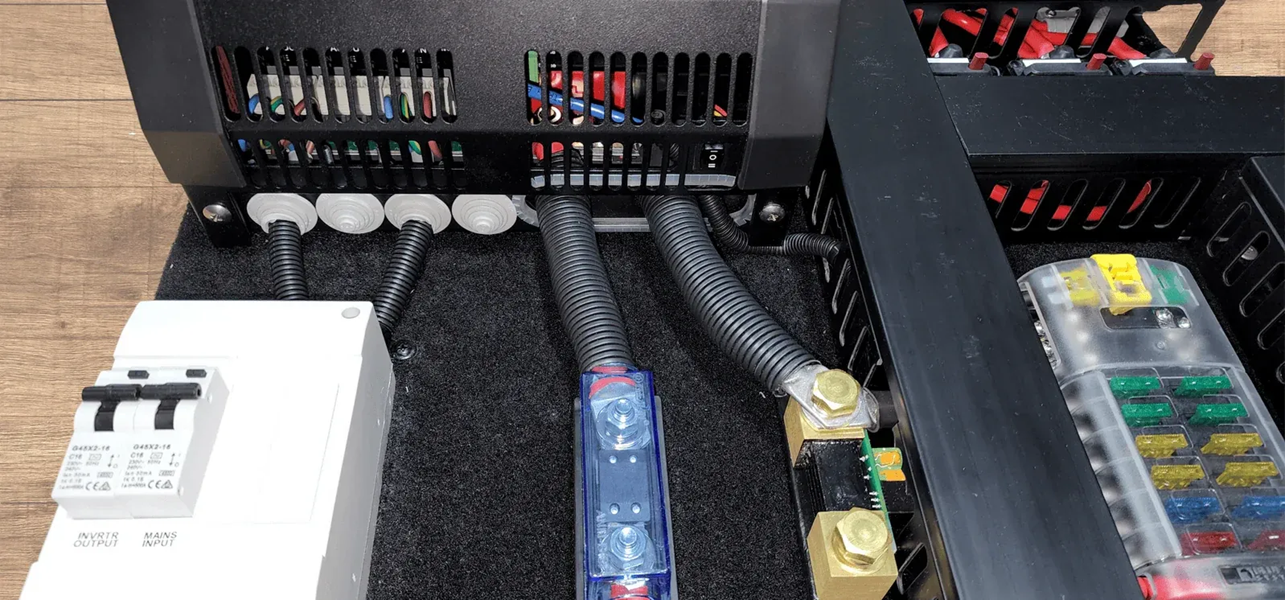

- Integrated AC & DC Protection – Safety switch, 12-blade fuse block, Exotronic circuit breakers, and a 400A MEGA fuse on 70mm² double-insulated cable ensure reliable, low-loss power delivery.
- Pre-Wired & Tested – Every connection is professionally terminated and verified, saving hours of labour and reducing the chance of costly mistakes.
Why a Pre-Wired Board Matters
Building a van electrical system from scratch demands expertise in cable sizing, fuse selection, and component compatibility. A single undersized wire or incorrect breaker can lead to voltage drop, overheating, or even fire. The Coorong Series removes this uncertainty. Its 70mm² power cable and 400A MEGA fuse are correctly matched to the inverter’s surge capacity, while the 12-blade fuse block provides organised DC distribution for lights, pumps, and accessories. The board is fully documented with a wiring diagram, making external connections—solar panels, starter battery, and loads—straightforward.
Designed for Australian Conditions
Whether you’re touring the Outback or parked by the coast, this board is built to endure. The Victron components are known for their reliability in high-temperature environments, and the board’s layout ensures adequate airflow around heat-generating devices. The Bluetooth-enabled controllers and monitor let you adjust settings and view performance from your phone, so you can fine-tune charging profiles without accessing the board directly.
Installation Flexibility
The portrait form factor suits tight spaces, and the board can be wall or floor mounted. All external connections use industry-standard Anderson plugs—red for solar, grey for starter battery—making it easy to disconnect and service. The included 9m remote cables for the MultiPlus control panel and BMV-712 display allow you to position the user interface in a convenient location, away from the main board.
What’s in the Box:
- Pre-assembled board with all Victron components

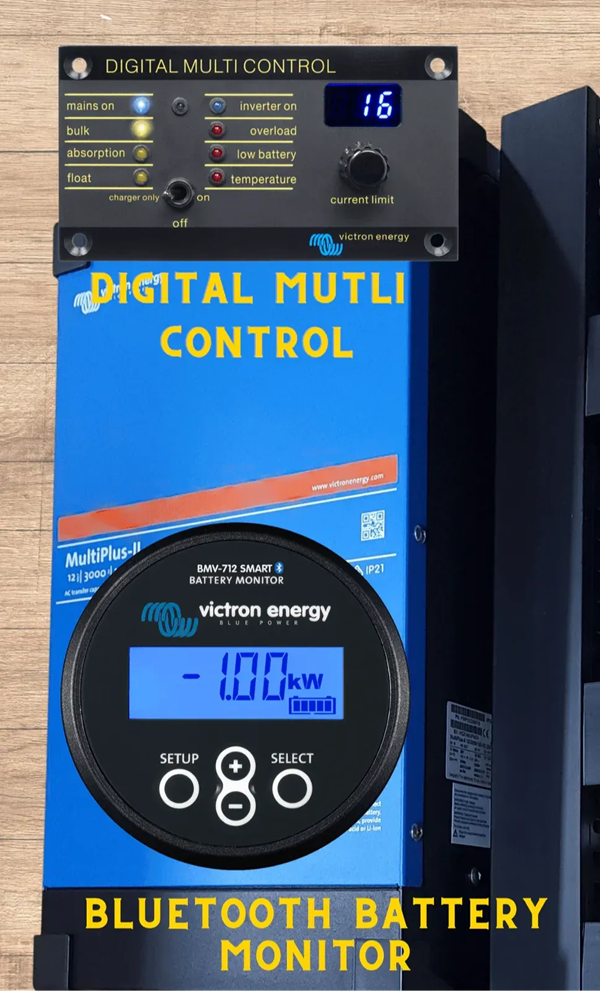

- Victron Digital Multi Control (remote on/off/charger-only switch)
- BMV-712 display with 9m cable
- 9m cable for Multi Control
- Wiring diagram and installation guide
Specifications:
- Configuration: 3000 VA + Mains 120 A + Solar 50 A + DC-DC 30 A
- Board Orientation: Portrait

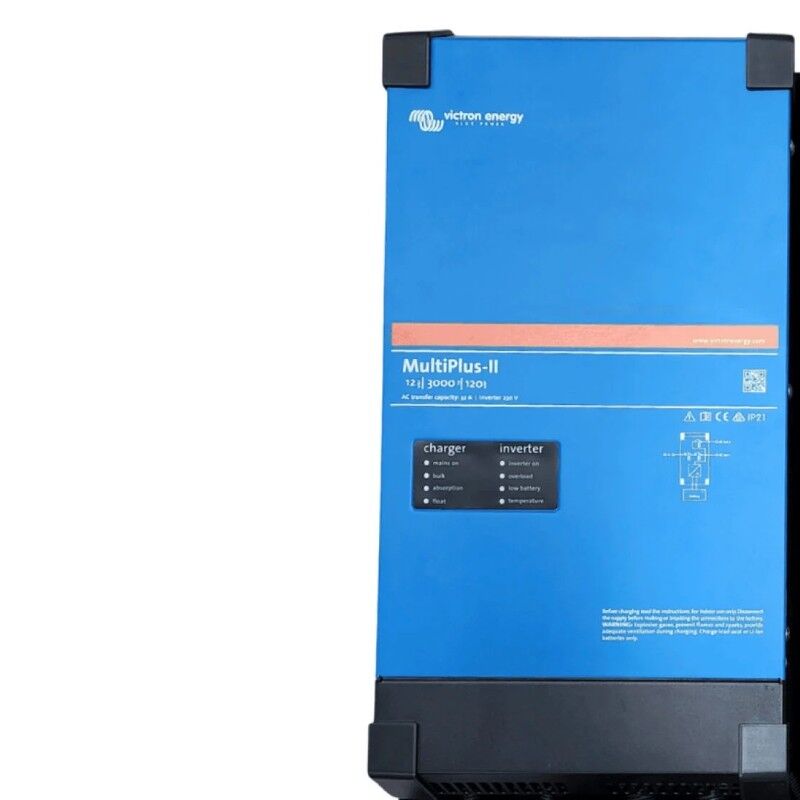

- Inverter: Victron 3000 VA MultiPlus-II Inverter
- Mains Charger: 120 A
- Transfer Switch: Automatic Transfer Switch
- AC Protection: Safety Switch Circuit Protection
- Solar Controller: Victron 50 A MPPT SmartSolar Controller (Bluetooth Enabled)

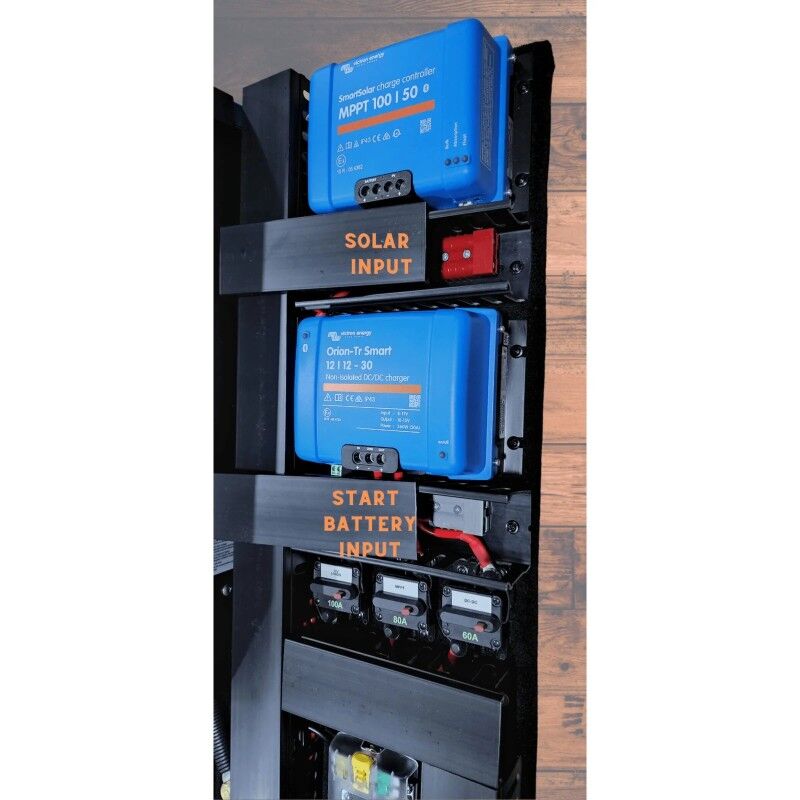

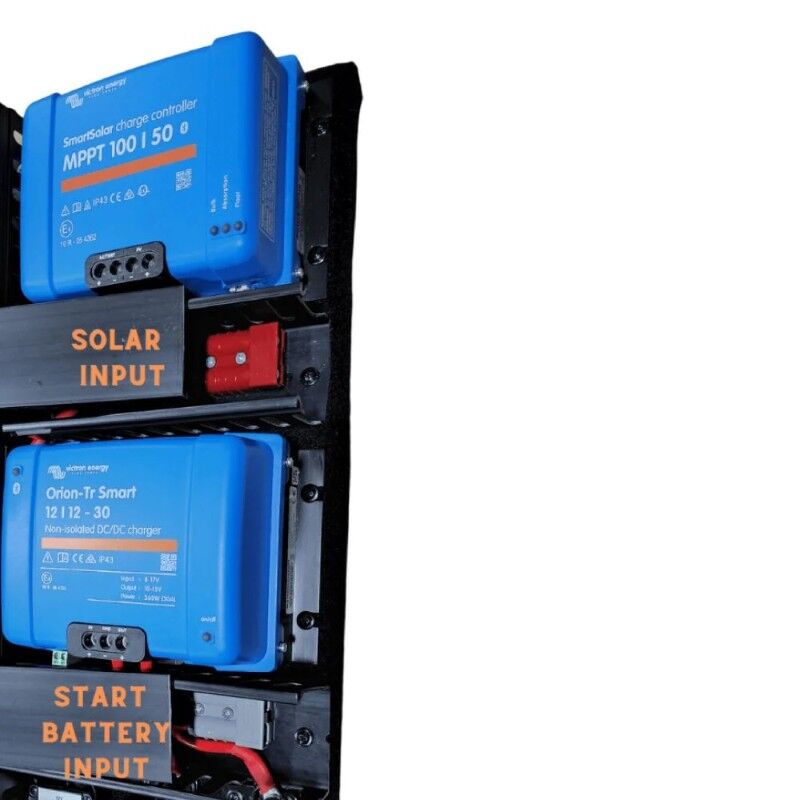

- Solar Input Connector: Red Anderson Connector
- DC-DC Charger: Victron 30 A DC-DC Charger (Bluetooth Enabled, Non-Isolated)
- Starter Battery Connector: Grey Anderson Connector
- Battery Monitor: Victron BMV-712 Battery Monitor (Bluetooth)
- Fuse Block: 12 Blade Fuse Block With Exotronic Circuit Breakers And Cables
- MEGA Fuse: 400 A
- Power Cable: 70 mm² Double Insulated Power Cable
- Remote Control Cable Length: 9 m
- Battery Monitor Display Cable Length: 9 m
- Mounting: Wall Or Floor Mounting
- Dimensions: 530 × 750 × 170 mm
- Weight: 33 kg
.png)
Specifications
SKU PWB-Vic-A-01
Brand Exotronic
GTIN 9361784000169
Product Category Power Systems
Dimensions 530 x 750 x 170mm
Weight (kg) 33
Cable Type 70 mm² Double Insulated Power Cable
Layout Portrait
System Voltage (V) 12
Solar Input (W) 600-800 recommended
Continuous Power (W) 2400
Capacity (Ah) 250
