Professional-Grade, Pre-Assembled Off-Grid Power System

The Exotronic Karijini Series Pre-Wired Victron Energy Power Board delivers a fully integrated, factory-assembled electrical system engineered for van conversions, caravans, RVs, and marine applications. By combining premium Victron Energy components on a single, compact board, this solution eliminates the complexity, time, and risk associated with sourcing, wiring, and configuring individual devices. Every connection is professionally terminated, tested, and secured, allowing you to focus on your build rather than electrical design.

Unlike generic, piecemeal power setups that require extensive troubleshooting and can suffer from compatibility issues, the Karijini Series provides a cohesive, optimised system. It reduces the risk of incorrect wiring, voltage drop, and component mismatch—common pitfalls in DIY electrical installations. The result is a reliable, high-performance energy hub that powers your appliances, charges your batteries from multiple sources, and provides comprehensive monitoring, all from a single, space-efficient board.

Integrated Victron Energy Ecosystem

At the core of this power board is a curated selection of Victron Energy components, each chosen for its proven reliability and advanced features:

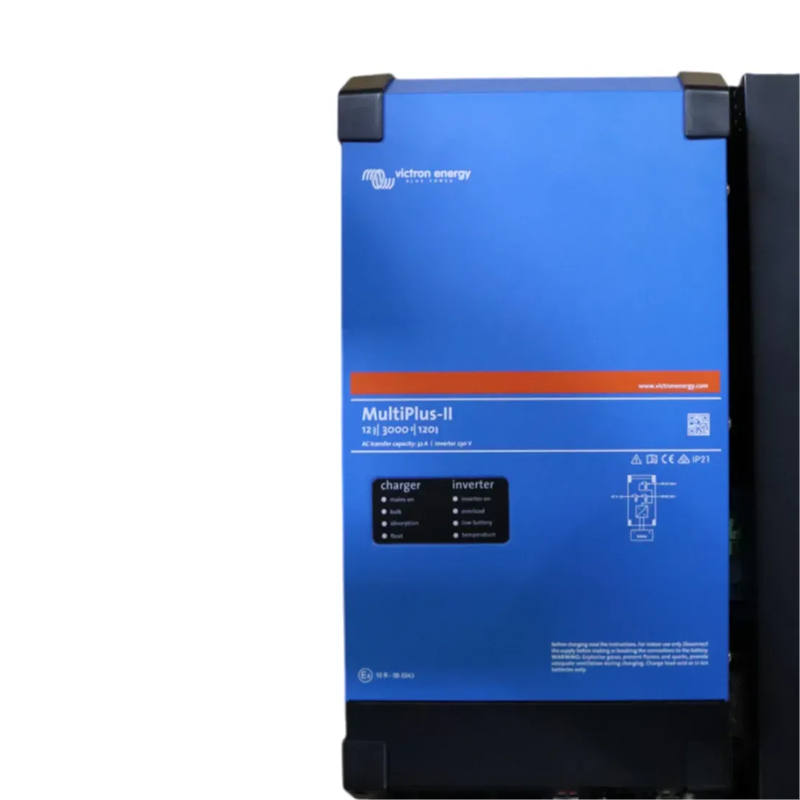

• Victron MultiPlus-II 3000VA Inverter/Charger: Delivers pure sine wave AC power to run sensitive electronics and appliances up to 2400W continuously. The integrated 120A mains charger rapidly replenishes batteries when shore power is available, while the automatic transfer switch ensures seamless switching between grid and battery power—no manual intervention required.

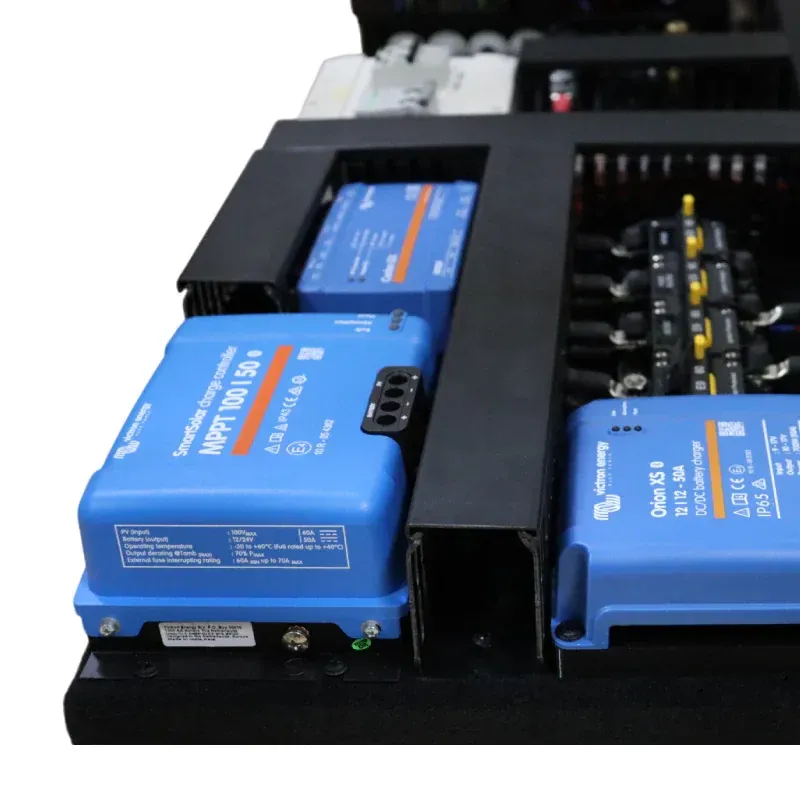

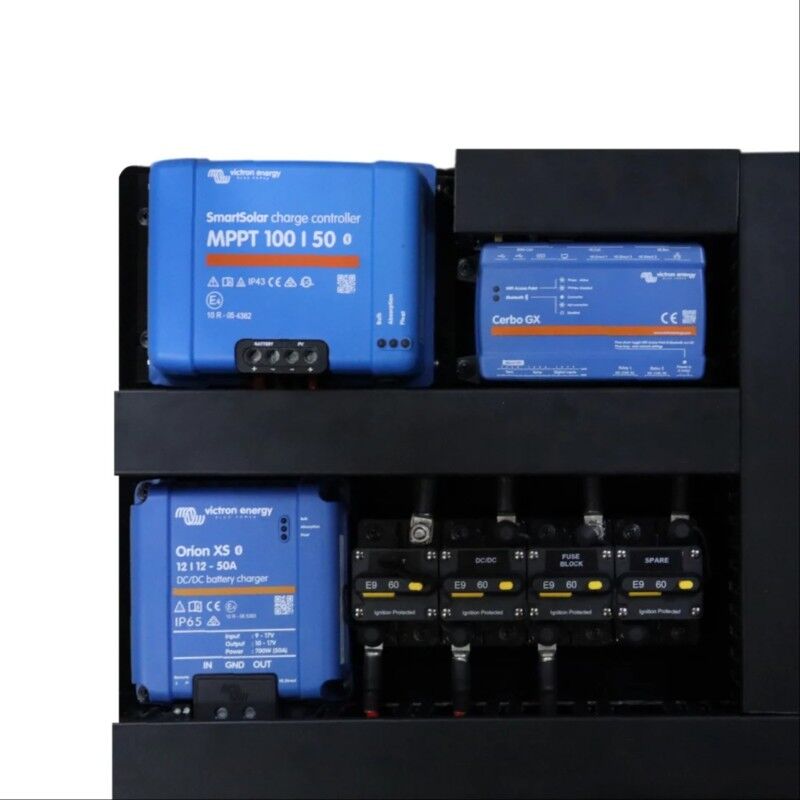

• Victron SmartSolar MPPT 50A Charge Controller: Maximises solar harvest with ultra-fast Maximum Power Point Tracking, even under partial shading or overcast skies. The pre-wired red Anderson connector allows quick, secure connection to your solar array. Bluetooth connectivity via the VictronConnect app provides real-time performance data and historical insights.
• Victron Orion XS 50A DC-DC Charger: Provides intelligent, temperature-compensated charging from your vehicle’s alternator while driving. Its Adaptive Three-Step Charging algorithm extends battery service life, and the built-in Recovery Function can revive deeply discharged batteries. Remote monitoring and control are available via Bluetooth.
• Victron SmartShunt 300A Battery Monitor: Offers precise, real-time tracking of battery state of charge, voltage, current, and time remaining. Configurable alarms alert you to low battery conditions, helping prevent unexpected power loss.
• Victron Cerbo GX Communication Centre: Acts as the brain of the system, enabling remote monitoring, data logging, and control via the VRM portal. It supports optional Ruuvi temperature sensors and Mopeka tank level sensors (sold separately) for complete environmental awareness.
• Integrated Circuit Protection: A 12-way blade fuse block with Exotronic circuit breakers organises and safeguards your DC loads. A 400A MEGA fuse on the main battery input, combined with 70mm² insulated power cable, ensures safe, low-resistance current delivery.

Designed for Space Efficiency and Installation Flexibility

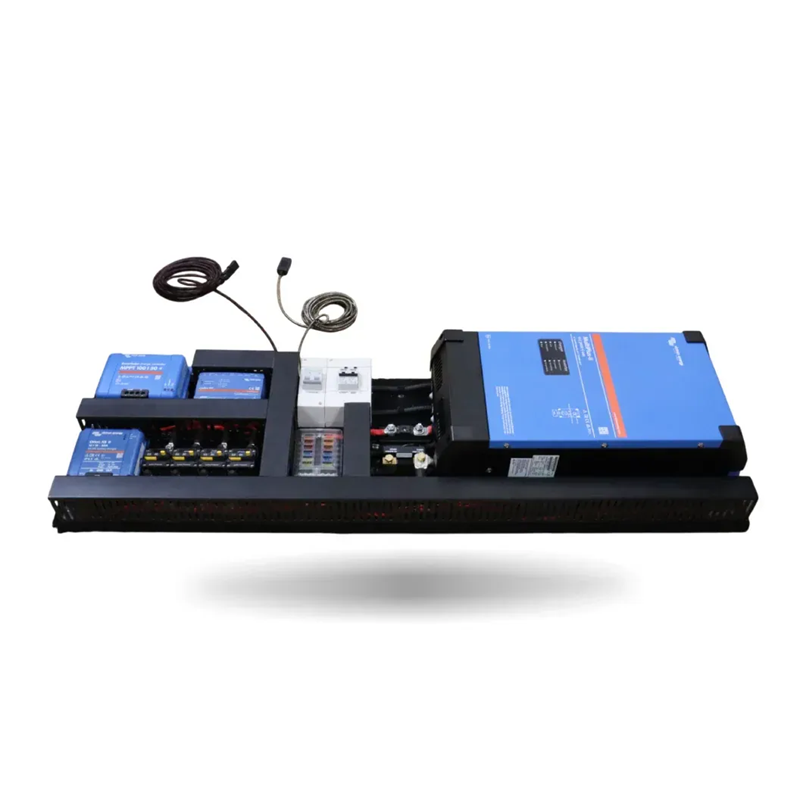

With dimensions of 1200 x 355 x 170 mm and a weight of 33 kg, the landscape layout is optimised for mounting under van beds, seats, or on walls. This low-profile design maximises usable living space without compromising access for maintenance. The board is supplied on a pallet for secure transport; please ensure a business address or depot is available for unloading, or that someone is present to assist the driver for home deliveries.

Applications:

• This power board is ideally suited for:
• Campervan and motorhome electrical systems
• Caravan and RV power upgrades
• Off-grid tiny homes and cabins
• Marine and coastal installations

Key Benefits at a Glance

• Pre-wired and factory-tested to reduce installation time and eliminate wiring errors
• Complete Victron Energy ecosystem ensures seamless component compatibility
• Multi-source charging from solar, alternator, and shore power
• Comprehensive monitoring and control via VictronConnect and VRM
• Robust circuit protection with breakers and a 400A main fuse
• Compact landscape layout suits under-bed or wall mounting

Specifications:

• Configuration: 3000 VA + Mains 120 A + Solar 50 A + DC-DC 50 A + Cerbo GX
• Layout: Landscape
• Inverter: Victron 3000 VA MultiPlus-II Inverter
• Mains Charger: 120 A mains charger
• Transfer Switch: Automatic transfer switch
• Solar Charge Controller: Victron 50 A MPPT SmartSolar Controller
• Solar Connector: Red Anderson connector
• Solar Monitoring: Bluetooth-enabled for real-time solar monitoring via the VictronConnect app
• DC-DC Charger: Victron Orion XS 50 A DC-DC Charger
• DC-DC Features: Adaptive Three-Step Charging, intelligent Recovery Function, remote monitoring and control via Bluetooth
• Battery Monitor: Victron 300 A SmartShunt Battery Monitor
• Communication Centre: Victron Cerbo GX
• Sensor Compatibility: Ready for Ruuvi temperature sensors and Mopeka water and LPG tank levels
• Fuse Block: 12 Blade Fuse Block with Exotronic circuit breakers
• Main Fuse: 400 A MEGA Fuse
• Power Cable: 70 mm² insulated power cable

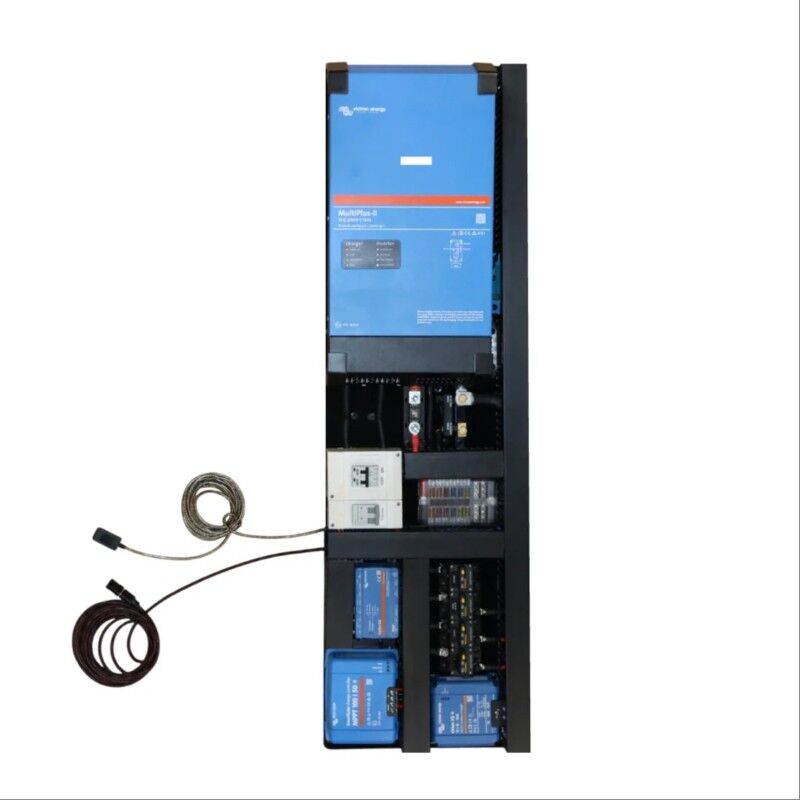

• Mounting: Wall or floor mounting
• Weight: 33 kg
• Dimensions: 1200 × 355 × 170 mm
