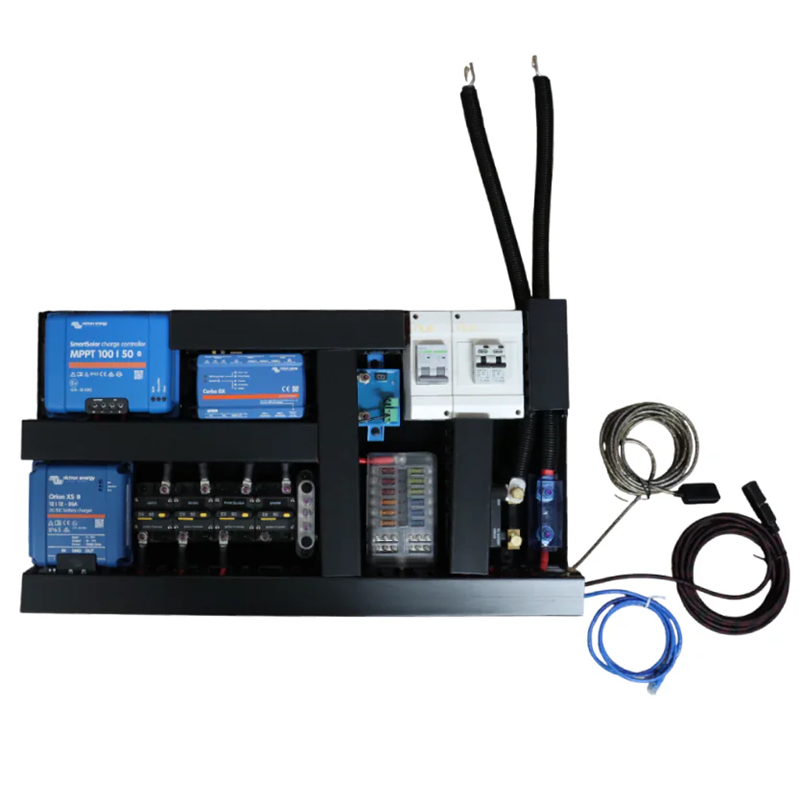

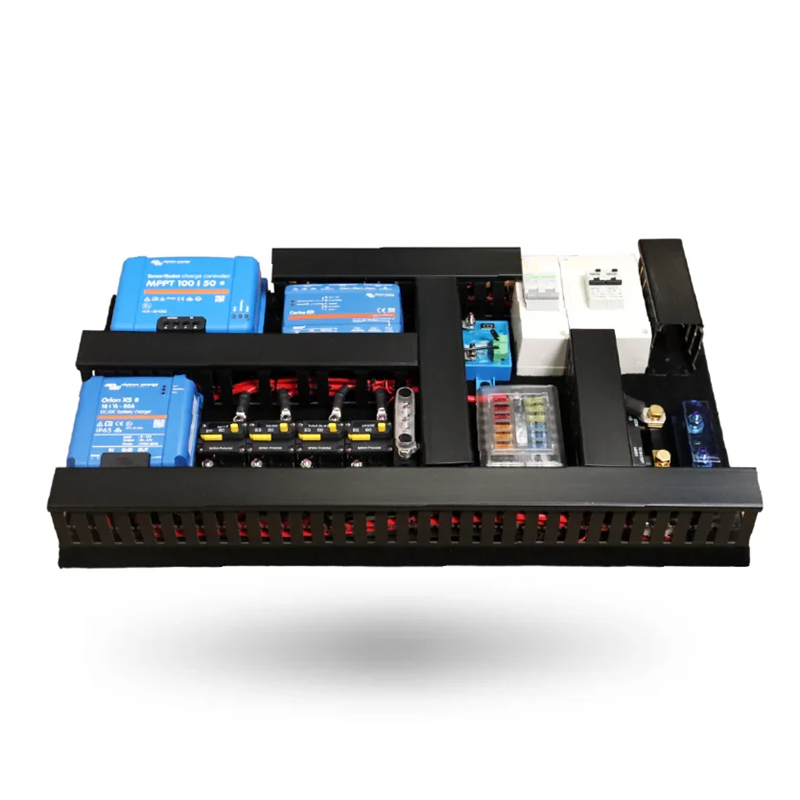

Exotronic Karijini Series Pre-wired Victron Board - Split
Professional-Grade, Pre-Assembled Power Solution for Off-Grid Vehicles

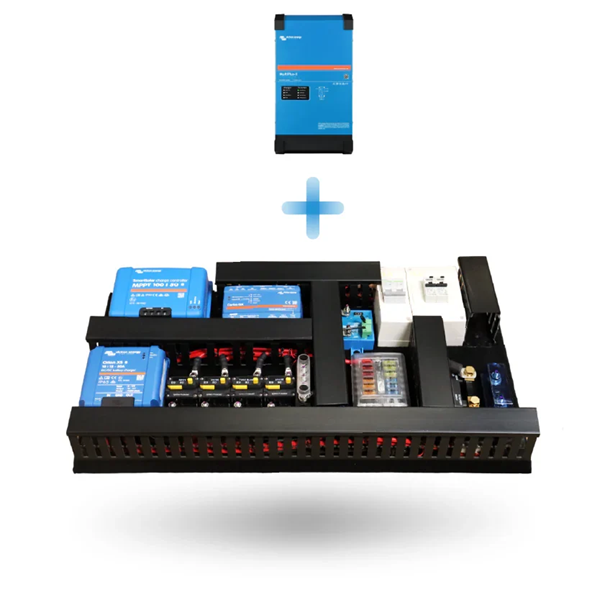

Inspired by the rugged landscapes of Karijini National Park, the Karijini Series Pre-Wired Victron Energy Power Board delivers a complete, expertly assembled electrical system for van conversions, caravans, RVs, and marine applications. This split layout configuration separates the Victron 3000VA MultiPlus-II inverter from the main control board, optimising space in tight installations under beds or seats while maintaining full functionality.
Every component is professionally wired and tested, reducing installation time and eliminating the risk of wiring errors. The board arrives ready to connect to your battery bank, solar array, and DC loads, allowing you to focus on your build rather than complex electrical integration.
Engineered for Reliability and Ease of Installation
The Karijini Series addresses common pain points in DIY electrical setups. Generic, piecemeal systems often lead to compatibility issues, messy wiring, and troubleshooting headaches. This pre-wired board eliminates those risks by providing a cohesive, tested assembly with detailed wiring diagrams. The split layout allows the inverter to be mounted separately, reducing heat buildup and freeing up valuable space in compact van interiors.
All high-current connections use robust terminals and properly sized cabling, minimising voltage drop and heat generation. The inclusion of a 400A MEGA fuse and 70mm² power cable ensures safe handling of peak currents, while the Smart Battery Protect safeguards your battery bank from deep discharge damage.
Complete Energy Management and Monitoring
With the Victron Cerbo GX at the heart of the system, you gain full remote monitoring and control via the Victron Remote Management (VRM) portal. Adjust inverter settings, monitor solar yield, and track battery health from your smartphone or tablet. The system is ready for optional Ruuvi temperature sensors and Mopeka tank level sensors (sold separately), providing a comprehensive view of your vehicle's resources.
The Victron SmartShunt delivers precise battery monitoring, including state of charge and time-to-go estimates, helping you manage energy consumption effectively during extended off-grid stays.
Built for Australian Conditions
Designed and assembled in Australia, the Karijini Series uses genuine Victron Energy components known for their durability and performance in harsh environments. The board's compact dimensions (650 x 350 x 100 mm) and 12 kg weight make it manageable for single-person installation, while the robust construction withstands vibration and temperature extremes encountered on rough outback tracks.
Applications:
- Campervan and motorhome electrical systems
- Caravan power upgrades
- Off-grid tiny homes and cabins
- Marine and yacht auxiliary power
- Mobile workshops and command vehicles
Key Features:

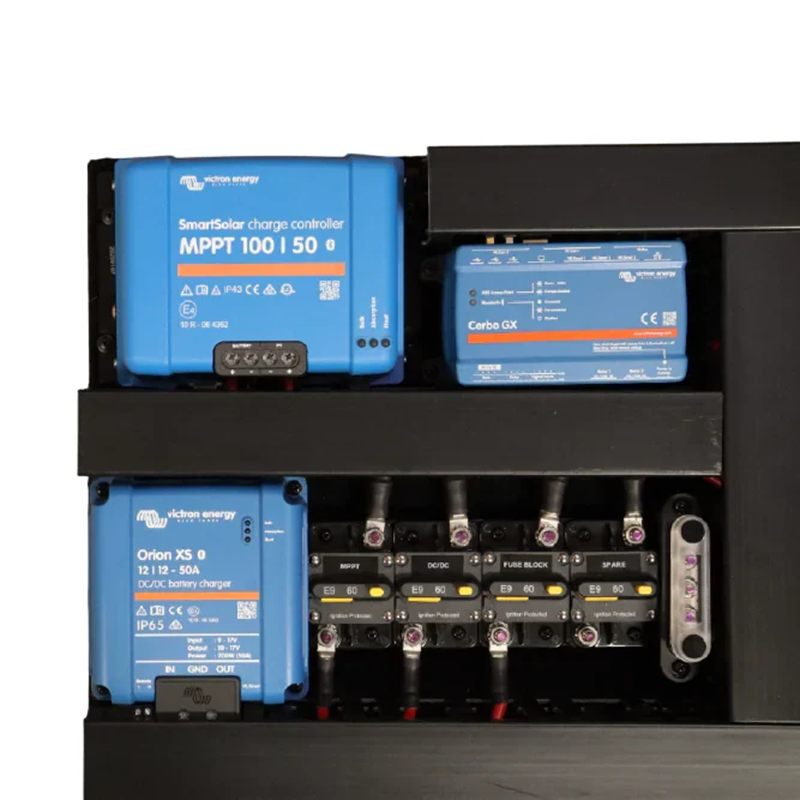

- Victron 3000VA MultiPlus-II Inverter with 120A mains charger and automatic transfer switch for seamless grid-to-battery transitions
- Victron 50A MPPT SmartSolar Controller with Bluetooth monitoring and red Anderson connector for quick solar panel connection
- Victron Orion XS 50A DC-DC Charger with adaptive three-step charging and intelligent recovery function for alternator charging
- Victron 300A SmartShunt Battery Monitor for real-time state of charge, voltage, and energy usage tracking
- Victron Cerbo GX system controller with adjustable current limits, relay control, and sensor inputs (Ruuvi and Mopeka compatible)
- Integrated circuit protection including 12-blade fuse block, Exotronic circuit breakers, and 400A MEGA fuse with 70mm² insulated power cable
- Smart Battery Protect prevents excessive battery discharge from DC loads
- PV isolator included to meet current regulatory requirements
Specifications:
- Layout: Split Layout
- Configuration: 3000 VA + Mains 120 A + Solar 50 A + DC-DC 50 A + Cerbo GX
- Inverter: Victron 3000 VA MultiPlus-II Inverter
- Mains Charger: 120 A
- Transfer Switch: Automatic transfer switch
- Solar Controller: Victron 50 A MPPT SmartSolar Controller
- Solar Input Connector: Red Anderson connector
- DC-DC Charger: Victron Orion XS 50 A DC-DC Charger
- Battery Monitor: Victron 300 A SmartShunt Battery Monitor
- System Controller: Victron Cerbo GX
- Sensor Compatibility: Ready for Ruuvi temperature sensors and Mopeka water and LPG tank levels (sold separately)
- Fuse Block: 12 Blade Fuse Block
- Circuit Breakers: Exotronic circuit breakers
- Main Fuse: 400 A MEGA Fuse

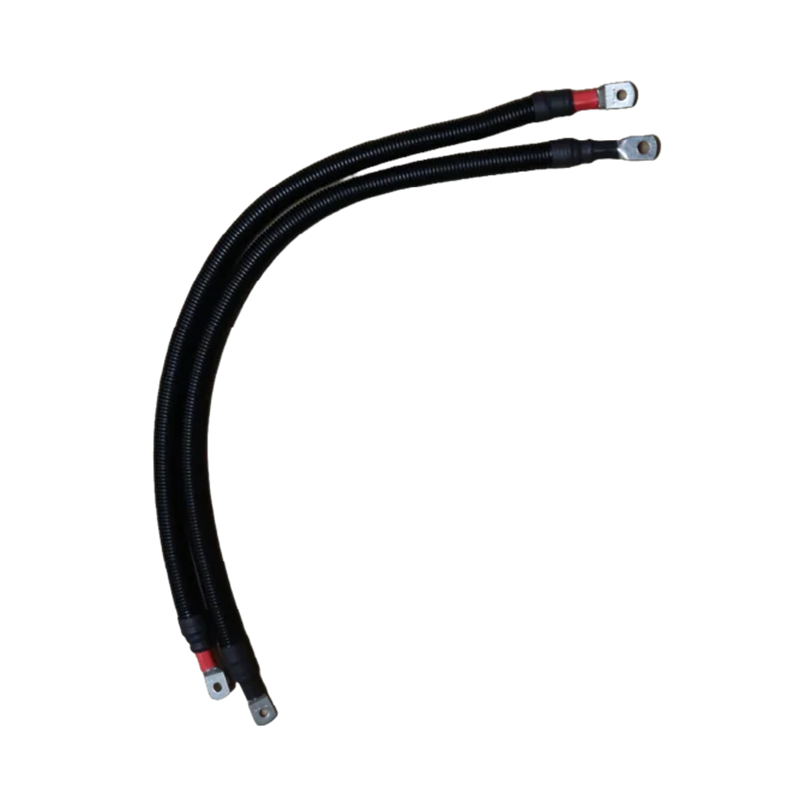

- Power Cable: 70 mm² insulated power cable
- Mounting: Wall or floor mounting
- Weight: 12 kg
- Dimensions: 650 × 350 × 100 mm
.png)
Specifications
SKU PWB-Vic-A50X-KS-01
Brand Exotronic
Product Category Power Systems
Dimensions 780 x 530 x 170mm
Weight (kg) 33
Cable Type 70 mm² Insulated Power Cable
Layout Portrait
System Voltage (V) 12
Solar Input (W) 600-800 recommended
Continuous Power (W) 2400
Capacity (Ah) 250
