Exotronic Noosa 50 Plus Series Pre-wired Victron Board

Exotronic Noosa 50 Plus Series Pre-wired Victron Board

Professional-Grade Power Hub for Caravans, RVs, Marine, and Off-Grid Setups

The Exotronic Noosa 50 Plus Series Pre-Wired Victron Board delivers a fully integrated, high-performance energy management solution engineered for modern lithium battery systems. By combining three independent charging sources—DC-DC, solar MPPT, and AC mains—into a single, compact assembly, this board eliminates the complexity and risk of DIY wiring while maximising charging efficiency and system reliability. Whether you are upgrading a caravan, building a van conversion, or outfitting a marine vessel, the Noosa 50 Plus provides a professional-grade power hub that reduces installation time and enhances long-term dependability.

Unlike generic power boards that require extensive custom wiring and often lack proper protection, this pre-wired solution arrives ready to install with genuine Victron components, integrated safety features, and a detailed wiring diagram. It addresses common pain points such as incorrect cable sizing, poor connections, and inadequate fusing—issues that can lead to voltage drop, overheating, or system failure. With the Noosa 50 Plus, you gain a streamlined, space-saving design that fits neatly under seats or beds, making it ideal for mobile and space-constrained applications.

Engineered for Lithium Compatibility and Reliability

Lithium batteries demand precise charging profiles to achieve their full lifespan and performance. The Noosa 50 Plus Series is purpose-built for this task, with all three Victron chargers configured to deliver the correct absorption and float voltages for LiFePO4 and other lithium chemistries. The system’s 100A continuous current rating and support for simultaneous solar and DC-DC or solar and mains charging ensure your batteries recharge quickly, even under heavy loads. The SmartShunt monitor provides critical insights into consumption and remaining capacity, helping you avoid deep discharges that can damage batteries over time.

Safety is paramount in mobile and off-grid electrical systems. This board incorporates robust overcurrent protection through MIDI fuses, a dedicated PV isolator for solar input, and secure M8 bolt terminals for battery connections. The fully pre-wired layout minimises the risk of loose connections or short circuits, a common issue with field-wired alternatives. By using high-quality, tinned copper cabling and professional crimping, the board maintains low resistance and high durability in vibration-prone environments such as vehicles and boats.

Simplified Installation and Versatile Applications

Installing a multi-source charging system can be daunting, but the Noosa 50 Plus removes the guesswork. The board arrives with all components mounted, wired, and clearly labelled. Connections are straightforward: the 50A Blue Anderson plug links to your starter battery, the 50A Grey Anderson accepts solar input, and the 230V AC plug connects to shore power. The included wiring diagram provides additional clarity, making the board accessible even for those with moderate DIY skills. This plug-and-play approach significantly reduces installation time compared to sourcing and wiring individual components.

This power board is ideally suited for a range of applications, including van conversions, RVs, caravans, and marine vessels. Its compact dimensions (450 x 335 x 95mm) and 6.6kg weight allow flexible mounting in tight spaces. For off-grid cabins or tiny homes, it serves as a reliable energy centre that can manage solar, generator, and grid inputs. The spare fuse holder and inverter-ready MEGA fuse position make future expansion simple, whether you add more circuits or integrate an inverter for 230V appliances.

Why Choose a Pre-Wired Victron Board?

Selecting a pre-wired board from Exotronic means investing in a system that has been designed and tested as a cohesive unit. Each component is matched for optimal performance, and the wiring is executed to professional standards. This reduces the risk of compatibility issues, electromagnetic interference, and inefficient charging that can occur with mixed-brand setups. Additionally, the use of genuine Victron components ensures access to firmware updates, warranty support, and a vast ecosystem of compatible accessories.

For those upgrading from lead-acid to lithium, this board provides a seamless transition. The chargers automatically detect and adapt to battery type, and the SmartShunt can be configured for various chemistries. The result is a future-proof power system that can evolve with your energy needs.

Key Features:

• Victron Orion XS 50A DC-DC Charger: Adaptive three-step charging with Bluetooth monitoring extends lithium battery life and ensures fast, safe charging from the alternator.
• Victron SmartSolar MPPT 100/50 Controller: Maximises solar harvest with up to 1200W input capacity, featuring real-time tracking via the VictronConnect app.

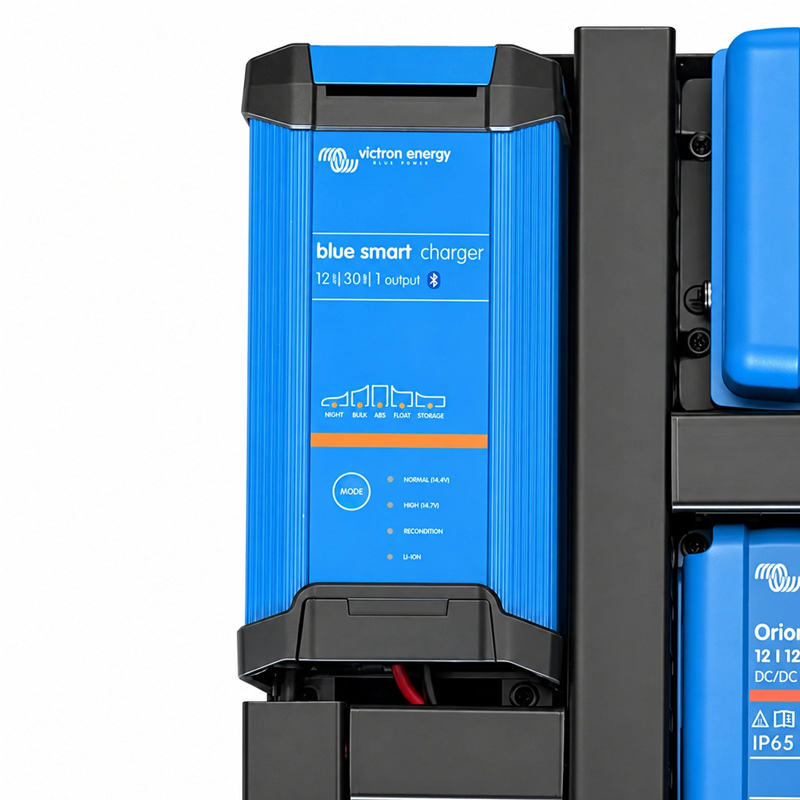

• Victron Blue Smart IP22 12/30 Mains Charger: Efficient AC charging with temperature-compensated algorithms for optimal battery health.
• Victron SmartShunt 300A Battery Monitor: Provides precise state-of-charge data, voltage, and current, enabling informed energy management.
• Integrated Safety and Expansion: Includes a 50A Noark PV isolation switch, spare MIDI fuse holder for additional circuits, and a MEGA fuse holder ready for an inverter connection.
• Genuine Anderson Connectors: Pre-fitted 50A Blue (starter battery input) and 50A Grey (solar input) connectors ensure secure, low-resistance connections.

Specifications:

• Board DC Input Voltage: 10–17 V
• Acceptable Battery Type: Lithium and Lead Acid Batteries
• Minimum Battery Capacity and Current: 100 Ah / 100 A Continuous Current
• Permitted Simultaneous Power Sources: Solar + Mains OR Solar + DC-DC
• System Zero Load Power: 3 W
• Mains Charger AC Input Voltage Range: 187–265 VAC / 45–65 Hz
• Maximum Charge Current - Mains: 30 A
• Maximum Charge Current - Solar: 50 A
• Maximum Charge Current - DC-DC: 50 A
• Maximum Total Charge Current: 100 A
• Output Absorption Voltage: 14.2 V - Adjustable
• Output Float Voltage: 13.5 V - Adjustable
• Solar Maximum Voltage: 100 V
• Solar Array Size: 0–1200 W (600–800 W recommended)
• Solar Maximum Short Circuit Current: 60 A
• Board Temperature Rating: 5°C–50°C (0°C–65°C storage)
• Board Portrait Dimensions: 450 × 335 × 95 mm
• Board Weight: 6.6 kg
