Explore Planet Earth 120W Portable Solar Blanket Expansion Kit with Controller

Description

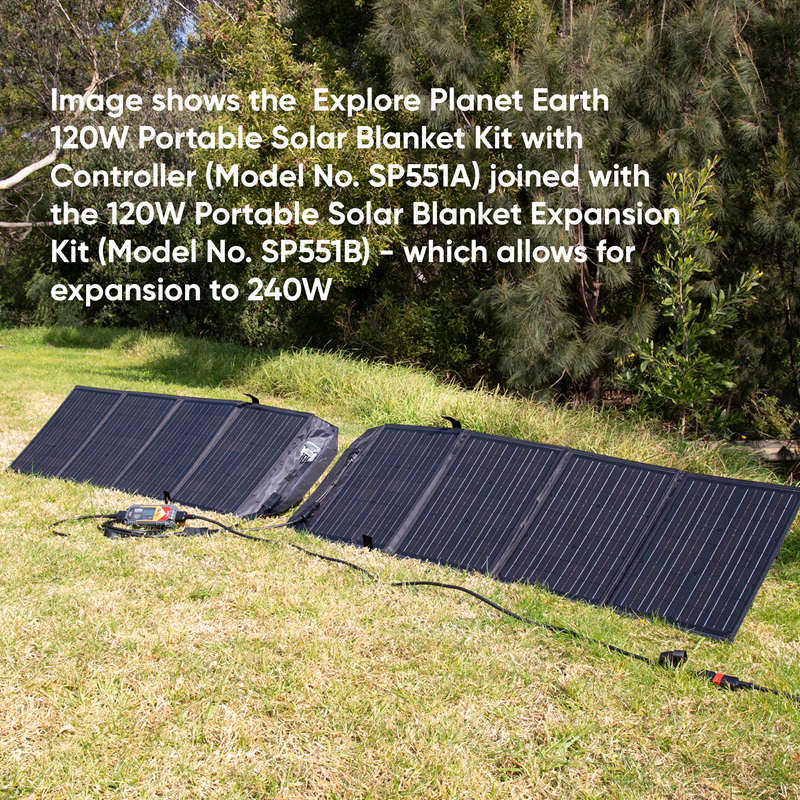

Explore Planet Earth 120W Portable Solar Blanket Expansion Kit with Controller



The Explore Planet Earth 120W Portable Solar Blanket Kit with Controller is a high performance, ultra-compact solution for solar charging most common chemistry types of 12V DC batteries, including Lithium Iron Phosphate (LiFeP04). It is one of the easiest and fastest ways to keep your battery charged up at your campsite. It folds out in seconds and takes less than a minute to hook up thanks to the quick connect, Anderson type plugs!

The monocrystalline solar cells ensure the highest efficiency possible! This lightweight and compact blanket will produce up to 6.6A in optimal conditions.

The 120W Portable Solar Blanket Kit with Controller is designed for Australia’s tough conditions, using high quality components and the latest in solar cell technology which provide dependable performance and reliability in an easy to use extremely compact and portable solar kit.

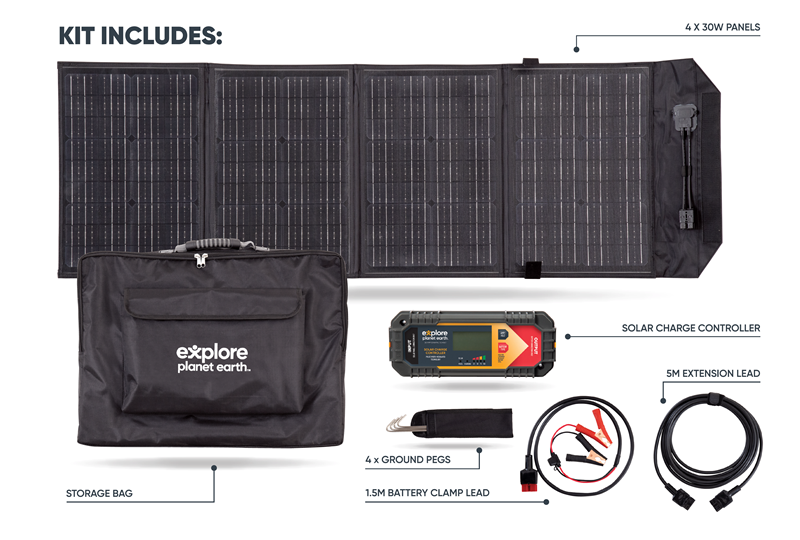

KIT INCLUDES:

• 12V DC, 6 stage smart charger, 20A lnline PWM weather resistant controller
• 4 x 30W panels
• 50A heavy duty Anderson type plugs on all leads
• 5M extension lead
• 1.5M battery clamp lead – fused, twin core 4mm2 with UV stable outer sheath
• Carry and storage bag
• 4 x ground pegs



CELLS / PANELS:

7 layer cell with ETFE Coating

Built in panel stand

Cell make:	PERC
Cell type:	Monocrystalline
Cell efficiency:	21.65%
Cell qty & panel qty:	4 x 30W panels
Maximum power (Pm):	120W
Current at max power (Imp):	6.66A
Voltage at max power (Vmp):	18V
Open circuit voltage (Voc):	22V
Short circuit current (lsc):	7A
Extension leads:	4mm2 (AWG12)
Output and lead connection:	50A Anderson Type
Cell Encapsulation:	ETFE lamination
Bag fabric:	Polyester 900D
Adjustable support legs:	Yes
Folded dimension L x W x H:	560mm x 420mm x 40mm
Unfold dimension L x W:	1700mm x 560mm
Net weight (total kit):	7.0Kg (including accessories)



PORTABLE SOLAR 20A INLINE SOLAR CHARGE CONTROLLER

Charges 5 types of batteries: GEL, AGM, WET (Lead Acid), Lithium Iron Phosphate (LiFePo4) and Lead Crystal

Solar Controller uses Pulse Width Modulation (PWM) technology to produce clean and consistent power

LCD Screen displays charging current, battery voltage and charging capacity (Amp hour) with LED indicators to show battery charge percentage.

50A Anderson type connectors for durability and ease of setup

Weather resistant and rugged design construction

Micro control unit:	Pulse Width Modulation
Rated solar panel amps:	12V DC 20A
Digital readout:	LCD
Number of battery types that can be charged:	5
Input and Output connectors:	50A Anderson Type
Dimension L x W x H:	200mm X 80mm X 44mm
Weather resistance:	Yes



Suitable for camping, 4WDriving, caravaning, boating and other outdoor activities

Suggested applications depending on battery capacity: 12V LED lighting, 12V portable TV, 12V bilge pump, mobile devices, 12V portable fridge, 12V portable fan, 12V shower water pump
