Fiamma Kit Frame Crafter (17-On), Stainless Steel with Carrier Support. 08753-03-
Q & A | SKU: 350-02110 Learn More»
Description

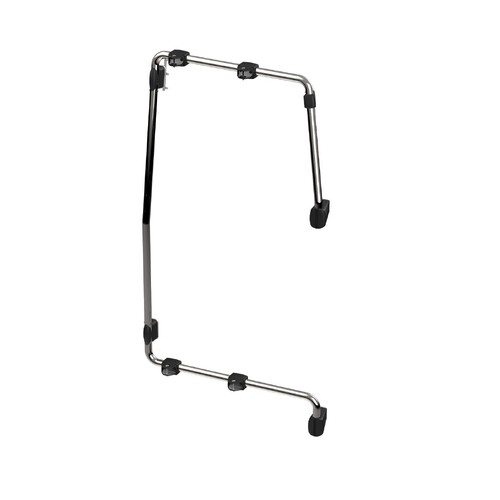

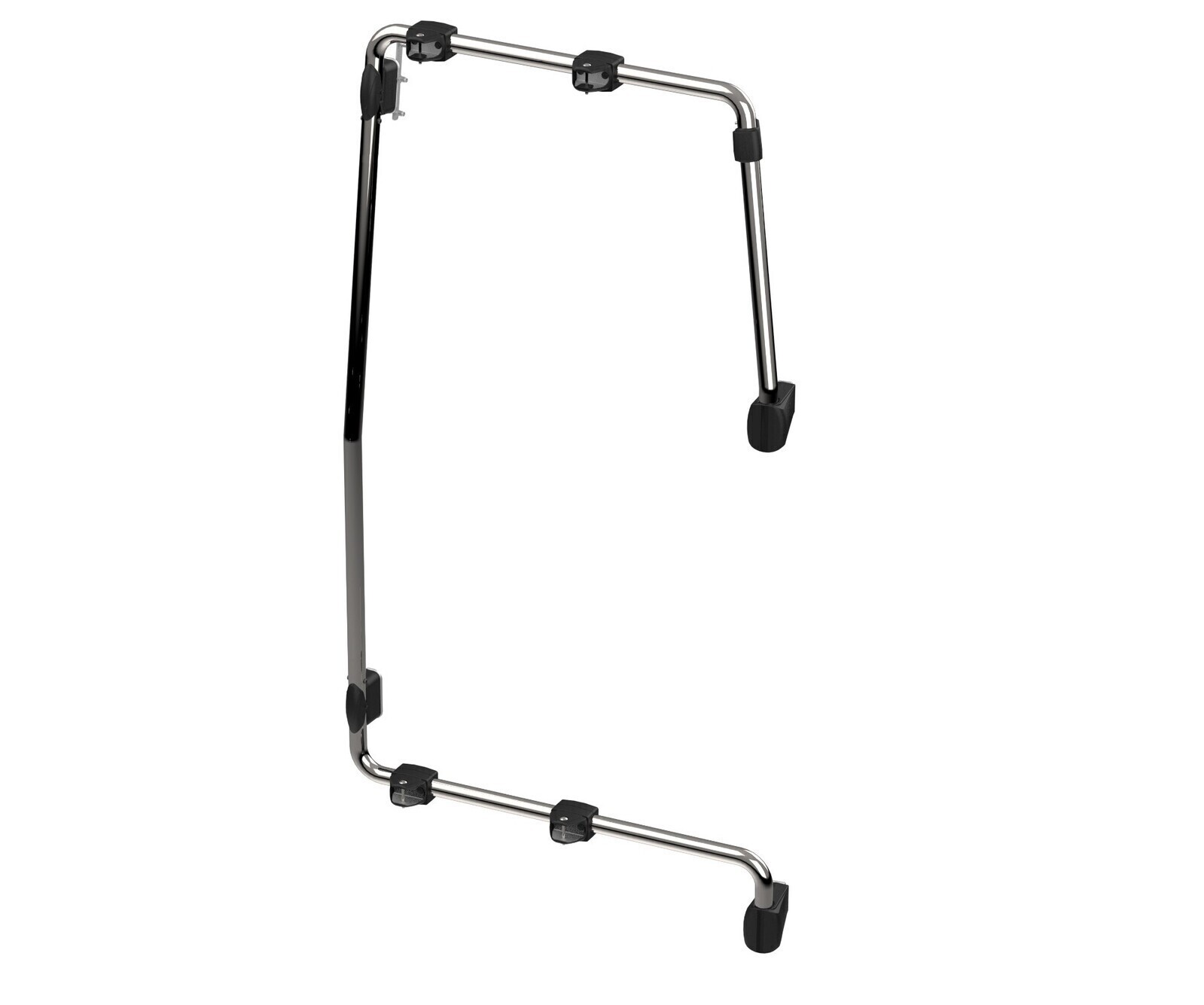

Fiamma Kit Frame Crafter (17-On), Stainless Steel with Carrier Support. 08753-03-
Fiamma bike carrier to fit Volkswagen Crafter vans and Campervans from 2017 onward. Fits to H3 and H4 vans with double rear doors but DOES NOT FIT 270° hinge system.
This listing includes the Fiamma Kit Frame Crafter (08753-03-) which is the vehicle specific mounting frame in Stainless Steel, and Fiamma Carry Bike Frame in Aluminium (02096-35-) which is the part the bikes are loaded on.
Carry Bike Frame Crafter carries 2 bikes as standard but, because it mounts to the door frame rather than the door itself, it is suitable for carrying 2 E-bikes or can be upgraded to carry 3 bikes by purchasing the additional rail and Bike Block arm. The Fiamma Carry Bike Frame Crafter has a total weight capacity of 50kg.
The bike support rails can be set to 3 different heights (standard, medium and low) to make lifting the bikes onto the rack easier. In the medium and lower position you will need a License Plate Carrier or trailer board as the bikes can obstruct the vehicle number plate and running lights.
Specifications:
- Bikes carried standard: 2
- Bikes carried max: 3
- Max Load: 50 kg
- E-bike compatible: Yes

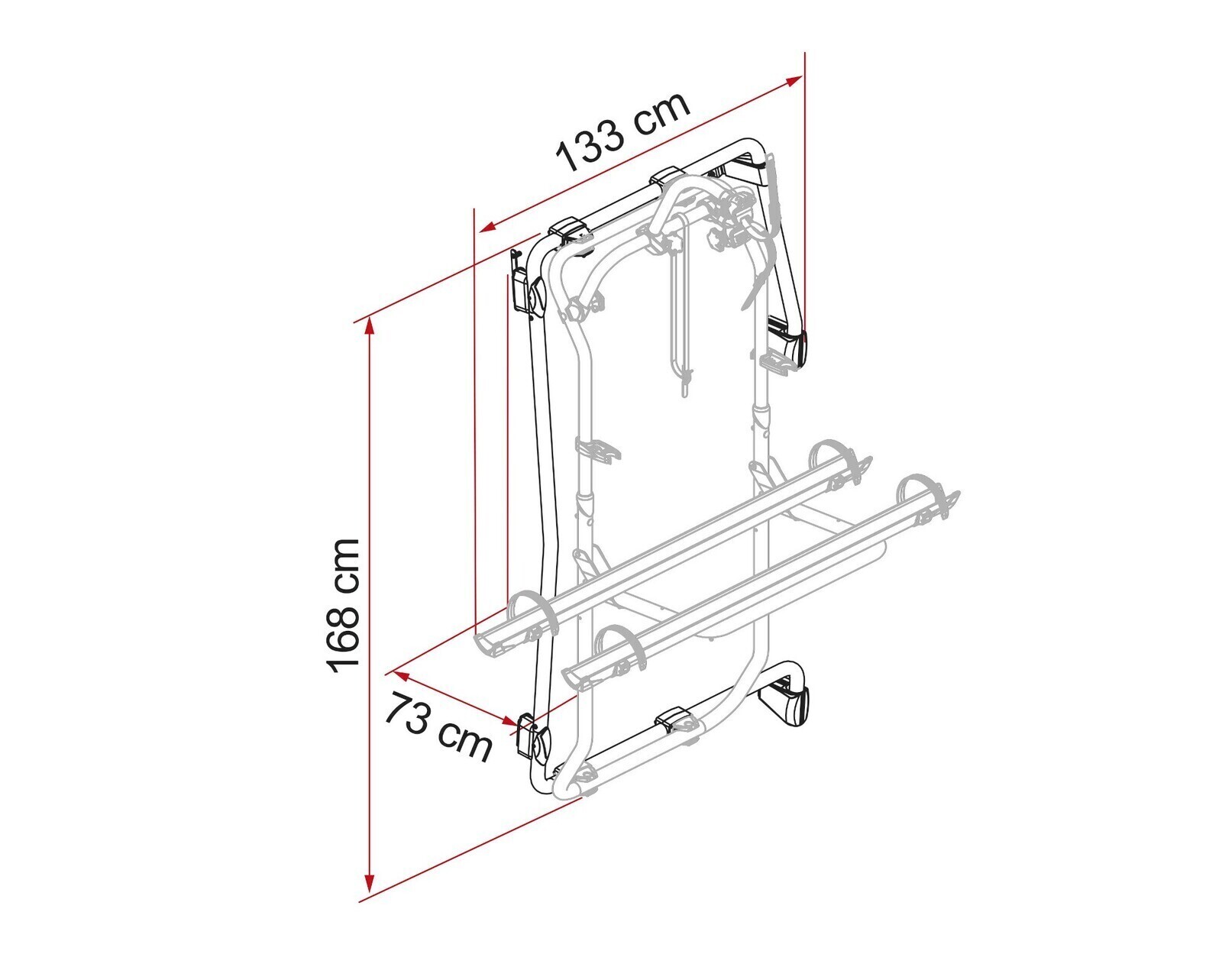

- Vertical Wheelbase: 168cm
- Weight: 18.9 kg
- Bike-Block Pro S 1: Standard
- Bike-Block Pro S 2: Optional
- Bike-Block Pro S 3: Standard
- Rail Plus: 2 x Included as standard / 1 x optional
- Licence Plate Carrier: Optional
- E-bikes max: 2
Carry Bike Frame Installation Guide
Carry Bike Kit Frame Sprinter Installation Guide
Specifications
SKU 350-02110
Brand Fiamma
Product Category Caravan Accessories and Extras
Maximum Load Capacity 50kg
Weight (kg) 18.9
Bike Capacity 3
NOTE: see full product specifications & further product info in the Description section on this page.
