Fiamma Security Handle 31 for RV Door, Deep Black. 03513-01H

Fiamma Security Handle 31 for RV Door, Deep Black. 03513-01H

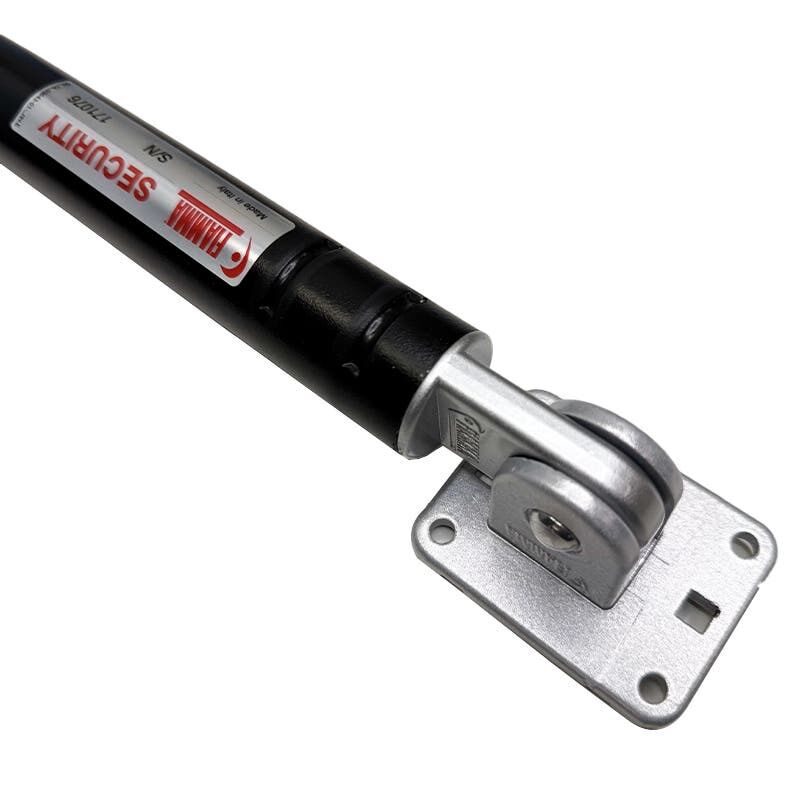

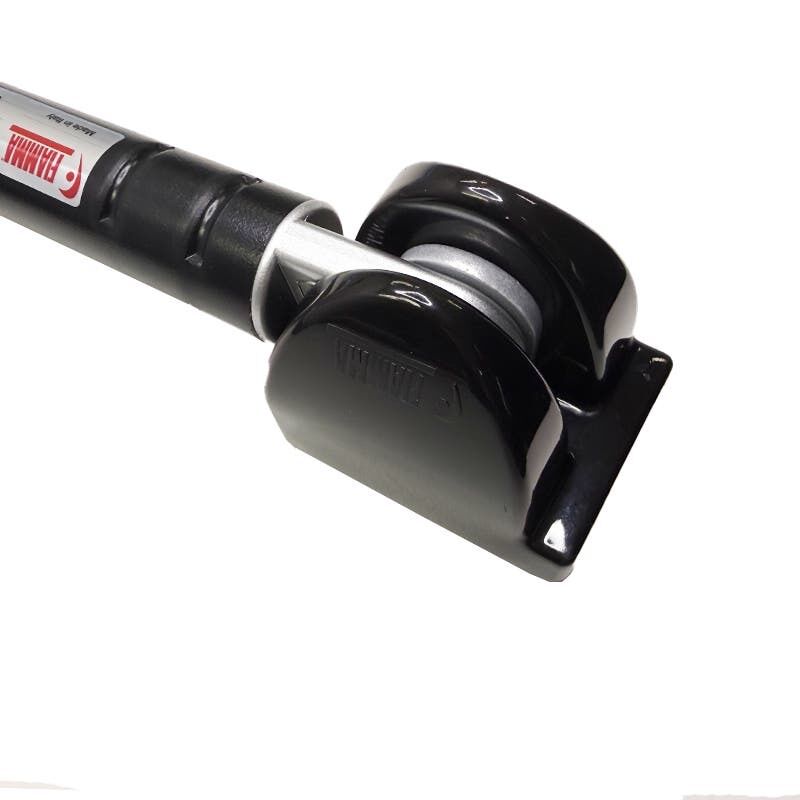

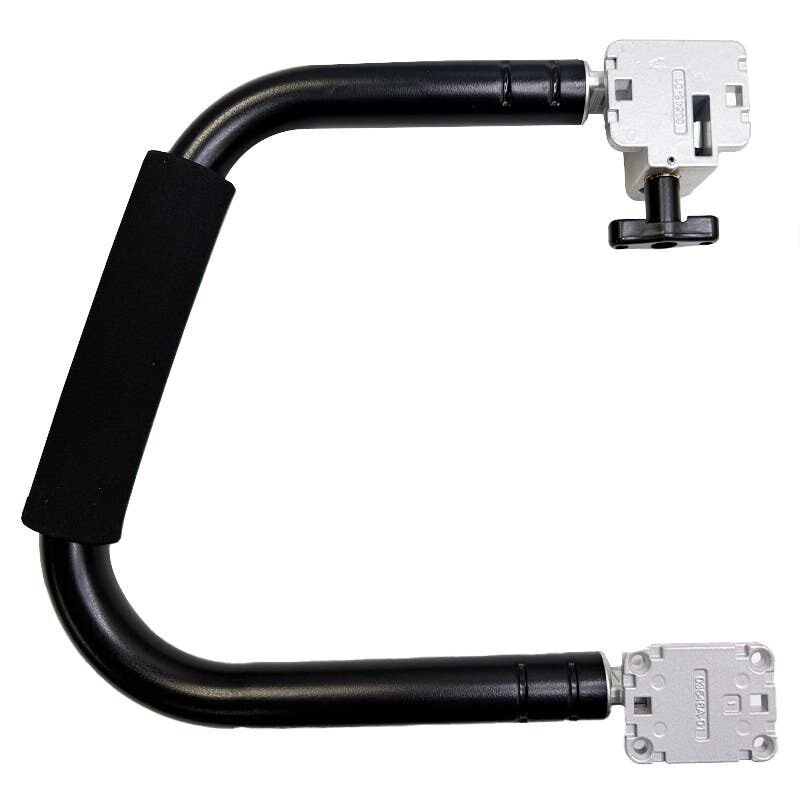

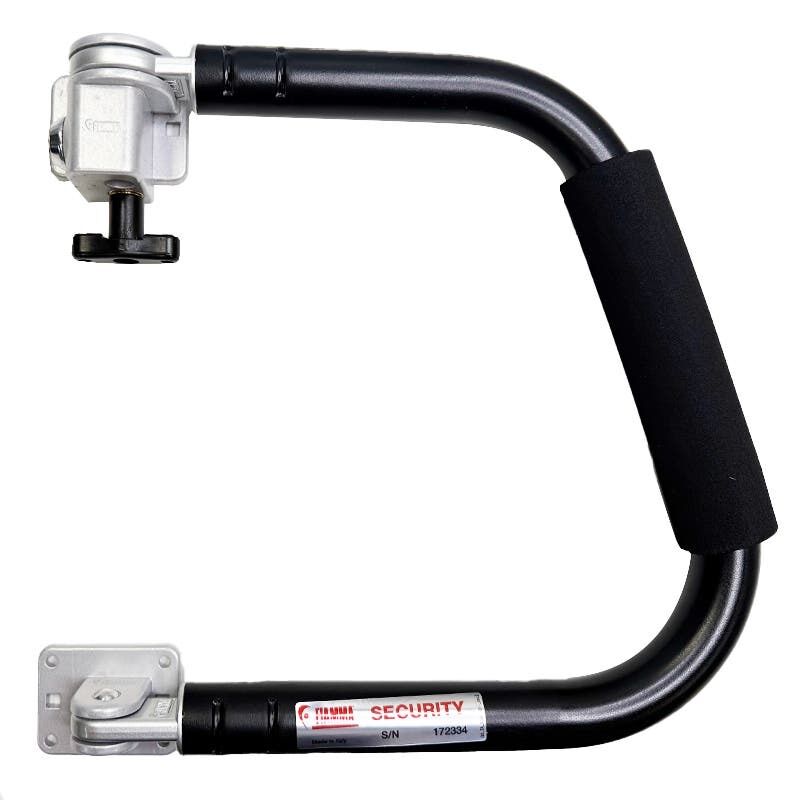

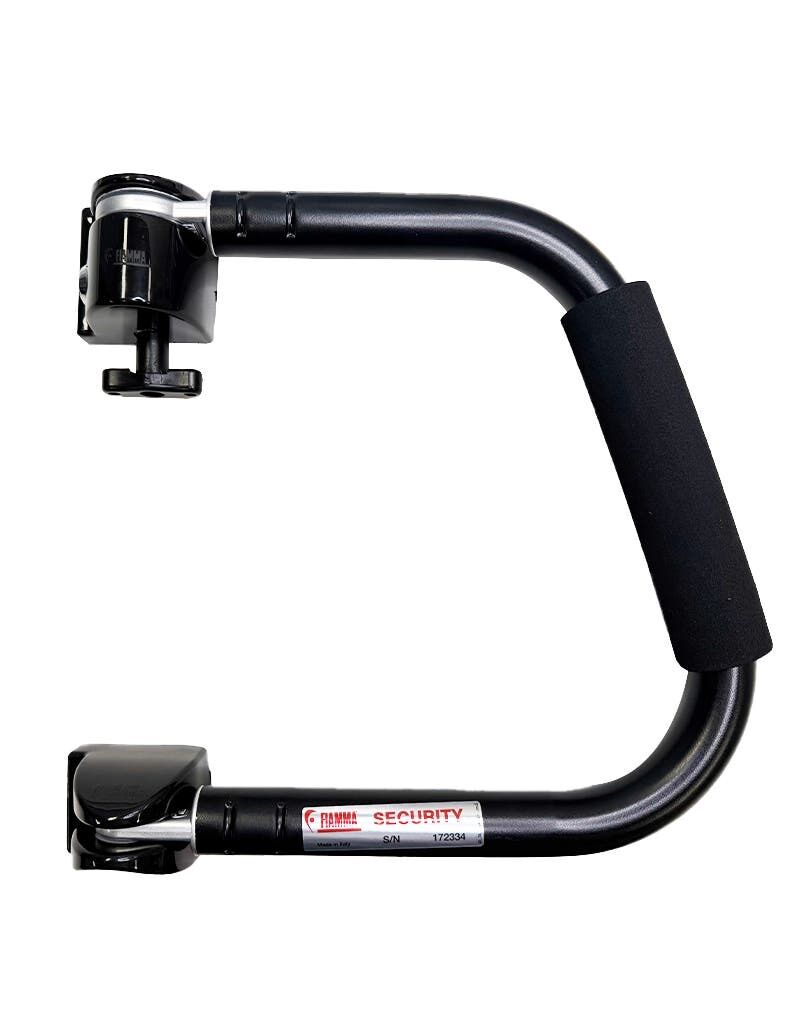

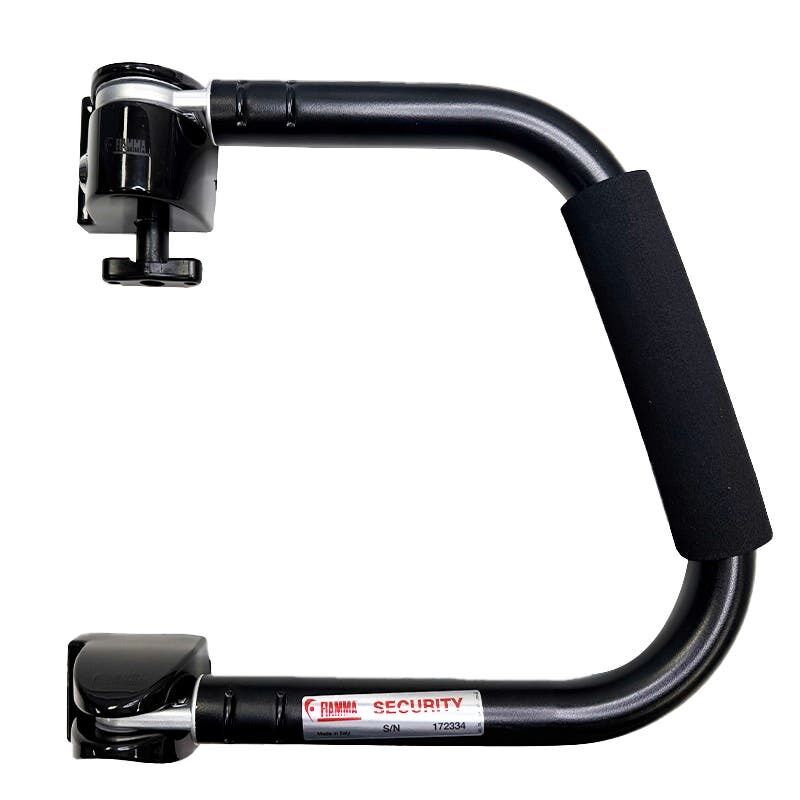

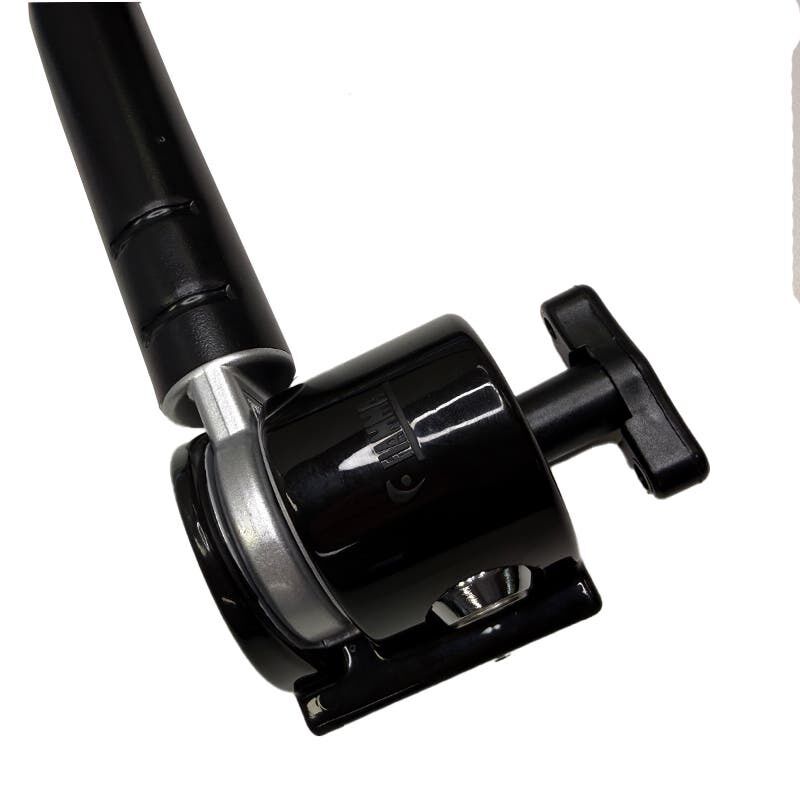

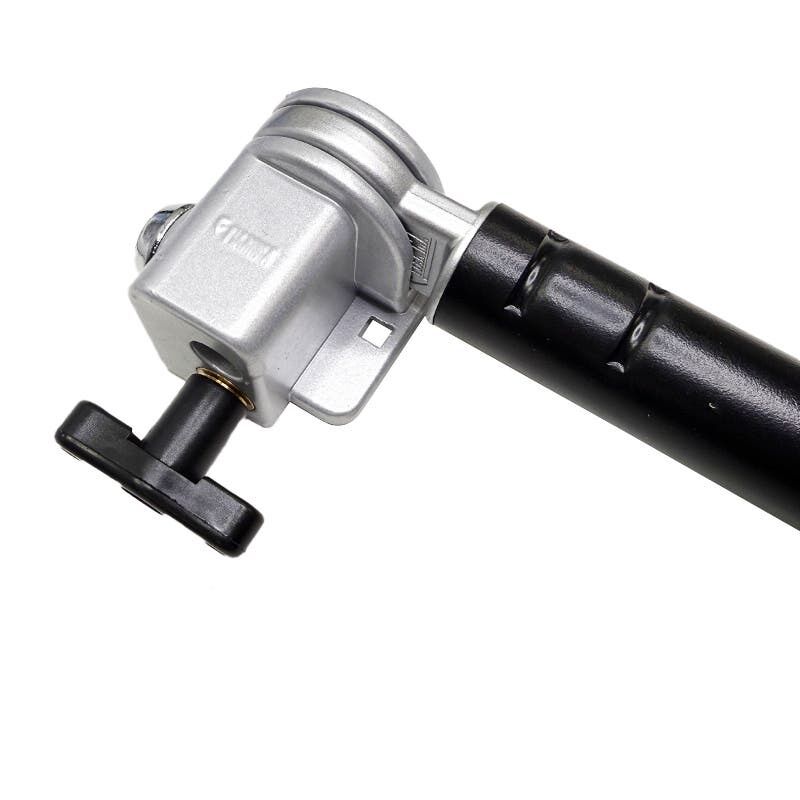

The Fiamma Handle Security 31 (03513-01) is a dual-purpose security handle designed for caravan and motorhome main doors. It acts as both a solid grab handle for safe entry and exit and a locking security bar when folded across the door. Made from strong, anodised aluminium, the Handle Security 31 adds protection against forced entry while offering a convenient support handle when open.

Designed to lock across the main door to provide extra security & also double as a grab handle to get into your caravan comfortably.

Features:

• 2-in-1 design: Works as both a locking security bar and entry grab handle
• Strong construction: Made from high-quality anodised aluminium
• Weather-resistant: Powder-coated white finish withstands UV and corrosion
• Lockable security: Folds across the door and locks with a keyed barrel (2 keys included)
• Comfort grip: Ergonomic 30 mm round tube for easy handling

Specifications:

• Overall Height: 31 cm (310 mm)
• Handle Tube Diameter: 30 mm round aluminium tube
• Overall Width (in open / grab-handle position): 33.5 cm (335 mm)
• Wall Projection (when folded and locked across the door): 65 mm
• Bracket Centre-to-Centre Distance: 210 mm (vertically between mounting brackets)
• Bracket Bolt Hole Spacing (each bracket): 50 mm between fixing holes
• Total Bolt-to-Bolt Distance (top bracket to bottom bracket): 265 mm
• OEM Part Number: 03513-01
• Type: Security handle and door grab bar
• Colour / Finish: Black powder-coated aluminium
• Material: Anodised aluminium with reinforced brackets

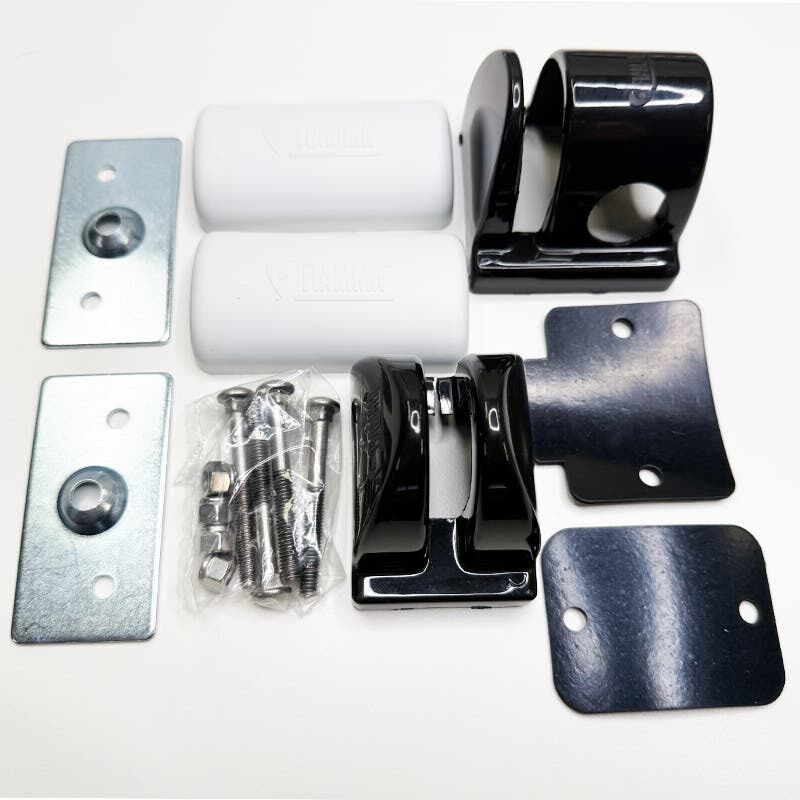

Included:

• Handle assembly
• mounting brackets
• lock barrel with keys
• internal fixing plates
• hardware
