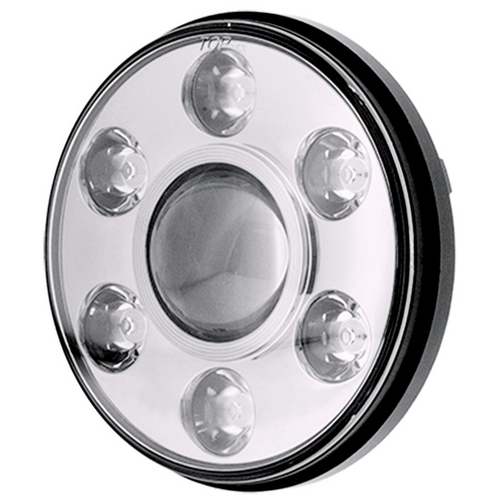

Ignite 7" LED Headlight High/Low Beam Chrome Fascia
SKU: IHL7RC Learn More»





Description
Ignite 7" LED Headlight High/Low Beam Chrome Fascia
Features:
- Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt
- High/Low Beam and Park Light - Chrome Fascia
- 7" or 178mm Round

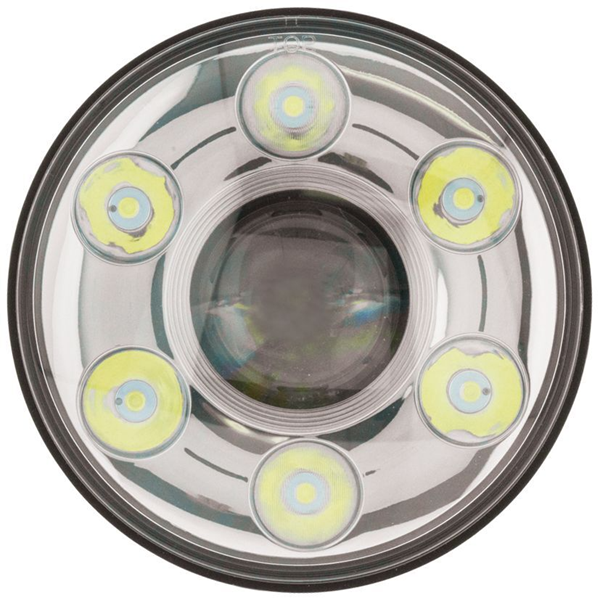

- 6 x 10 Watt High-Intensity CREE LEDs for Park Light and High Beam
- 1 x 5 Watt High-Intensity LUMI LED for Low Beam
- Current Draw: 4.1amp at 12 Volt, 1.8amp at 24 Volt High Beam
- 1.7amp at 12 Volt, 0.8amp at 24 Volt for Low Beam

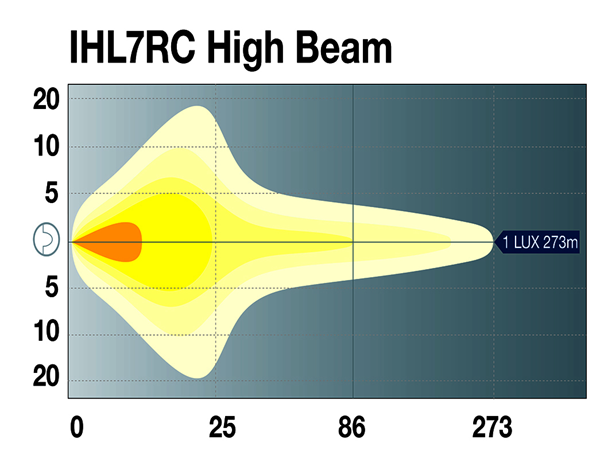

- High Beam 3,900 Raw or 3,315 Effective Lumens and 6,500K

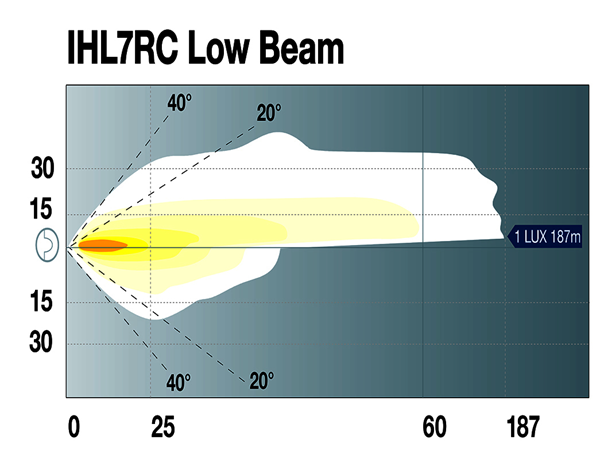

- Low Beam 1,800 Raw or 1,530 Effective Lumens and 6,500K
- Lexan Polycarbonate Lens and Reflectors
- Patented TIR Lens Optics System for High Beam and Park Lights
- Black anodised Polyester Powder Coated Die-Cast Aluminium (ADC12) Housing
- 6063 Extruded Aluminium Heat Sink

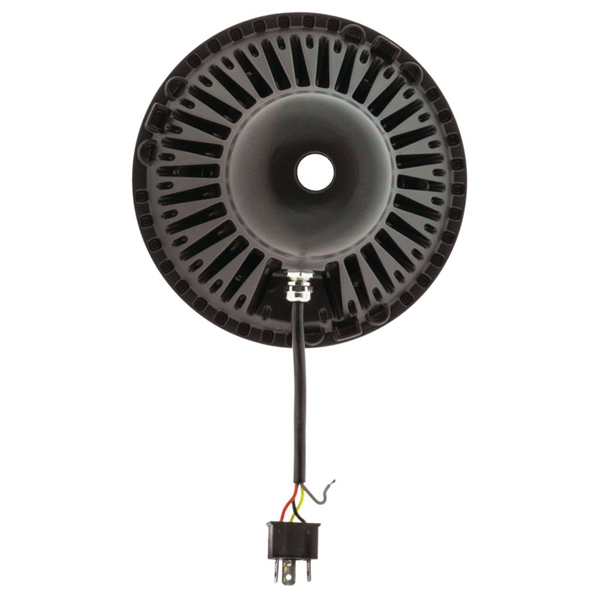

- 150mm Lead with H4 Connector and High Beam Adaptor Plug
- 50,000 Hours LED Lifespan
- Integrated Electronic Thermal Management (ETM)
- Reverse Polarity and Power Surge Protection
- UV Stabilized
- EMC Compliant
- Shock Resistant, Vibration Tested to 6G's
- Environment temperature -40~+60 °C
- ECE R112 / R7, DOT, CE Certified
- IP68 and IP69K Rating
Notes:
- Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams
- For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
- Adaptor lead supplied for Headlight to work purely as a High Beam unit only
Specifications
SKU IHL7RC
Brand Ignite
Product Category Lights (Driving and Work)

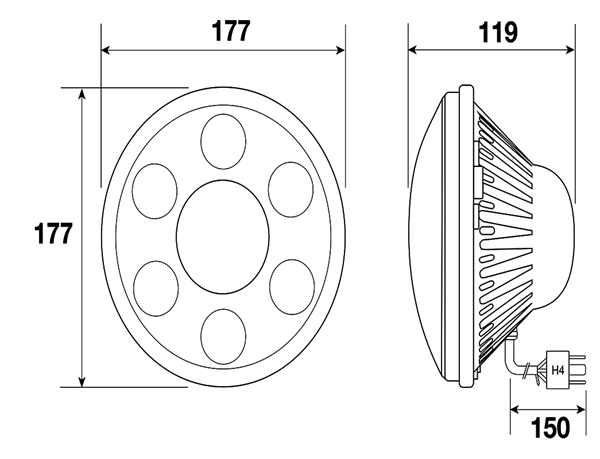

Dimensions 115.2 x 176 x 176
Weight (kg) 1.4
