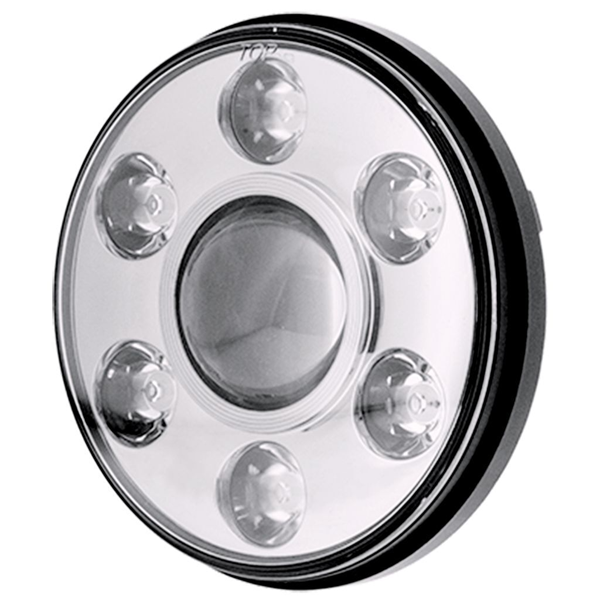

Ignite 7" LED Headlight High/Low/DRL Beam Chrome Fascia
SKU: IHL7RC-DRL Learn More»
Free Shipping
Description
Ignite 7" LED Headlight High/Low/DRL Beam Chrome Fascia
Features:
- Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt
- High Beam 3,900 Raw or 3,100 Effective Lumens and 6,500K
- Low Beam 1,800 Raw or 1,450 Effective Lumens and 6,500K
- Lexan Polycarbonate Lens and Reflectors
- Patented TIR Lens Optics System for High Beam and Daytime Running Lights (DRL)
- Black anodised Polyester Powder Coated Die-Cast Aluminium Housing
- 6063 Extruded Aluminium Heat Sink
- 150mm Lead with H4 Connector and High Beam Adaptor Plug
- High/Low Beam and Daytime Running Lamp (DRL) - Chrome Fascia
- Integrated Electronic Thermal Management (ETM)
- Reverse Polarity and Power Surge Protection
- UV Stabilized
- EMC Compliant
- Shock Resistant, Vibration Tested to 6G's
- 50,000 Hours LED Lifespan
- ECE R112 / R7, DOT, CE Certified
- Environment temperature -40~+60 °C
- IP68 Rating
- 7" or 178mm Round
Notes:
- Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams
- For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
- 6 x 10 Watt High Intensity CREE LEDs for Park Light and High Beam
- 1 x 5 Watt High Intensity Phillips LED for Low Beam
- Current Draw: 4.10amp at 12 Volt, 1.80amp at 24 Volt High Beam
- 1.70amp at 12 Volt, 0.80amp at 24 Volt for Low Beam
Show More
Specifications
SKU IHL7RC-DRL
Brand Ignite
GTIN 9323327947072
Product Category Lights (Driving and Work)
Dimensions 119 x 177 x 177
Weight (kg) 1.4
