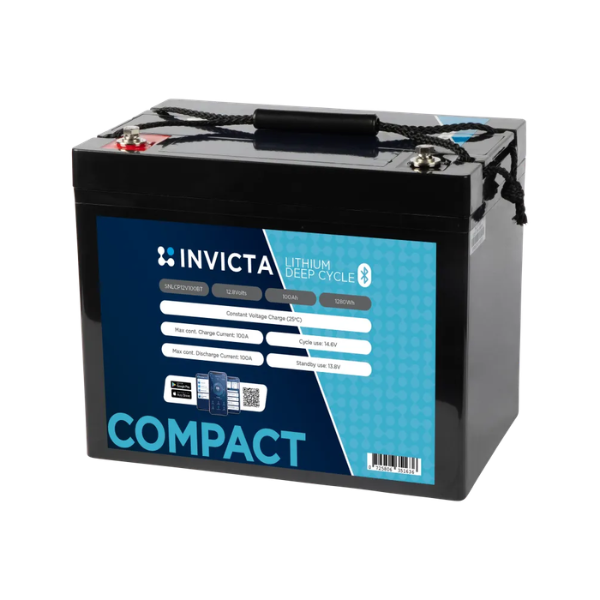

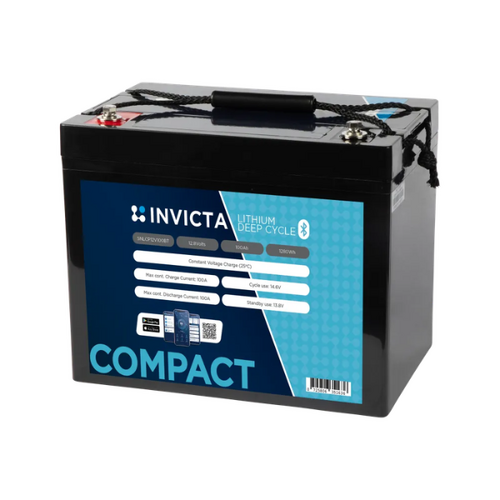

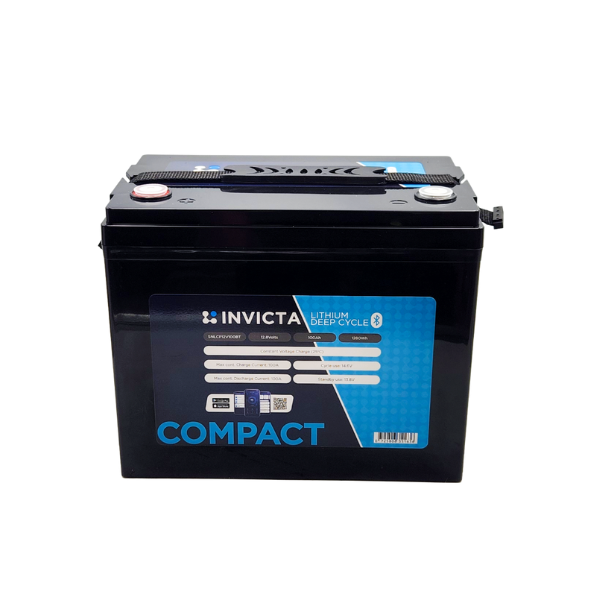

Invicta 12V 100Ah BT Lithium Compact

Invicta 12V 100Ah BT Lithium Compact

When space is tight but power demands aren’t, the Invicta Lithium Compact range delivers. Built as a replacement for similarly sized lead-acid batteries, it packs full Lithium Iron Phosphate (LiFePO4) performance into a smaller footprint than you’d expect for the capacity on offer — making it the smart choice for deep cycle applications where every centimetre counts.

Available in 100Ah, 200Ah and 325Ah 12V configurations, every battery in the range is backed by an integrated Battery Management System (BMS), Bluetooth connectivity, and the reliability Invicta Lithium customers expect.

Features & Benefits:

• A genuinely compact footprint. Most 12V lithium batteries are still built to legacy lead acid case sizes (Group 31, 4D/6D, 8D). The Compact range breaks that mould, engineered a full case size down from the industry-standard footprint for each equivalent capacity — freeing up space in your caravan, boat, 4WD canopy, or off-grid enclosure.
• 15%-41% Less Volume Compared to Other Lithium. When you have a tight space but need the same power.
• 5-Year Warranty. Built with Invicta quality and attention to detail that you can rely on day in and day out.
• Up to 8x the cycle life. Rated for more than 2,000 cycles at 100% depth of discharge, the Compact range delivers up to eight times the working life of a comparable SLA battery — fewer replacements and a lower total cost of ownership.
• Less than half the weight of lead-acid. High energy density means significantly less dead weight for the same, or better, usable capacity — whichever application you’re loading it into.
• Integrated BMS for total peace of mind. Every battery includes a fully integrated BMS, protecting against overcharge, over-discharge, excessive temperature, and short circuit — safety built in at the cell level.
• Bluetooth monitoring, right in your pocket. Pair with the free INVICTA App (iOS and Android) to monitor state of charge, voltage, and battery health in real time — no multimeter required.
• Flat discharge curve, fast recharge. More usable capacity delivered at stable voltage for longer run time, plus faster recharge than lead acid so you spend less time waiting.
• Extremely low self-discharge. Ideal for seasonal equipment, storage, and standby power.

Specifications:

• Nominal Voltage: 12.8V
• Nominal Capacity (25°C, 0.33C): 100Ah
• Terminal: M8
• Length (mm): 260 ± 2mm
• Width (mm): 169 ± 2mm
• Height (mm): 215 ± 2mm
• Weight: 10.5kg
• Max Charge Voltage: 14.6 ± 0.1V
• Standby: 13.8 ± 0.1V
• Cut off Voltage: 10V
• Max. Discharge Current: 100A
• Max. Pulse Discharge Current (3 Sec): 350A
• Max. Charge Current: 100A
• Recommended Current Charge: ≤ 50A
• Cycle Life (100% DoD): ≥ 2000
• Operating Temp - Charge: 0 - 55°C
• Operating Temp - Discharge: -20 - 60°C
• Short Circuit Release: Load Release
• Max. Series / Parallel Configuration: 0S/4P
• Bluetooth Connectivity: Yes
