Renogy 12V 200Ah Core Mini Lithium Battery x2
SKU: RBT12200LFP-Mx2 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories List:
.png)

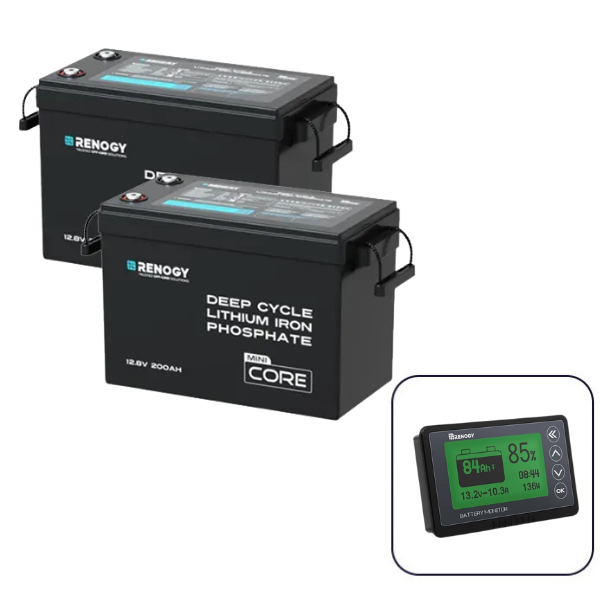

Currently FREE with the Renogy 12V 200Ah Core Mini Lithium Battery x2 is:
Description

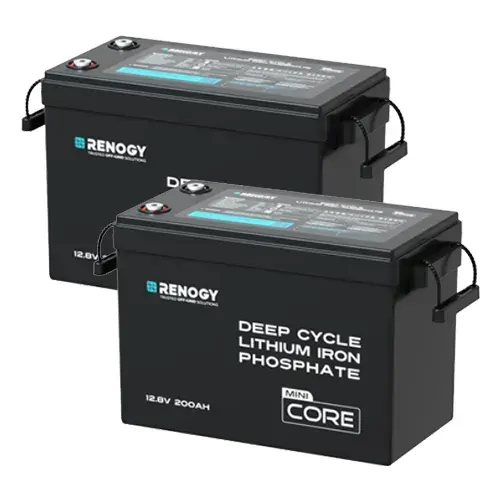

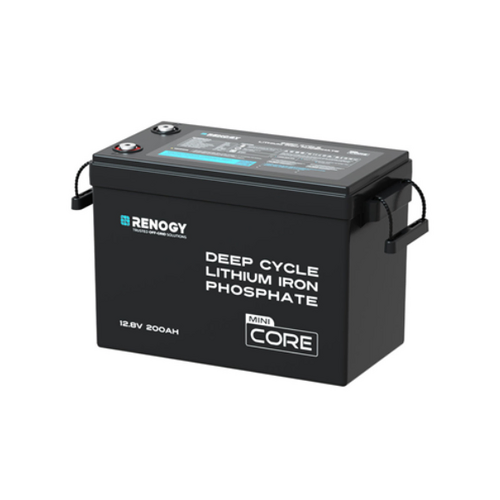

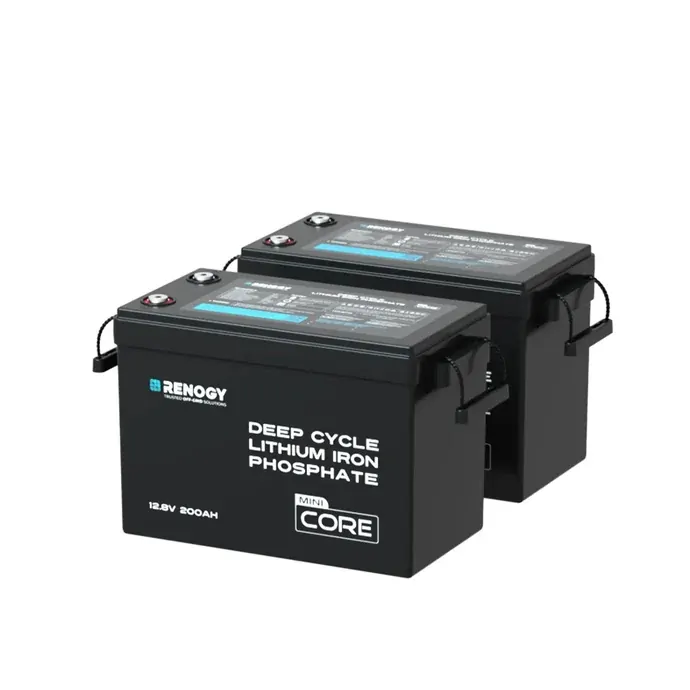

Renogy 12V 200Ah Core Mini Lithium Battery x2
Included in bundle:
The Renogy Core Series 200Ah Mini Battery is engineered for superior performance and compact design. As a direct drop-in replacement for traditional deep-cycle lead-acid batteries with a standard Battery Council International (BCI) group size. This lithium battery offers cutting-edge features in a significantly smaller package, 1/3 smaller and half the weight of comparable 12V 200Ah lead-acid batteries.
Delivering twice the energy with 100% Depth of Discharge (DOD), it supports over 5000 charge cycles and is built using high-quality automotive-grade battery cells to ensure the highest safety and reliability. It Complies with FCC, UN38.3, ROHS, UKCA certifications and is backed by a 5-year warranty for peace of mind.
Features:

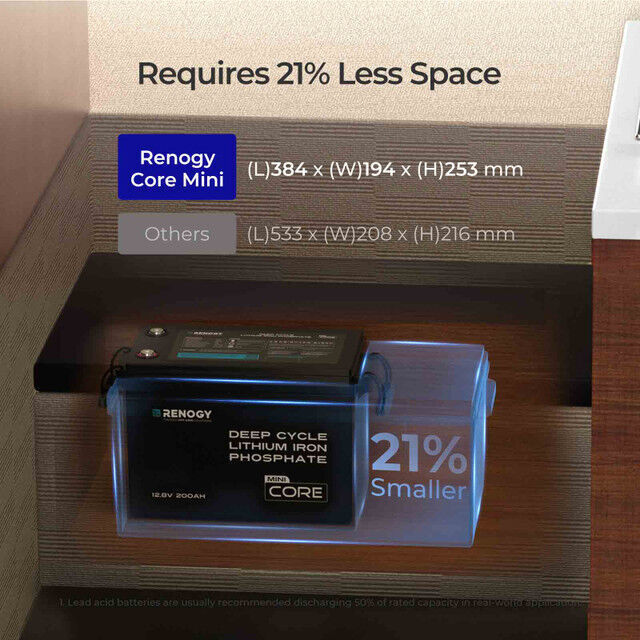

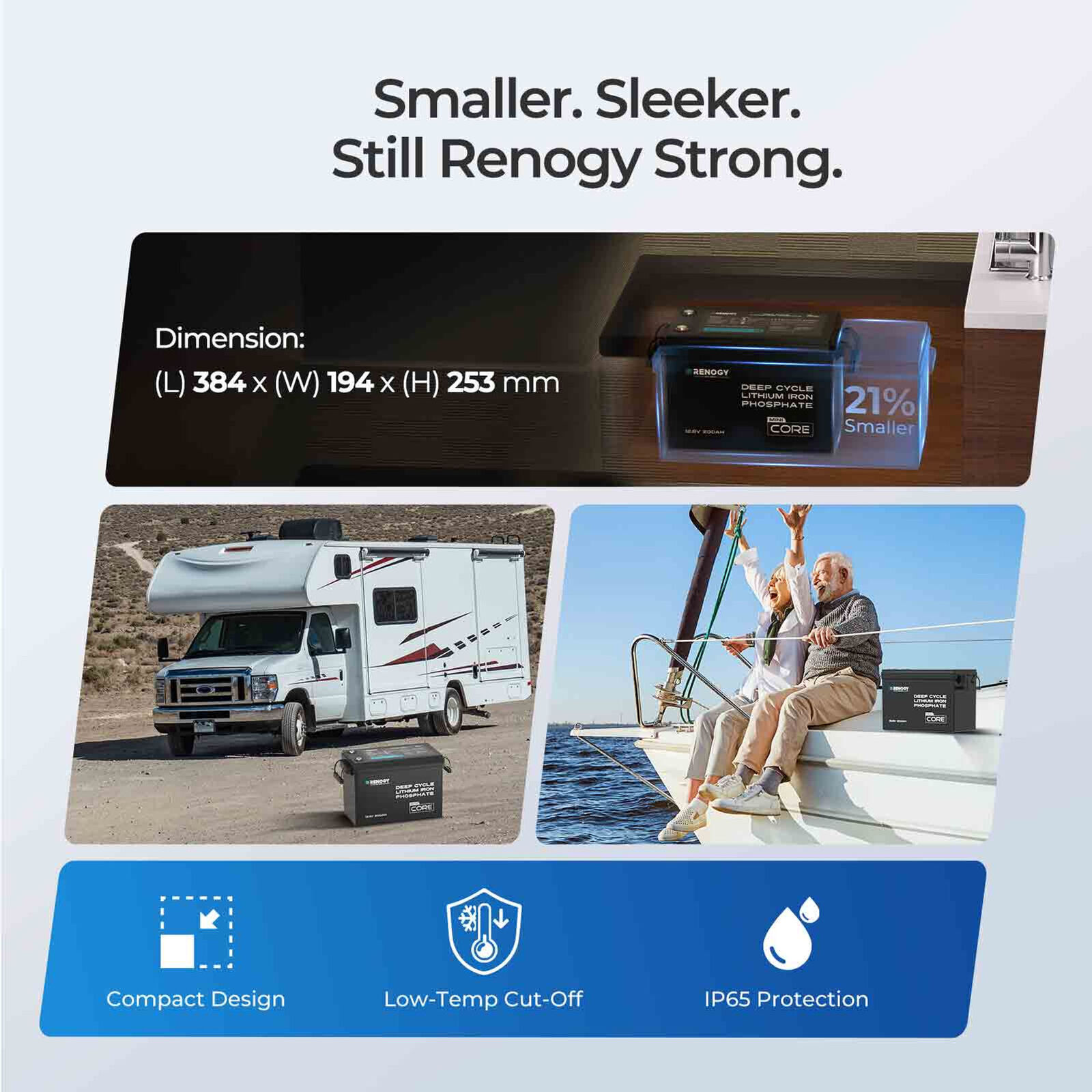

Smaller, Sleeker, Still Renogy Strong: Power up with compact confidence! The Renogy 12V 200Ah Core Mini LiFePO4 Battery is 21% smaller than its counterparts while maintaining a robust 200A BMS plus a low-temperature cut-off for enhanced protection. Perfect for both travel and home use, it’s the ideal solution for versatile power demands.

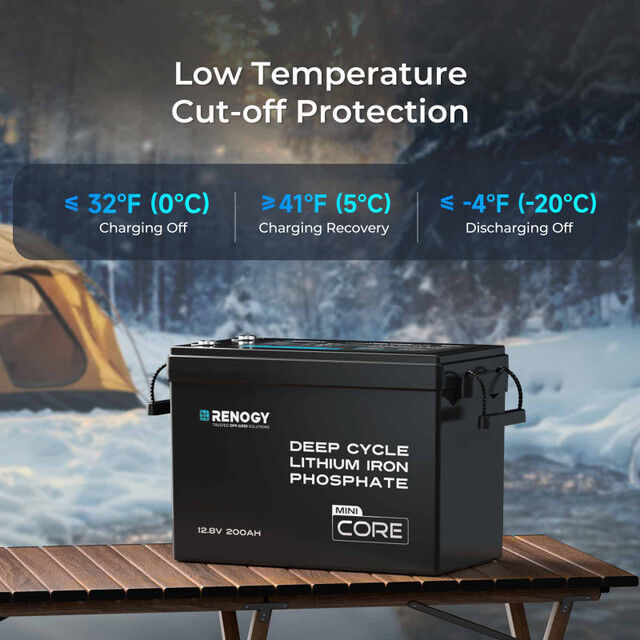

Hands-Free Low-Temp Cut-Off: The built-in BMS with an automatic low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.

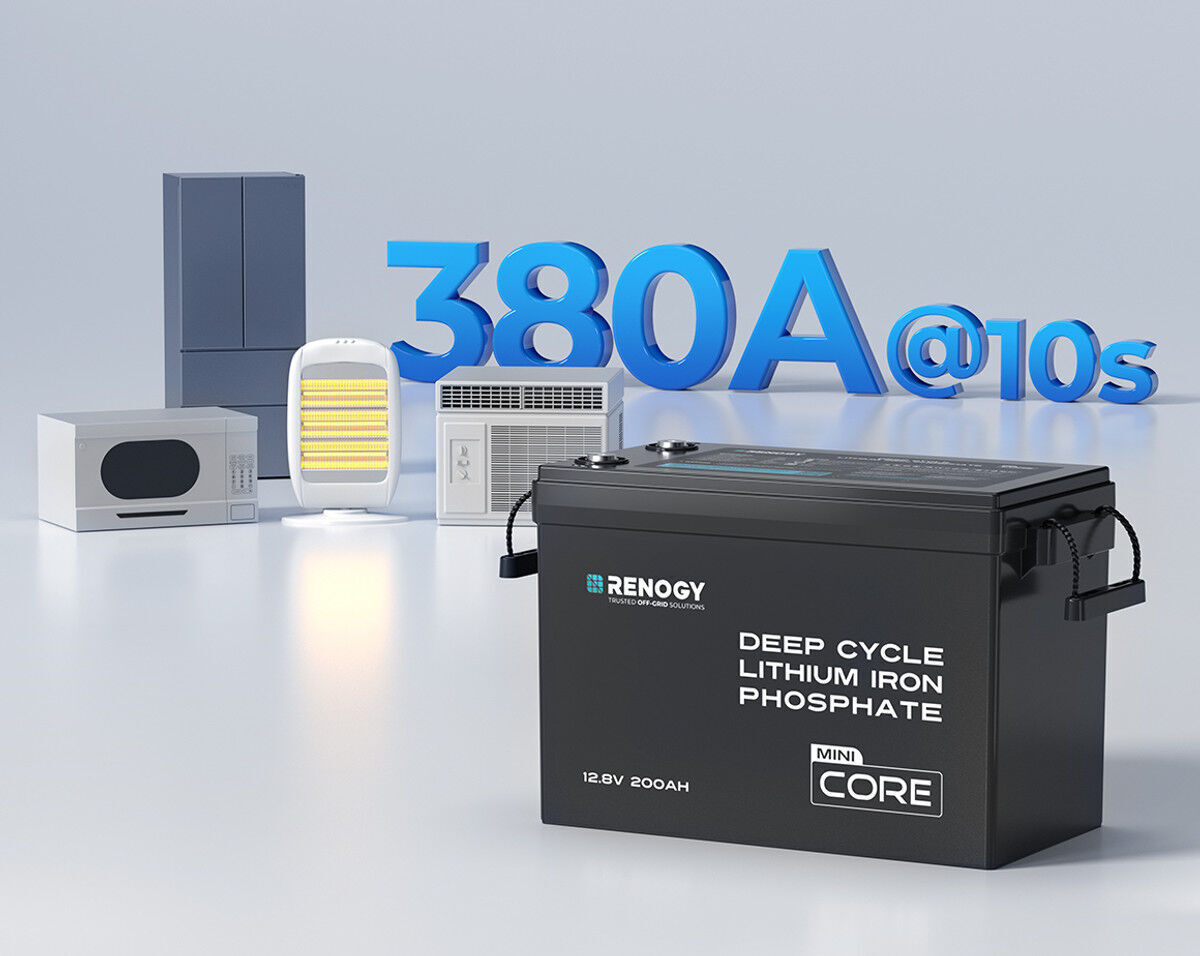

Peak Power Output: Capable of discharging up to 380A within 10 seconds, this portable power beast can smoothly pump up energy-demanding appliances like microwaves that require a high start current.

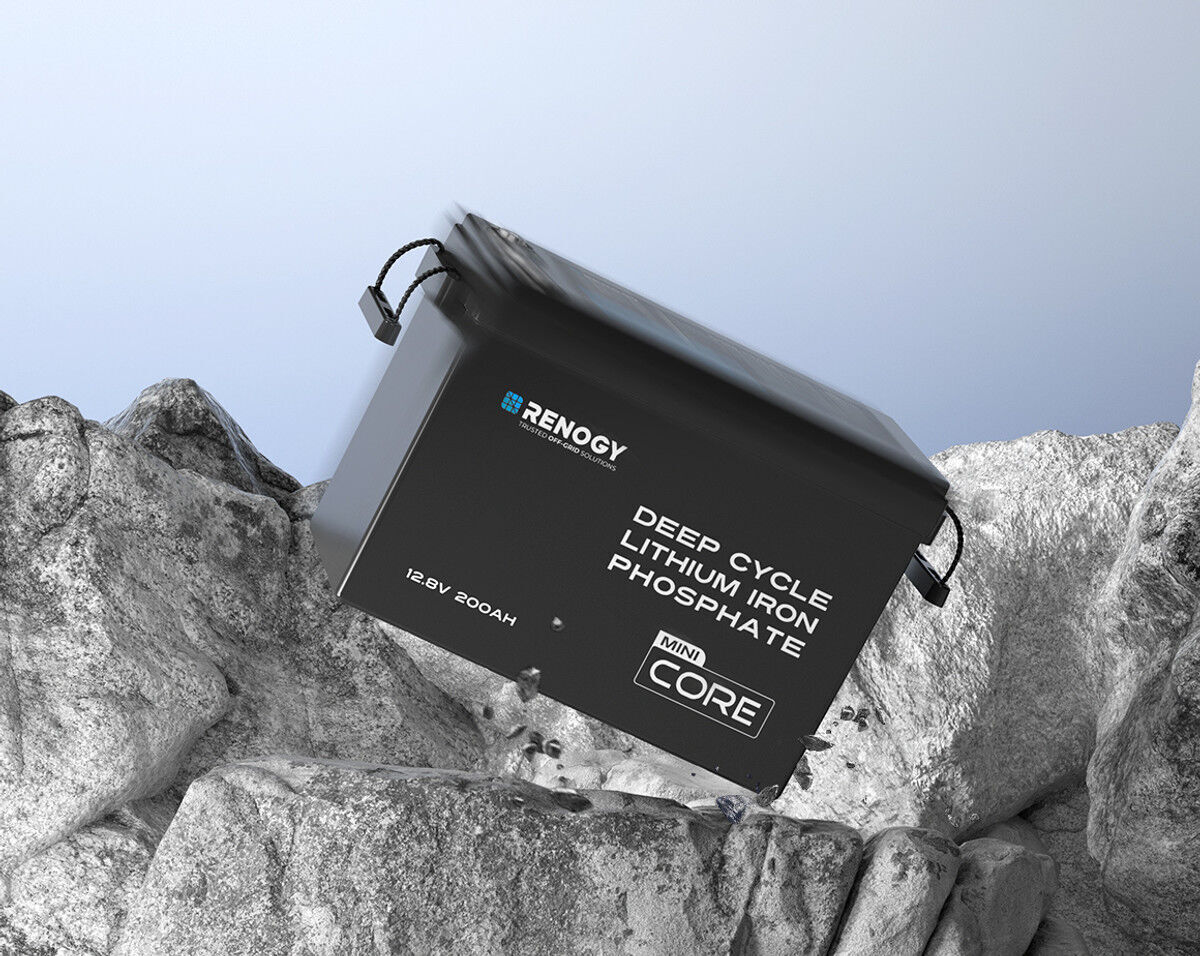

Vibration-Resistant Design: Metal cell spacers prevent damage in rough terrain and choppy waters.
Tested & Trusted Power: Backed by rigorous testing & certifications including UL, FCC, and CE, this mini-sized 12.8V 200Ah LiFePO4 Battery delivers unmatched reliability and is ready for a wide range of uses.
Specifications
SKU RBT12200LFP-Mx2
Brand Renogy
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 600
Battery Length (mm) 384
Battery Width (mm) 194
Battery Height (mm) 253
Battery Weight (kg) 25
Maximum Continuous Charge Current 150A
Maximum Continuous Discharge Current 200A

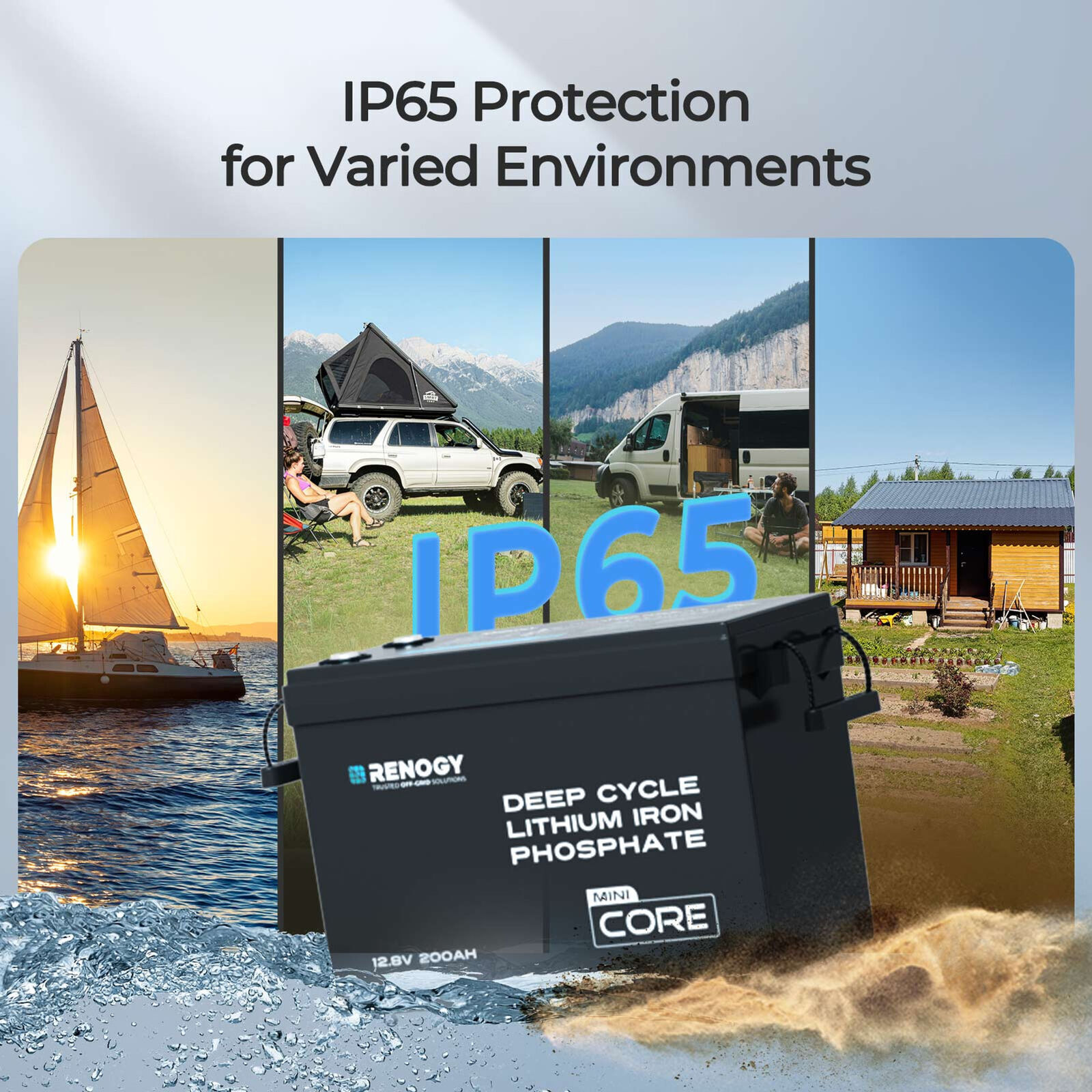

Enclosure Rating IP65
Q & A
-
I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery or is that too much wattage?
Yes, but please make sure that your solar charge controller is capable of handling the power your solar panels can output. Do not connect solar panels directly to batteries without a solar charge controller. Feel free to contact us if you have questions about how to size the solar charge controller for your system.
-
Can this battery be used in series to build a 48-volt system?
Yes. Renogy 12V Core Mini Series Batteries can be connected in series to ramp up voltage for a 24V, 36V, or 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 61.44kWh.
-
How many Renogy 12V 300Ah Core Mini Series Batteries can I connect at most?
The Core Mini Series batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 4 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
-
How long will the Renogy Core Mini Series Lithium Iron Phosphate Battery last?
Renogy 12V 300Ah Core Mini Batteries are capable of delivering 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries combine a true 200A battery management system (BMS), IP65 protection, and rugged structure design to brace for challenges wherever you go.
-
Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
-
How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
-
What is the difference between the Renogy Core Mini, Core, and Pro Series batteries?
The Core Mini Series is smaller and lighter, with the same features as the Core Series but without extra capacity. The Core Series offers up to 6% more usable energy.
The Pro Series includes Bluetooth, self-heating, IP67 waterproof rating, and a 7-year warranty, making it ideal for high-demand setups.
Core Mini & Core Series: Support series, parallel, and series-parallel connections. Pro Series: Supports parallel connections only.
-
I can see there are three different types of Renogy batteries, what is the difference between the Mini, Core and Pro series batteries?
The Core and Mini ranges have the same power specifications and come with a 5 year warranty, they do differ in physical dimensions and weight. The Renogy Pro range have a 7 year warranty, have an inbuilt Bluetooth feature, self heating and are IP67 rated.
