Renogy 12V 300Ah Core Series Lithium Battery with Self Heating
SKU: RBT12300LFPSH Learn More»







Currently FREE with the Renogy 12V 300Ah Core Series Lithium Battery with Self Heating is:
Description

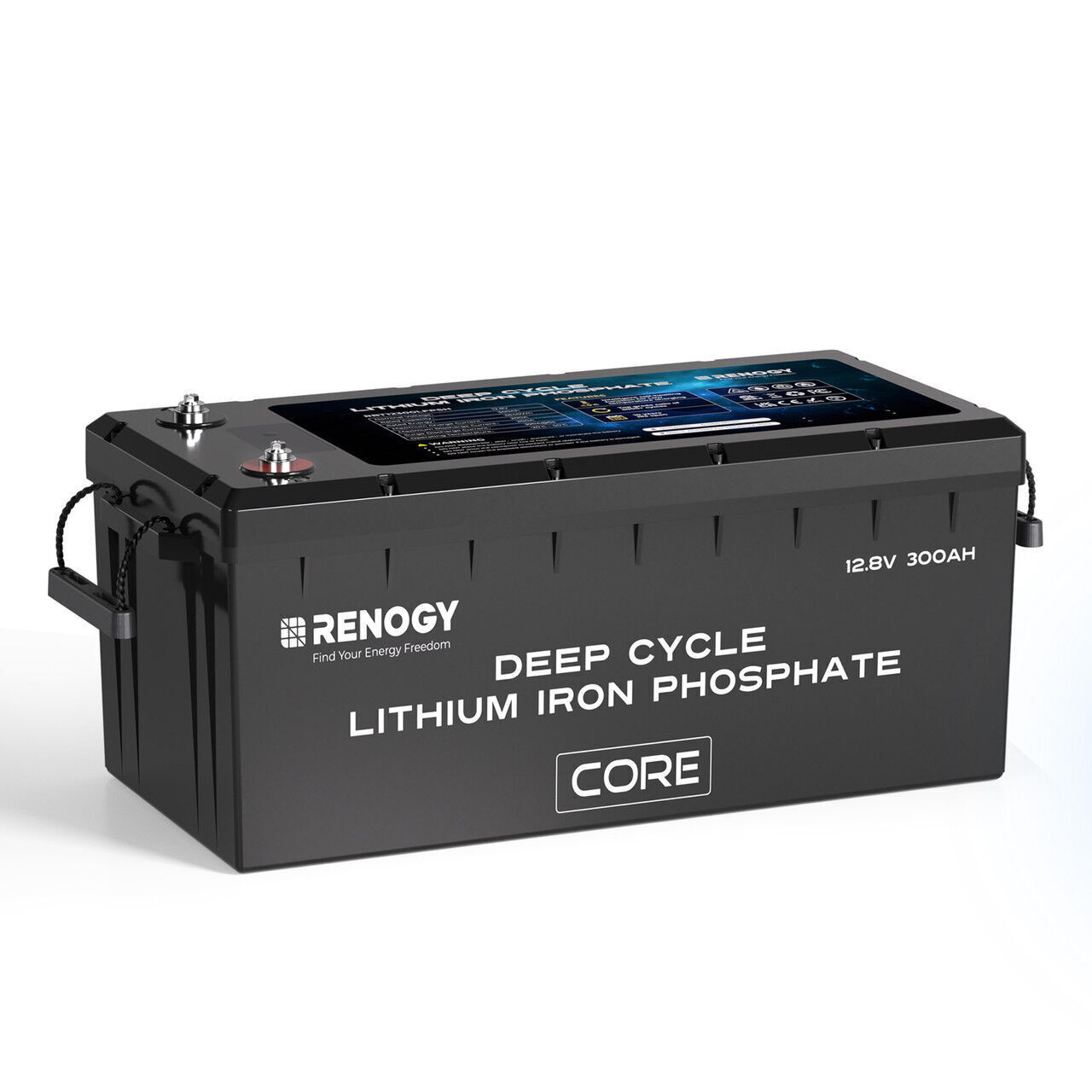

Renogy 12V 300Ah Core Series Lithium Battery with Self Heating
Meet Renogy 12V 300Ah Core Series Battery, your trusted, one-stop solution for upgrading from Lead to Lithium. Compatible with Renogy's solar panels, solar charge controllers, and inverters, this battery delivers a seamless upgrade experience without any compatibility issues.
With a 200W self-heating function, the 12V 300Ah Core LiFePO4 Battery delivers rapid 2x faster heat once temperatures drop to 32℉ (0℃), ensuring a continuous power supply even in the harshest cold weather.
Off-grid living can be challenging, but the Renogy 12V 300Ah Core Battery offers a true 200A battery management system (BMS), low-temp cut-off (for charging), and IP65 protection, giving you the confidence to tackle any obstacles.
Whether you are planning an upgrade from old lead-acid batteries, or starting to build your first-ever off-grid power system, the Renogy 12V 300Ah Core LiFePO4 Battery is your go-to option to get your project done right in an easier & faster way.
One stop for upgrade from lead-acid to lithium.
- 2x faster self-heating triggered at 32℉ (0℃).
- Support series, parallel, or series-parallel connections.
- A true 200A BMS with low-temperature cut-off.
- 5-year limited warranty
More Power, More Possibilities.
The Renogy 12V 300Ah Core delivers 59% more power than a 200Ah LiFePO4 battery of the same size. Get the extra capacity you need to weather unexpected storms, hurricanes, wildfires, and other challenges whenever they come your way.
Powerful to the Core
With consistent power lasting nearly 10 times longer than a typical lead-acid battery, the Renogy 12V 300Ah Core LiFePO4 Battery is built with EV-grade cells for lasting performance.
Extra Warmth. Extended Runtime.
With the industry’s highest 200W heating elements, the 12V 300Ah LiFePO4 Battery heats up 2X faster than other heated batteries. Ensure a stable charge current greater than 10A for each battery to activate the self-heating function.
Protections from Bumps
We know the journey can be a bumpy one. That’s why the battery is designed with rugged structural elements to protect components from shocks and impacts along the way.
Power Your Journey Longer

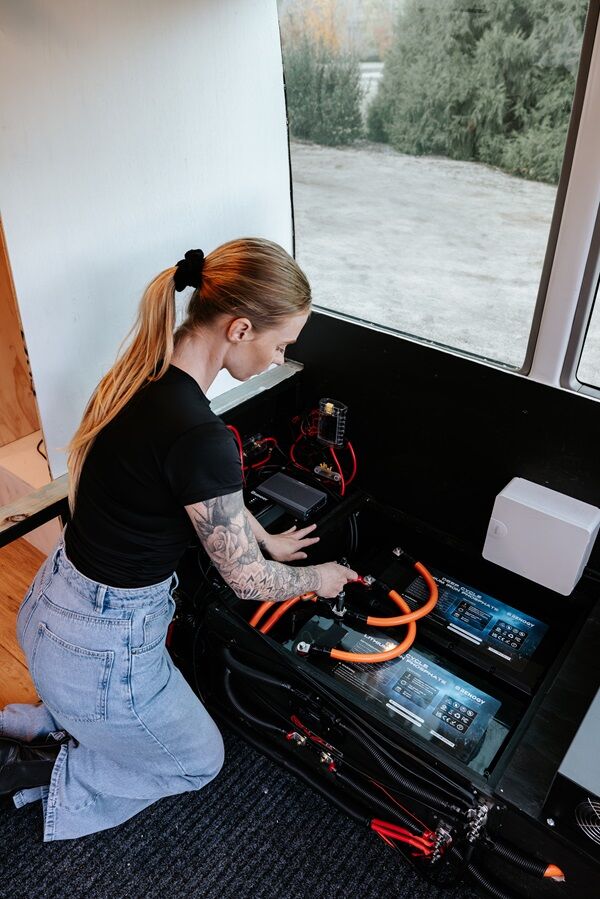

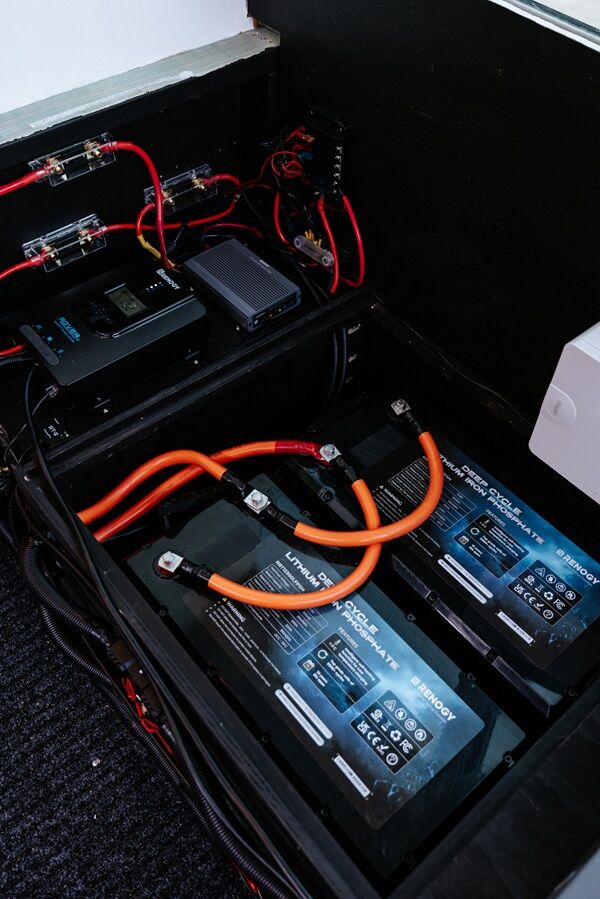

Whether you’re a weekend adventurer or a full-time nomad, Renogy Core 300Ah LiFePO4 batteries provide easy power access on the road. Connect 4 batteries in parallel to power essential RV appliances for up to 5.5 days, offering days of off-grid power for added comfort.
Power Your Cabin Getaway
Experience uninterrupted power in your cabin retreat with our 12V 300Ah Core Batteries. Connect 4 batteries in series to power the devices in your cabin, including air conditioning, refrigerators, and more, for up to 4.5 days. Spend less time on maintenance and more time enjoying the comforts of your cabin getaway.
Uncompromising modern convenience on the waves

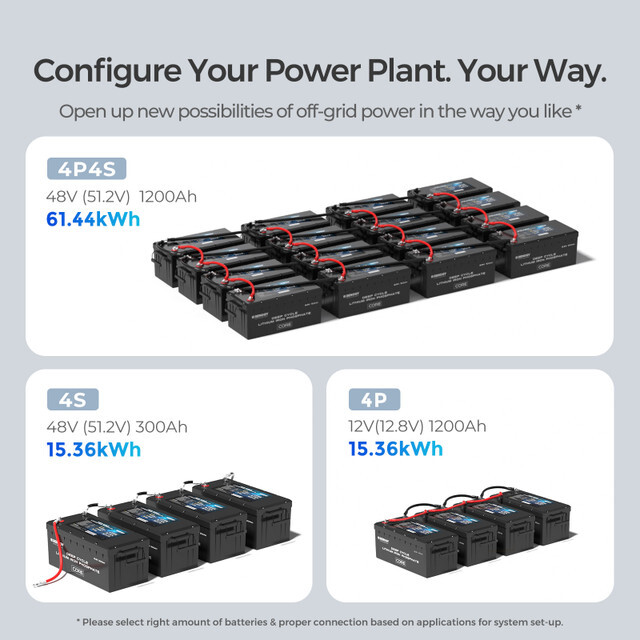

You're just a step away from transforming your fishing boat into a haven of modern comfort. Renogy 12V 300Ah Core batteries can be connected in 4P4S—16 batteries in series and parallel—to power the devices on your boat for up to 5 days.
Package Included:
- Core - 12V 300Ah Lithium Iron Phosphate Battery x1
- Long Terminal Bolts x 2
- Insulating Sleeve x 2
- User Manual x 1
Specifications:
- Battery Type: Lithium Iron Phosphate
- Nominal Voltage: 12.8V
- Rated Capacity: 300Ah
- Charge Voltage: 14.4V
- Maximum Charge Current: 200A
- Maximum Discharge Current: 200A
- Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
- Charge Temperature Range: -20°C~55°C
- Discharge Temperature Range: -20°C~60°C
- Storage Temperature Range: -25C~65°C
- Operation Relative Humidity: 10%~95%
- Connection Method: "Series (Up to 4) Parallel (Up to 4) Series & Parallel (4S4P)"
- Communication Protocol: N/A
- Terminal Bolt Size: M8
- Recommended Terminal Torque: 10 N·m~12 N·m
- Housing Material: ABS
- Protection Rating: IP65
- Dimensions: 522 x 240 x 219mm
- Weight: 31.3 kg
Specifications
SKU RBT12300LFPSH
Brand Renogy
GTIN 00840315218512
Product Category Batteries
Battery Voltage 12V
Amp Hours (Ah) 300
Battery Length (mm) 522
Battery Width (mm) 240
Battery Height (mm) 219
Battery Weight (kg) 31.3
Q & A
-
I have 4 Renogy 100W 12V solar panels. Will these work with this LiFePO4 battery or is that too much wattage?
Yes, but please make sure that your solar charge controller is capable of handling the power your solar panels can output. Do not connect solar panels directly to batteries without a solar charge controller. Feel free to contact us if you have questions about how to size the solar charge controller for your system.
-
Can this battery be used in series to build a 48-volt system
Yes. Renogy 12V Core Series Batteries can be connected in series to ramp up voltage for a 24V, 36V, or 48V off-grid power system. You can also consider wiring batteries in series first and then wire sets of batteries (same models required) in parallel for maximum power up to 40.96kWh.
-
How many Renogy 12V 300Ah Core Series Batteries can I connect at most?
The Core Series batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 4 batteries in series, 4 in parallel, or 16 in the series-parallel connection. Batteries of the same model and similar capacity are required.
-
How long will the Renogy Core Series Lithium Iron Phosphate Battery last?
Renogy 12V 300Ah Core Series Batteries are capable of delivering 5000 cycles with a recommended 80% depth of discharge (DOD). Meanwhile, these batteries combine a true 200A battery management system (BMS), IP65 protection, and rugged structure design to brace for challenges wherever you go.
-
Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt (sold separately) to keep track of battery status.
-
How to recharge my LiFePO4 batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend a solar charge controller/charger that is compatible with lithium iron phosphate batteries.
-
Does this battery include a battery tray?
Unfortunately it does not include a battery tray, however Renogy recommend installing with a battery tray for stability.
-
Will this LiFePO4 battery work with my four Renogy 100W 12V solar panels, or is it too much power?
Absolutely, however you won't be able to connect the panels directly to the battery. You will need a suitable solar regulator between the panels and the battery.
-
Can these batteries be used in a 48v system?
Yes, you can wire Renogy 12V Core Series Batteries in series to increase voltage for a 24V, 36V, or 48V off-grid power system. Alternatively, you can wire sets of batteries in parallel to get a maximum power of 40.96kWh.
-
What is the maximum number of Renogy 12V 100Ah Core Series Batteries I can connect?
Up to four batteries can be connected in series, eight in parallel, or sixteen in series-parallel configuration. It is necessary to use batteries with a matching type and capacity.
-
What is the lifespan of this battery?
These batteries can produce 5000 cycles with a suggested 80% depth of discharge (DOD).
-
Can I use a Bluetooth module with this battery?
No. The Bluetooth module is not compatible with this battery. To monitor battery status, utilise a 500A Battery Monitor With Shunt.
-
How should I maintain my batteries?
Whilst you're not travelling best practice would be with an AC charger or Solar. While travelling Solar and a DC charger will be the best options.
Reviews
Renogy battery
By: Tom Seselja on28 February 2024
Great price and prompt delivery
