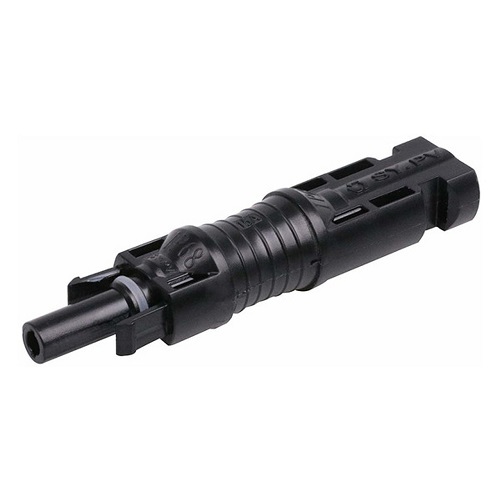

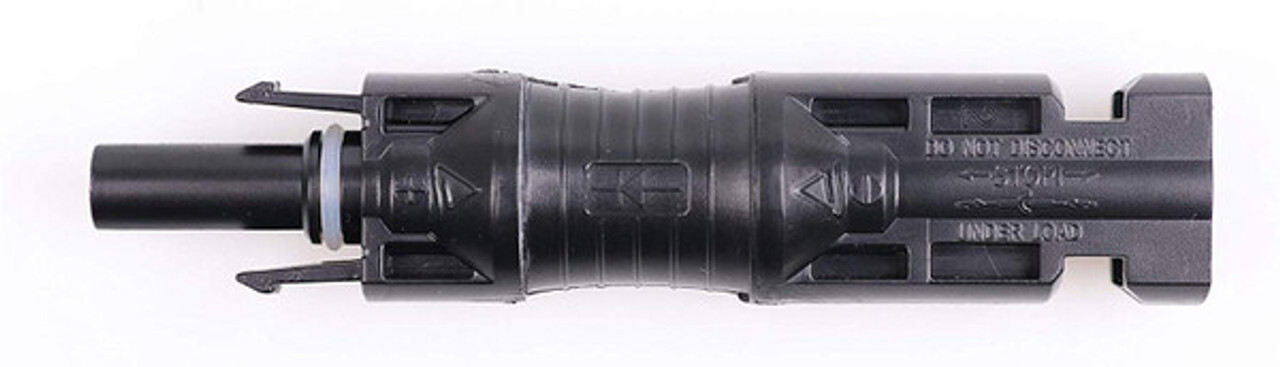

Renogy 15A MC4-PV Diode Waterproof Connector

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Learn More»

Go to: Product Details

Go to: Specifications

Description

This product is a backflow prevention diode with MC4 connector. For example if solar panel is in shadow or has a fault in the process of paralleling solar panels, it prevents current from flowing to the solar panel with the lower voltage.

Features:

System voltage <600V
ISC≤15A
IP67
Aging resistance, UV resistance

Specifications:

Rating Voltage: 600/1000V
IP 67 Protection
Max. Current: 15A
Contact resistance: ≤5mΩ
Material:Brass,Tin plated
Terminal size:4.0mm
Safety Level: Class Ⅱ
MC4 connector
Temperature: -40°F to +185°F
Flame class: UL94-V0

Go to: Description

Go to: Warranty

Specifications

SKU RDIO15MC4

Brand Renogy

GTIN 00810081408165

Product Category Electrical Accessories

Max Current 15A
