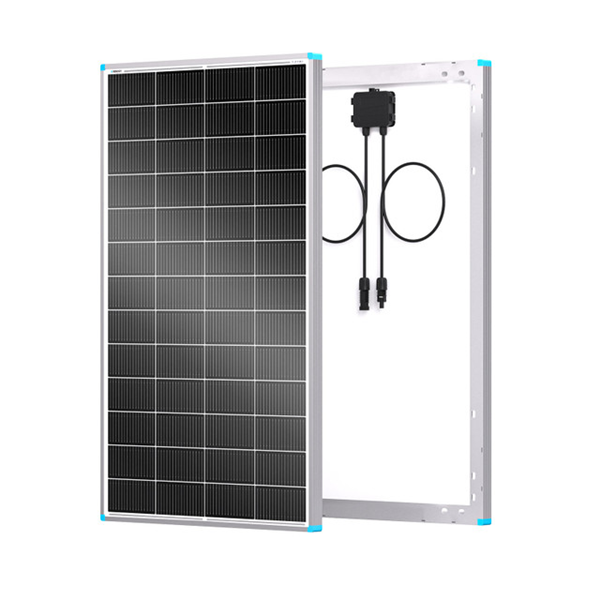

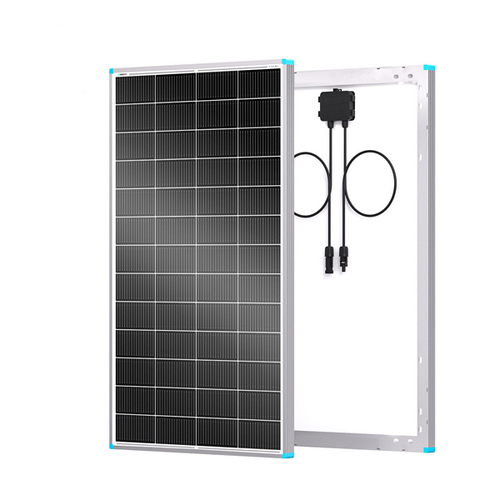

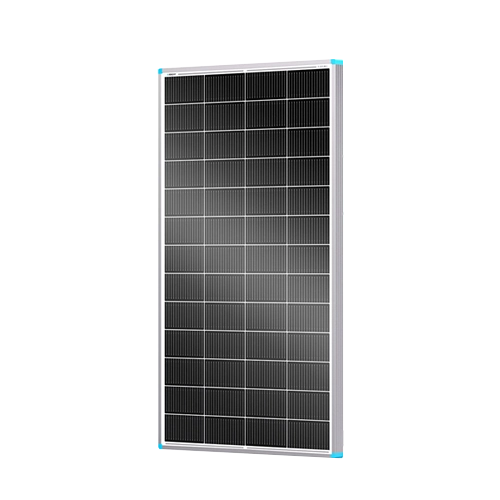

Renogy 200W 24V Monocrystalline Fixed Solar Panel

Specifications

SKU RSP200DC

Brand Renogy

GTIN 840315233799

Product Category Solar Panels

Watts (W) 200

Solar Panel Cell Type Monocrystalline

Solar Panel Type Fixed Solar Panels

Open Circuit Voltage Voc(V) 37.44V

Short Circuit Current Isc(A) 6.85

Operating temperature range -40°C - 85°C

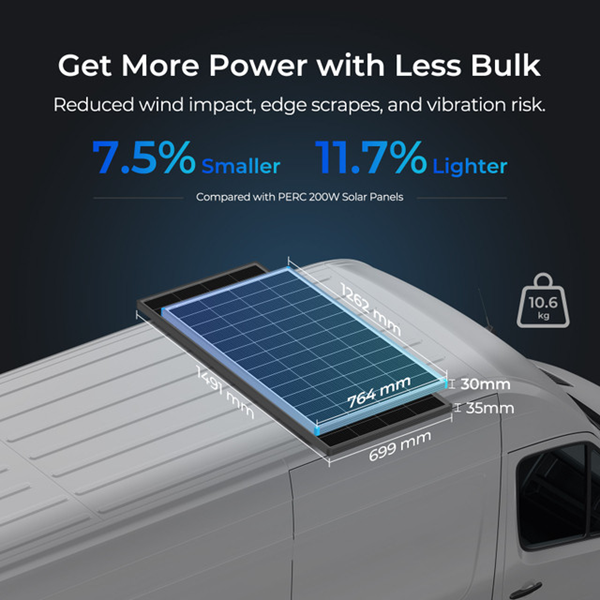

Dimensions 1262x764x30mm

Cell Efficiency 20.7%

Weight (kg) 10.6

Max System Voltage (VDC) 600VDC

Q & A

---

• What do I need to complete my off-grid solar power system?

  To set up an off-grid solar power system, you’ll need a solar panel connected to a charge controller to regulate the current and a battery to store the generated electricity. Additionally, adapter kit cables are required to connect the solar panel(s) to the charge controller, and tray cables are necessary to link the charge controller to a deep-cycle battery. These components work together to ensure a reliable and efficient power system.

• What does off-grid and on-grid mean?

  On-grid systems are solar power setups connected to the electrical grid, allowing you to draw power from the grid when needed. In contrast, off-grid systems operate independently of the grid, storing the power they generate for later use. This makes off-grid systems ideal for areas without reliable grid access and ensures they remain unaffected by grid blackouts.

• Why is my solar panel underproducing power?

  Several factors can affect the performance of your solar panel. The most common causes include environmental conditions such as indirect sunlight, high temperatures, cloudy weather, and the accumulation of dirt or stains on the panel's surface glass. These issues can reduce power output, but regular cleaning and proper positioning can help maintain optimal performance.

• How should I connect solar panels in my electrical circuit - series or parallel?

  Solar panels can be connected in series or parallel to match the requirements of your electrical circuit and power demand. In a series connection, the operating voltages of the panels are added together, while the system current remains the same as that of a single panel. In contrast, a parallel connection combines the operating currents of individual panels to produce a higher system current, while the system voltage remains the same as that of a single panel. For optimal power output and to meet your system's specifications, you can use a combination of both series and parallel connections.

• How many solar panels do I need?

  To determine the number of solar panels required, start by calculating the power load your system needs. Power is measured in watts, while capacity is measured in watt-hours. Capacity is calculated by multiplying the power output in watts by the number of hours of operation, then factoring in a safety margin of 1.5 to 2. It’s advisable to size your battery bank first based on the minimum capacity required. Once the battery size is determined, you can decide how many panels are needed to provide the necessary power input.

• What is the meaning of 12V in the product title? Why is this value different from the voltage of the solar panel?

  When viewing a product title like "xxx Watt 12 Volt Monocrystalline Solar Panel," the "12V" refers to the compatibility of the panel with a 12V system, such as a 12V battery, rather than the actual voltage of the solar panel (Voc or Vmp). These are two distinct values with different purposes: the "12V" indicates the system the panel is designed for, while the panel's actual voltage determines its operating characteristics.
