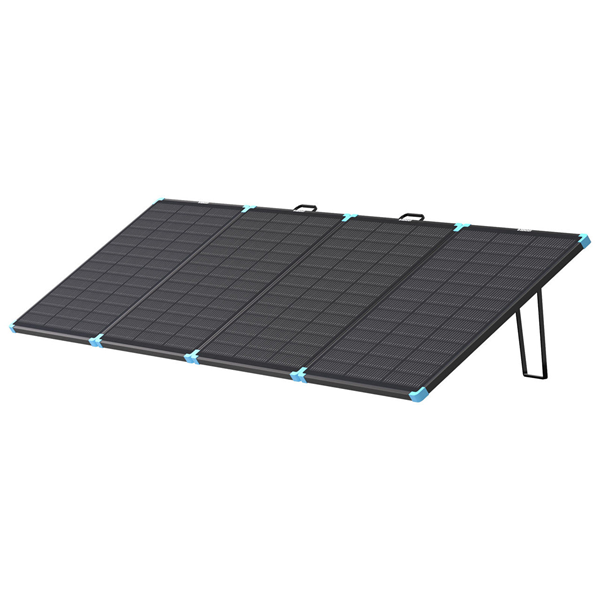

Renogy 300W N-type Compact Solar Suitcase

Specifications

SKU RSP300LSC

Brand Renogy

GTIN 840315235731

Product Category Solar Panels

Watts (W) 300

Solar Panel Type Folding Solar Panels

Open Circuit Voltage Voc(V) 30.03

Short Circuit Current Isc(A) 12.6A

Operating temperature range -40°C - 85°C

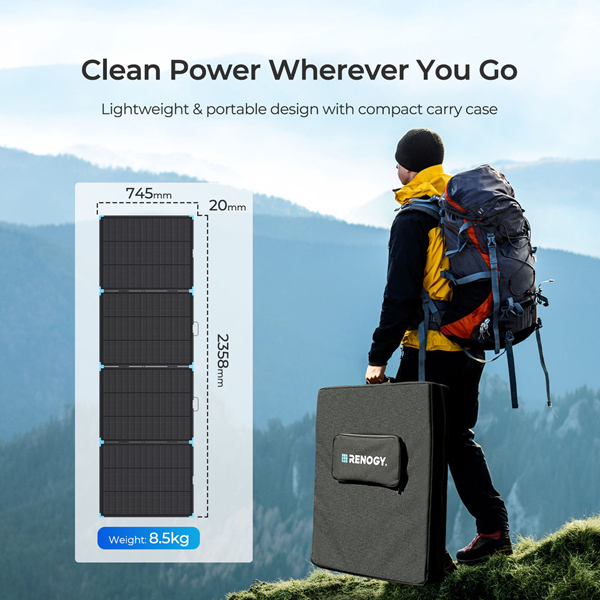

Dimensions (open) 2358 x 745 x 20mm

Dimensions (closed) 588 x 745 x 80mm

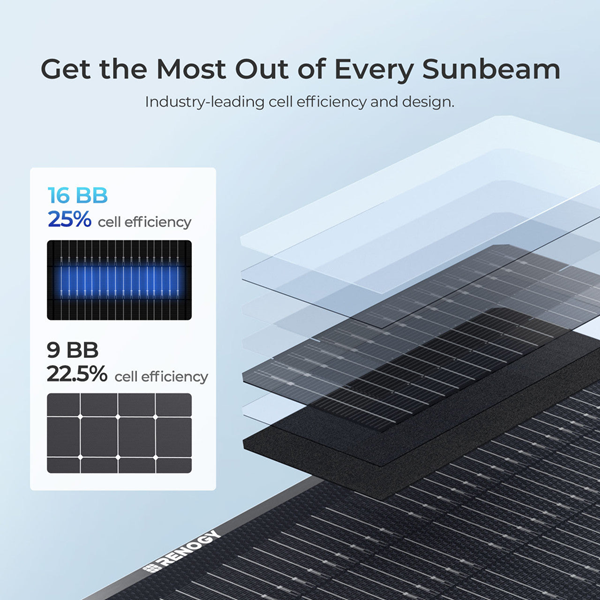

Cell Efficiency 17.%

Weight (kg) 8.5

Max System Voltage (VDC) 600VDC

Q & A

---

• What do I need to complete my off-grid solar power system?

  A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.

• What does off-grid and on-grid mean?

  On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.

• Why is my solar panel under producing?

  Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.

• How should I connect solar panels in my electrical circuit (series vs parallel)

  Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.

• How many solar panels do I need?

  The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.

Reviews

Warranty

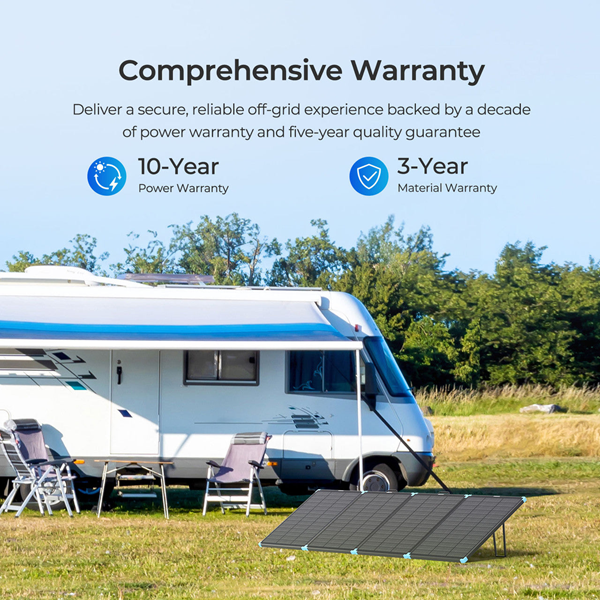

Warranty Period: 3 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product
