Renogy 500A Battery Monitor with Shunt
SKU: RBM500 Learn More»
Description

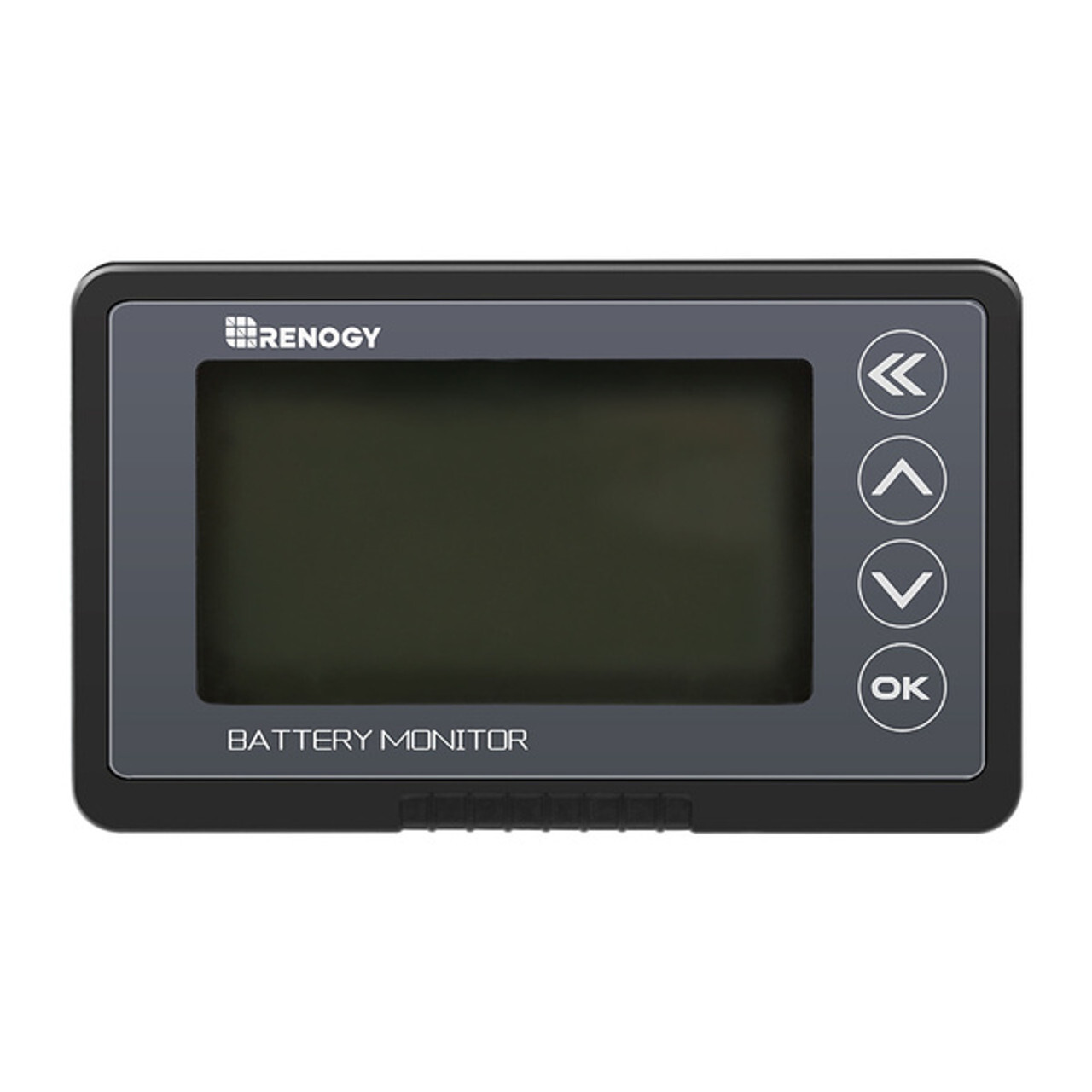

Renogy 500A Battery Monitor with Shunt
The Renogy 12V Battery Monitor is an excellent addition to any solar system and will eliminate the guesswork from battery usage. This 12V Battery Monitor is able to monitor the amperage flowing out of the battery bank and will give an accurate state of charge reading on the LCD screen. Improve the overall performance and longevity of your battery bank today!
Features:
- High-precision current detection.
- High and Low Voltage Programmable Alarm - Backlight and voltage value will flash simultaneously.
- Data Storage - Designed to automatically store the last testing data when the system shuts off.
- Displays multiple electronic parameters (Voltage, Current, Consumed Power, and Battery Capacity).
- Universal Battery Monitor- Voltage range 10V-120V and up to 500A.

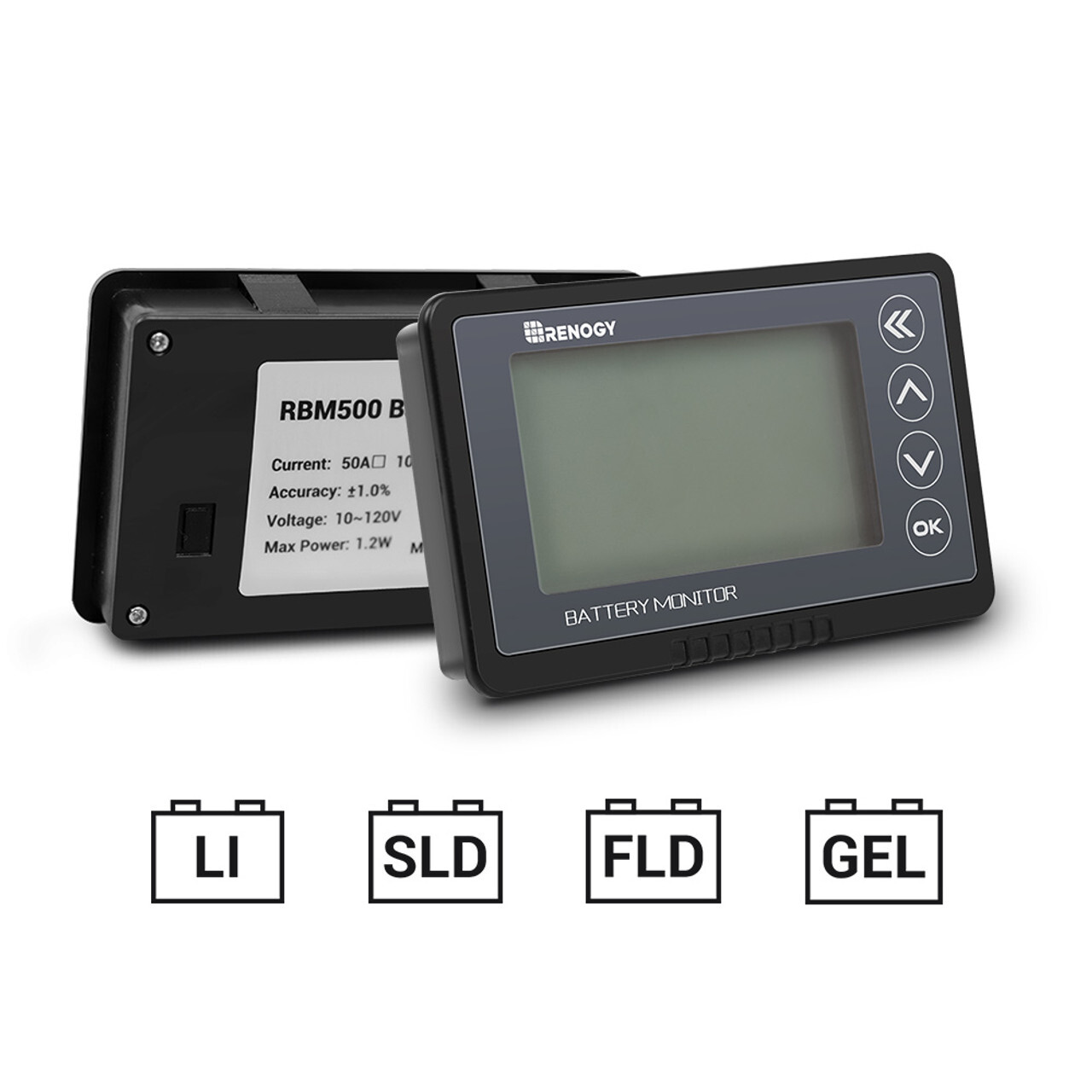

- Compatible with various types of batteries: Lead Acid(AGM), Lithium Iron Phosphate, Lithium-ion, and Nickel-metal hybrid.
- Accurate Battery SOC%.

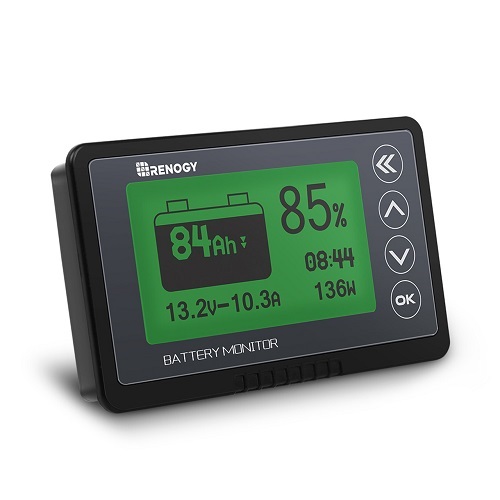

- Large backlit LCD Display

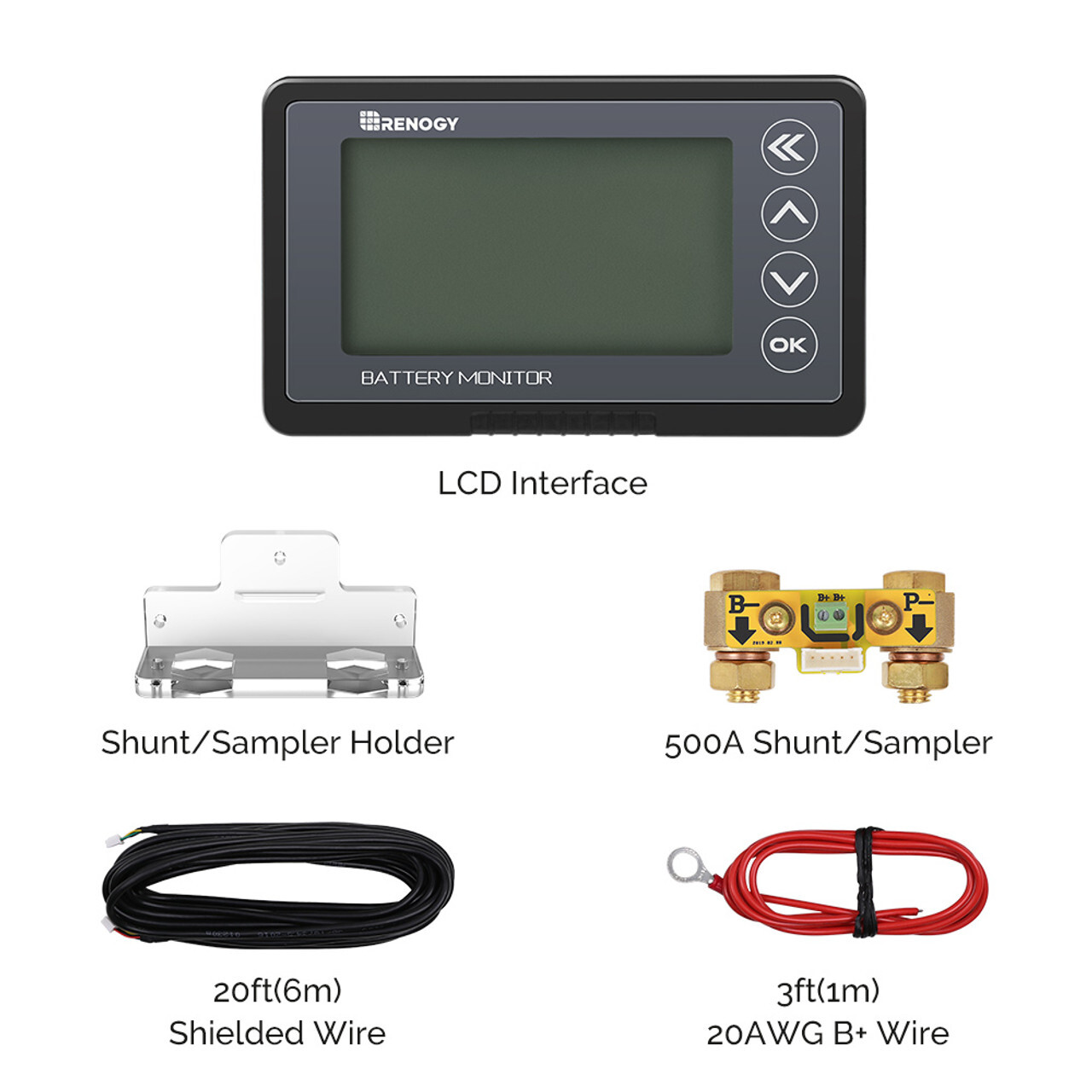

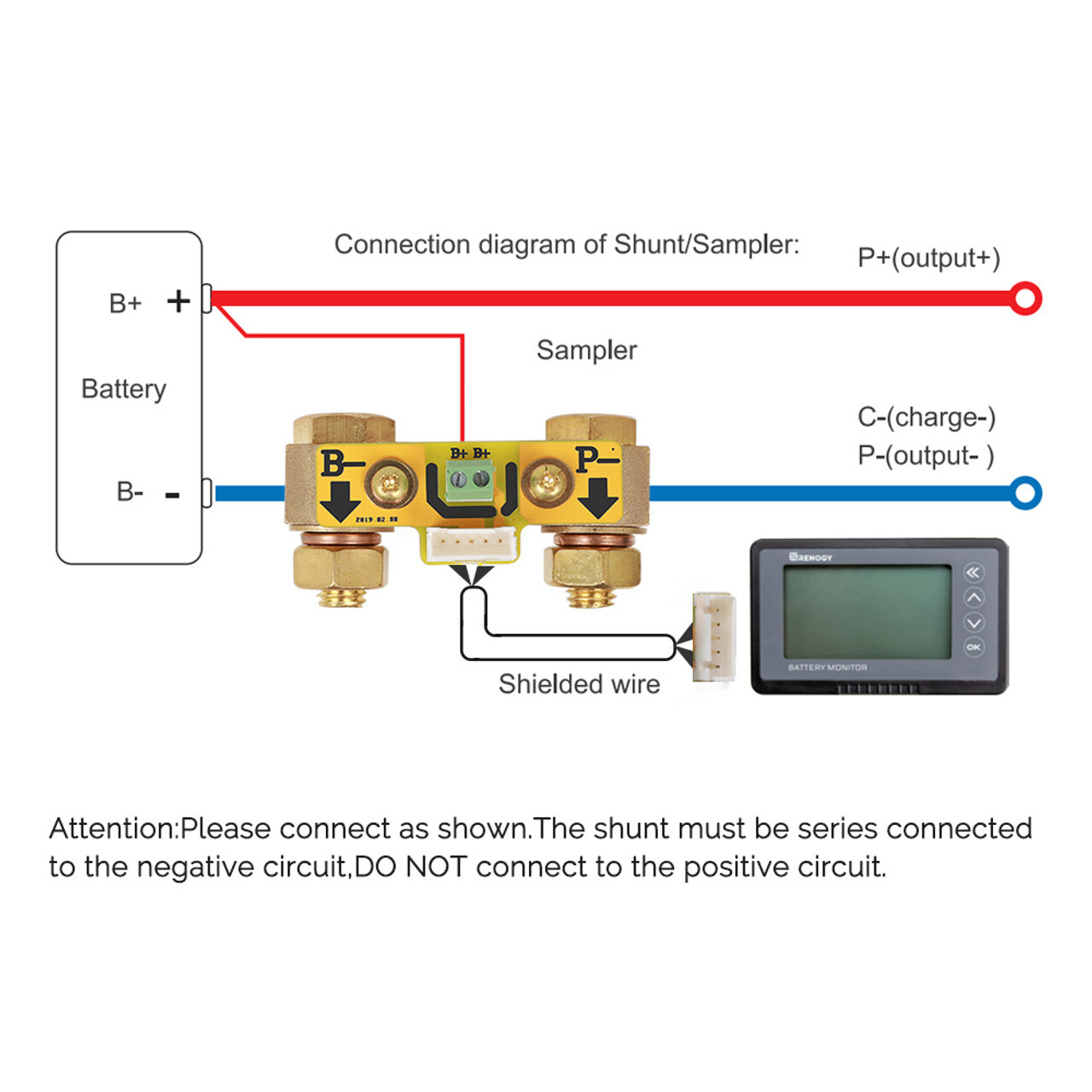

- Transparent shunt holder makes it easier to mount the shunt.
- 20ft Shielded cable allows you to monitor the battery status from a distance.
Specifications:
- Working Voltage: 10-120V
- Working Dissipation: 10-15mA
- Standby Dissipation: 1-2mA
- Voltage Accuracy: ±1%
- Current Accuracy: ±1%
- Capacity Accuracy: ±1%
- Backlight on current (50A): 30-60mA
- Backlight on current (>50A): 100mA
- Preset capacity value: .0.1-9999.0 AH
- Temperature range: 0-35 °C
- Shielded Wire Length: 20 ft/6 m
- B+ Wire Length: 3 ft/1 m
- Weight: 0.75 g

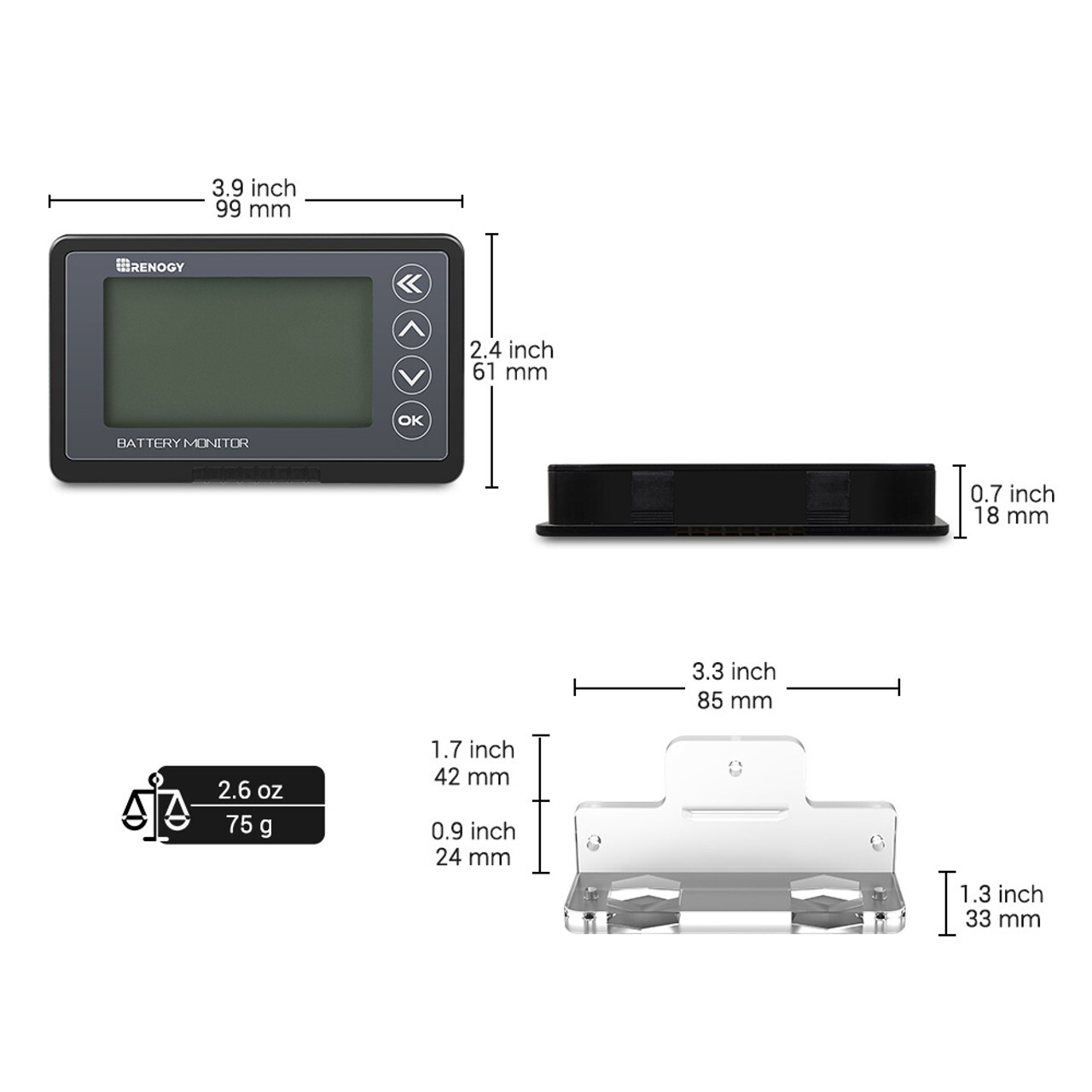

- Dimensions: 100 x 61 x 17 mm
.png)
Specifications
SKU RBM500
Brand Renogy
GTIN 00810009714385
Product Category Battery Monitors
Dimensions 100 x 61 x 17 mm
Temperature Range 0-35 °C
Weight (kg) 0.075
Q & A
-
Hello, can I use this 500a monitor as well as the 300 battery shunt? I'm after a display monitor to have inside of my van but would also like to be able to access the battery status on my phone (via Bluetooth/app).
You cannot use both the 500A monitor and the 300 battery shunt while reading the same loads. With the Renogy 300A shunt being Bluetooth, you can get the Renogy One Core, which connects to the 300 via Bluetooth and offers inbuilt leveling for the van.
-
Please advise if this monitor gives a readout of charge input in watts/amps from the solar panel.

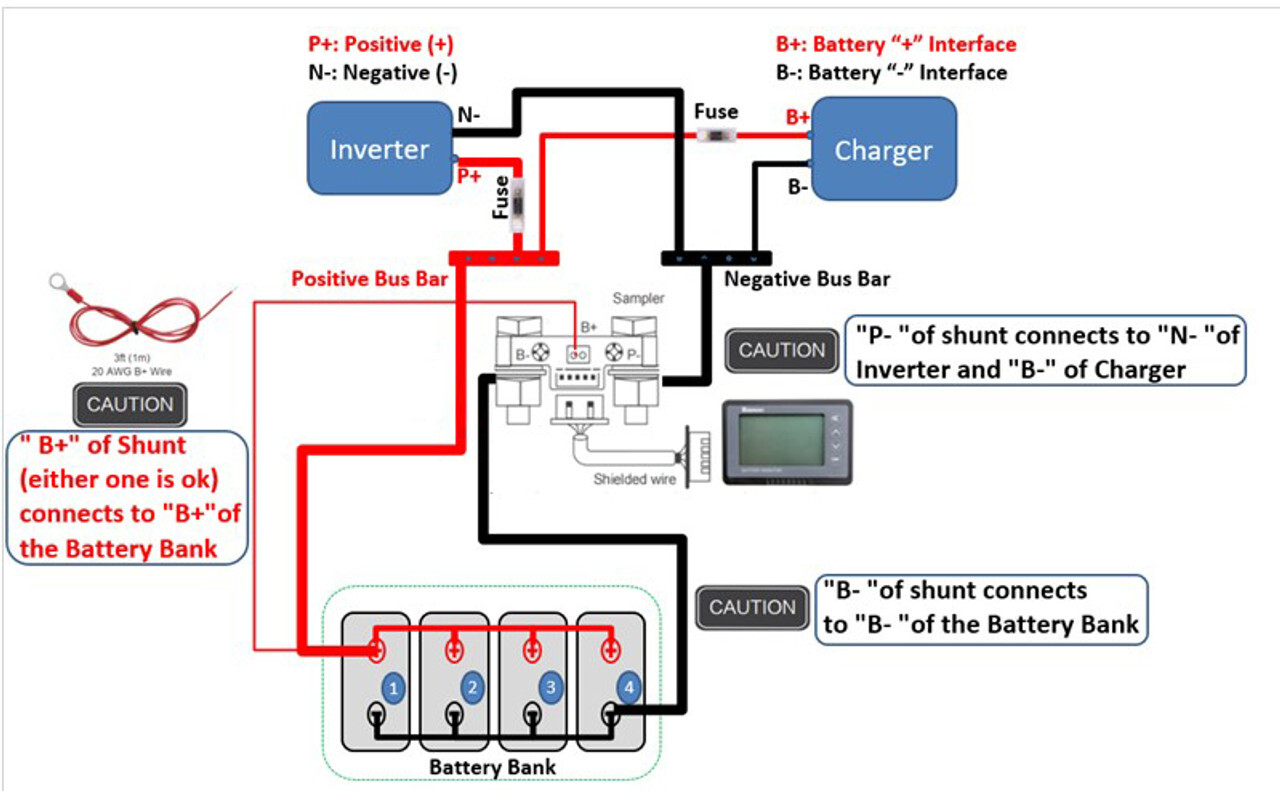

Yes, the Renogy RBM500 Battery Monitor displays real-time current (in amps) and power (in watts), which includes the charge input from the solar panel. It shows both the direction and amount of current flowing into or out of the battery, so you can monitor solar input as long as the solar system is connected directly to the battery bank being measured by the shunt.
Reviews
Nice gear
By: anonymous20 August 2025
After using a Chinese wifi current meter for lithium batteries for a couple of years in two vehicles I was frustrated by unreliability. It was time to get something that was more reliable. I bought two of these colometers, one for the camper and for for the 4WD. I’ve installed one in the 4WD and it’s working great. The second one will be installed soon. Getting rid of constant WiFi connectivity issues by having cabled connections is just such a huge improvement.
Battery shunt
By: Mark on7 August 2025
Received and works as intended. Best value
Battery shunt
By: Daniel on6 June 2025
Super fast postage. The shunt works an absolute treat, the install instructions were easy enough to follow.
Renogy 500A Battery Monitor
By: Ian Reid on24 May 2025
Delivered in a timely manner, all in secure packaging and at a reasonable price. Had these sort of things before and they work really well. Everything was in the package as described. No hesitation in buying of this seller again. Thanks....
