Renogy All-in-One Ranger Control Hub

SKU: RPSD6NPB Learn More»
$799
In Stock1-2 Days Dispatch
EXTRA $20 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories List:

$310

$269

$156

$449

Click '+' to show more accessories

Description

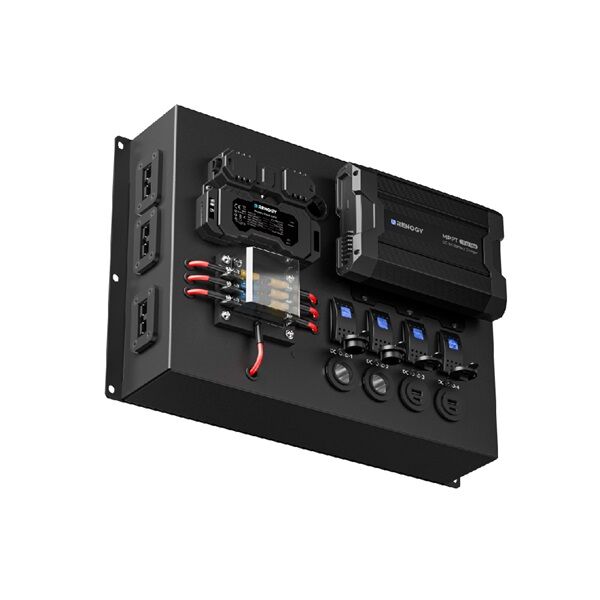

Renogy All-in-One Ranger Control Hub



Renogy All-in-One Ranger Control Hub takes all the guess work out of wiring and connecting. Don't waste time designing your own system when Renogy have done it for you

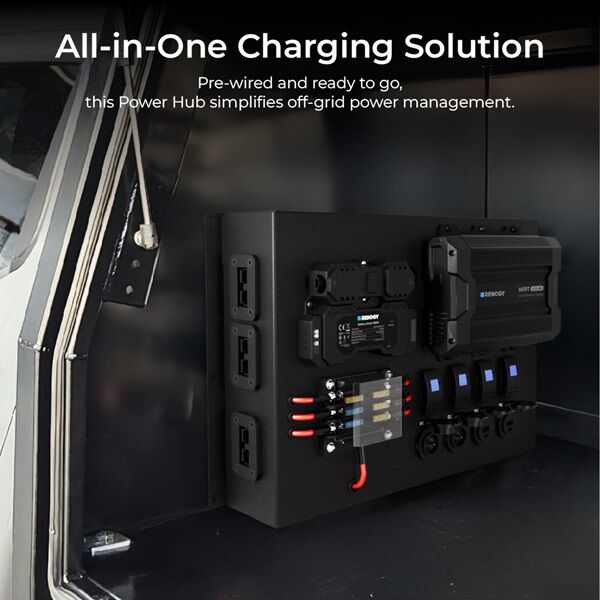

The Ranger Control Hub is the ultimate power solution for 4x4 canopies, combining an IP67-rated DC-DC battery charger with MPPT for seamless charging from both solar panels and your vehicle’s starter battery. Designed for convenience, this all-in-one power hub supports all battery types with hassle-free installation—no need to worry about wiring sizes or complex setups. Simply plug into the Anderson ports and start charging effortlessly.



Features:

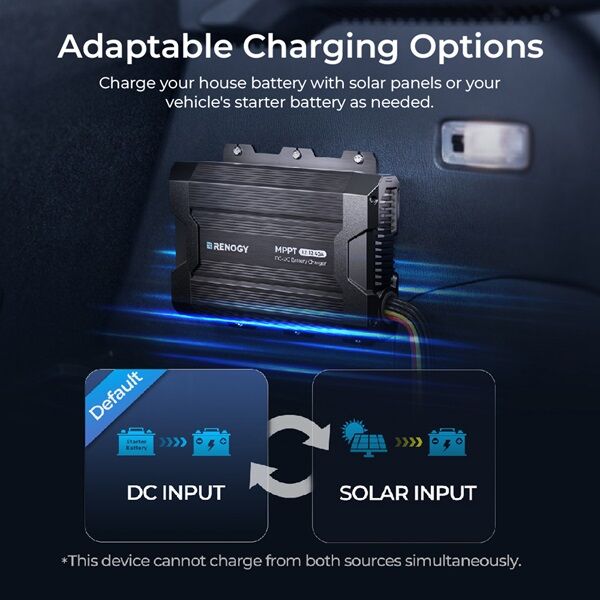

  • Versatile Charging Options: The 40A DC-DC battery charger with MPPT lets you charge your batteries via solar panels or a vehicle alternator. With 50A Anderson ports for effortless connection, off-grid living has never been easier.

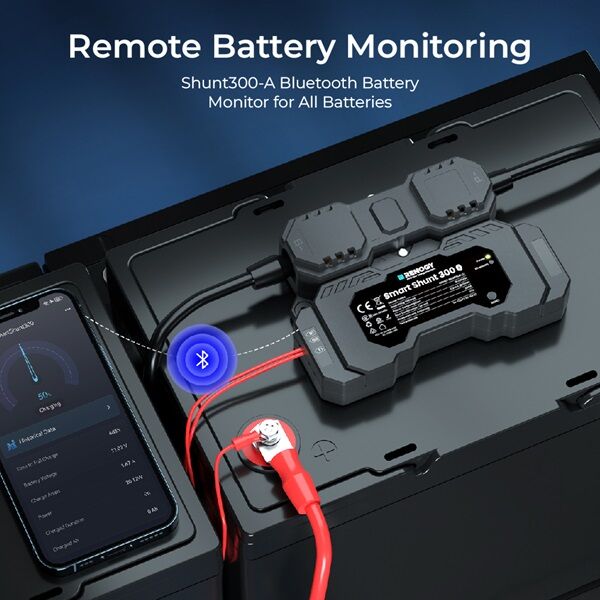

  • Precious Battery Monitoring: Equipped with the Battery Shunt 300, the Ranger Control Hub keeps you informed of your battery status anytime, anywhere. Its high-precision current sensor enables real-time monitoring via the Renogy ONE Core and DC Home App.

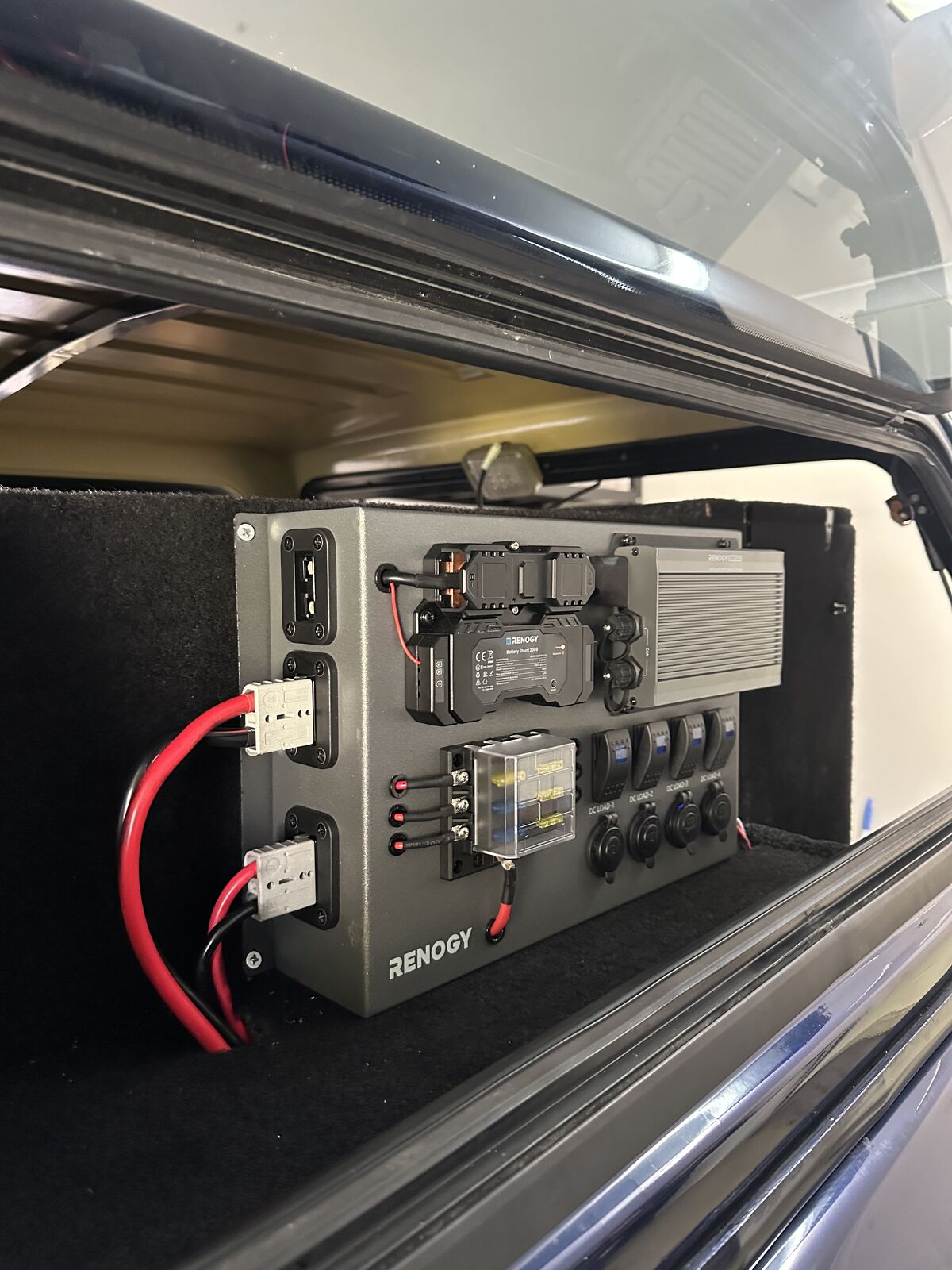

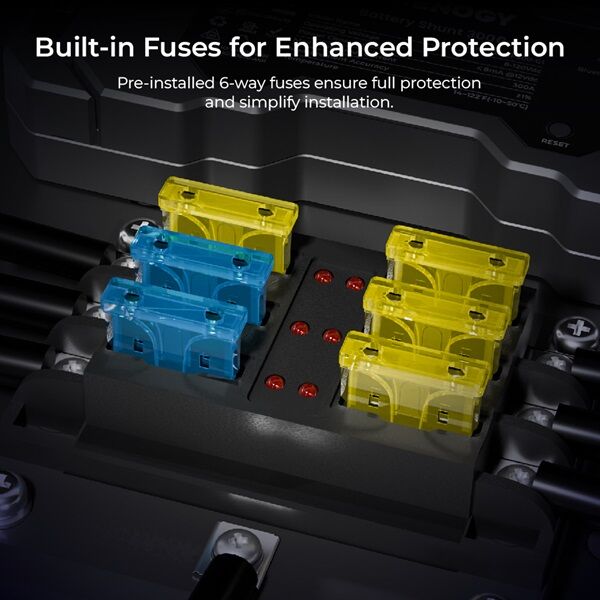

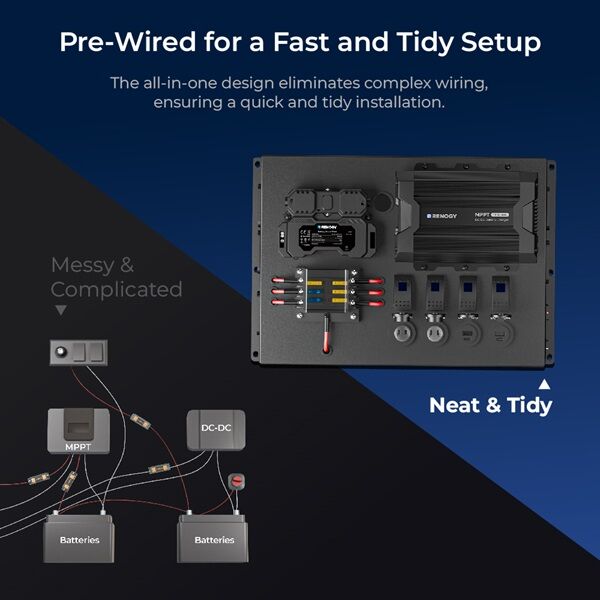

  • Pre-wired Design for Effortless Installation: The Renogy All-in-One Ranger Control Hub simplifies your power setup with a fully pre-wired system. All fuses and wiring are pre-installed, removing the hassle of complex wiring. With Anderson input ports, connecting your solar panels and battery is as easy as plug-and-play.
  • High compatibility with all type of batteries: This All-in-One control hub is compatible with different type of batteries. Equipped with a 50A Anderson input for your vehicle's starter battery and a 50A Anderson output for your house battery, it delivers efficient and reliable power transfer. Whether you're using lithium, AGM, or other deep-cycle batteries, this hub provides a hassle-free connection for optimal charging and performance.

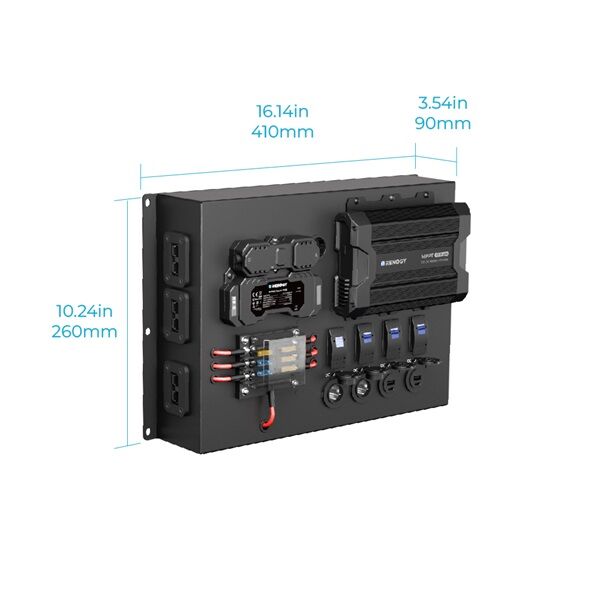

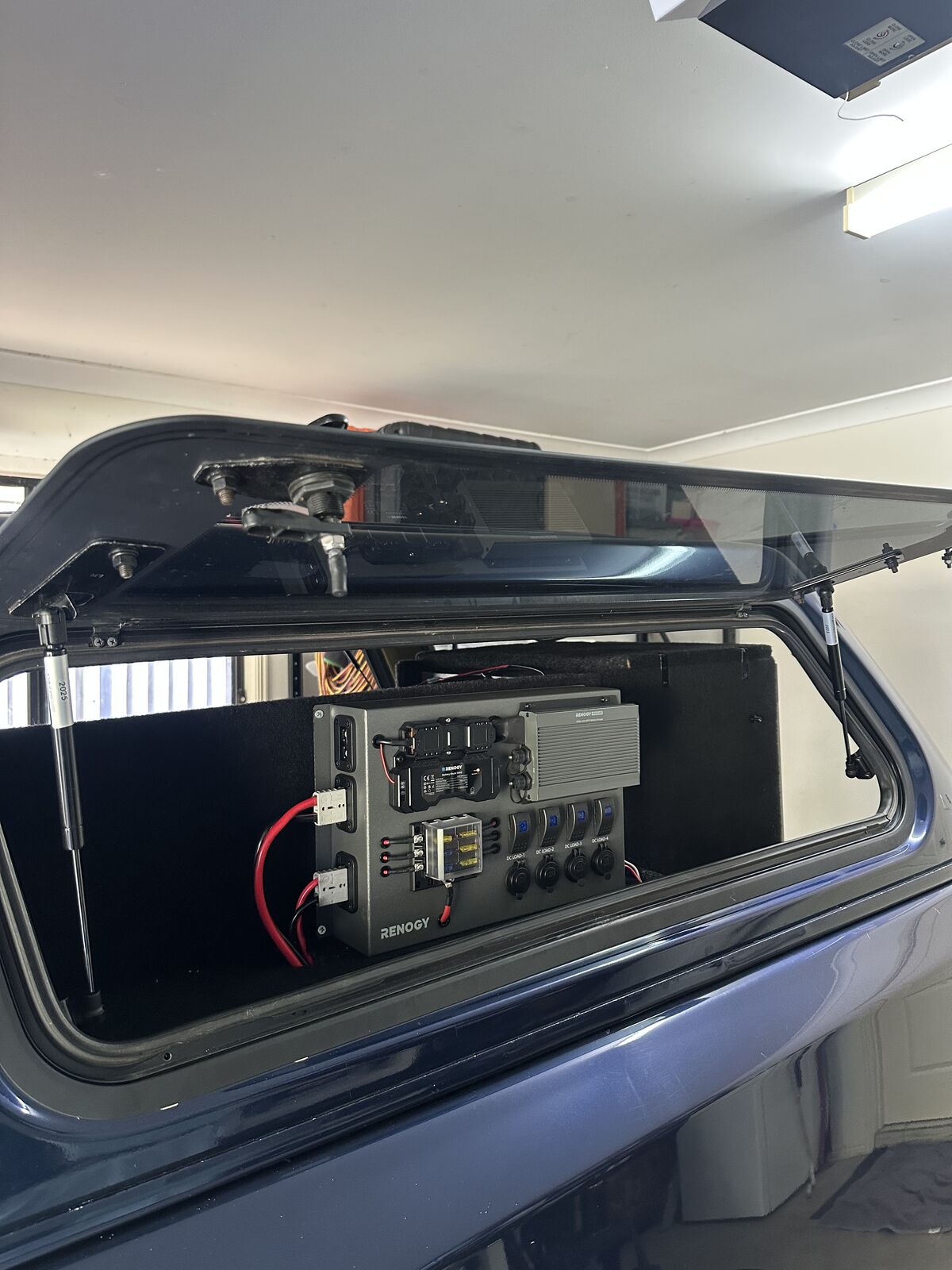

  • Compact design is perfect for your 4x4 canopy: The Renogy All-in-One Ranger Control Hub is designed for maximum space efficiency without compromising functionality. Measuring just 410 x 260 x 90mm it seamlessly fits into your 4x4 canopy—making the most of every inch in your vehicle.



Show More

Specifications

SKU RPSD6NPB

Brand Renogy

Product Category Power Systems

Voltage 12V

Dimensions 410 x 260 x 90mm

Solar Input Voltage Range 10-30V DC

Alternator Input Voltage 12-16V DC


Q & A


  • How much solar can I have through this board?

    The MPPT built into the DC-DC charger can accept up to 616W and 30VOC.

  • How can I monitor my batteries?

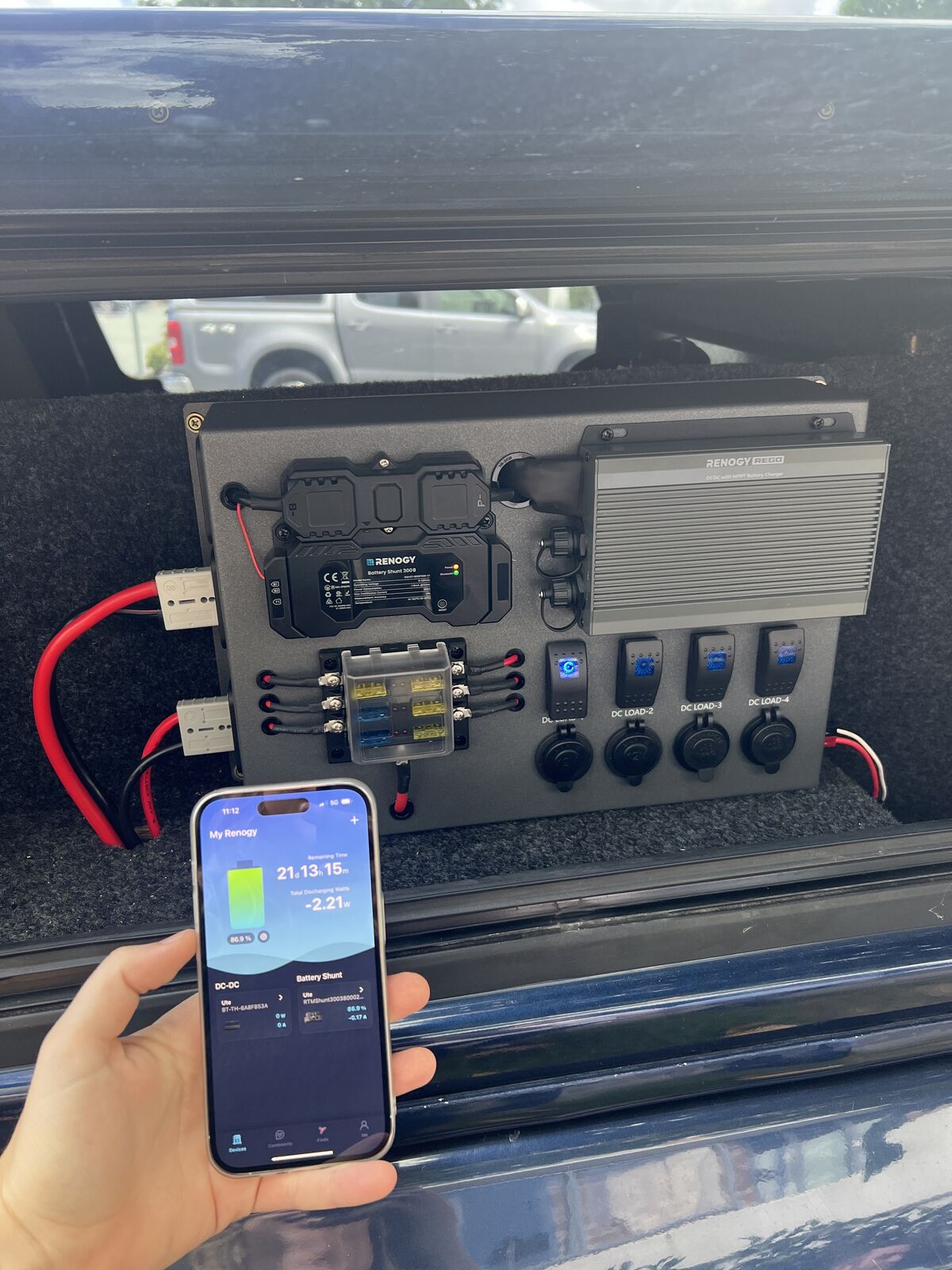

    The Ranger Board has Renogys 300A Bluetooth shunt, which allows you to monitor directly from your phone using the Renogy DC Home app. If apps aren't you thing, check out the Renogy One Core which is a Bluetooth screen that links to the Shunt.

  • Does the app allow me to set alarms?

    Yes, you set Low/High SOC, Low/High Voltage, High Charge Amps, High Discharge Amps, Low/High Battery Temperature alarms.

  • What outlets does this board have?

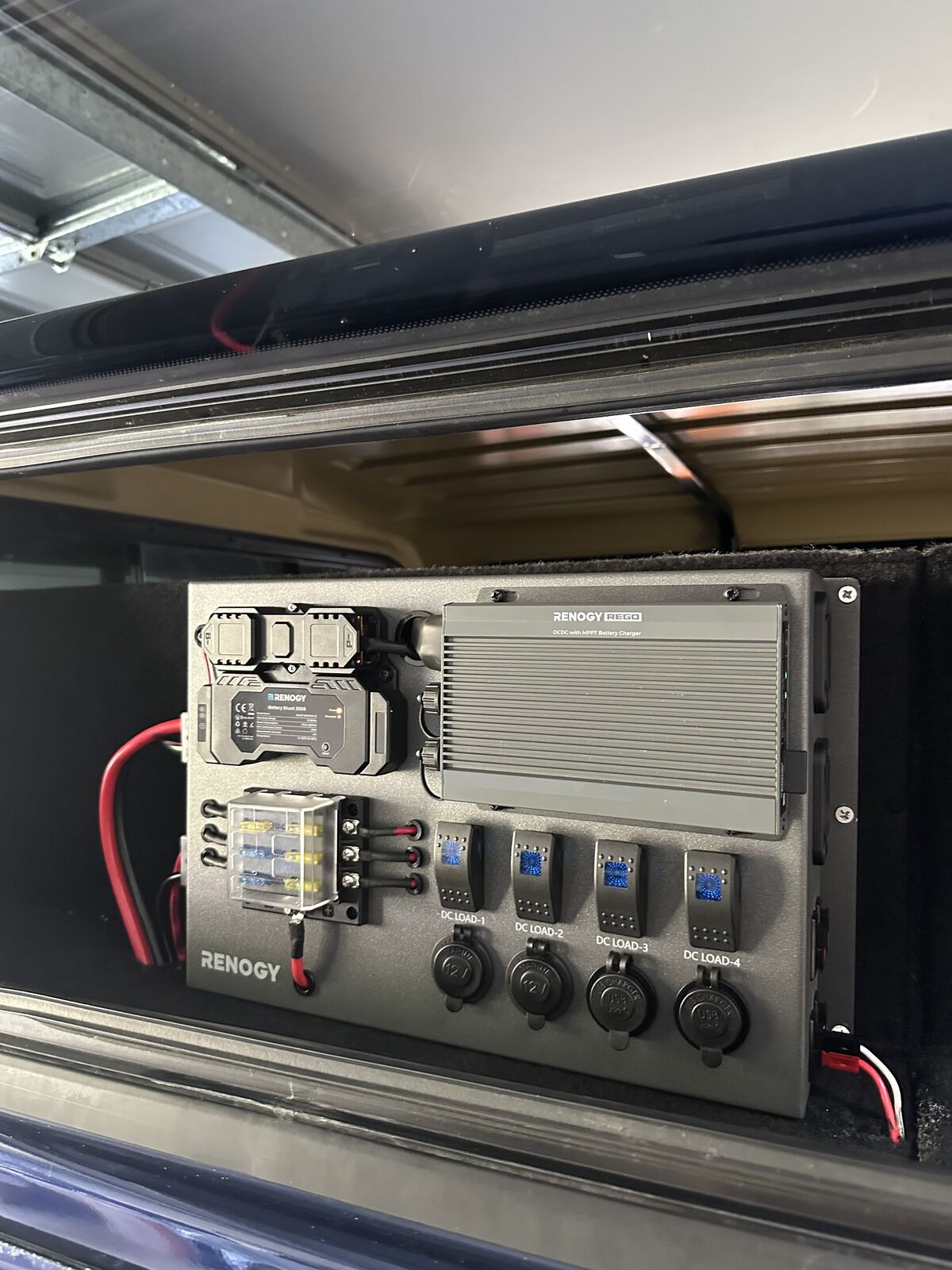

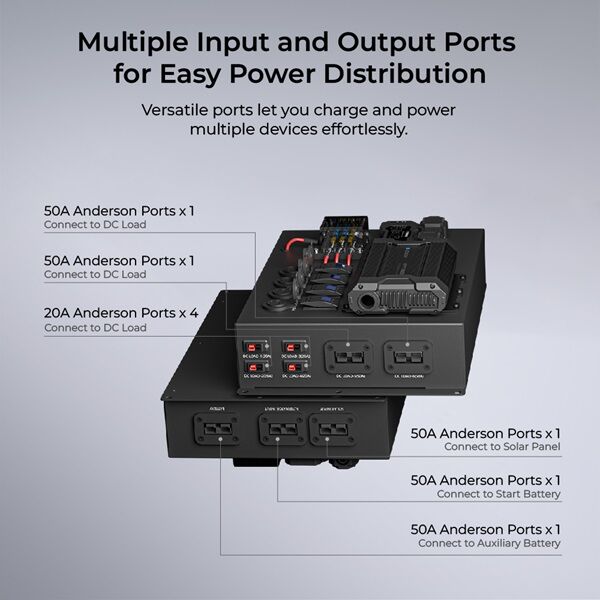

    It has 2x 12V Cigarette sockets, 2x USB C and USB A ports, 2 50a anderson outputs and 4x mini anderson outputs which connect to the 4 switches.

  • How do I program the DC-DC charger?

    On the side of the DC-DC you will find a button and some lights. Refer to the manual for appropriate lights for your battery.

  • What voltage batteries does this work with?

    The vehicles voltage needs to be within 12-16V DC and the auxiliary battery will need to be 12V DC.

Reviews

Write a product review

Bloody brilliant

14 August 2025

Great bit of kit for a novice like me, simple to hook up with the anderson plugs. Perfect for my canopy!!

Warranty

Warranty Period: 2 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product

Delivery

  • We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
  • Small Items are sent with Australia Post via regular post.
  • Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
  • Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
  • Items are fully insured during the freight process.
  • Unfortunately we cannot deliver to PO Boxes.
  • For further details on our Delivery Process you can visit our Delivery Page HERE.
