Renogy RV Solar Panel Kit Tilt Mount Brackets
Q & A | SKU: RNG-MTS-TMB Learn More»
Description

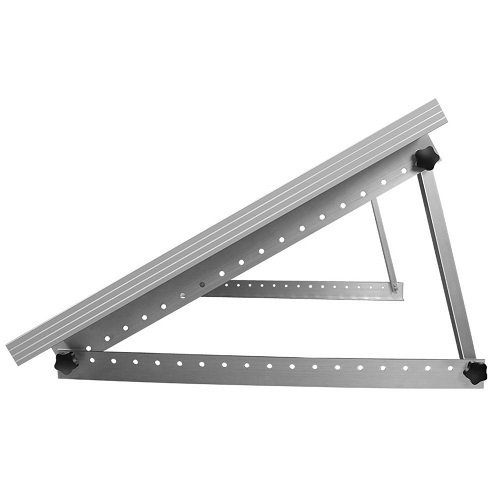

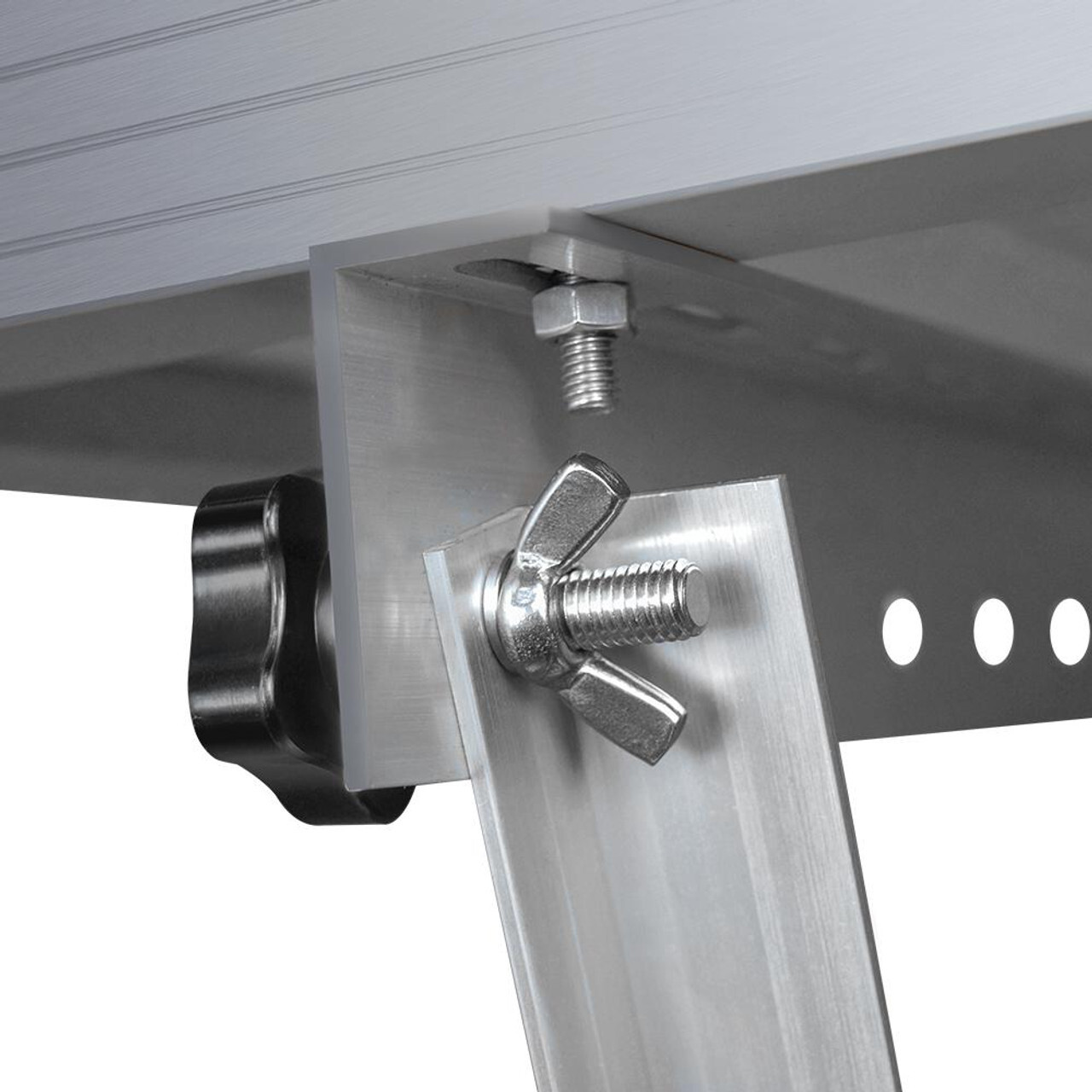

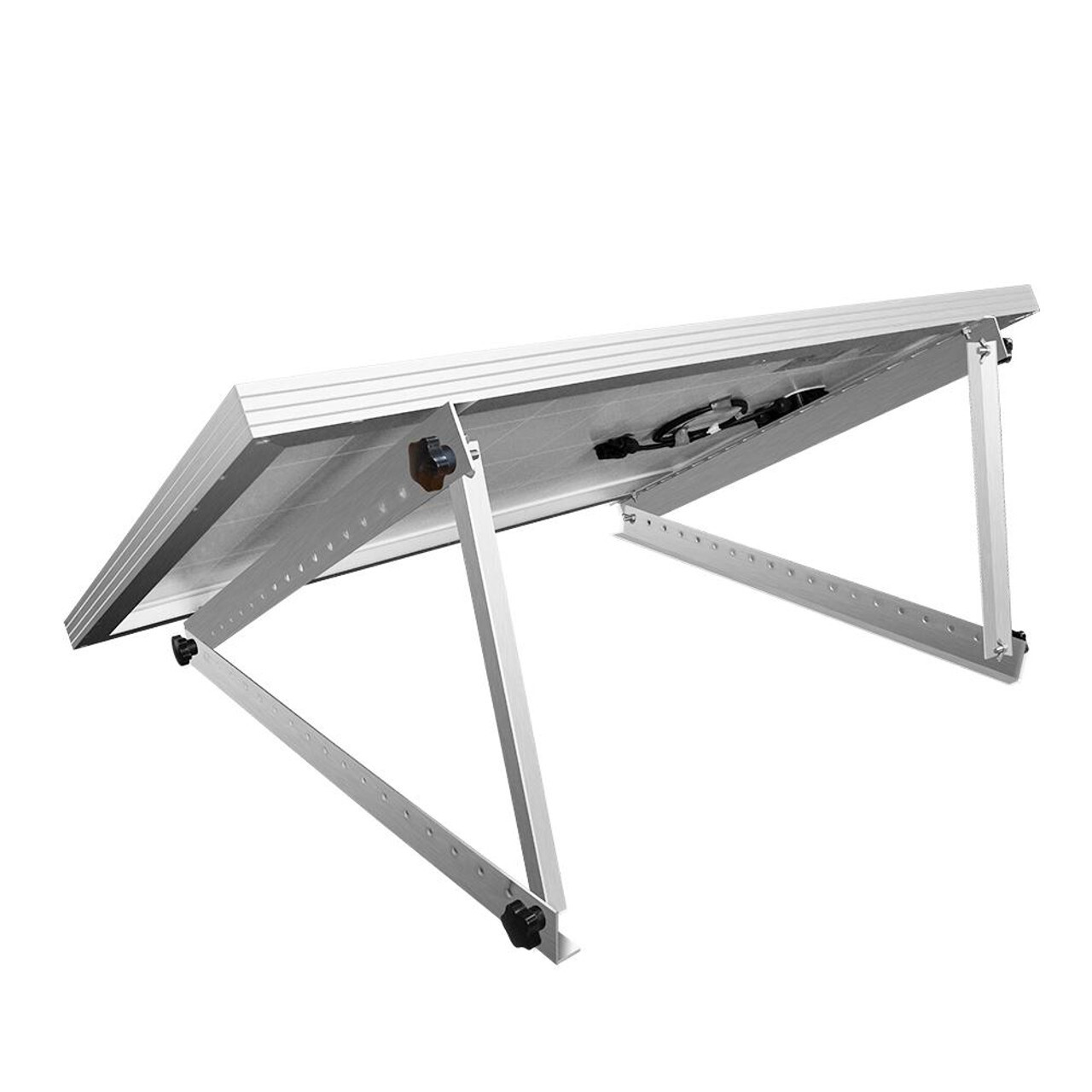

Renogy RV Solar Panel Kit Tilt Mount Brackets
Renogy RV Tilt Mount Brackets allow for the mounting of Renogy 100W panels to the rooftop of a vehicle or other flat surface. Designed for off-grid systems, these solar panel mounts are easily adjustable and feature stainless steel fasteners. Suitable for any flat surface, this solar mounting system helps to optimize performance by tilt-positioning the solar panels while stationary, and then repositioning to flat while the vehicle is in the motion.
Features:
- Adjustable solar panel mounting brackets designed for off-grid solar systems
- Great addition for use on top of an RV or other flat surface
- Compatible with Renogy Solar Panels under 100W
- Quick assembly with stainless steel fasteners and precise hole placement

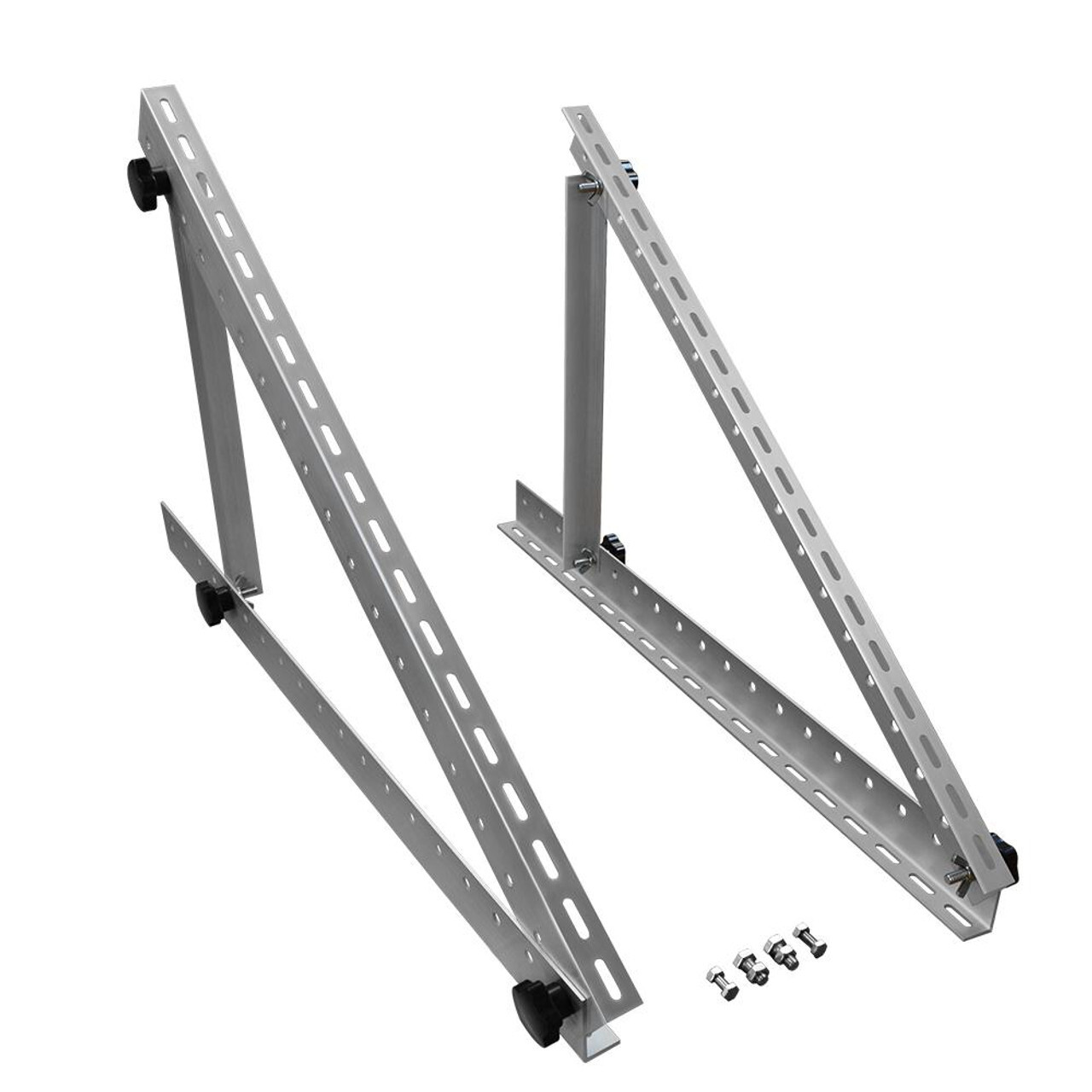

Included:
- Four (4) Fixed L-Brackets
- Two (2) Tilt L-Brackets
- Six (6) M8 Plastic Knob Screws
- Six (6) M8 Wing Nuts
- Four (4) M6 x 16mm Hex Cap Bolts
- Four (4) M6 Split Lock Washers
- Eight (8) M6 Flat Washers
- Four (4) M6 Hexagonal Nuts
- Six (6) M8 Washers
- Six (6) M8 Spring Washers
- Six (6) #10 x 1¼ in Self-Drilling Cap Screws
- Six (6) Plastic Retaining Rings
Specifications:
- Tilt Bracket Dimension: 14.57x0.79x0.98 inch
- Fixed Bracket Dimension: 27.95x1.97x0.98 inch
- Weight: 3.5 lbs
Specifications
SKU RNG-MTS-TMB
Brand Renogy
GTIN 00810009717164
Product Category Accessories
Weight (kg) 1.58
Fixed Bracket Dimensions 27.95 x 1.97 x 0.98 inch
Tilt Bracket Dimensions 14.57 x 0.79 x 0.98 inch
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 1 Year
Warranty Details: Please CLICK HERE for Warranty Information on this product
