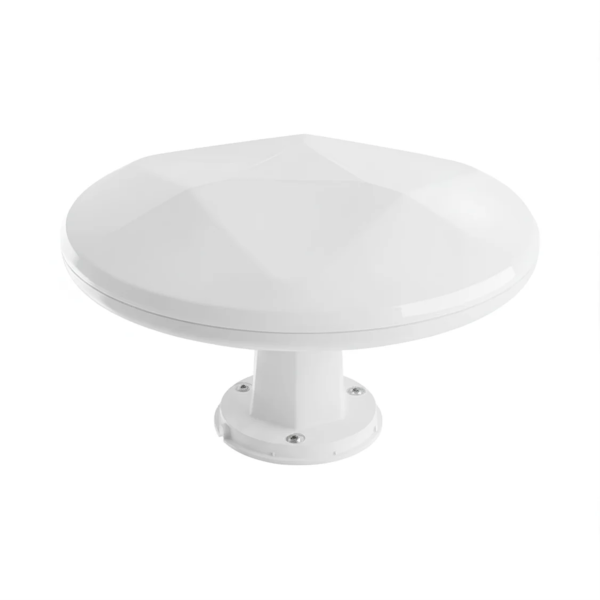

RV Media Omni-Directional TV Antenna, White

Specifications

SKU 055364

Brand RV Media

Product Category Wifi and Antennas

Voltage 12V

Dimensions 325 x 170mm (D x H)

Colour White

Frequency 174-230MHz (VHF) / 470-694MHz (UHF)

Polarisation Horizontal

Impedance 75 ½

Reception Range 0-50 km from TV transmitters

Tv Outputs Up to 2 TVs

Q & A

---

• What kind of coaxial cable will I need?

  You need a 75-ohm coaxial cable with F-type connectors

• Does this come with cables and power wires?

  No, you will need to purchase these separately.

• Does this come with a coaxial cable and 12V power wires?

  No, these are not sold with these and you will need to provide your own.

• How will the antenna get power from the roof?

  Power is transported through the coaxial cable from the wall plate booster.

• Will the heat crack the plastic on the black antenna?

  No. The plastic is UV-protected and heavy-duty, meaning it is designed to withstand contact sun.

• Will this work in remote areas?

  As it is built for short-to-medium range use, we would suggest using a high-gain directional antenna if you frequently venture further than 50km from any broadcasting towers, i.e. deep in the bush.

• What comes in the box?

  The antenna head, mounting base, rubber seal, shims, screws, and wall plate.

• Can I hook up more than one TV?

  Yes, as the included wall plate has two output jacks, it makes it possible for you to connect two TVs.

• Does this come with a signal booster?

  Yes, it has one built-in. The kit that comes with it also has a powered wall plate capable of running off a 12V system.
