Scanstrut Horizontal Double Cable Seal, 6-10mm, Black

Scanstrut Horizontal Double Cable Seal, 6-10mm, Black

Routing twin cables from exterior equipment into the interior of a boat, caravan, or camper trailer often introduces the risk of water ingress and electrical corrosion. The Scanstrut Black 6-10mm Horizontal Double Cable Seal is engineered to significantly reduce these risks by providing a secure, highly protective transition point for two separate cables. This horizontal seal replaces the need for messy, unreliable silicon sealants. Whether you are installing new solar panels, exterior lighting, or communication antennas, this unit ensures your wiring remains protected and your cabin stays secure and dry.

Uncompromising IP68 Waterproof Protection

At the core of this system is a rigorous IP68 waterproof rating. This exceptional level of protection means the enclosure is completely dust-tight and capable of withstanding sustained water exposure, making it perfectly suited for heavy rain on the highway or wave washing on the open ocean. The superior seal is achieved through a combination of precision-molded rubber bungs that compress tightly around the wire jackets, and a high-quality closed-cell 3M adhesive gasket that forms a permanent watertight barrier against the mounting surface. The result is a dependable defense against moisture that protects your interior lining and sensitive electrical components.

Low-Profile Design for Reduced Snag Risks

Vertical cable glands can present a significant snag hazard for overhanging branches, low-clearance structures, or running rigging on a sailboat. This double cable seal utilizes a horizontal routing design that keeps wires running flat and parallel to the roof or deck. This streamlined approach minimizes the overall height of the installation, dramatically reducing the chance of impact damage while maintaining a clean, professional aesthetic on your vehicle roof or vessel deck.

Marine-Grade Durability for Australian Conditions

Outdoor electrical accessories must withstand severe environmental stress, particularly the intense UV radiation experienced in Australia. Constructed from premium, high-impact plastics, the outer shell is highly UV-stable to prevent fading, cracking, or embrittlement over time. Furthermore, the unit is secured using marine-grade 316 stainless steel fixings, which offer outstanding resistance to rust and corrosion even in salt-laden coastal atmospheres.

Effortless and Secure Assembly

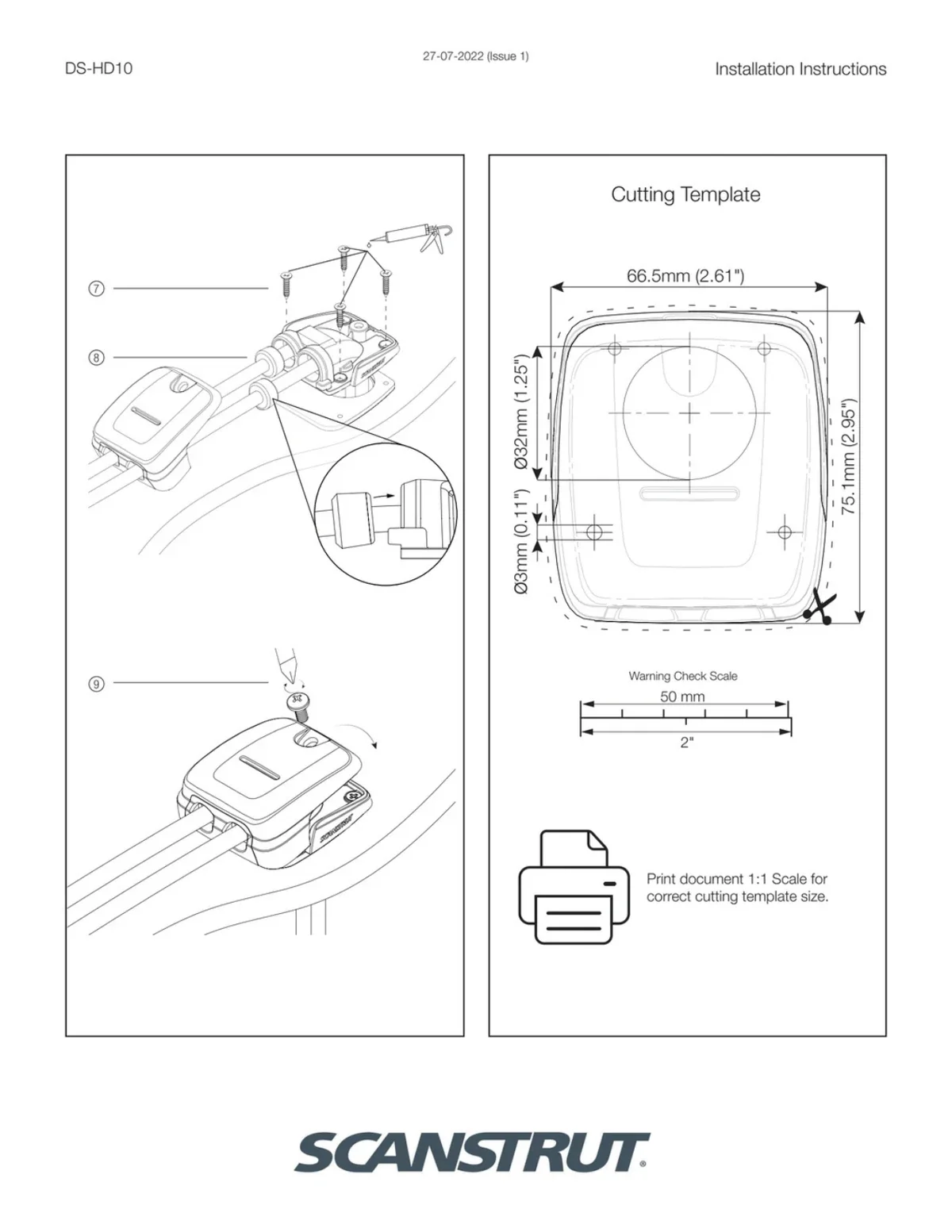

Installation is designed to be straightforward and secure across various materials, including fibreglass (GRP), metal, and wood. The base incorporates clever captive nuts, which prevent the hardware from dropping or spinning freely during assembly. As the stainless steel screws are tightened, they provide an even clamping force across the internal bungs, eliminating the guesswork and ensuring a tight, reliable seal without relying on messy liquid adhesives.

Supplied with multiple bungs to precisely accommodate two 6mm to 10mm cables, providing excellent flexibility for heavier gauge power feeds. Finished in a sleek black housing to blend seamlessly with dark vehicle roofs, black-framed solar panels, and modern exterior trims.

Features:

• IP68 waterproof rating ensures superior protection against water and dust ingress
• Low-profile horizontal cable exit minimizes snag hazards and improves roof aesthetics
• Constructed from UV-stable, high-impact plastics engineered for harsh outdoor environments
• Includes marine-grade 316 stainless steel fixings for outstanding corrosion resistance
• Features a closed-cell 3M waterproof base gasket for a reliable seal against the mounting surface
• Captive nut design allows for straightforward assembly and reliable repeat installations
• Removes the need for messy liquid sealants around the cable entry point

Specifications:

• Material: High Impact Plastic
• Height: 28.5 mm
• Length: 75.1 mm
• Width: 66.5 mm
• Colour:Black
• Cable Diameter: 2 x 6-10 mm
• Seal Rating: IP68 Watertight Seal
• Fixings: 316 Stainless Steel Fixings
• Gasket: Waterproof 3M Gasket

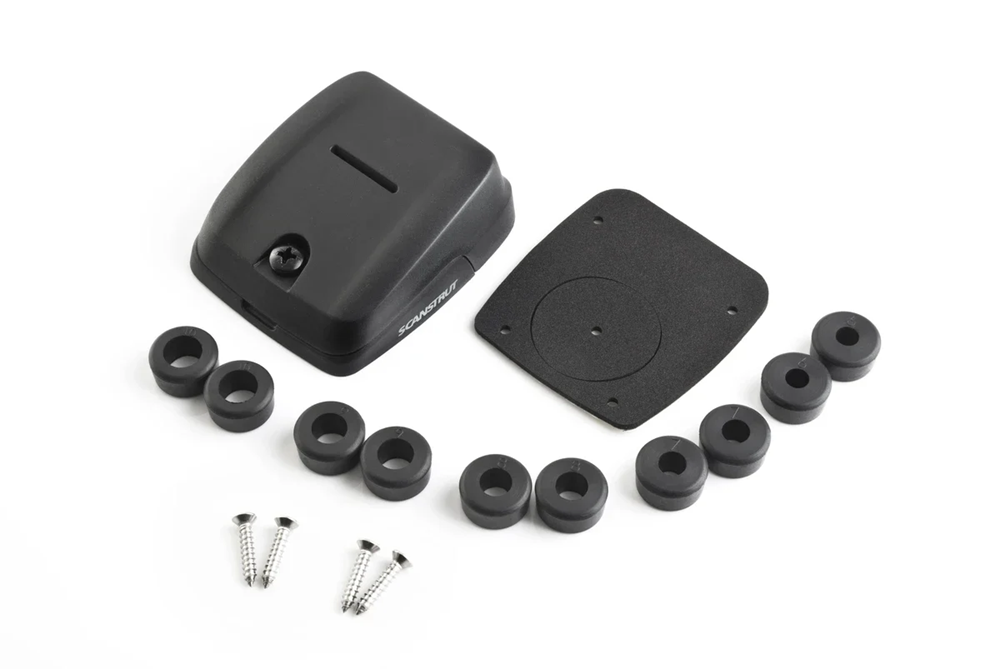

• Bungs:
  • 2 x 6 mm
  • 2 x 7 mm
  • 2 x 8 mm
  • 2 x 9 mm
  • 2 x 10 mm
  • 2 x Self Drill
