Scanstrut Ultra 15W Qi2 Magnetic Wireless Charger for Marine and RV

The Scanstrut 12/24V 15W Magnetic Ultra Qi2 Waterproof Wireless Charger represents the next generation of mobile device integration, delivering robust power to your smartphone without the vulnerability of exposed charging cables. Engineered specifically for the marine and off-grid mobile sectors, this flush-mounted induction unit provides a seamless, weatherproof solution for keeping essential navigation and communication devices powered during demanding journeys.

Advanced Qi2 Magnetic Alignment

Standard wireless chargers often struggle in mobile environments, where vibrations and rough conditions can dislodge a device and interrupt the power transfer. The Scanstrut Ultra resolves this by integrating Qi2-certified magnetic technology. This creates a secure, perfectly aligned connection with compatible devices, ensuring continuous 15W fast charging even when navigating choppy waters or traversing uneven outback tracks. The powerful magnetic hold eliminates the need for bulky mechanical cradles, preserving a clean, minimalist dashboard aesthetic.

Complete IPX6 Weather Protection

Traditional USB charging ports are highly susceptible to moisture, salt ingress, and internal corrosion. The Scanstrut Ultra completely seals the charging interface, boasting an IPX6 waterproof rating on both the front and rear of the unit. The charging surface is constructed from premium toughened glass, providing excellent scratch resistance against keys, tools, and daily wear. Whether installed on an open marine helm, a campervan galley, or an outdoor entertainment area, this charger is built to withstand direct washdowns and heavy rain.

Optimised for 12V and 24V DC Systems

Designed for straightforward integration into existing onboard electrical networks, the charger operates on a broad 10-30V DC input range. This makes it natively compatible with both 12V and 24V battery systems found in boats, caravans, and heavy vehicles. With an ultra-low standby power draw of less than 0.5W, it minimises parasitic loads on your house batteries when a phone is not actively charging.

Eliminating the Risks of Open Terminals

Relying on standard open-port chargers in coastal or mobile settings introduces significant risks of electrical shorting and rapid oxidation. By switching to a completely sealed inductive power transfer, you remove the physical connections entirely. This proactive approach significantly reduces long-term maintenance and prevents the sudden failure of your charging infrastructure when navigating remote locations.

Streamlined Installation Process

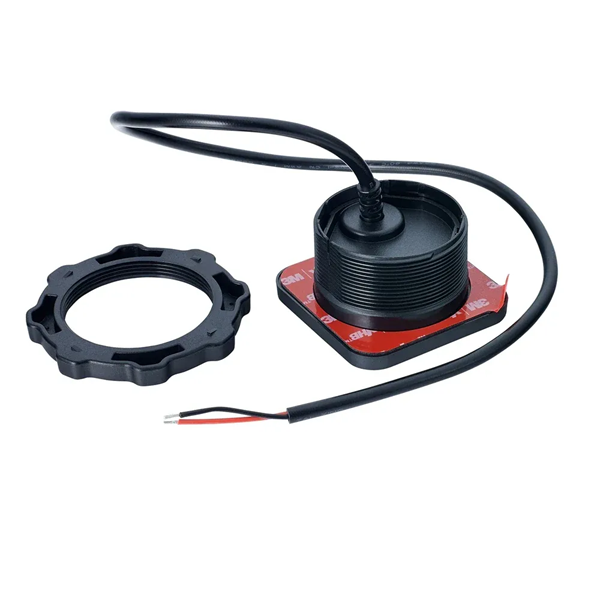

Mounting the unit requires a standard 51mm (Approx. 2") hole saw, making it an easy retrofit or new build addition. The charger secures firmly via a durable nylon lock ring and a secondary 3M adhesive seal, accommodating panel thicknesses from 6mm up to 20mm. With a compact minimum cavity requirement of just 43mm, it fits neatly into shallow bulkheads, dashboards, and bedside cabinetry.

Key Features:

• 15W Fast Charging: High-efficiency power delivery for modern smartphones
• Qi2 Certified: Built-in magnetic alignment for a secure, vibration-resistant hold
• IPX6 Waterproof: Fully sealed front and rear to withstand harsh marine environments
• Toughened Glass Surface: Highly durable and scratch-resistant charging pad
• Broad Compatibility: 10-30V DC input suits all 12V and 24V battery banks
• Low Standby Draw: Consumes less than 0.5W when not in use to protect battery capacity

Upgrade Your Onboard Charging

Ensure your critical devices remain powered and secure, regardless of the conditions outside. Integrate the Scanstrut Ultra 15W Magnetic Wireless Charger into your vessel or recreational vehicle today for a resilient, highly efficient power delivery solution.

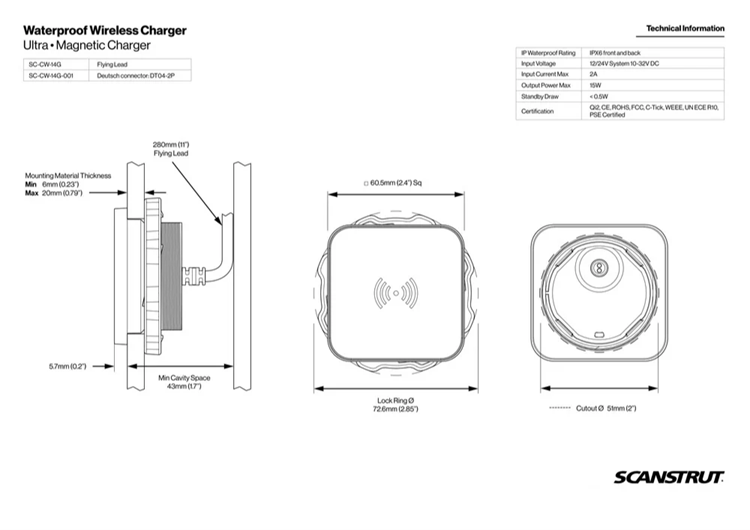

Specifications:

• Waterproof Rating: IPX6 (front and back)
• Input Voltage Range: 10–30 V DC (12/24 V system)
• Maximum Input Current: 2 A
• Output Power: 15 W
• Standby Power Draw: <0.5 W
• Certifications: Qi2, CE, RoHS, FCC, C-Tick, WEEE, UN ECE R10, PSE Certified
• Mounting Material Thickness: Min. 6 mm, Max. 20 mm
• Cutout: Ø51 mm
• Minimum Cavity Space: 43 mm
