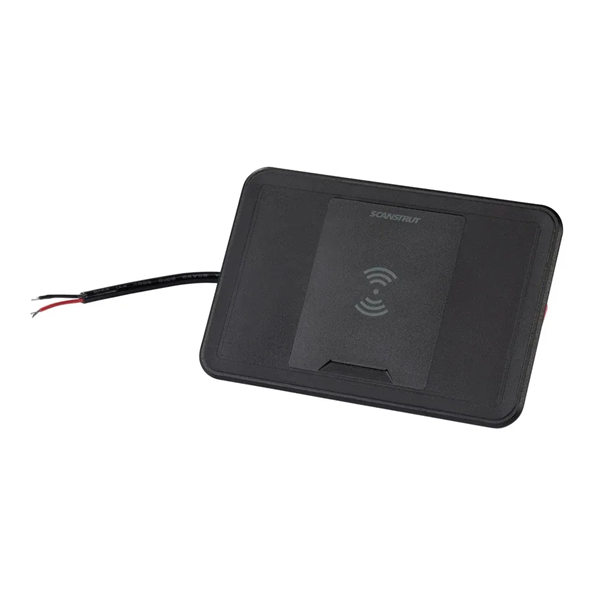

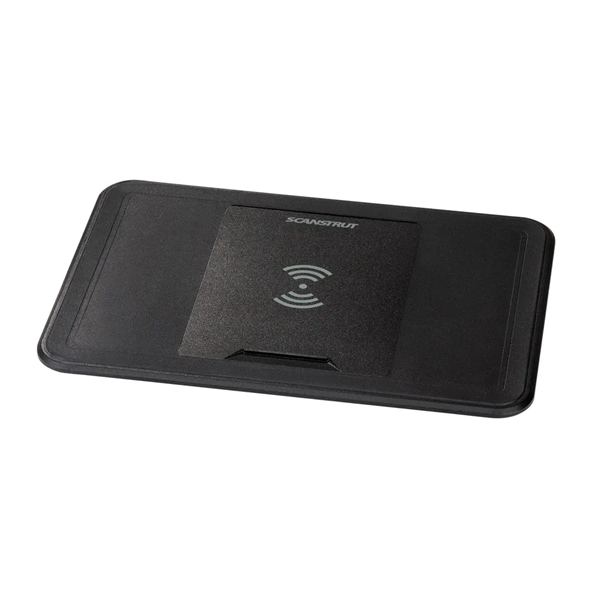

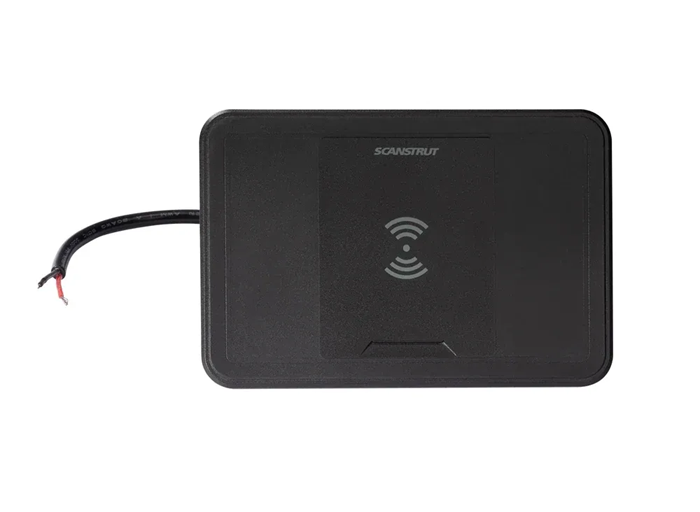

Scanstrut Recessed-Mount Surface 3-Coil Waterproof Wireless Charger, 12/24V 15W

Scanstrut Recessed-Mount Surface 3-Coil Waterproof Wireless Charger, 12/24V 15W

Reliable 15W Wireless Power for Marine and Off-Grid Environments

Keep your devices powered in the harshest conditions with the Scanstrut 12/24V 15W Recessed-Mount Surface 3-Coil Waterproof Wireless Charger. Engineered specifically for marine, 4x4, and off-grid applications, this 12V and 24V compatible wireless charging system delivers high-speed 15W power to any Qi-compatible smartphone. Whether you are navigating coastal waters or touring remote Australian tracks, reliable power is essential. This charger ensures your device remains operational, eliminating the need for messy, corrosion-prone cables that often fail in extreme environments.

Triple-Coil Design for Effortless Alignment

One of the most common frustrations with wireless charging in mobile environments is maintaining a stable connection when the vehicle or vessel is in motion. This unit solves that problem using a highly efficient three-coil system. The overlapping coils create an expansive active charging area, meaning there are no dead spaces. Simply place your phone on the charging zone, and the intelligent electronics automatically select the optimal coil based on the device's position. This ensures a constant, uninterrupted charge even when driving over corrugated roads or tackling heavy marine swells.

Built for the Australian Climate

High ambient temperatures can cause standard electronics to overheat, reducing charging efficiency and potentially damaging the smartphone battery. Designed with an advanced thermal management system, this charger constantly monitors both ambient temperatures and the heat generated by the phone. By actively dissipating heat and adjusting the power output accordingly, the charger maintains peak performance in warm climates while protecting your device's long-term battery health.

Solving Mobile Charging Challenges

In marine and off-grid setups, traditional plug-in chargers often suffer from corroded ports, broken cables, and intermittent connections caused by constant vibration. By transitioning to a fully encapsulated wireless system, you significantly reduce the risks of electrical shorts and equipment failure. The IPX6 waterproof rating ensures that even if the console is exposed to driving rain, heavy spray, or washdowns, the charging system remains completely protected front and back. Furthermore, the reverse polarity protection safeguards the internal circuitry during installation, giving you total confidence when wiring into your existing 12V or 24V system.

Seamless Integration

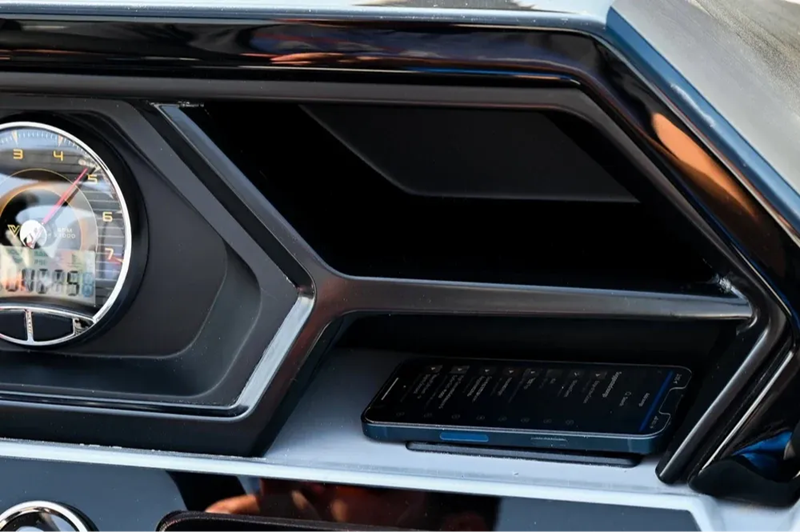

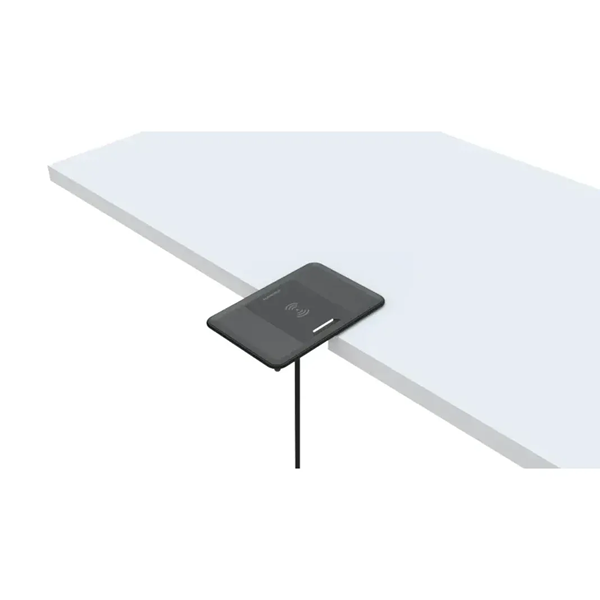

Designed for recessed surface mounting, this model sits incredibly low with just 2.65 mm of visible thickness after installation. This provides a sleek, factory-fitted appearance on any console or bulkhead, requiring minimal cavity space.

Key Features:

• High-Speed 15W Output: Delivers rapid charging for all Qi-compatible devices.
• 12V and 24V Compatible: Operates efficiently on a 10-30V DC input range, making it ideal for marine and automotive electrical systems.
• IPX6 Waterproof Rating: Fully sealed against heavy water spray from all directions.
• Three Overlapping Coils: Maximises the charging area to eliminate dead spots and ensure consistent power transfer.
• Thermal Management: Adjusts output based on internal and ambient temperatures to prevent overheating.
• Foreign Object Detection: Instantly halts power delivery if non-compatible metallic objects are detected, enhancing system safety.
• Low Standby Power Draw: Consumes less than 1.2W when idle, preserving your primary battery bank.
• LED Indicator System: Provides immediate visual feedback for charging status, standby mode, and fault detection.

Upgrade Your Power Setup

When exploring remote destinations or navigating open waters, reliable communication and navigation tools are critical. Upgrade your vessel or vehicle with the Scanstrut 12/24V 15W Recessed-Mount Surface 3-Coil Waterproof Wireless Charger for a seamless, high-performance power solution. Enhance your dashboard today and experience the convenience of true waterproof wireless power.

Specifications:

• IP Waterproof Rating: IPX6 (front and back)
• Input Voltage: 10–30 V DC (12/24 V system)
• Maximum Input Current: 2 A
• Maximum Output Power: 15 W (12 V, 1.25 A)
• Maximum Standby Power: <1.2 W
• Cable Diameter: Ø4.7 mm
• Cable Bend Radius (4×D): 18.8 mm
• Cable AWG: 20 AWG
• Cable Length: 300 mm
• Certifications: CE, UKCA, FCC, RoHS, C-Tick, UN ECE R10, E24, PSE Certified
• Overall Dimensions: 126 mm × 85 mm × 33.7 mm
• Visible Thickness After Installation: 2.65 mm
• White LED Constant: ON – charging
• Red LED Constant: Standby (power ON)
• Red LED Flashing: Foreign object detection (metallic object placed on top that is not Qi-compatible) or thermal cutout (internal temperature is too high/low). Wait for the product to return to operating temperature.
• Minimum Mounting Material Thickness: >3 mm
• Minimum Cavity Space: >54.5 mm
