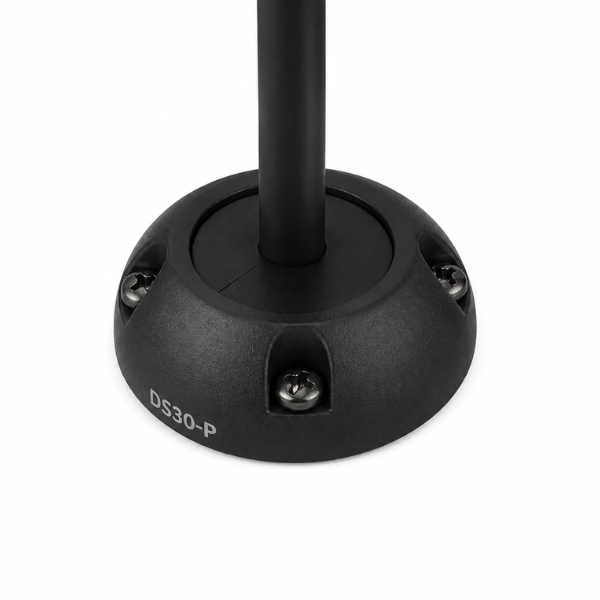

Scanstrut Vertical Cable Seal, 9-14mm / 30mm, Black

Scanstrut Vertical Cable Seal, 9-14mm / 30mm, Black

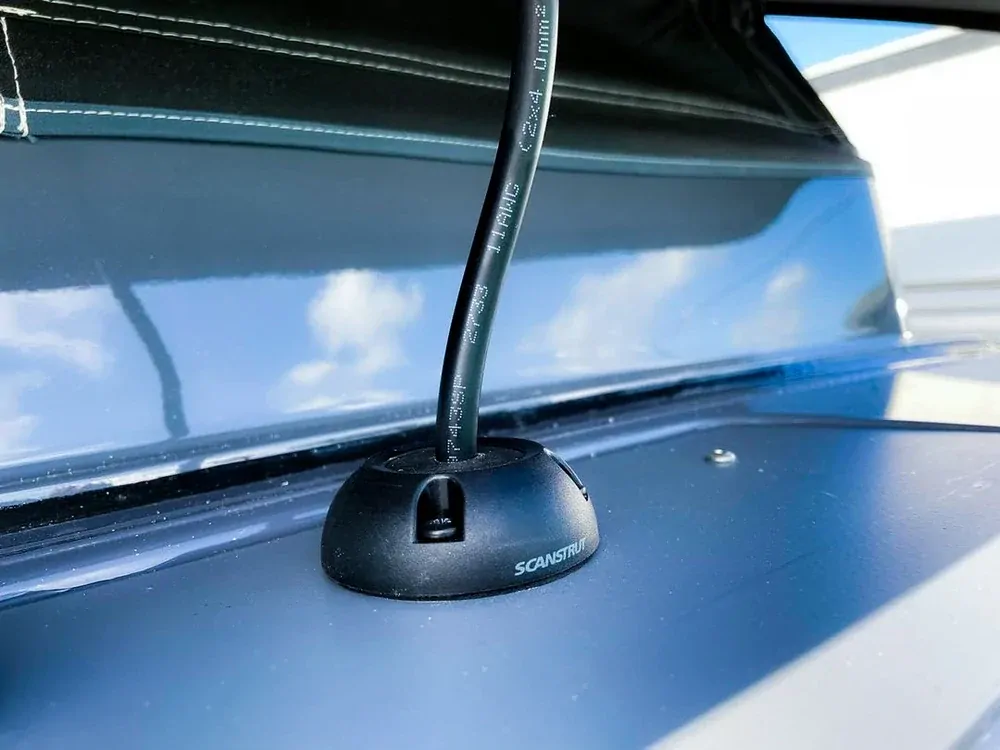

Routing electrical cables through the roof of a vehicle, campervan, or boat deck introduces the risk of water ingress, which can lead to severe structural and electrical damage. The Scanstrut 9-14mm / 30mm Black Vertical Cable Seal mitigates this risk by providing an IP68-rated waterproof cable entry point. Designed to accommodate cables from 9-14mm (0.35-0.55"), this compact vertical cable seal offers a secure and aesthetically pleasing finish for your solar, lighting, or antenna wiring installations.

Advanced Multi-Bung System

Achieving a reliable seal around wiring can be challenging, especially when dealing with varying cable thicknesses. This kit includes multiple tapered rubber bungs that ensure a precision fit for your specific cable size, right out of the box. The innovative split-bung design allows you to route cables with pre-attached connectors up to 30mm (1.18") in diameter without needing to cut or re-terminate the wiring, saving significant installation time and preserving factory connections. A self-drill blank bung is also supplied, providing complete flexibility for custom cable requirements.

Engineered for Harsh Environments

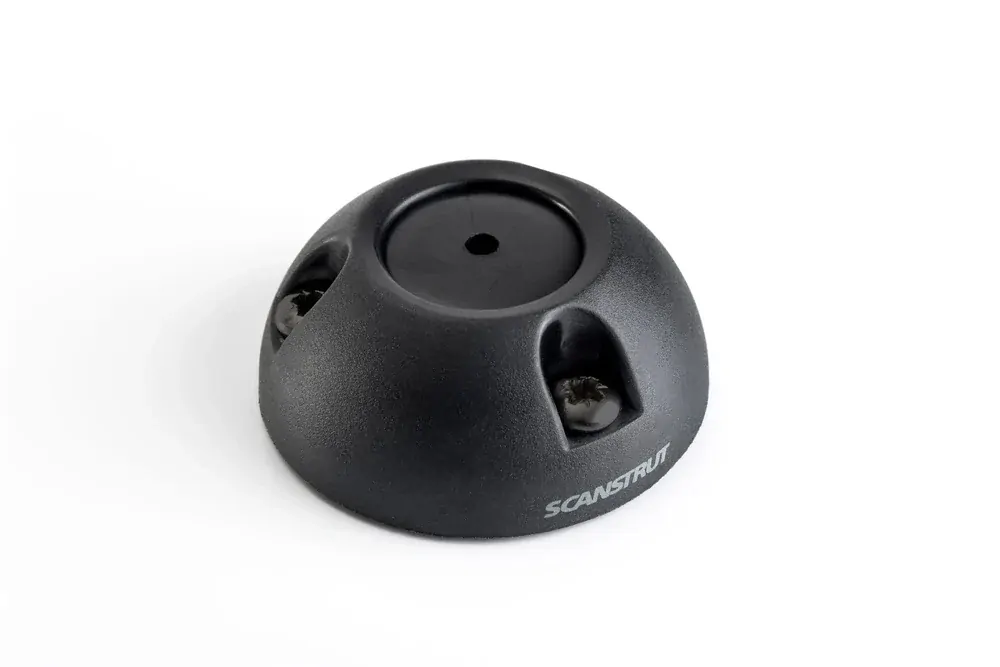

Australian conditions are notoriously unforgiving on exterior components. Constructed from a high-impact, UV-stable plastic, the black outer housing is built to withstand intense sun exposure without cracking or degrading over time. Its low-profile, aerodynamic dome shape not only looks incredibly sleek but is specifically designed to prevent water pooling and resist snagging from branches, lines, or other equipment. This makes it highly suitable for high-traffic marine decks and overlanding vehicle roofs alike.

Marine-Grade Hardware for Lasting Reliability

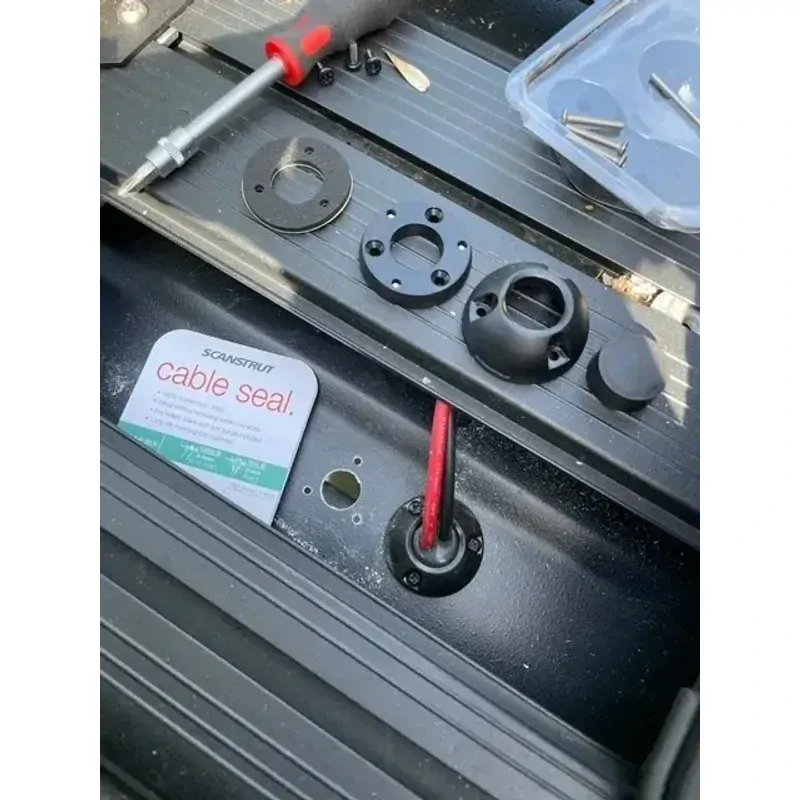

Unlike standard entry glands that rely on messy silicone sealants, this cable seal utilises a high-quality closed-cell foam 3M base gasket. When compressed by the supplied marine-grade 316 stainless steel fixings, the gasket creates a highly resilient barrier against moisture. The captive nut design in the base ensures that assembly is straightforward and allows for reliable, hassle-free repeat installations if you ever need to upgrade your wiring.

Key Features:

• IP68 Waterproof Rating: Tested to IP68 standards for exceptional protection against water and dust ingress.
• Customisable Fit: Includes multiple bungs tailored for 9-14mm (0.35-0.55") cables.
• Connector Clearance: Easily pass through pre-terminated connectors up to 30mm (1.18") without cutting wires.
• UV-Stable Construction: High-impact plastic housing built to endure harsh sunlight and coastal environments.
• Clean Installation: Features a robust 3M base gasket, eliminating the need for messy sealants.
• Marine-Grade Fixings: Supplied with highly corrosion-resistant 316 stainless steel mounting screws.
• Low-Profile Design: Dome shape resists impacts, prevents water pooling, and reduces line snags.

Seamless Integration for Off-Grid and Marine Power

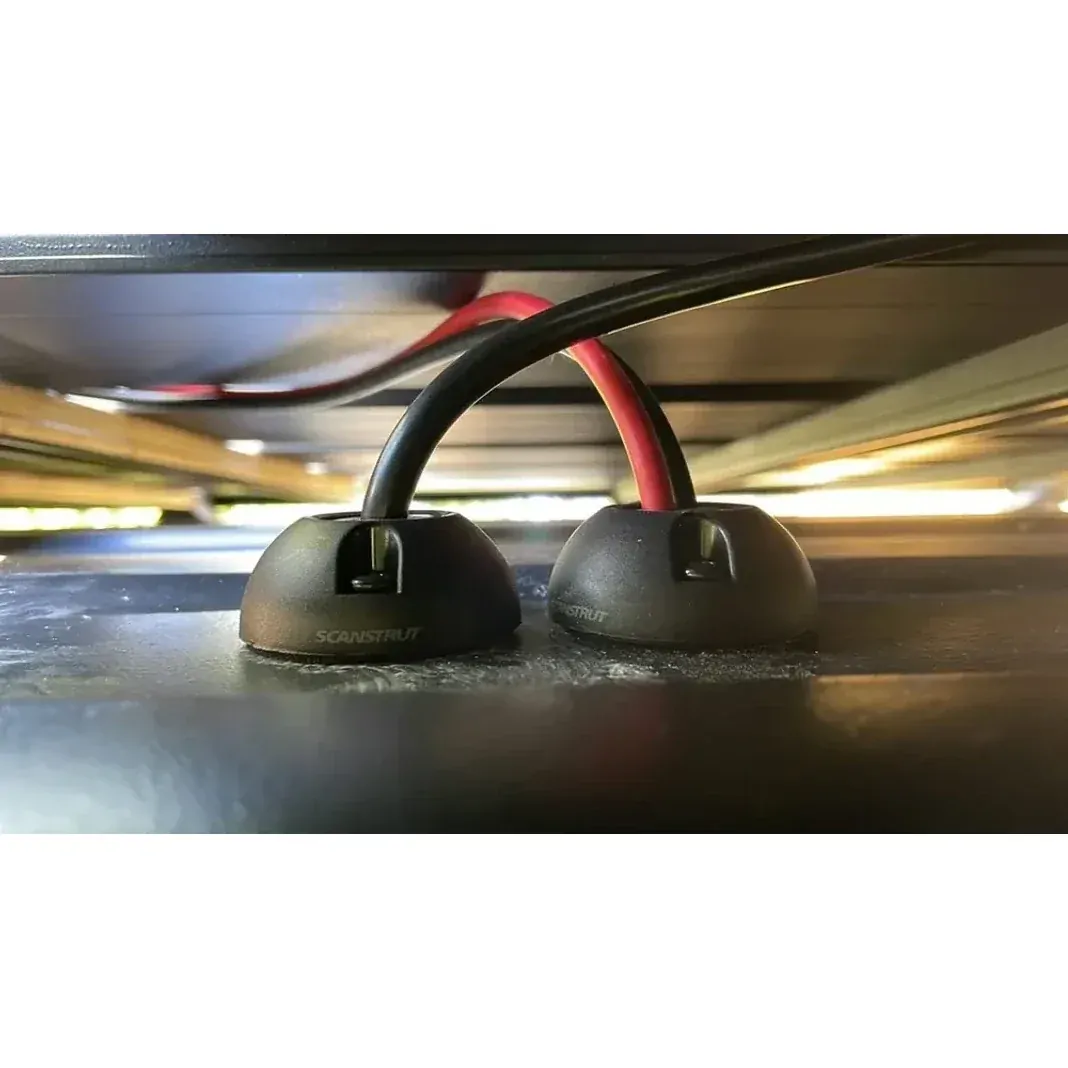

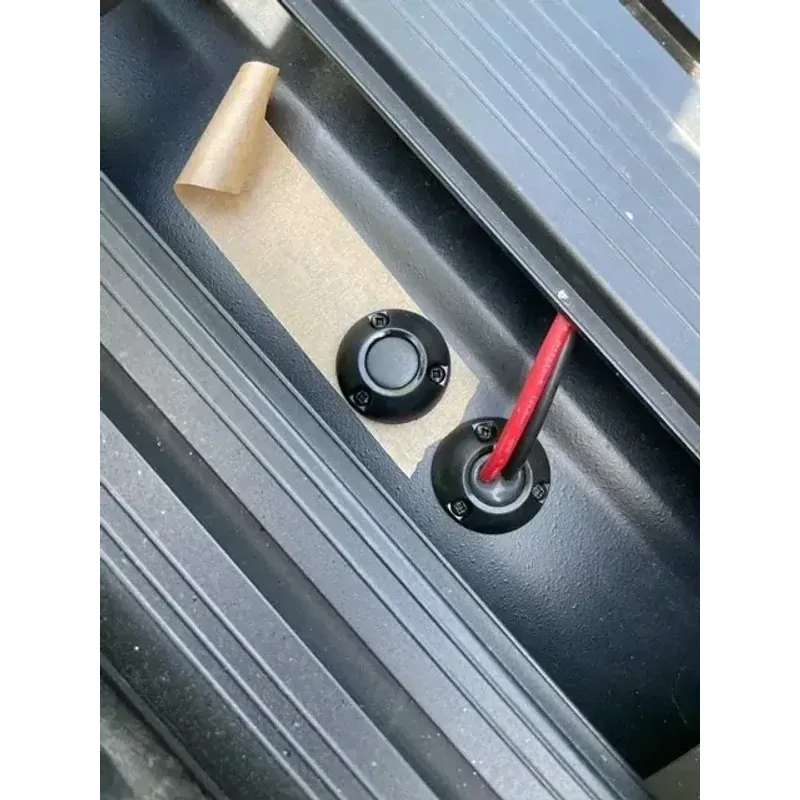

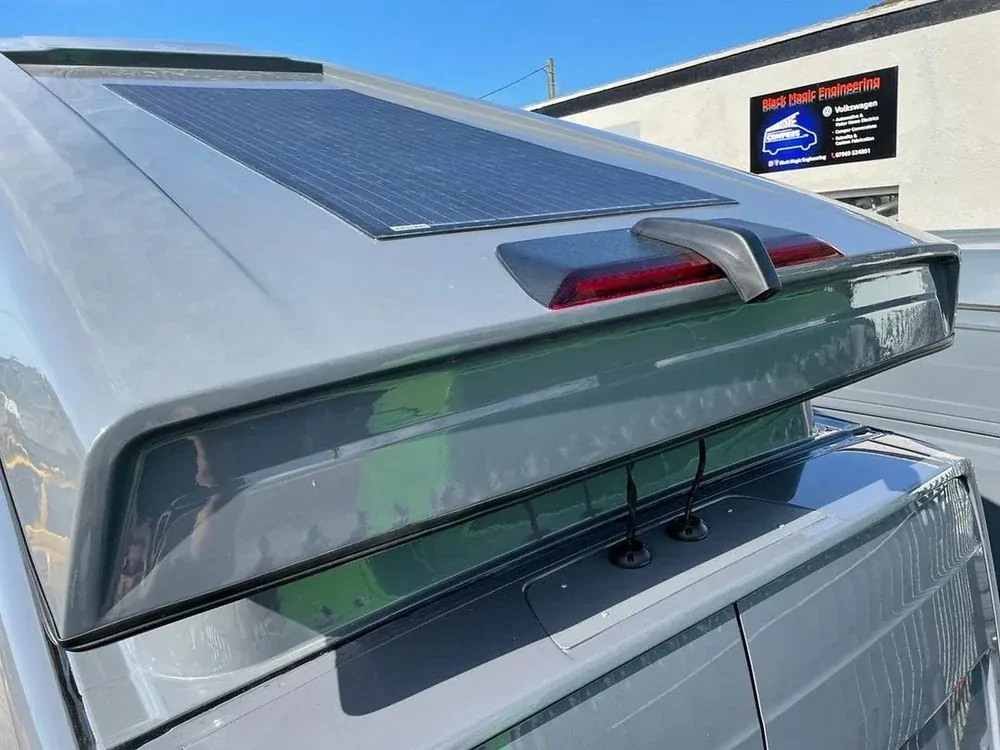

Whether you are installing an upgraded solar panel array on your caravan, mounting a heavy-duty light bar to your 4x4, or routing vital navigation feeds through a boat cabin, maintaining a reliable watertight seal is essential. The robust construction and precision engineering of this cable seal protect your valuable interior equipment from moisture damage.

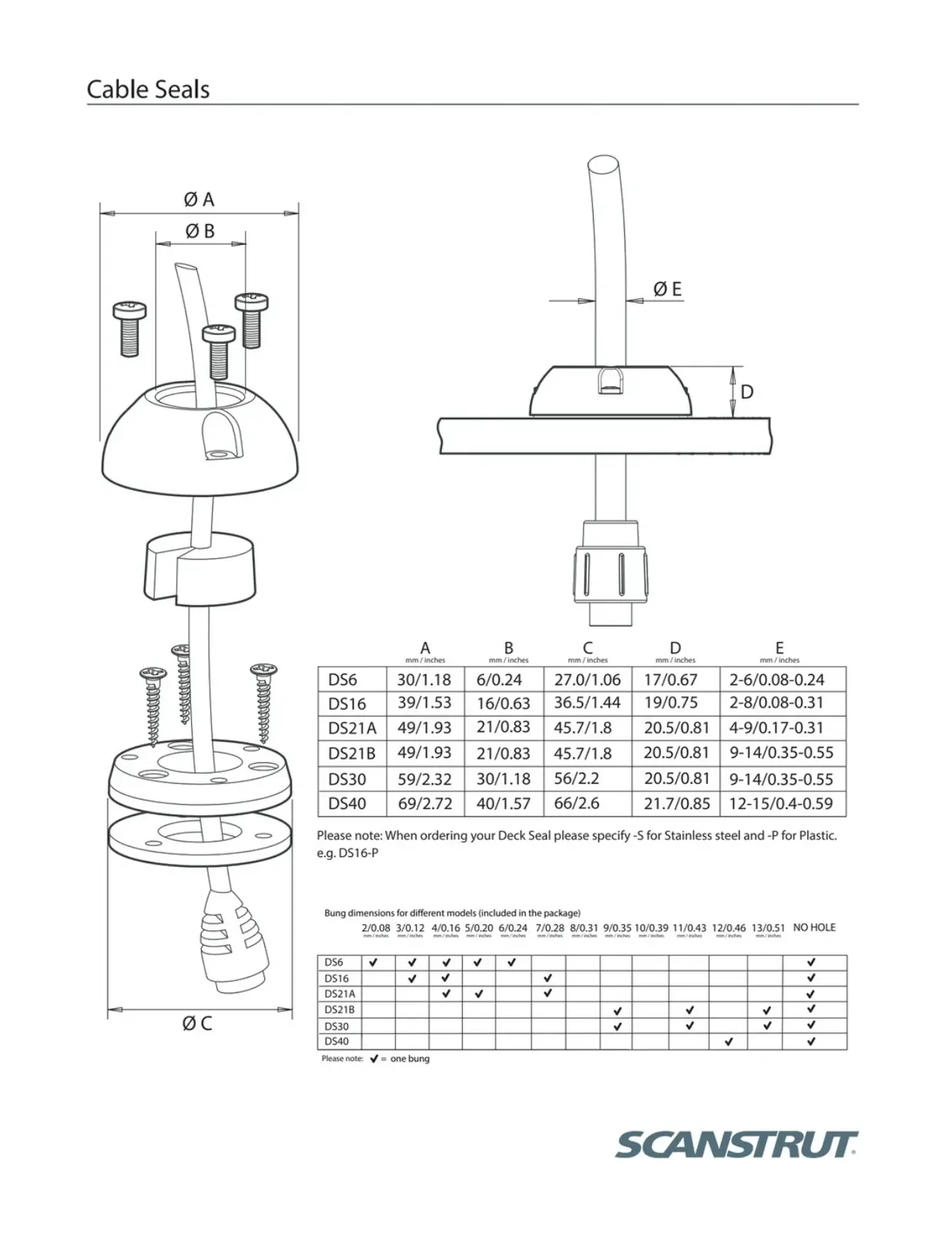

Specifications:

• Cable Range: 9-14 mm
• Connector Diameter: Up to Ø30 mm
• Waterproof Rating: IP68
• Material: High Impact Plastic
• Height: 20.5 mm
• Colour: Black
• Diameter Of Cable Seal: 59 mm (2.32")
• Fixings: 316 Stainless Steel Fixings
• Gasket: Waterproof 3M Gasket
• Diameter Of Cable: 9-14 mm (0.35-0.55")

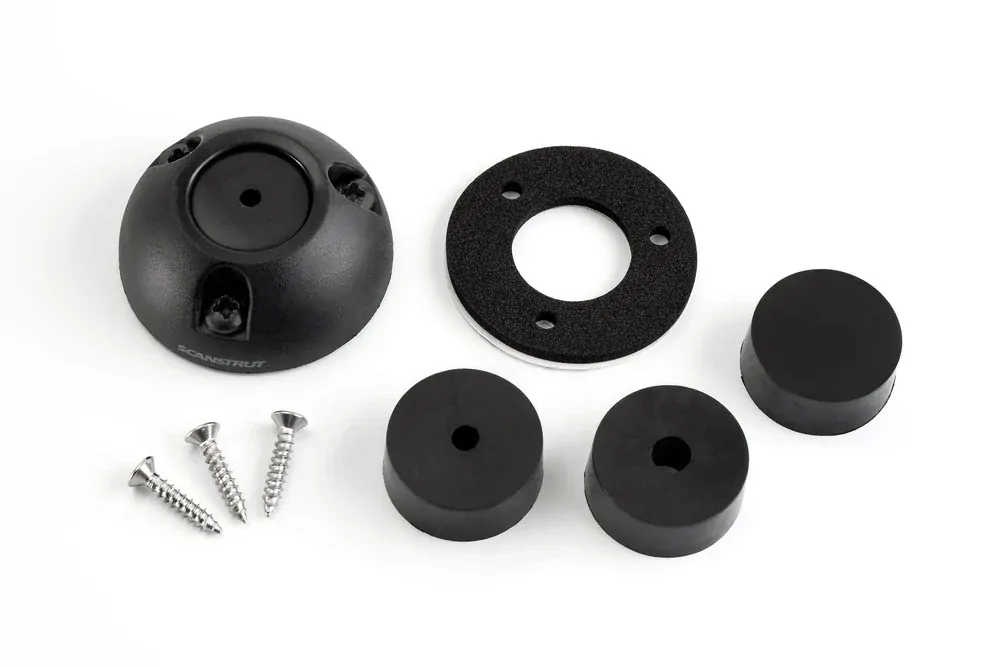

• Bungs:
  • 1 x 9 mm
  • 1 x 11 mm
  • 1 x 13 mm
  • 1 x Self Drill
