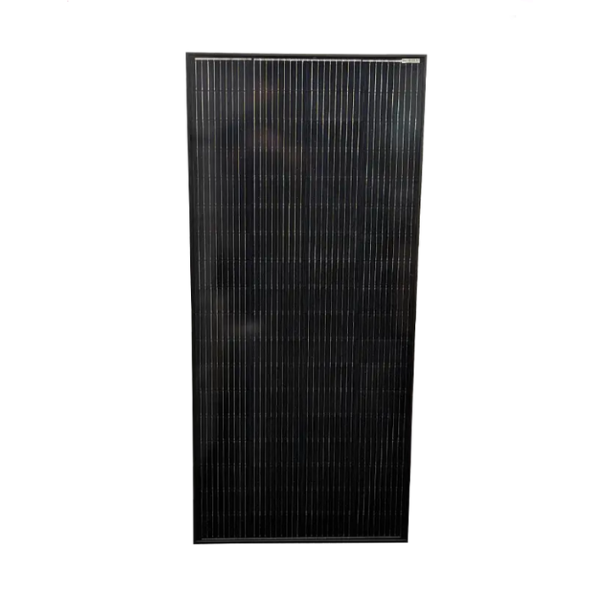

Sphere 210w V2 Mono Crystalline Twin Cell Black Fixed Solar Panel
SKU: 500-06271 Learn More»
Sphere 210w V2 Mono Crystalline Twin Cell Black Fixed Solar Panel
Introducing the newest addition to the Sphere Twin Cell Solar Panel range - now available with Black-on-Black Frames. Our innovative Twin Cell Technology is now combined with a sleek black frame and backing, providing a modern and stylish look that's perfect for any RV or caravan design.
The black-on-black design adds a stylish touch to your power system and matches the trend of black frame panels that are appearing on the market. This new colour option is perfect for those looking to create a seamless and cohesive look on their vehicle, blending in effortlessly with minimalist colour schemes of modern RV designs.
Sphere Twin Cell Solar Panels are still the best solution for tackling the common issue of partial shading that can drastically reduce the output of conventional solar panels. With our unique parallel design, each side of the panel functions independently, ensuring consistent power output even when there is partial shading.
Features:
- Sphere Twin Cell Solar Technology for improved performance in partial shade.

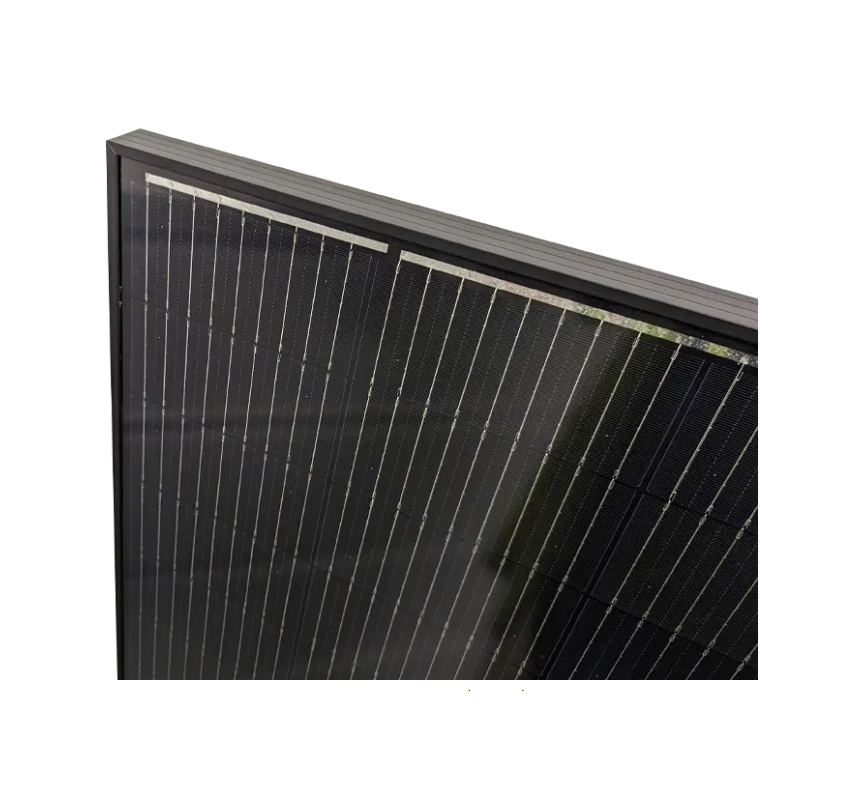

- Black frame and backing for a modern and stylish look
- Provides a sleek and elegant addition to any RV or caravan design.
- By-passed diodes to improve reliability and further minimize power drops caused by shade.
- Antireflective, high transparency tempered glass for durability
- IP65 rated junction box provides complete protection against dust and water.
Specifications:
- Model: 500-06271
- Brand: Sphere
- Frame: Black Anodised Aluminium Alloy
- Peak Power Output: 210 W
- Power Output Tolerance: 3%
- Maximum Power Voltage: 17.36 V
- Maximum Power Current: 12.10A
- Short Circuit Current: 12.51A
- Open Circuit Voltage: 20.16 V
- Maximum System Voltage: 1000 V DC

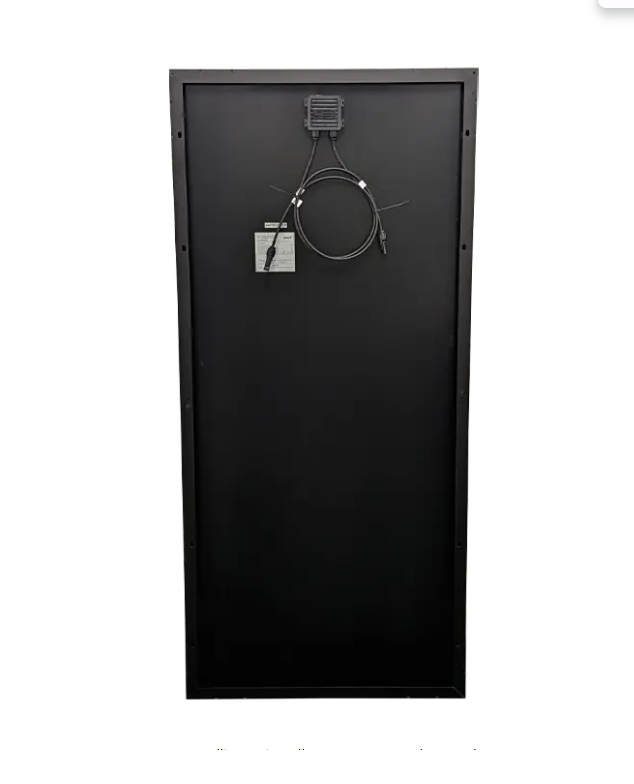

- Junction Box Type: 0.9 m, 4 mm2 solar cable fitted with MC4, IP65
- Number of Cells: 4 x 14 Twin Cell
- Panel Dimensions: 670 x 1480 x 35mm
- Net Weight: 12 kg
Specifications
SKU 500-06271
Brand Sphere
Product Category Solar Panels
Watts (W) 210
Solar Panel Cell Type Monocrystalline
Solar Panel Type Fixed Solar Panels
Number of Cells 4 x 14 Twin Cell
Dimensions 670mm x 1480mm x 35mm
Peak Power (W) 210
Colour Black
Weight (kg) 12
Open Circuit Voltage 20.16V
Max System Voltage (VDC) 1000V/DC
Maximum Power Voltage 17.36V
Maximum Power Current (A) 12.10
Short Circuit Current (A) 12.51
