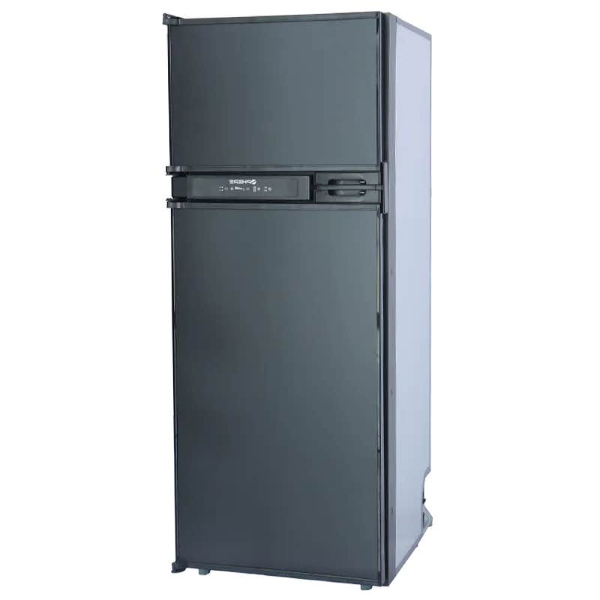

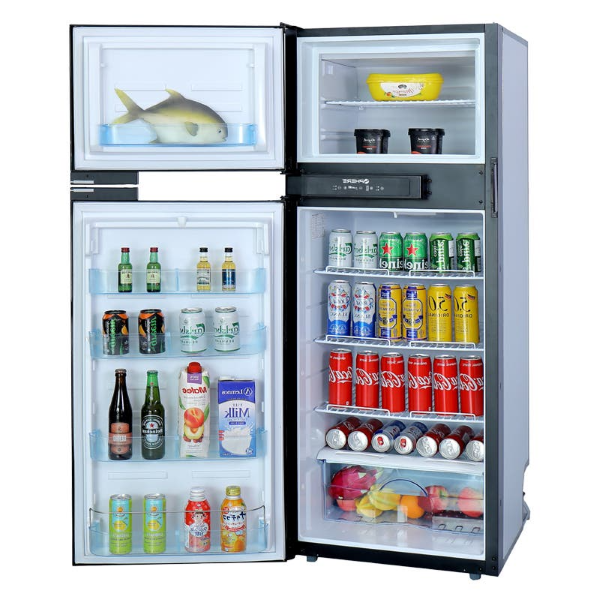

Sphere 270L Upright DC Compressor Refrigerator LH | W580xD630xH1523mm. UCF270L

Sphere 270L Upright DC Compressor Refrigerator LH | W580xD630xH1523mm. UCF270L

The Sphere 270 Litre Upright DC Compressor Fridge/Freezer is the largest and most advanced model in the Sphere lineup, delivering reliable off-grid performance with a feature set that makes it a standout in the mid-tier segment. Designed for caravans, motorhomes, and off-grid living, this fridge offers ample capacity, thoughtful design, and energy-efficient DC operation - making it a smart choice for travellers who want more than just the basics without stepping into premium pricing territory.

With a generous 200 L fridge and 70 L freezer, this upright unit provides enough space for extended trips, family use, or full-time touring. The five-stage digital temperature control lets you fine-tune both compartments, while dedicated "Boost" and "Night" modes let you prioritise faster cooling or quiet operation. Temperatures drop as low as -22 °C in the freezer, with efficient everyday cooling in the fresh zone adjustable between 2-10 °C.

Features like reversible doors, soft-close shelves, a humidity-controlled crisper, and full-width LED lighting give it a refined user experience. The fridge also includes low-voltage battery protection, diagnostic error codes, and automatic defrosting in the fresh compartment - all wrapped in a modern design that integrates neatly into most cabinetry.

Ideal for mid-range van builds or anyone looking to step up from entry-level models, the Sphere 270 L fridge combines capacity, control, and reliability at a reasonable price point.

Features:

• 270 L capacity - 200 L fridge / 70 L freezer
• 12 V DC operation only, with efficient compressor
• Independent 5-level temperature control for fridge and freezer
• Boost mode for rapid cooling and Night mode for quieter operation
• Energy use: 0.78 kWh/day (Boost), 0.60 kWh/day (Night) at 25 °C
• Fresh zone adjustable from 2-10 °C; Freezer down to -22 °C
• Reversible doors with integrated handles
• Humidity-controlled crisper drawer and adjustable shelving
• Full-width LED interior lighting
• 3-stage battery protection (cut-out at 9.6 V)
• Error code diagnostics and door open alarm
• Auto-defrost in fresh compartment

Specifications:

• Overall Capacity: 270 L
• Fridge Capacity: 200 L
• Freezer Capacity: 70 L
• Voltage: 12 V DC
• Nominal Consumption: ~ 2.7 Amp/hr over 24 hrs (Boost) | ~ 2.08 Amp/hr over 24 hrs (Night)
• Climate Class: T
• Nominal Ambient Temperature: +16 °C to +43 °C
• Temperature Range - Fridge: 0 °C to +10 °C
• Temperature Range - Freezer: -14 °C to -20 °C
• Left Hand Hinge
• Overall Dimensions (mm): 580 (w) x 1523 (h) x 630 (d)
• Cut-out Dimensions (mm): 585 (w) x 1538 (h) x 630 (d)
• Net Weight: 45 kg
