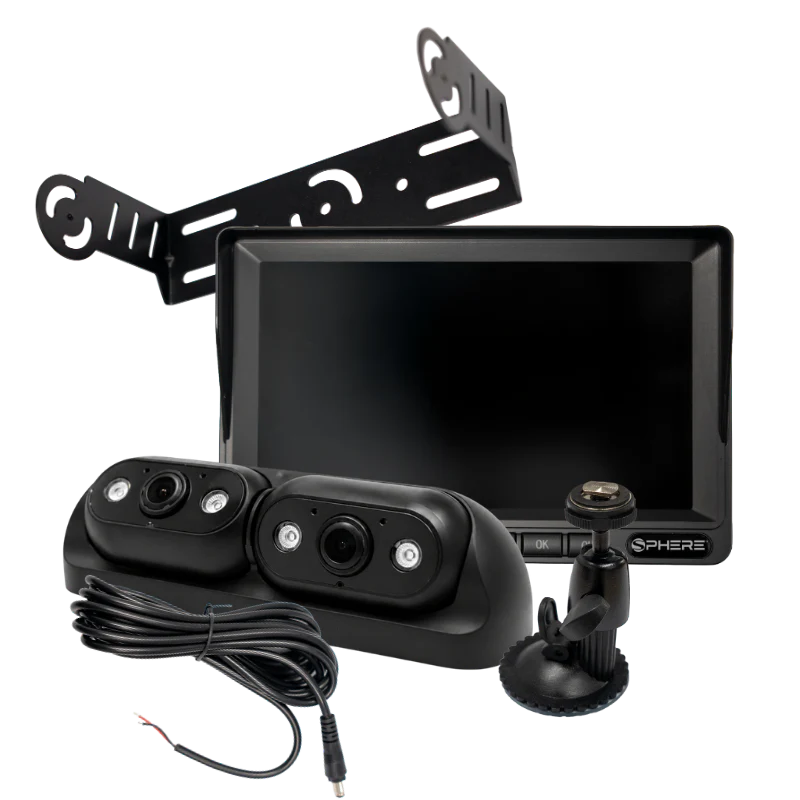

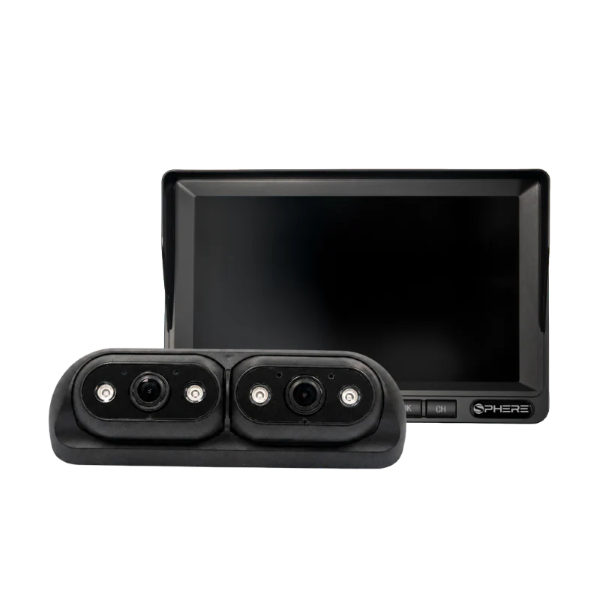

Sphere Aero Wireless HD Camera Kit - Dual

Sphere Aero Wireless HD Camera Kit - Dual

Make reversing, towing and manoeuvring your RV easier with the SPHERE AERO Wireless HD Dual-Camera Kit. Designed for caravans, motorhomes and larger touring setups, this wireless HD camera kit gives you a clearer view around your vehicle, helping reduce the guesswork when backing into a site, lining up the van or keeping an eye on what’s behind you.

This dual camera kit is ideal for RV travellers who want extra visibility without relying on a single rear-view angle. With support for up to 4 cameras, flexible viewing modes and switchable grid lines, the SPHERE AERO gives you practical visibility for everyday touring.

Key Features:

• Dual wireless HD camera kit. Includes a dual camera setup, giving you more visibility around your RV compared to a single camera system.
• Supports up to 4 cameras. The monitor can support up to four cameras, making it a flexible option for RVers who may want to expand their setup later.
• Multiple viewing options. Choose from single, split screen or quad view depending on your camera setup and driving situation.
• Adjustable display settings per camera. Each camera view can be individually adjusted, helping you tailor the display to suit your preferred setup.
• Switchable grid lines. Grid lines can be turned on or off, making it easier to reverse, park or line up your RV when needed.
• Wide-angle camera view. The camera features a 127° horizontal and 170° diagonal viewing angle to help capture more of the area behind or around your RV.
• Built for outdoor travel conditions. With an IP69 waterproof rating and a wide operating temperature range, the camera is designed to handle tough road and weather conditions.
• 12V–36V power compatibility. Suitable for a range of caravan, RV and vehicle electrical setups.

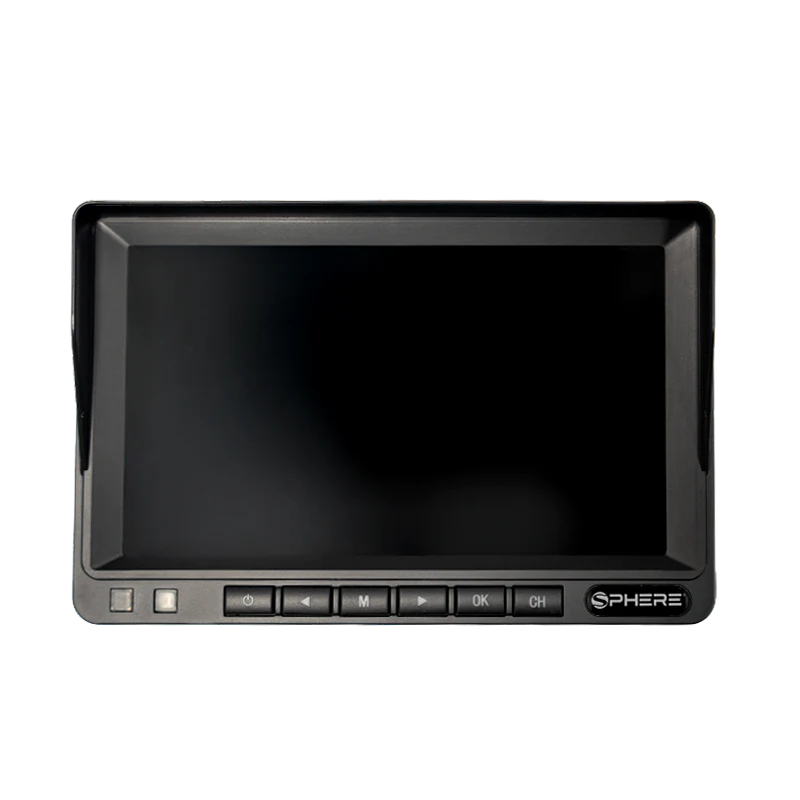

Monitor Specifications:

• Supports NTSC and PAL video systems
• Supports up to 4 cameras
• Display effect can be changed for each individual camera
• Multiple viewing options: single, split screen and quad
• Grid lines can be switched on or off
• Operating frequency: 2400–2483.5MHz
• Transmitted power: 18db
• Resolution: 1280(H) x 1024(V)
• Contrast: 500:1
• Brightness: 500cd/m²
• Response time: 25ms
• Power supply: DC12–36V
• Operating temperature: -20°C to 70°C
• Storage temperature: -30°C to 80°C

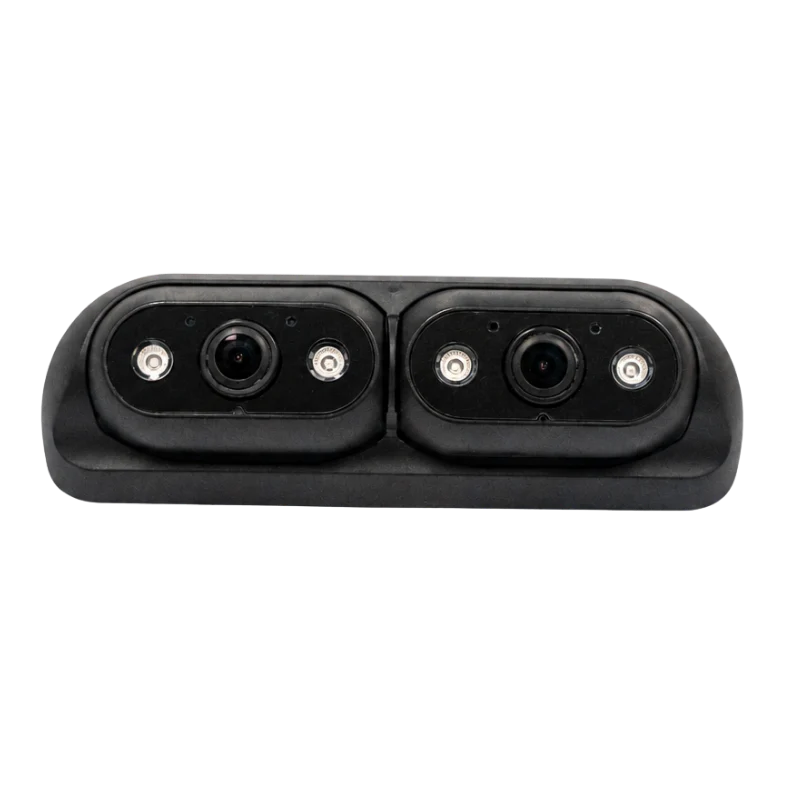

Camera Specifications:

• Image sensor: 1/2.7 inch Starlight
• HD picture elements: 250,000 pixels
• View angle: 127° horizontal / 170° diagonal
• Resolution: 1000TV lines
• TV system: PAL/NTSC
• Waterproof rating: IP69
• Minimum illumination: 0.5 lux
• Power supply: DC12–36V
• Operating frequency: 2400–2483.5MHz
• Operating temperature: -20°C to 70°C / RH 95% max
• Storage temperature: -30°C to 80°C / RH 95% max
