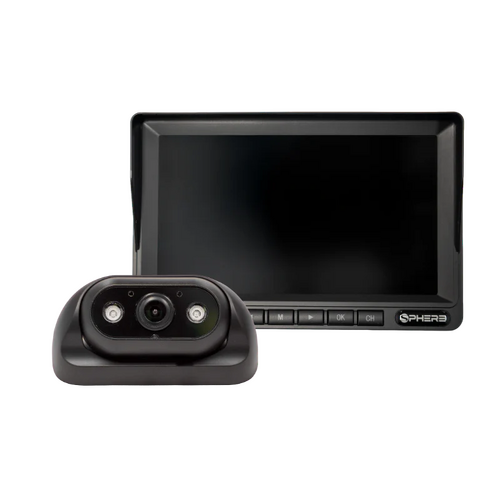

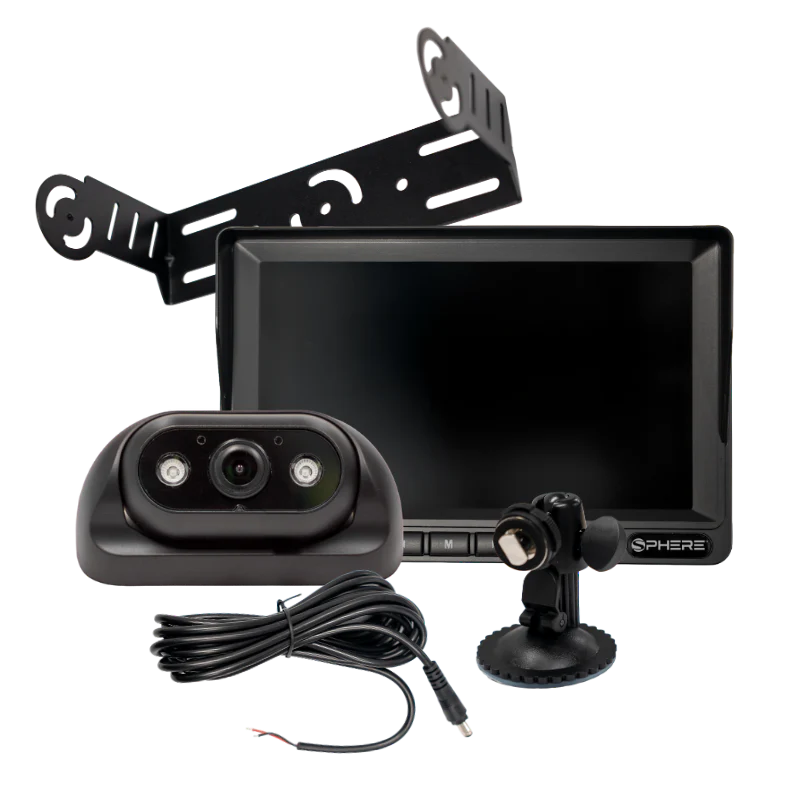

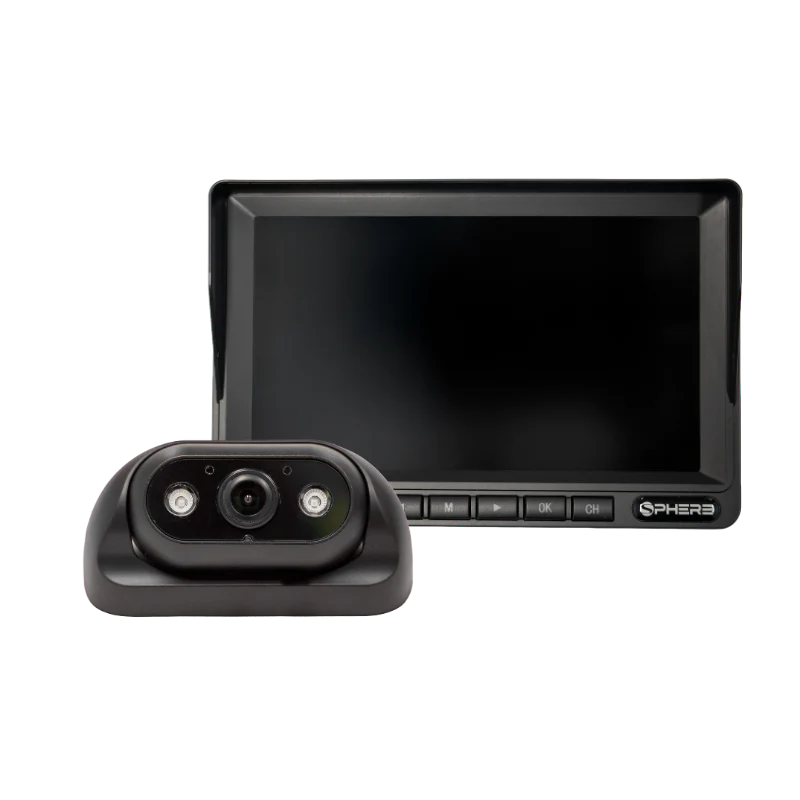

Sphere Aero Wireless HD Camera Kit - Single

Sphere Aero Wireless HD Camera Kit - Single

Make towing, reversing and campsite manoeuvring easier with the SPHERE AERO Wireless HD Camera Kit. Designed for caravans, RVs, motorhomes and tow vehicles, this camera kit gives you a clearer view of what’s happening behind you, helping take the guesswork out of reversing, lane changes and tight parking situations.

With support for up to 4 cameras, multiple viewing modes and a high-resolution monitor, the SPHERE AERO is built for drivers who want better visibility and more confidence on the road.

Whether you’re backing into a caravan park site, keeping an eye on traffic behind the van, or navigating those “just a little further back” moments, this wireless camera system helps make the job simpler.

Key Features:

• Wireless HD camera system. Enjoy a clearer rear-view setup without the need for complicated video cabling between your camera and monitor.
• Supports up to 4 cameras. The monitor can support up to four cameras, making it suitable for larger RV setups or drivers who want multiple viewing angles.
• Multiple viewing options. Choose from single, split screen or quad view depending on your setup and driving needs.
• Adjustable display settings per camera. Each camera display can be individually adjusted, giving you better control over how your views appear on screen.
• Switchable grid lines. Turn grid lines on or off to suit your preference when reversing or positioning your RV.
• Wide-angle camera view. The camera offers a 127° horizontal and 170° diagonal viewing angle, helping you see more of what’s behind you.
• Built tough for outdoor use. With an IP69 waterproof rating, the camera is designed to handle harsh weather and road conditions.
• Wide operating temperature range. Built to perform in demanding Australian travel conditions, with operating temperatures from -20°C to 70°C

Monitor Specifications:

• Supports NTSC and PAL video systems
• Supports up to 4 cameras
• Single, split screen and quad viewing modes
• Grid lines can be switched on or off
• Operating frequency: 2400–2483.5MHz
• Transmitted power: 18db
• Resolution: 1280(H) x 1024(V)
• Contrast: 500:1
• Brightness: 500cd/m²
• Response time: 25ms
• Power supply: DC12–36V
• Operating temperature: -20°C to 70°C
• Storage temperature: -30°C to 80°C

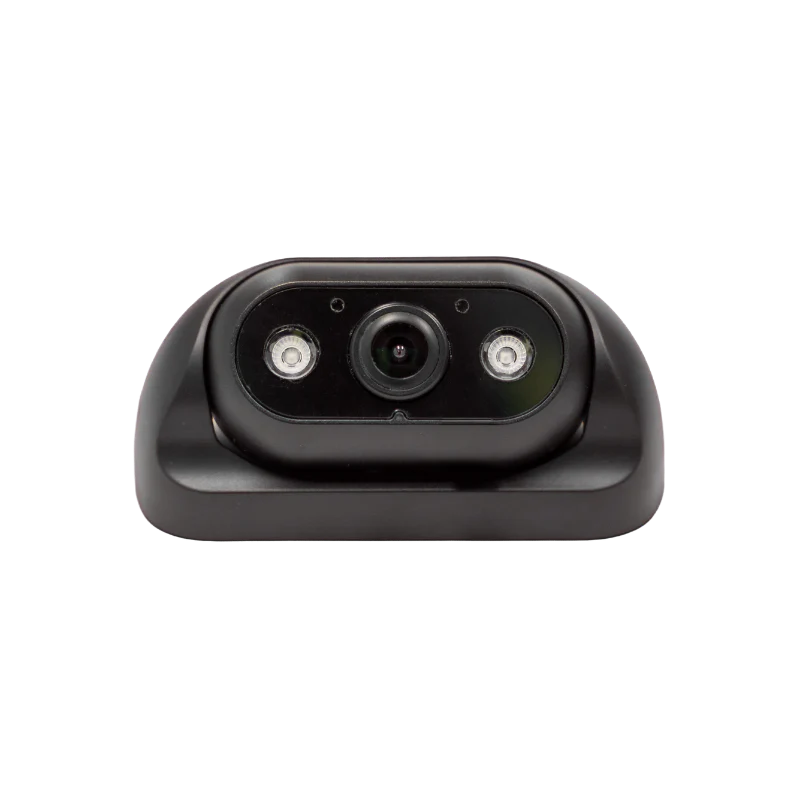

Camera Specifications:

• Image sensor: 1/2.7 inch Starlight
• HD picture elements: 250,000 pixels
• View angle: 127° horizontal / 170° diagonal
• Resolution: 1000TV lines
• TV system: PAL/NTSC
• Waterproof rating: IP69
• Minimum illumination: 0.5 lux
• Power supply: DC12–36V
• Operating frequency: 2400–2483.5MHz
• Operating temperature: -20°C to 70°C / RH 95% max
• Storage temperature: -30°C to 80°C / RH 95% max
