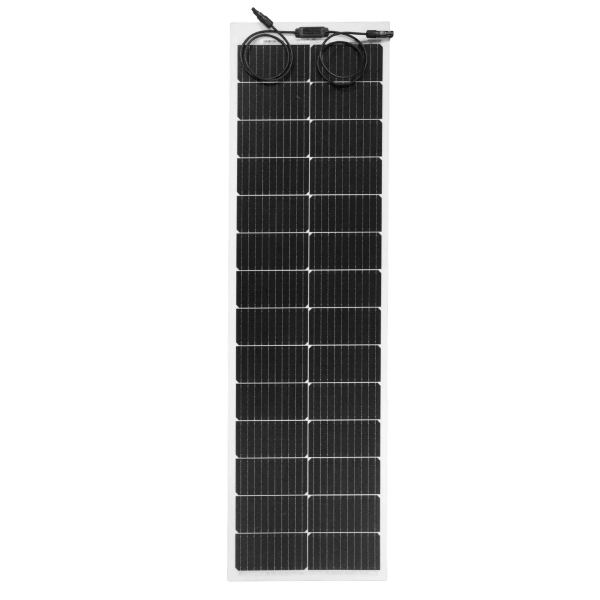

Sunman 100W eArc Narrow Flexible Solar Panel
SKU: SMF100J-2X14UW Learn More»
Sunman 100W eArc Narrow Flexible Solar Panel
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:
- Lightweight and durable construction with cutting-edge technology
- Highly efficient monocrystalline cells for optimal energy production

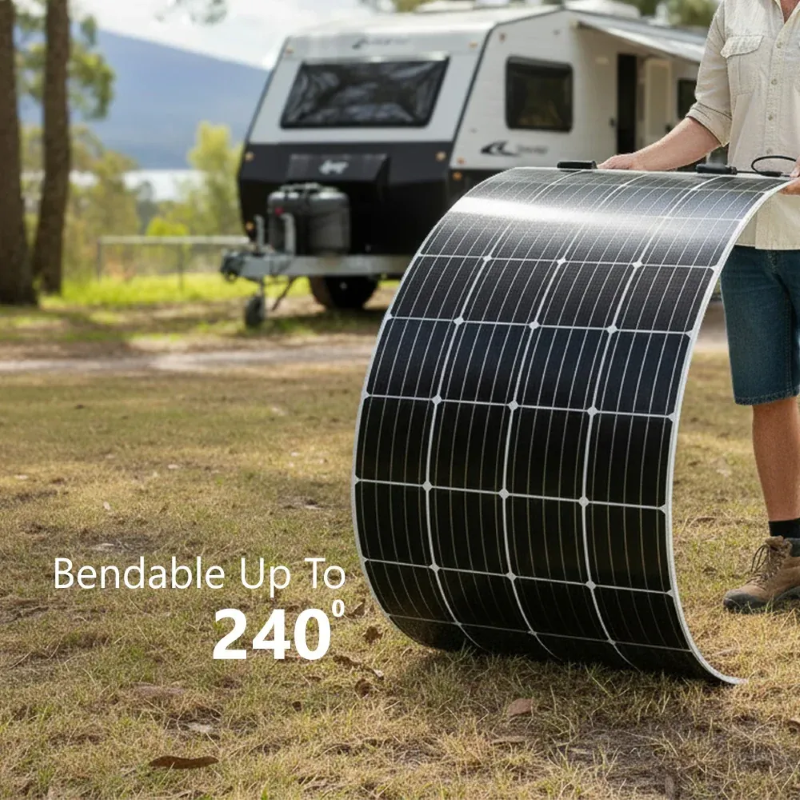

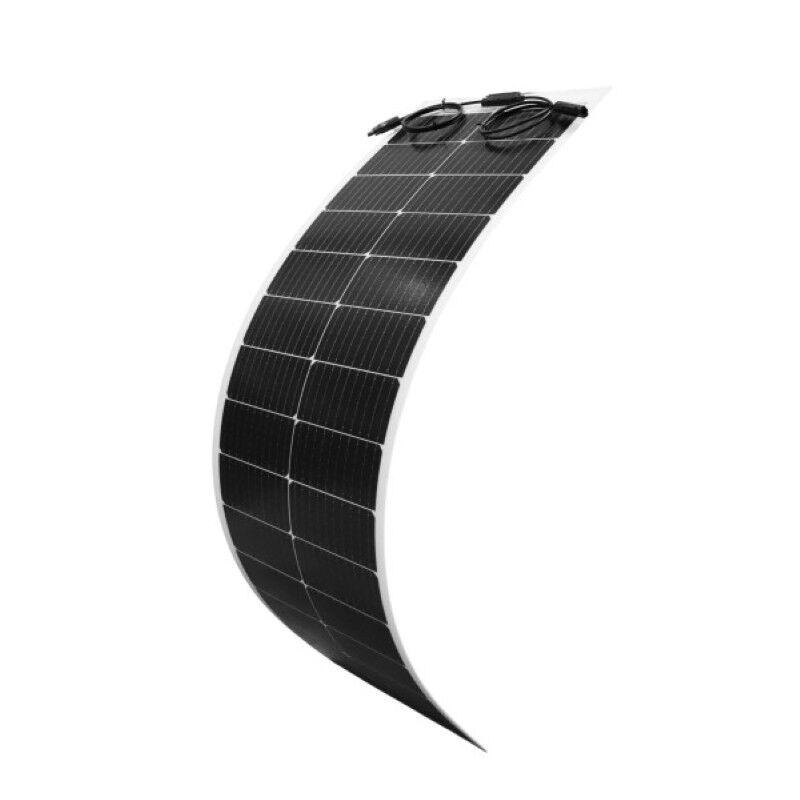

- Flexible design for easy installation on various surfaces
- Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
- CEC-approved for residential and commercial use
- 10-year product warranty for buildings and 5 years for mobile applications
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.
Specifications:
- Weight: 1.5 kg
- Maximum Power (Pmax): 100 W
- Maximum Power Voltage (Vmp): 15.8 V
- Current at Pmax (Imp): 6.34 A
- Short-Circuit Current (Isc): 6.78 A ±5%
- Open-Circuit Voltage (Voc): 17.9 V ±5%
- Operating Temperature (°C): 41 °C
- Maximum System Voltage: 1000 V DC (IEC)
- Power Tolerance: 0/+5 W
- Backsheet: White

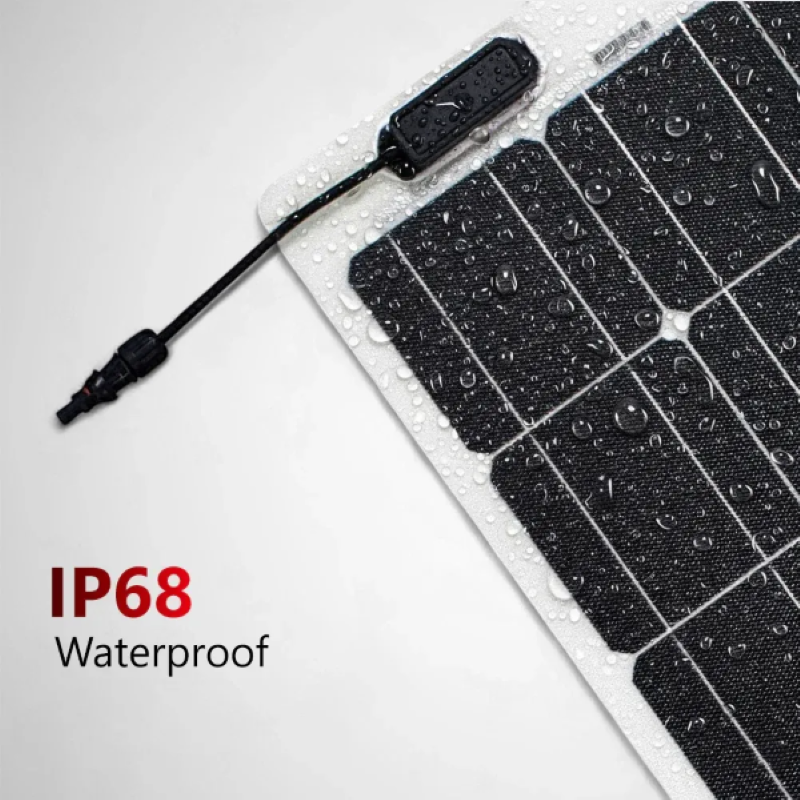

- Junction Box: IP68 rated (each junction box has one bypass diode)
- Output Cables: Photovoltaic technology cable 4.0 mm², (+)150 / (-)450 mm
- Connector: MC4 compatible

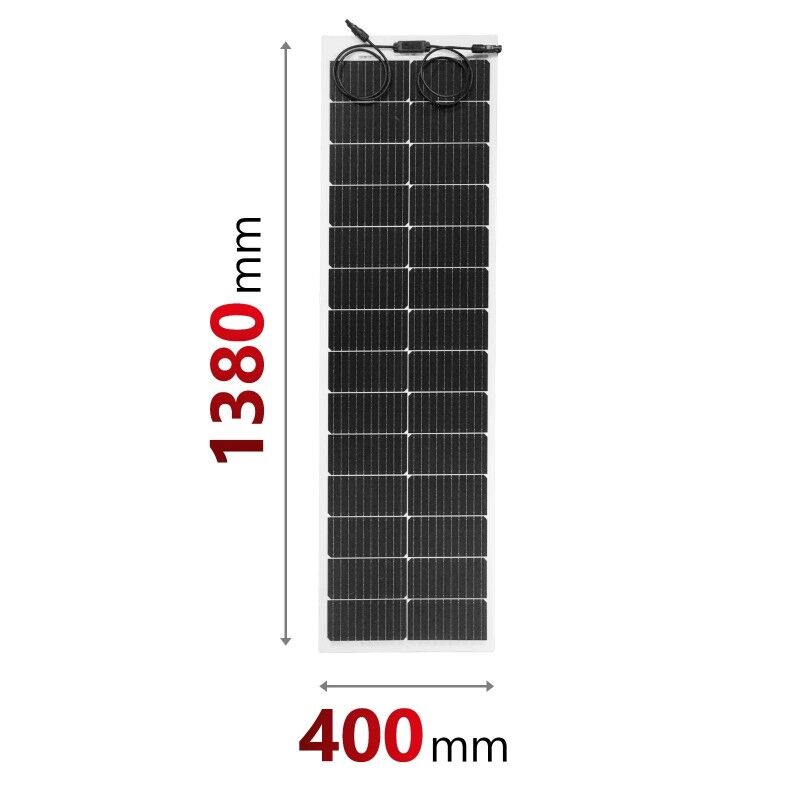

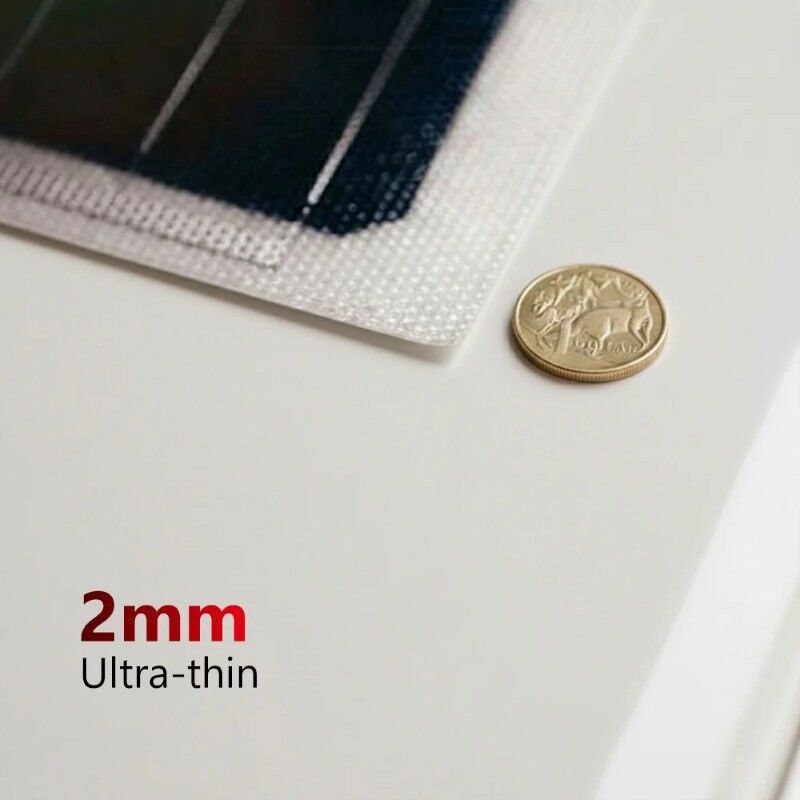

- Dimensions: 1380 x 400 x 2mm
Specifications
SKU SMF100J-2X14UW
Brand Sunman
GTIN SMF100J-2X14UW
Product Category Solar Panels
Watts (W) 100
Solar Panel Cell Type Monocrystalline-PERC
Solar Panel Type Flexible Solar Panels
Short Circuit Current Isc(A) 6.78 ±5%
Operating Temperature 41¡C
Power Tolerance 0/+5 W
Connector MC4 Compatible
Dimensions 1380 x 400 x 2mm
Weight (kg) 1.50
IP Rating IP68
Maximum System Voltage 1000V DC (IEC)
