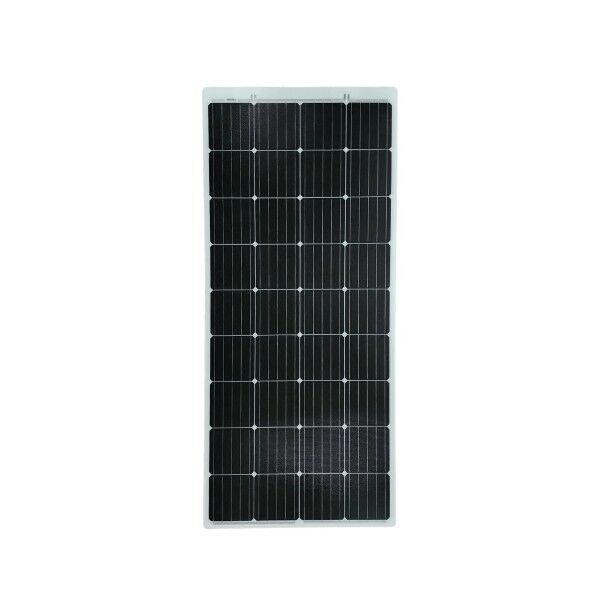

Sunman 175W eArc Flexible Solar Panel | Junction Box Underneath

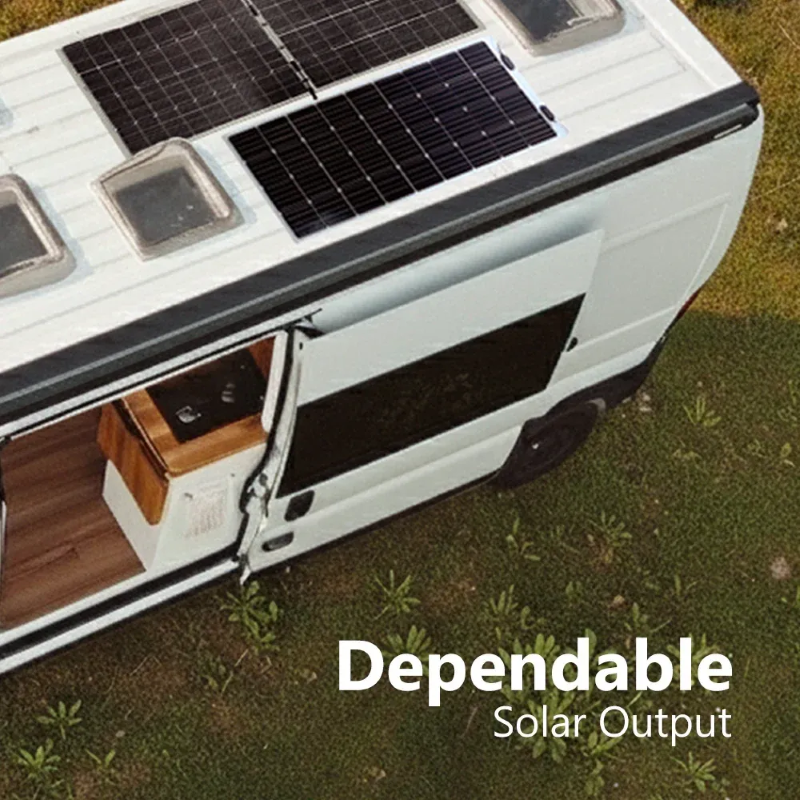

Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:
- Lightweight and durable construction with cutting-edge technology

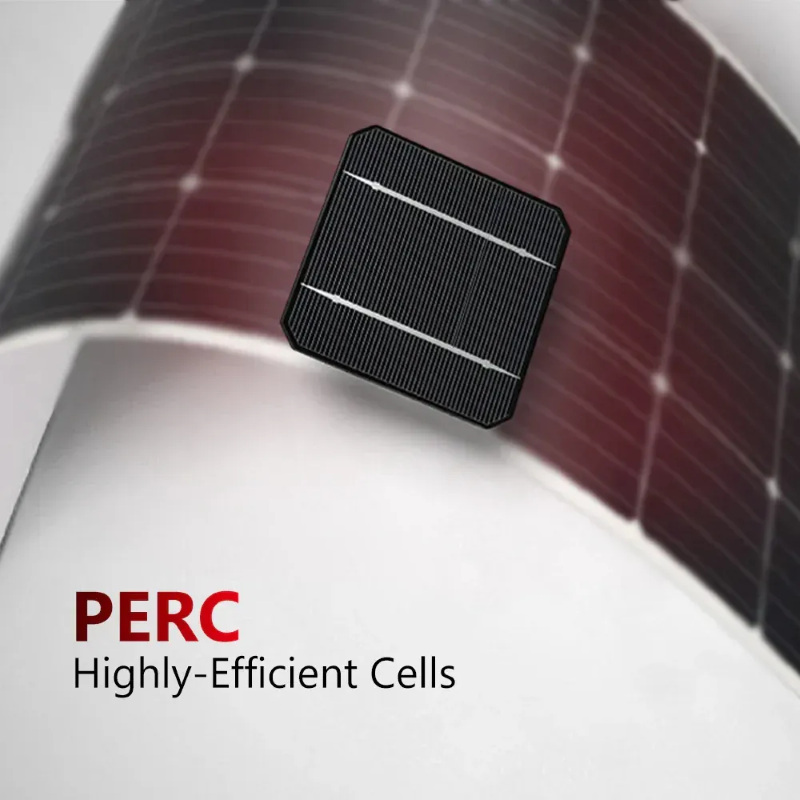

- Highly efficient monocrystalline cells for optimal energy production

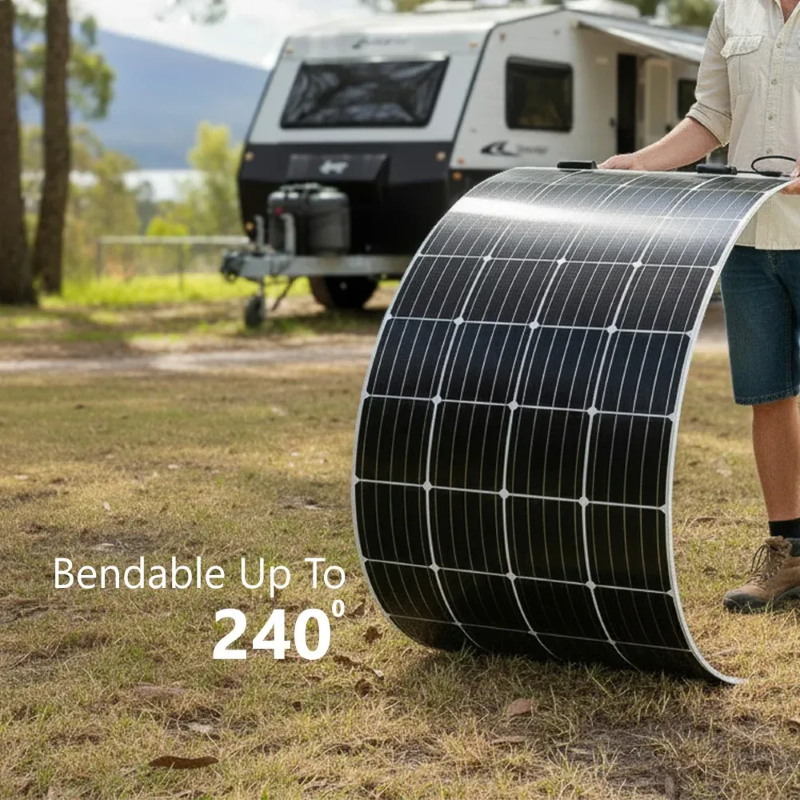

- Flexible design for easy installation on various surfaces
- Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
- CEC-approved for residential and commercial use
- 10-year product warranty for buildings and 5 years for mobile applications
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.
Specifications:
- Solar cells: 36 (4x9)

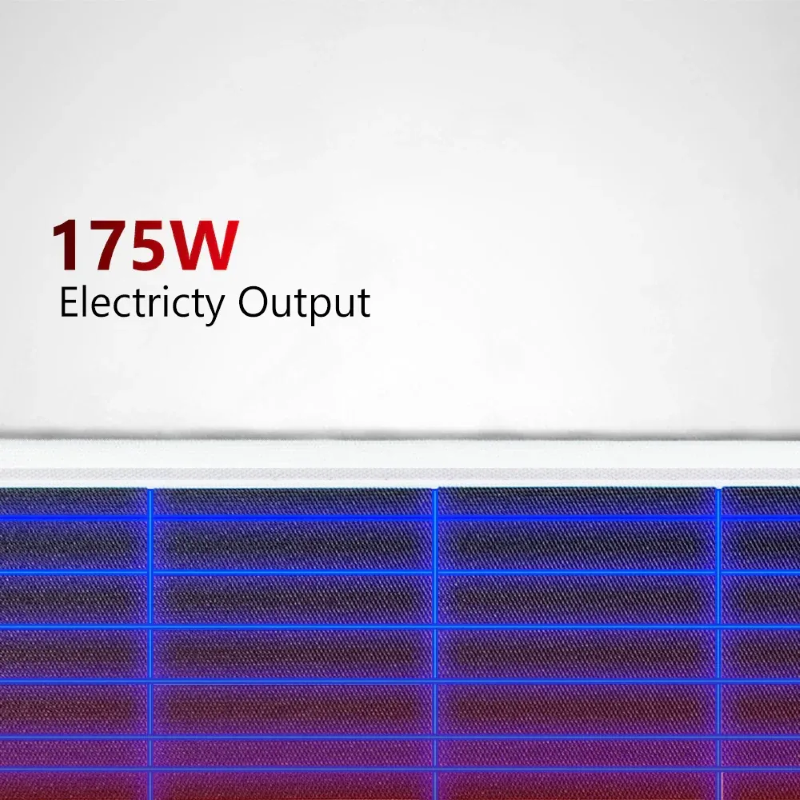

- Maximum Power (Pmax): 175
- Maximum Power Voltage (Vmp): 19.5
- Maximum Power Current (Imp): 8.98
- Open-circuit Voltage (Voc): 23.9
- Short-circuit Current (Isc): 9.5
- Operating Temperature (°C): -40 °C to 85 °C
- Maximum System Voltage: 1000 V DC (IEC)
- Maximum Series Fuse Rating: 20 A
- Application Class: Class A
- Power Tolerance: 0/+5 W
- Backsheet: White

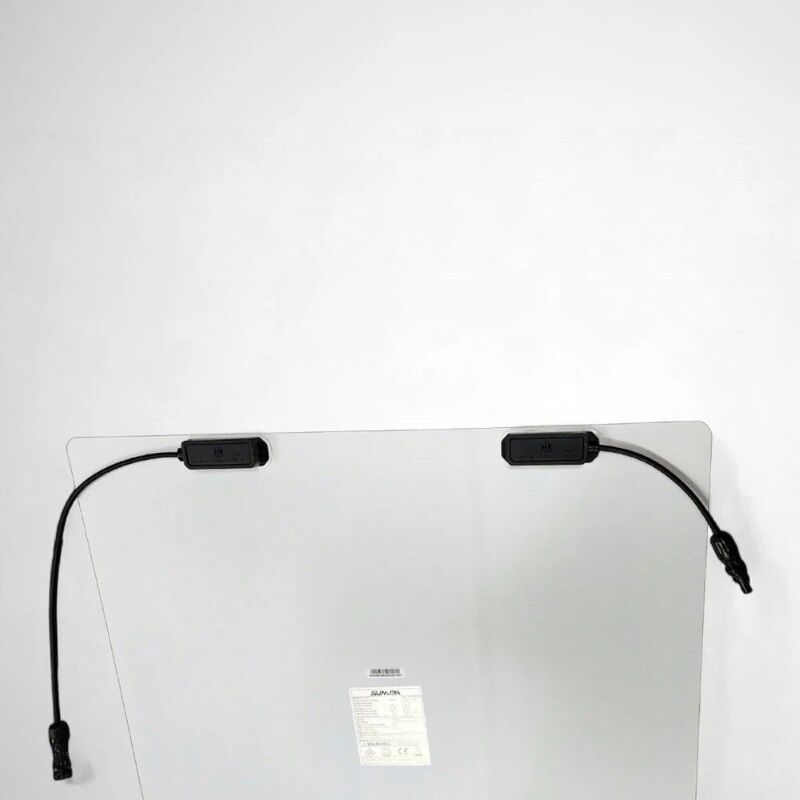

- Junction box: IP 68 rated (each j-box has one by-pass diode)
- Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
- Connector: MC4 compatible
.png)
Specifications
SKU eASMF175M-4X09DW
Brand Sunman
Product Category Solar Panels
Watts (W) 175
Solar Panel Cell Type Monocrystalline-PERC
Solar Panel Type Flexible Solar Panels
Short Circuit Current Isc(A) 9.50
Operating Temperature -40°C to 85°C
Power Tolerance 0/+5 W
Connector MC4 Compatible

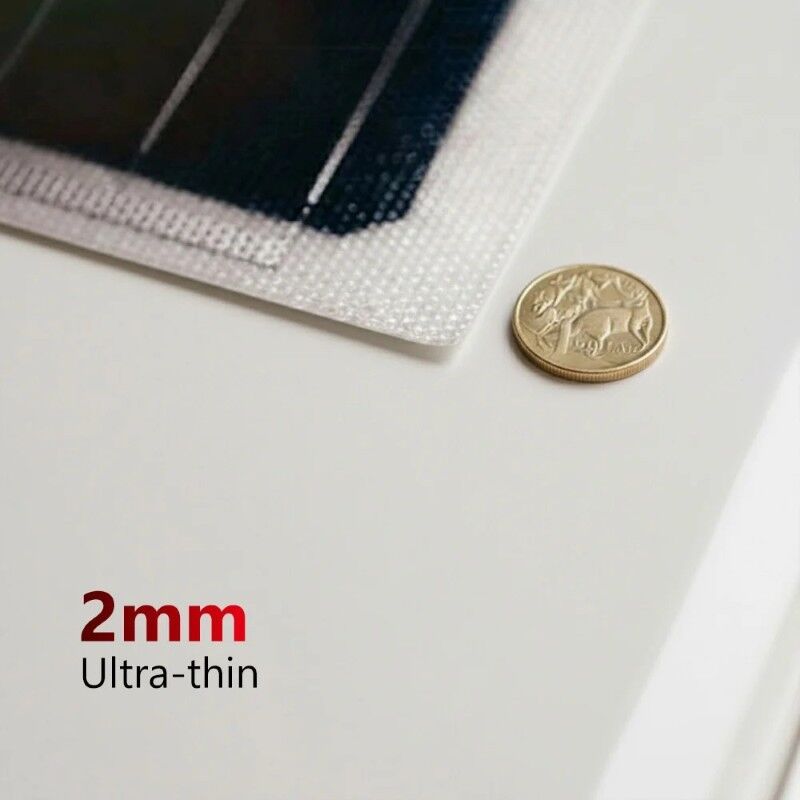

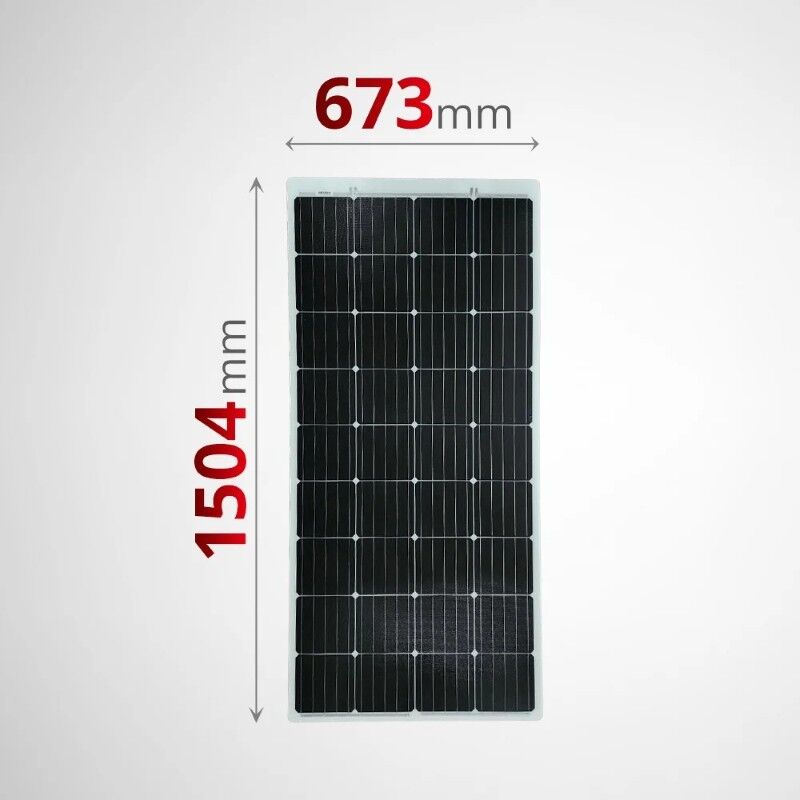

Dimensions 1504 x 673 x 2mm
Weight (kg) 3.30

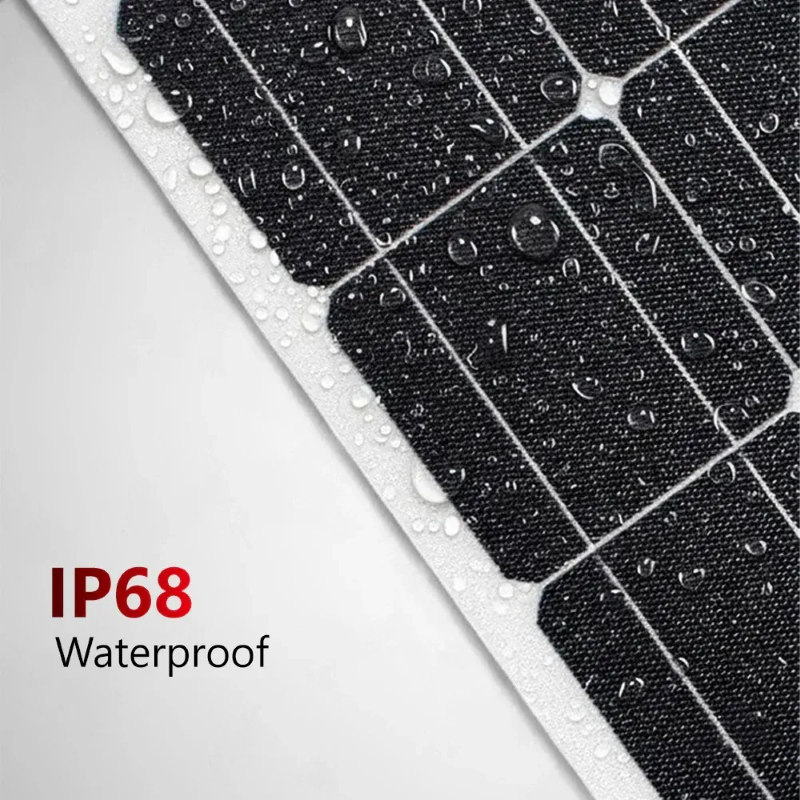

IP Rating IP68
Maximum System Voltage 1000 V DC (IEC)
