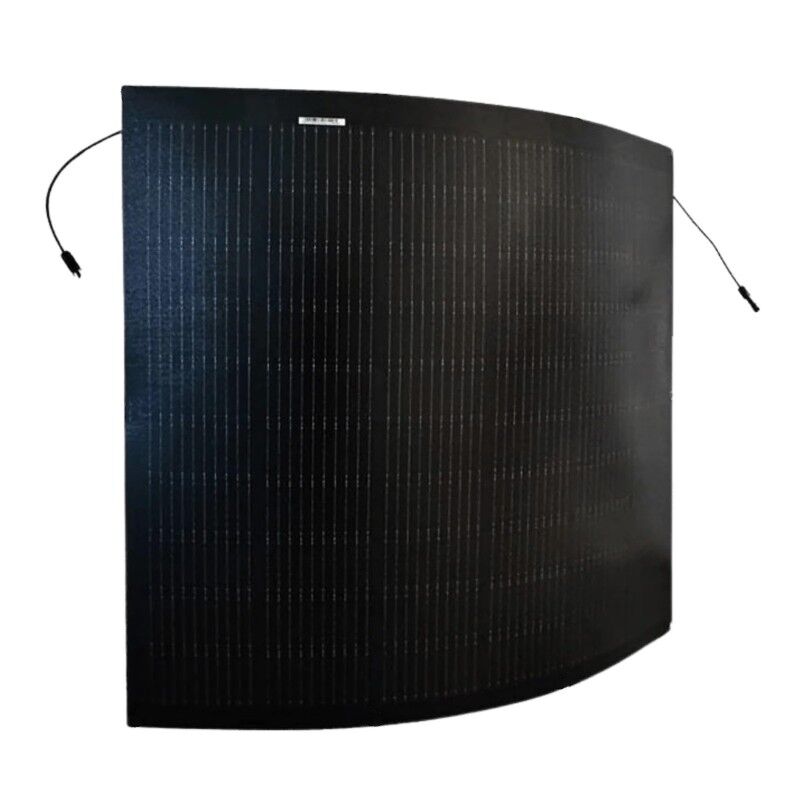

Sunman 200W eArc Black Square Flexible Solar Panel - Junction Box Underneath
SKU: eASMF200J-6X10DB-Se-1 Learn More»
Sunman 200W eArc Black Square Flexible Solar Panel - Junction Box Underneath
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:
- Lightweight and durable construction with cutting-edge technology
- Highly efficient monocrystalline cells for optimal energy production
- Flexible design for easy installation on various surfaces
- Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
- CEC-approved for residential and commercial use
- 10-year product warranty for buildings and 5 years for mobile applications
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.
Specifications:
- Solar cells: 40 (4x10)
- Maximum Power (Pmax): 200
- Maximum Power Voltage (Vmp): 34.7
- Maximum Power Current (Imp): 5.78
- Open-circuit Voltage (Voc): 41.1
- Short-circuit Current (Isc): 6.66
- Operating Temperature (°C): -40 °C to 85 °C
- Maximum System Voltage: 1000 V DC (IEC)
- Maximum Series Fuse Rating: 20 A
- Application Class: Class A
- Power Tolerance: 0/+5 W
- Backsheet: White

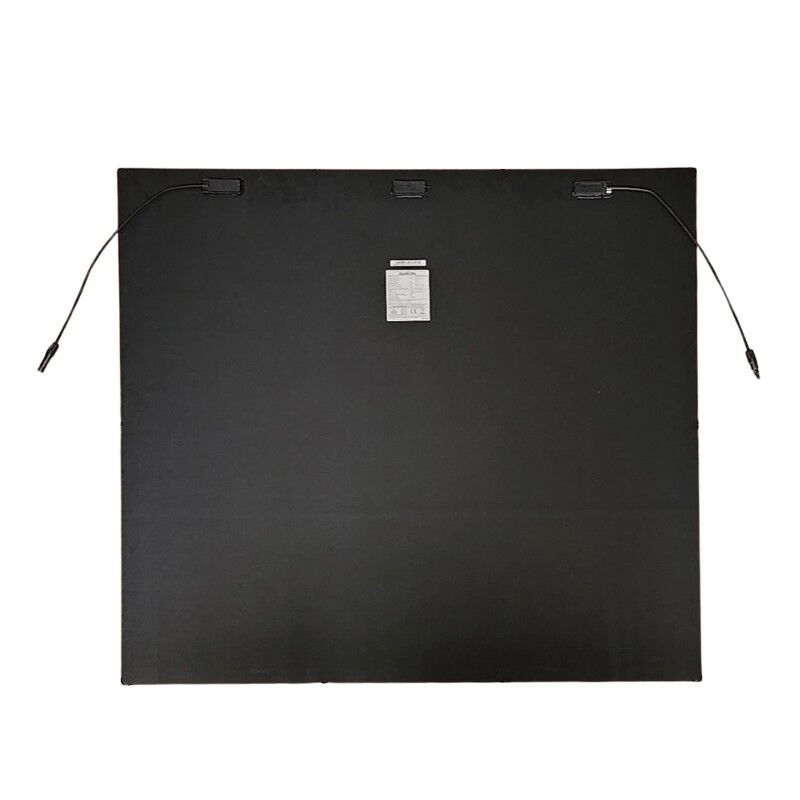

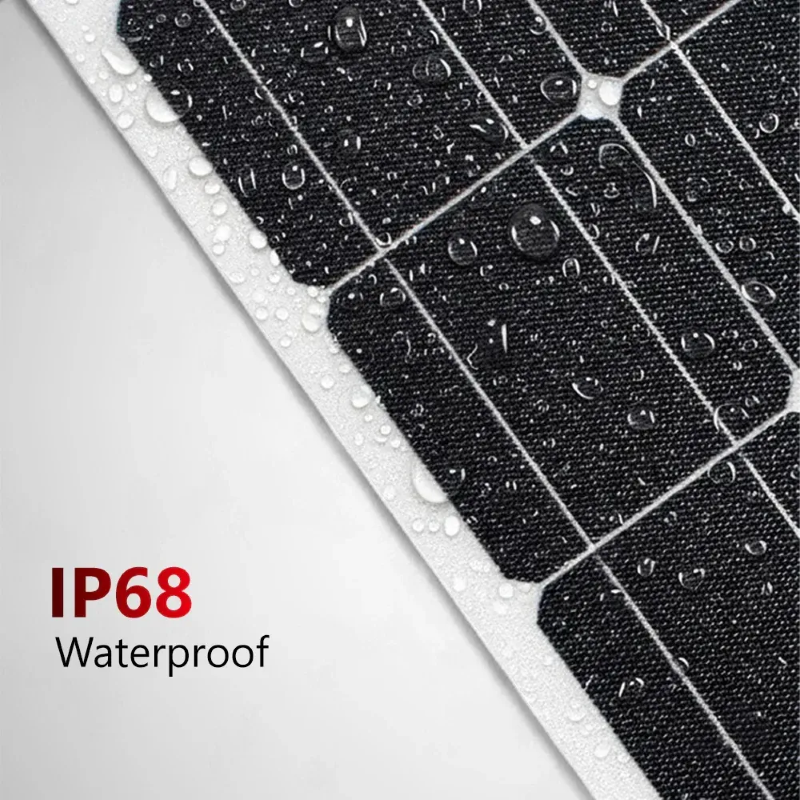

- Junction box: IP 68 rated (each j-box has one by-pass diode)
- Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
- Connector: MC4 compatible

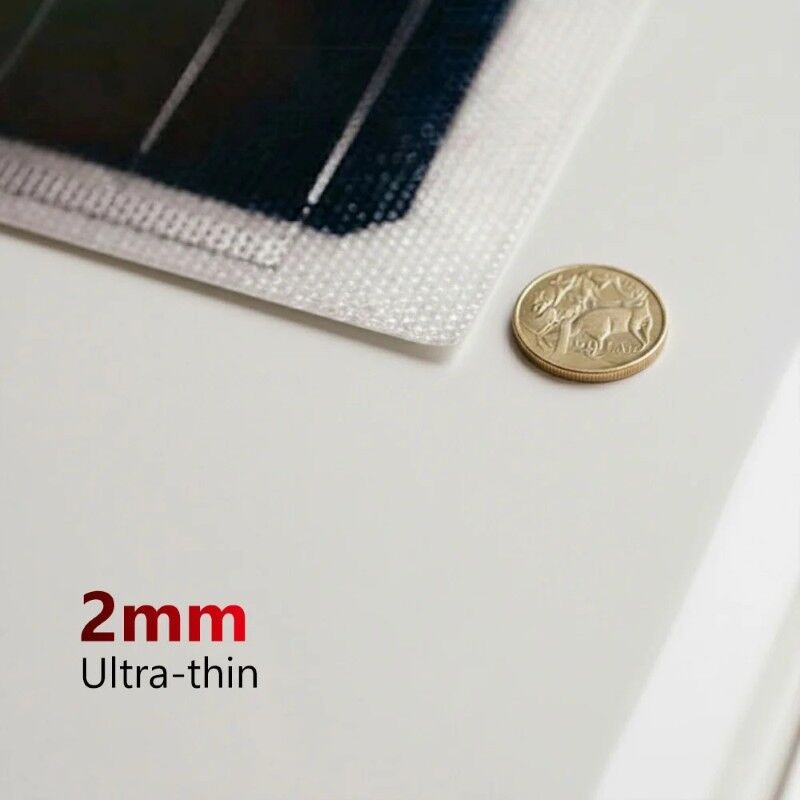

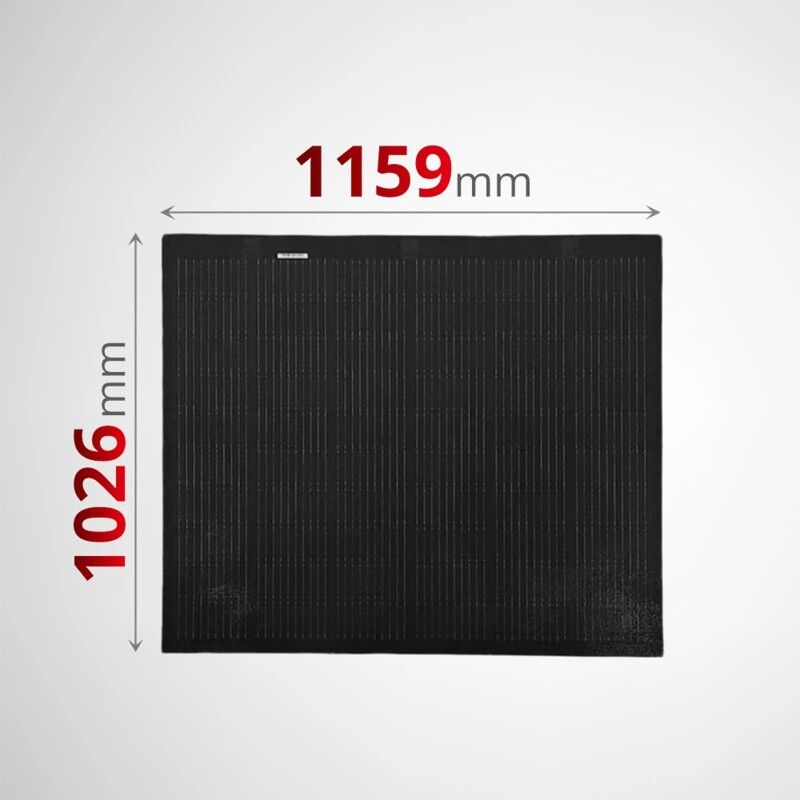

- Dimensions (L x W x H): 1159 x 1026 x 2mm
- Dimensions Incl JB (L x W x H): 1159 x 1026 x 22mm
Specifications
SKU eASMF200J-6X10DB-Se-1
Brand Sunman
Product Category Solar Panels
Watts (W) 200
Solar Panel Cell Type Monocrystalline-PERC
Solar Panel Type Flexible Solar Panels
Short Circuit Current Isc(A) 6.66
Operating Temperature -40°C to 85°C
Power Tolerance 0/+5 W
Connector MC4 Compatible
Dimensions 1159 x 1026 x 2mm / 1159 x 1026 x 22mm (including junction box)
IP Rating IP68
Maximum System Voltage 1000 V DC (IEC)
